Rockwell Automation Publication 1766-UM001I-EN-P - June 2015

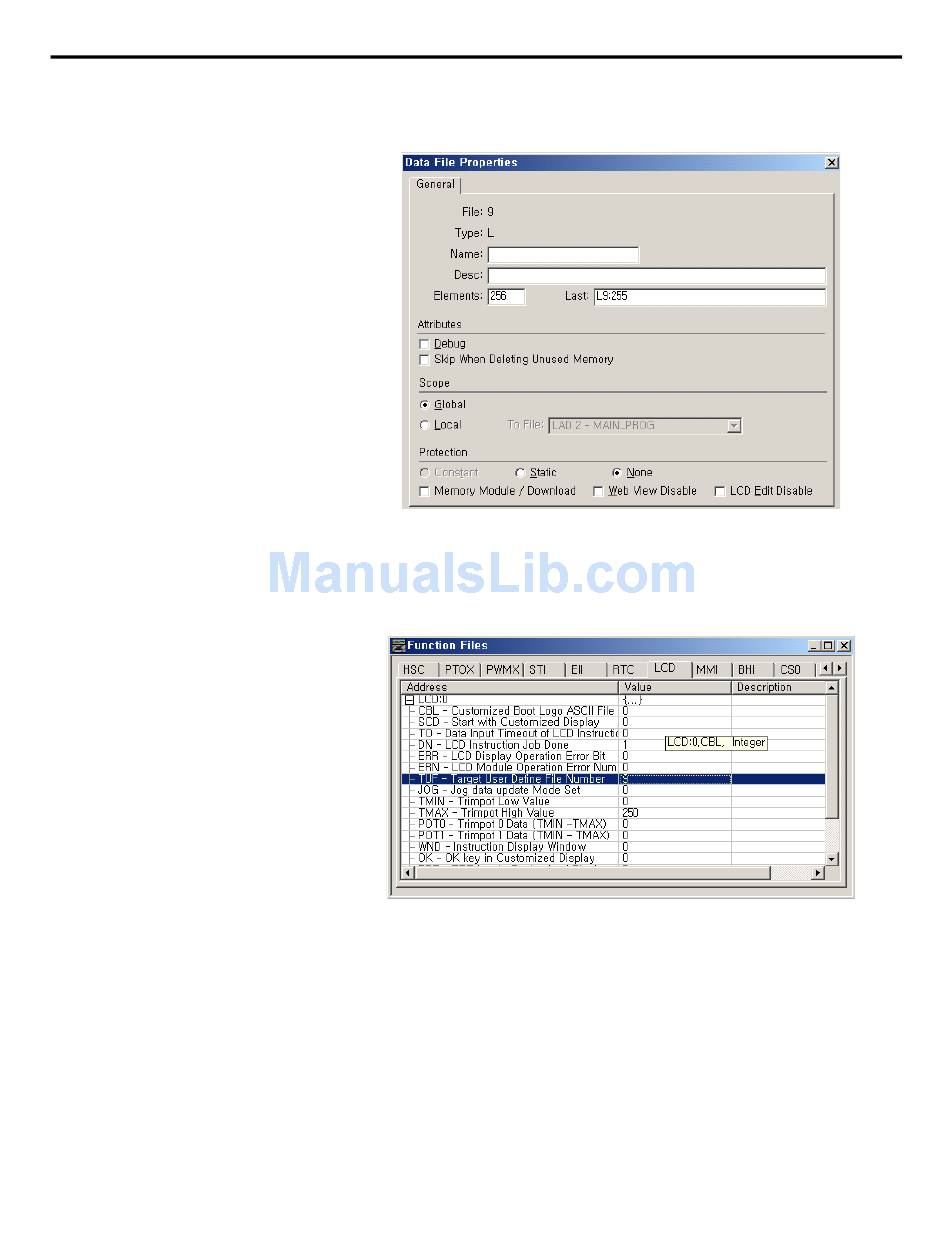

• LCD Edit Disable is set to unchecked(disable)
• The TUF element of the LCD Function File is set to 9 to specify the
integer file L9 as the target file to monitor on the LCD, as shown in the
screen capture below.
The controller mode is set to REMOTE RUN.
Follow these steps to view and change the data values of the double integer file L9.
Using the LCD
Chapter 5
107
