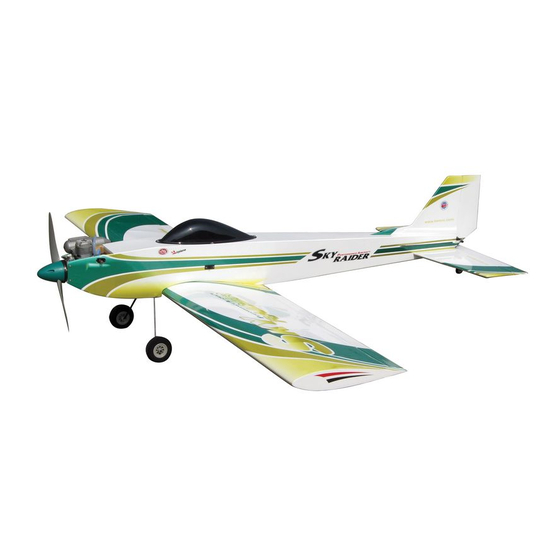

SKY
Mach
0.40 0 46 Cubic inch displacement 2 stroke
- .
Requires: 4- channel
Wing Span
Wing Area
Flying Weight
Fuselage Length
*Specifications are subject to change without notice.*
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries Remember, safety is the most important thing. Always keep this instruction manual at
.
hand for quick reference.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
RAIDER
II
radio
Specifications
INSTRUCTION MANUAL
w/ 4 standard servos
54.0 in / 1370 mm
556 sq in / 35.9 sq dm
5 lb / 2200 g
47.5 in / 1210 mm
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
-
MADE IN CHINA
Advertisement
Table of Contents
Related Manuals for The World Models Manufacturing Sky Raider Mach-II
Summary of Contents for The World Models Manufacturing Sky Raider Mach-II
- Page 1 INSTRUCTION MANUAL RAIDER Mach 0.40 0 46 Cubic inch displacement 2 stroke Requires: 4- channel radio w/ 4 standard servos Specifications Wing Span 54.0 in / 1370 mm Wing Area 556 sq in / 35.9 sq dm Flying Weight 5 lb / 2200 g Fuselage Length 47.5 in / 1210 mm *Specifications are subject to change without notice.*...
-
Page 2: Before You Begin
RAIDER Mach INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-11 P.11 SAFETY PRECAUTIONS BEFORE YOU BEGIN Read through the manual before you begin, so that you can have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly. -
Page 3: Parts List
Parts List 1.MAIN WING --1 pair SCREW P 2x12mm--3 pcs TRI-HORN M3x14mm(S)--1 set FUEL TUBE D6x5mm--1 pc. 2.WING JOINER 6x26x145mm--1 pc. CLEVIS--1 pc. 3.PLYWOOD 3x8x22mm(For Aileron Servo)--1 pc. 13.PUSHROD D1. x685mm w/ Threads(For Rudder)--1 pc. RING D2.3mm--2 pcs SCREW P 2x12mm--3 pcs TRI-HORN M3x14mm(S)--1 set FUEL TUBE D6x5mm--1 pc. -
Page 4: Aileron Servo
Main Wing Pre-glued Left Wing Main Wing Please dry fit wing joiner into left and right wing to make sure they fit with the proper dihedral angle, mark the wing joiner if necessary. Apply epoxy glue to both sides of all surfaces in contact. - Page 5 Aileron Servo TWM PL8210010 CLEVIS WRENCH Ø Pushrod 1.8x135mm Straper Fuel Tube 6x5mm Ø Clevis Ring Completed Stabilizer & Elevator Pre-glued A=A' Bottom View Completed...
-
Page 6: Main Landing Gear
ertical Fin / Rudder Use thread locker when tightening Screw PM3 x 65mm screw. Don't excessive force Washer d3 x D7mm as you are dealing with balsa. P r e - g l u e d PM3x65mm Washer d3xD7mm Completed ●Bottom View Main Landing Gear 3mm Set Screw... - Page 7 ail Landing Gear PA3 X12mm Screw PM2 x 12mm Screw Aluminum Plate M2 Nut M2 Nut PM2 x 12mm 2.1mm Collar 2.1mm Collar 3mm Set Screw PA3 X12mm 1.5mm Completed Bottom View Engine Mount Socket Head Screw M 3 x 20mm M3 x 20mm Socket Head Screw Washer d3xD7mm...
-
Page 8: Fuel Tank
Fuel Tank Install Balsa 9 x 9 x 88mm (For Fuel Tank Position Fixing) Fuel Tank 260cc Top View ervo Set 3x3mm Set Screw 3 X 3mm Set Screw Linkage Connector 2mm Nut Washer 2mm Washer Washer 2m m Throttle Servo. M2 Nut Please refer to attached sheet for linkage connector installation. -
Page 9: Rudder Pushrod
Ø1mm pilot holes for World Models tri-horn Rudder Pushrod are pre-drilled. Please look for pin-hole marks at under side of control surfaces. PB2 x 12mm Screw TWM PL8210010 CLEVIS WRENCH PB2 x 12mm Clevis Fuel Tube Tri-Horn Ø 6 x 5mm M3x14mm Pushrod Ø1.8 x 685mm d3xD7mm... - Page 10 adio Equipment Install and arrange the servos as shown in the diagram. Charge Receptacles Rudder Servo Receiver Switch Harness Throttle Servo KP0041300 Fuel Tube Fuel Tube Battery Rudder Ø Ø 6 x 5mm 6 x 5mm Pushrod Straper Straper Elevator Pushrod Plastic Tube Throttle Pushwire...
- Page 11 Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. P.1 0...
-
Page 12: Control Throws
Control Throws Adjust the control throws as shown in the diagram. These throws are good for general flying. You can adjust according to your Elevator personal preference. 15mm 15mm Rudder 20mm 20mm Aileron The ideal C.G. position is 76mm (3 in) behind the leading C.G. - Page 13 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
- Page 14 Product Registration Form (US Customers) We would like to share with you any relevant information regarding your model, including product news and free upgrade parts when applicable. Please fill in the following and send to AirBorne Models, 4749-K, Bennett Drive, Livermore CA 94551 USA. 1.
-
Page 15: Optional Parts
Optional Parts ACCESSORIES) 180mm Extension Fuel Filler Code No. Size Package Code No. Size Package KW0011800 PL8110030 180mm 1 set 15 x 22 x 49mm 1 x 1 pc 180mm Y-Cord Code No. Size Package KW0021800 180mm 1 pc Clevis Wrench Code No. - Page 16 P a t t e r n D u c t e d F a n F u n f l y W a r b i r d s S c a l e E l e c t r i c S p o r t s G l i d e r B o a t...
