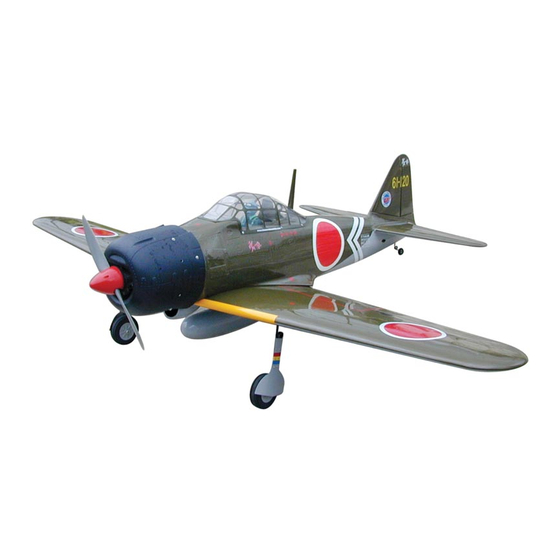

ARF
1.60 cubic inch displacement 2- stroke(glow)
Requires: 6- channel radio w/ 7 standard servos
Wing Span
Wing Area
Flying Weight
Fuselage Length
lage Length
Warning !This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
A122PO22941003
and 2 low profile retract servos
Specifications
* Specifications are subject to change without notice.*
INSTRUCTION MANUAL
80.0 in / 2030 mm
80.0 in / 2030 mm
1138 sq in / 73.4 sq dm
15.5-17 lbs / 7100-7700 g
15.5 17 Ibs 7100 7700
/
68 in / 1730 mm
ALMOST-READY-TO-FLY (ARF) SERIES
1 6 0
g
FACTORY PRE-FABRICATED
MADE IN CHINA
Advertisement
Table of Contents
Related Manuals for The World Models Manufacturing ZERO G.S-160
Summary of Contents for The World Models Manufacturing ZERO G.S-160
- Page 1 INSTRUCTION MANUAL 1 6 0 1.60 cubic inch displacement 2- stroke(glow) Requires: 6- channel radio w/ 7 standard servos and 2 low profile retract servos Specifications 80.0 in / 2030 mm Wing Span 80.0 in / 2030 mm Wing Area 1138 sq in / 73.4 sq dm 15.5-17 lbs / 7100-7700 g Flying Weight...
-
Page 2: Before You Begin
1 6 0 I N D E X BEFORE YOU BEGIN P. 1 PARTS LIST P. 2 ASSEMBLY P. 3 - 11 SAFETY PRECAUTIONS P. 11 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. -
Page 3: Parts List
Parts List 1. MAIN WING 1 pair 2. SCREW PWA2x8mm -- 16 pcs 11. LINKAGE CONNECTOR Ø2.1mm -- 3 sets SCREW PB2x22mm -- 4 pcs SCREW PB2x20mm -- 2 pcs 12. PLYWOOD 6x61x133mm(For Elevator\ Rudder) -- 1 pc. SCREW PB2x25mm -- 4 pcs BALSA 6x6x41mm(For Elevator\ Rudder Servo Stand) -- 2 pcs SCREW PB2x22mm -- 2 pcs SPONGE 10x80x200mm(For Radio Equipment) -- 2 pcs... - Page 4 Flap & Aileron Pre-glued Flap & Aileron Servos Screw PWA2x8mm Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. Screw PB2x25mm Screw PB2x22mm PWA2x8mm Fuel Tube Straper d2xD4x4mm Screw PB2x22mm Screw PB2x20mm...
- Page 5 Landing Gear & Retract Servos Screw PM2x8mm Washer d2xD5mm d2xD5mm d2 x D5mm Washer Washer PM2x8mm Retract Servos Covering Film Pushrod Travel Pushrod Travel 32mm 32mm Wheel Wheel Down Down Wheel Wheel A:Inverted mount with Pitts type muffler. Engine Mount Screw M6x30mm Apply thread locker to screws.
-
Page 6: Fuel Tank
Fuel Tank Fuel Tank 800cc Install Balsa 8x8x128mm (For Fixing Fuel Tank) Fuel Tank Plywood 800cc Balsa 6x61x133mm 6x6x41mm Bottom View Stabilizer & Elevator Screw PA3x12mm (Stabilizer) Temporary install the main wing, adjust Washer d3xD7mm leveling of the stabilizer to make it as (Main Wing) parallel to the main wing as possible. -
Page 7: Rudder Pullwire
Tail Landing Gear Screw PA3x12mm Ø30mm Set Screw 1.5mm Set Screw Collar 2.6mm 2.6mm Collar PA3x12mm Vertical Fin & Rudder Pre-glued C=C' Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please Rudder Pullwire look for pin-hole marks at under side of control surfaces. Screw PM2x30mm TWM PL8210010... -
Page 8: Elevator Pushrod
Ø1mm pilot holes for World Models tri-horn are Elevator Pushrod pre-drilled.Please look for pin-hole marks at under side of control surfaces. Screw PWA2x12mm S e t S c r e w 3 x 3 m m Screw PB2x20mm TWM PL8210010 CLEVIS WRENCH Pushrod Ø1.8x27mm... - Page 9 Servo Set 3x3mm Set Screw LINKAGE CONNECTOR Set Screw 3 x 3mm Included with the radio Set. Linkage Connector Washer Washer Washer 2m m Throttle Servo. Please refer to the attached sheet for linkage connector installation. Servos Charge Receptacles KP0041300 Copper Tube Press down the center 1/3 portion...
- Page 10 Engine M4 Nylon Insert Lock Nut Screw M4 x 35mm Plastic Tube Throttle Pushwire d2xD3x110mm Ø1.2x360mm Washer Screw KM3 x 20mm d4 x D12mm M4 Nylon Insert Lock Nut M3 Nylon Insert Lock Nut Washer M4 x 35mm d4 x D12mm Illustration is for inverted mounting.
- Page 11 Main Wing Screw PM3 70mm Wing Tube Ø25.4 x 750mm Washer d3 x D7mm Washer d4 x D15mm M4 45mm SOCKET HEAD SCREW M3 mm SOCKET HEAD SCREW M3 Nylon Insert Lock Nut Wing Tube Ø9.5 x 382mm Bottom View Screw PWA3x12mm Down...
- Page 12 Canopy First insert the grommet the cowling then apply screw. Screw d1.5 x D6.5 mm PWA2.3x8mm PWA2.3 x 8mm Antenna Silicon Grommet Sponge d1.5xD6.5 mm Silicon Grommet Pilot Decals Apply double-sided tape Wing Setting A = A ' B = B ' C = C ' Adjust the wing and fuselage configuration as shown in the diagrams.
-
Page 13: Control Throws
Adjust the control throws as shown in the diagram Control Throws These throws are good for general flying . Yon can adjust according to your personal preference . Elevator 18mm 18mm Rudder 41mm 41mm Flaps (near fuselage ) 50mm Ailerons ( away from fuselage ) 12mm 12mm The ideal C G position is 140mm 5 51... -
Page 14: Landing Gear
ADDENDUM LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder. - Page 15 Should you require to bend the landing gear wire, please insert a round metal bar into the spring coil and apply force there as leverage. Bending the wire directly may damage the mounting block structure. Round metal bar A122PO22941003 P.14...
- Page 16 ANTI-VIBRATION MOUNT INSTALLATION For Engine Mount (PL5911120) Counter Sink edges are Make sure the rounded fa c ing the s hoc k a bs or bing SILICON PAD. 1.----- KM3x20mm Screw 2.----- Copper Tube 3.----- M3 Nylon Insert Lock Nut 4.----- M4 Nylon Insert Lock Nut 5----- 4mm Washer 6.-----M4x35mm Screw...
- Page 17 180mm Extension Package Code No. Package Code No. Size Size Package Code No. Size Code No. Package Size Large Clevis Small Clevis Special tool for clevis installation. Suitable for standard and small Code No. Package ( EP) clevis. Size KP0041300 Code No SV4031 Package Code No.
- Page 18 The World Models Manufacturing Co., Ltd. www .thew orldm odels .com A122PO22941003...
