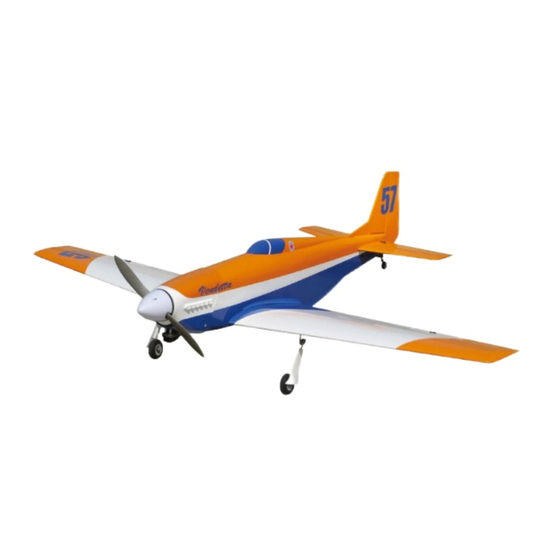

Requires: 5-channel radio w/ 3 standard servos and
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co., Ltd.
www.theworldmodels.com
A345PO32021803
2 mini servos,
2-stroke 0.46 engine, 4-stroke 0.81 engine
Specifications
*Specifications are subject to change without notice.*
56.5 in / 1435 mm
558 sq in / 36 sq dm
7.3 Ib / 3350 g
51 in / 1290 mm
ALMOST-READY-TO-FLY(ARF)SERIES
INSTRUCTION MANUAL
( A345 )
FACTORY PRE-FABRICATED
MADE IN CHINA
Advertisement
Table of Contents
Related Manuals for The World Models Manufacturing Vendetta A345
Summary of Contents for The World Models Manufacturing Vendetta A345
- Page 1 INSTRUCTION MANUAL ( A345 ) Requires: 5-channel radio w/ 3 standard servos and 2 mini servos, 2-stroke 0.46 engine, 4-stroke 0.81 engine Specifications Wing Span 56.5 in / 1435 mm Wing Area 558 sq in / 36 sq dm Flying Weight 7.3 Ib / 3350 g Fuselage Length 51 in / 1290 mm...
-
Page 2: Before You Begin
INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.11 SAFETY PRECAUTIONS P.12 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly. -
Page 3: Parts List
Parts List 1. MAIN WING -- 1 pair ENGINE MOUNT PL5111050 -- 1 set SOCKET HEAD SCREW M4x25mm -- 4 pcs 2. PUSHROD Ø1.8x85mm w/ Threads (For Aileron) -- 2 pcs WASHER d4xD9mm -- 4 pcs TRI-HORN PL4111221 -- 2 sets SCREW PB2x16mm -- 4 pcs 9. - Page 4 Main Wing Electric retract wire Bottom View Apply instant type CA glue to both sides of each hinge. Aileron Pushrod & Retractable Landing Gear 4.8V - 6.0V operation Screw PB2x16mm only, higher voltage will burn out the retract motor. PB2x12mm Screw PWA2.3x8mm PWA2.3x8mm...
-
Page 5: Stabilizer & Elevator
Vertical Fin & Rudder Screw M4x12mm Apply instant type CA glue to both sides of each hinge. Nylon Screw M4x12mm Stabilizer & Elevator (Stabi l i zer) (Mai n Wi ng) B=B' Stabilizer Tube Ø5x134.5mm C=C' Temporary install the main wing, adjust leveling of the stabilizer to make it as parallel to the main wing as possible... -
Page 6: Elevator Pushrod
Elevator Pushrod PB2x16mm Screw PWA3x12mm PB2x14mm Screw 1.5mm PWA3x12mm Screw PWA3x12mm PB2x16mm Fuel Tube D6x5mm PB2x14mm 1.5mm Tri-horn M3 x 14mm Pushrod Ø1.8x340mm Clevis Bottom View Ø1mm pilot holes for World Models horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. -
Page 7: Engine Mount
Engine Mount M4x25mm Socket Head Screw d4xD9mm Washer Engine Mount PL5111050 d4xD9mm Blind nuts are off-centered M4x25mm to keep the spinner at the fuselage axis. Apply thread locker to screws For short engines, add base brackets. Engine PM3.5x30mm Screw d3.5xD8mm Washer M3.5 Nu t... -
Page 8: Fuel Tank
Fuel Tank Front Cable Tie 1.5x5x400mm Fuel Tank 500CC Bottom View Cowling PWA2.6x12mm Screw d1.5xD6.5mm Silicon Grommets Cowling d1.5xD6.5mm Grommet Spinner PWA2.6x12mm Fuselage Silicon Grommets PWA2.6x12mm First insert the grommet to the cowling then apply screw. A345PO32021803... - Page 9 Servo Set 3x3mm Set Screw Linkage Connector 3x3mm Set Screw Throttle Pushwire Washer Washer Washer 1.5mm Throttle Servo M2 Nut Please refer to the attached sheet for linkage connector installation. Servos Setting Install and arrange the servo as shown in the diagram. PWA2.6x8mm Screw Throttle Puswire...
-
Page 10: Belly Pan
Main wing Screw HM4x60mm HM4x35mm Screw d4xD15mm Washer Bottom View HM4x60mm HM4x35mm d4xD15 Washer d4xD15 Washer Bottom View Belly Pan PM3x13mm Screw d3xD7mm Washer PM3x13mm Belly Pan d3xD7 Washer Completed A345PO32021803... - Page 11 Wing Setting & Decals A=A` B=B` C=C` A345PO32021803 P.10...
-
Page 12: Control Throws
Control Throws Adjust the control throws as shown in the diagram. These throws are good for general flying. You can adjust according to your personal preference. Elevator 15mm 15mm Rudder 28mm 28mm Ailerons C.G. The ideal C.G. position is 127mm (5.0 in.) behind the leading edge measured at where the wing meets the fuselage. - Page 13 Warning! I m portant S afety P recauti ons F irst tim e flyer sh o u ld n ever fly b y h im self / h erself. Assistan ce fro m exp erien ced flyer is ab so lu tely n ecessary. Pre - flig h t ad ju stm en t m u st b e d o n e b efo re flyin g , it is very d an g ero u s to fly a b ad ly p re - ad ju sted aircraft.
- Page 14 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
- Page 15 Usage of the transparent 3D template This transparent 3D template is used for position guidance of the actual cutting of the pre-painted cowling. Simply cut the transparent 3D template to fit your engine and exhaust pipe, then slide onto the actual cowling and use as template to mark the openings required for final cutting.
- Page 16 A345PO32021803...
