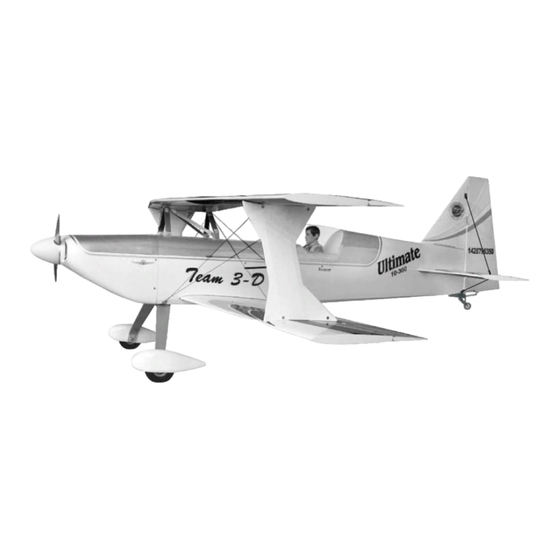

42%
42%
Requires : 150 cc gasoline engine,
Wing Span
Wing Area
Flying Weight
Fuselage Length
* Specifications are subject to change without notice.*
Warning !This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
6-channel radio w/ 17 servos.
Specifications
98 in / 2490mm
3300 sq in / 213 sq dm
38-40/ lbs / 17250-18160 g
104 in / 2640mm
ALMOST-READY-TO-FLY (ARF) SERIES
INSTRUCTION MANUAL
FACTORY PRE-FABRICATED
MADE IN CHINA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for The World Models Manufacturing 42% ULTIMATE
Summary of Contents for The World Models Manufacturing 42% ULTIMATE
- Page 1 INSTRUCTION MANUAL Requires : 150 cc gasoline engine, 6-channel radio w/ 17 servos. Specifications 98 in / 2490mm Wing Span Wing Area 3300 sq in / 213 sq dm Flying Weight 38-40/ lbs / 17250-18160 g Fuselage Length 104 in / 2640mm * Specifications are subject to change without notice.* Warning !This model is not a toy.
-
Page 2: Before You Begin
I N D E X BEFORE YOU BEGIN P. 1 PARTS LIST P. 2 ASSEMBLY P. 3 -14 SAFETY PRECAUTIONS P. 14 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. -
Page 3: Parts List
Parts List 1. MAIN WING (Upper Wing) -- 1 pair 9. MAIN LANDING GEAR -- 1 set SOCKET HEAD SCREW M6x20mm -- 4 pcs MAIN WING (Lower Wing) -- 1 pair AXLE SHAFT Ø 5x47mm -- 2 pcs METAL HINGES -- 32 pcs SCREW PA3x12mm -- 4 pcs 2. -
Page 4: Aileron Servo
Main Wing Replace CA hinges by metal hinges. Glue the metal hinges to wing and aileron by epoxy. Main Wing (Lower) Main Wing (Upper) Aileron Servo Lead Aileron Servo Lead Bottom View Bottom View PM 2 x 8 mm PL4120350 Aileron Servo (Upper Wing) Screw... -
Page 5: Stabilizer & Elevator
Aileron Servo (Lower Wing) Screw PM4x50mm Nylon Insert Lock Nut Similar installation as upper wing. Bottom View PWA3x14mm Stabilizer & Elevator Replace CA hinges Screw PWA3x14mm by metal hinges. 76mm Glue the metal Screw PM4x65mm hinges to stabilizer and elevator by epoxy. -
Page 6: Tail Landing Gear
Vertical Fin & Rudder B=B' Replace CA hinges by metal hinges. Glue the metal hinges to vertical and rudder by epoxy. Completed Tail Landing Gear Screw PA3.5x16mm PA3.5 x16mm Screw PWA2.5x12mm PWA2.5 x 12mm 1.5mm COPPER PLATE Bottom View... - Page 7 Engine Box F8(8x127x571mm) F8' (8x127x563mm) Screw PM3x16mm Nylon Insert Lock Nut Washer d3xD7mm Please note right thrust angle of firewall. d3xD7mm Washer PM3x16mm M3 Nylon Insert Lock Nut Use epoxy to Completed glue all parts together. F63C...
-
Page 8: Main Landing Gear
Wing Cabane Screw PM3x16mm d3xD7mm M3 Nylon Inert Lock Nut Washer Nylon Insert Lock Nut Washer d3xD7mm d3xD7mm Washer F36A F36B Nylon Inert Lock Nut PM3x16mm d3xD7mm Washer d3xD7mm Washer d3xD7mm Washer d3xD7mm Washer PM3x16mm PM3x16mm Main Landing Gear Axle Shaft Ø5x54.5mm M6x20mm M8 Nylon... -
Page 9: Rudder Pushrod
Rudder Pushrod Screw M4x130mm Nylon Insert Lock Nut PA1.7x8mm Screw PM2x10mm M4 Nylon Inser t L o c k Nut Nylon Insert Lock Nut 3.7mm M4 Tap Drill and tap the swivel clevis horn locations for M4 machine screw. PM2 x 0mm .5 3 M2.5 M2 Nut... -
Page 10: Radio Equipment
Fuel Tank M3x12mm SOCKET HEAD SCREW Washer d3xD7mm Cable Tie Plywood 3x130x239mm (F15A) Sponge to cushion fuel tank. d3xD7mm Washer Fuel Tank M3x12mm 1500cc Tongue Engine Blind Nut M6x50mm SOCKET HEAD SCREW Washer d6xD15mm Center line of firewall 10mm 63mm Engine thrust line Radio Equipment Install and arrange the receiver and battery as shown in the diagram. - Page 11 Step 1. Insert the aluminum wing tube (Ø22x865.5mm) with the pre-drilled hole end into the right wing (lower). Main Wing Align the lines marked at the wing root and wing tube, then apply the PM3x22mm machine screw through the (Lower) pre-drilled hole on top of the wing.
- Page 12 Step 1. Insert the aluminum wing tube (Ø22x817mm) with the pre-drilled hole end into the right wing (upper). Main Wing Align the lines marked at the wing root and wing tube, then apply the PM3x22mm machine screw through the (Upper) pre-drilled hole on top of the wing.
- Page 13 Outer Wing Cabanes & Flying Wire With the wing incidence angle template still in place, position the side cabanes, Outer wing cabane mark and drill the side should fit to the outside of outer cabane mounts and fasten wing cabane mounts. with PM3x18mm screw and nut.
- Page 14 Step 1. Insert the aluminum wing tube (Ø22x817mm) with the pre-drilled hole end into the right wing (upper). Main Wing Align the lines marked at the wing root and wing tube, then apply the PM3x22mm machine screw through the (Upper) pre-drilled hole on top of the wing.
- Page 15 Outer Wing Cabanes & Flying Wire With the wing incidence angle template still in place, position the side cabanes, Outer wing cabane mark and drill the side should fit to the outside of outer cabane mounts and fasten wing cabane mounts. with PM3x18mm screw and nut.
- Page 16 Cowling & Spinner First insert the grommet to the cowling then apply screw. Screw PWA3x12mm d2.5xD8.5mm Silicon Grommet Silicon Grommet d2.5 x D8.5 mm PWA3x12mm 1.5mm Spinner Ø150mm Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. G=G' A=A' B=B' C=C' D=D' E=E' F=F' P.13...
-
Page 17: Control Throws
Adjust the control throws as shown in the diagram. Control Throws These throws are good for general flying. You can adjust according to your personal preference. Elevator 40mm 40mm Rudder 85mm 85mm Ailerons 30mm 30mm The ideal C.G. position is at center of top wing tube C.G. - Page 18 The World Models Manufacturing Co., LTD. www .thew orldm odels .com A151RPO12910907...
