Operating Instructions

External display and adjustment unit

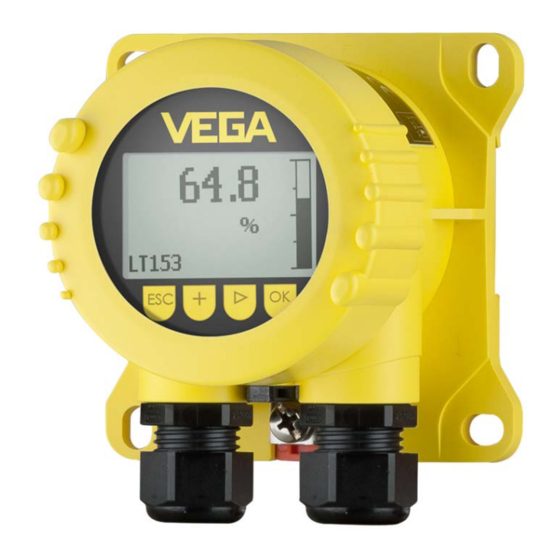

VEGADIS 82
4 ... 20 mA
Document ID: 46591

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGADIS 82 and is the answer not in the manual?

Questions and answers

Related Manuals for Vega VEGADIS 82

Summary of Contents for Vega VEGADIS 82

  • Page 1: Operating Instructions

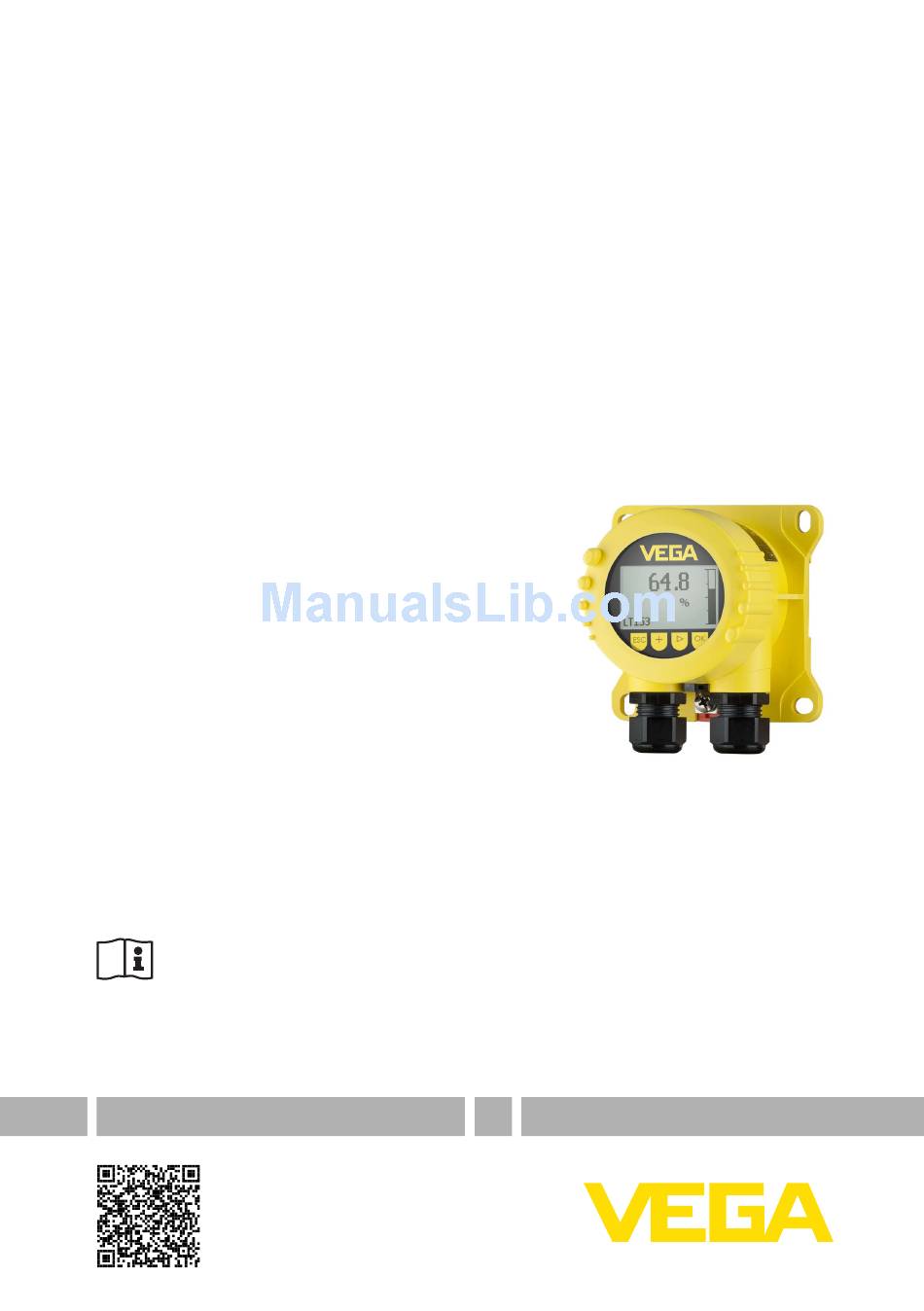

    Operating Instructions External display and adjustment unit VEGADIS 82 4 … 20 mA Document ID: 46591...

  • Page 2: Table Of Contents

    Insert display and adjustment module ................20 Adjustment system ......................21 Measured value indication - Selection of national language ........... 22 Parameter adjustment - VEGADIS 82 ................22 Setup via PACTware Connect the PC ......................27 Parameter adjustment ....................28 Saving the parameterisation data ...................
  • Page 3 10.4 Trademark ........................40 Safety instructions for Ex areas Take note of the Ex specific safety instructions for Ex applications. These instructions are attached as documents to each instrument with Ex approval and are part of the operating instructions manual. Editing status: 2017-03-28 VEGADIS 82 • 4 … 20 mA...

  • Page 4: About This Document

    This arrow indicates a single action. Sequence of actions Numbers set in front indicate successive steps in a procedure. Battery disposal This symbol indicates special information about the disposal of bat- teries and accumulators. VEGADIS 82 • 4 … 20 mA...

  • Page 5: For Your Safety

    During work on and with the device the required personal protective equipment must always be worn. Appropriate use The VEGADIS 82 is suitable for measured value indication in 4 … 20 mA signal current circuits. You can find detailed information about the area of application in chapter "Product description".

  • Page 6: Eu Conformity

    That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: • Chapter "Packaging, transport and storage" • Chapter "Disposal" VEGADIS 82 • 4 … 20 mA...

  • Page 7: Product Description

    As an alternative, you can access these data via your smartphone: • Download the smartphone app "VEGA Tools" from the "Apple App Store" or the "Google Play Store" • Scan the Data Matrix code on the type label of the instrument or •...

  • Page 8: Principle Of Operation

    4 … 20 mA current loops. The instrument can be connected at any point to the 4 … 20 mA signal cable. Separate, external energy is not required. The VEGADIS 82 is also suitable for use in a 4 … 20 mA/HART current loop. The HART signal is not influenced, however a sensors parameter adjustment is not possible.

  • Page 9: Packaging, Transport And Storage

    3 Product description Connection Fig. 2: Connection of VEGADIS 82 to the sensor Voltage supply/Signal output sensor VEGADIS 82 Display and adjustment module 4 … 20 mA signal cable Sensor Packaging, transport and storage Your instrument was protected by packaging during transport. Its...

  • Page 10: Accessories And Replacement Parts

    VEGADIS 82. A separate version is available for each type of signal output. You can find further information in the operating instructions "Elec- tronics module VEGADIS 82" (Document-ID 46804). Bluetooth function with VEGADIS 82 can only be used at a later date. VEGADIS 82 • 4 … 20 mA...

  • Page 11: Mounting

    This applies mainly to outdoor installations, in areas where high humidity is expected (e.g. through cleaning processes) and on cooled or heated vessels. Mounting instructions Wall mounting The VEGADIS 82 in all available housing materials is suitable for wall mounting. 82 mm (3.23") 10 mm (0.39")
  • Page 12 The kit consists of an adapter plate and four mounting screws M6 x 12. The adapter plate is screwed to the base of VEGADIS 82 by the user. Fig. 5: VEGADIS 82 with aluminium and stainless steel housing for carrier rail...
  • Page 13 4 Mounting The VEGADIS 82 is also available with a plastic housing for panel Front panel mounting mounting. The housing is fastened to the rear of the panel by means of the supplied screw clamps. Fig. 7: VEGADIS 82 for panel mounting...

  • Page 14: Connecting To Power Supply

    Output voltage of the power supply unit can be lower under nomi- nal load (with a sensor current of 20.5 mA resp. 22 mA in case of fault message) • Voltage loss on the VEGADIS 82 (see supply circuit in chapter "Technical data") You can find information on the load resistance in chapter "Technical data", (voltage supply of the respective sensor)

  • Page 15: Connection Technology And Steps

    If screened cable is necessary, we recommend connecting the cable grounding screen on both ends to ground potential. In the VEGADIS 82, the screen should be connected directly to the internal ground terminal. In Ex systems it must be ensured that the grounding complies with the installation regulations.
  • Page 16 9. Tighten the compression nut of the cable entry gland. The seal ring must completely encircle the cable 10. Reinsert the display and adjustment module, if one was installed 11. Screw the housing lid back on VEGADIS 82 • 4 … 20 mA...

  • Page 17: Wiring Plan

    For power supply Wiring plan - Panel mounting Fig. 10: Wiring plan VEGADIS 82 for 4 … 20 mA sensors - panel mounting To the sensor Ground terminal in the switching cabinet for connection of the cable screen For power supply...
  • Page 18 5 Connecting to power supply 18 17 16 15 14 13 12 11 10 9 8 7 6 5 N- L1+ Fig. 11: Connection of the VEGADIS 82 as external indication to signal condi- tioning instrument or four-wire sensor Sensor...

  • Page 19: Connection Example

    Indication of a status message on the display or PC The duration of the warm-up phase depends on the connected sen- sor. Then the actual measured value is displayed. You can find further information on the display in chapter "Measured value indication - Selection national language". VEGADIS 82 • 4 … 20 mA...

  • Page 20: Set Up With The Display And Adjustment Module

    4. Screw housing lid with inspection window tightly back on Disassembly is carried out in reverse order. Fig. 14: Mounting of the display and adjustment module VEGADIS 82 • 4 … 20 mA...

  • Page 21: Adjustment System

    1 s, the value or position changes continuously. When the [OK] and [ESC] keys are pressed simultaneously for more than 5 s, the display returns to the main menu. The menu language is then switched over to "English". VEGADIS 82 • 4 … 20 mA...

  • Page 22: Measured Value Indication - Selection Of National Language

    You can enter an unambiguous designation for the measured value, e.g. the measurement loop name or the tank or product designation. In digital systems and in the documentation of larger plants, a singular VEGADIS 82 • 4 … 20 mA...
  • Page 23 The default setting for the display value is "Current". Setup - Display, lighting The display and adjustment module has a backlight for the display. In this menu item you can switch on the lighting. You can find the required operating voltage in chapter "Technical data". The lighting is switched off in delivery status. VEGADIS 82 • 4 … 20 mA...
  • Page 24 Read data from sensor into the display and adjustment module. Caution: When the PIN is active, adjustment via PACTware/DTM as well as other systems is also blocked. The PIN number is entered while locking. VEGADIS 82 • 4 … 20 mA...
  • Page 25 They remain even in case of voltage loss. Note: Before the data are stored in the instrument, they are checked to make sure they match the instrument. For this purpose, the instrument VEGADIS 82 • 4 … 20 mA...
  • Page 26 PC. Info - Instrument features In this menu item, instrument features such as approvals, electronics, housing as well as others are displayed. VEGADIS 82 • 4 … 20 mA...

  • Page 27: Setup Via Pactware

    USB cable to the PC Interface adapter VEGACONNECT VEGADIS 82 Wirelessly via Bluetooth The wireless connection from the PC to the VEGADIS 82 is carried USB adapter out via the Bluetooth USB adapter and a display and adjustment module with integrated Bluetooth function.

  • Page 28: Parameter Adjustment

    Further setup steps are described in the operating instructions manu- al "DTM Collection/PACTware" attached to each DTM Collection and which can also be downloaded from the Internet. Detailed descrip- tions are available in the online help of PACTware and the DTMs. VEGADIS 82 • 4 … 20 mA...

  • Page 29: Saving The Parameterisation Data

    The standard version is available as a download under www.vega.com/downloads and "Software". The full version is avail- able on CD from the agency serving you. Saving the parameterisation data We recommend documenting or saving the parameterisation data via PACTware.

  • Page 30: Diagnostics And Servicing

    PACTware/DTM and EDD. You can find a detailed overview of this function in the operating instructions of the respective sensor. VEGADIS 82 The following table shows the error codes and text messages of the VEGADIS 82 and gives information on the cause and removal. Code Reason Rectification Text message •...

  • Page 31: Exchanging The Electronics Module

    24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is also available outside normal working hours, seven days a week around the clock.

  • Page 32: How To Proceed If A Repair Is Necessary

    Clean the instrument and pack it damage-proof • Attach the completed form and, if need be, also a safety data sheet outside on the packaging • Please contact the agency serving you to get the address for the return shipment. You can find the agency on our home page www.vega.com. VEGADIS 82 • 4 … 20 mA...

  • Page 33: Dismount

    Correct disposal avoids negative effects on humans and the environ- ment and ensures recycling of useful raw materials. Materials: see chapter "Technical data" If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. VEGADIS 82 • 4 … 20 mA...

  • Page 34: Supplement

    0.7 kg (1.543 lbs) Ʋ Stainless steel housing 2.0 kg (4.409 lbs) Mounting elements approx. Ʋ Brackets for tube mounting 0.4 kg (0.882 lbs) Ʋ Adapter plate for carrier rail mounting 0.5 kg (1.102 lbs) VEGADIS 82 • 4 … 20 mA...
  • Page 35 Ʋ mounted in the housing without lid IP 40 Materials Ʋ Housing Ʋ Inspection window Polyester foil Functional safety SIL non-reactive If the loop current is not sufficient for operation, the display remains dark. When the measured values are out- side the measuring range, a message is displayed instead of the measured value. VEGADIS 82 • 4 … 20 mA...
  • Page 36 Ʋ Plastic housing IP 66/IP 67, NEMA Type 4X Ʋ Housing for panel mounting (mount- IP 40, NEMA Type 1 Ʋ Aluminium/Stainless steel housing IP 66/IP 68 (0.2 bar), NEMA Type 6P Protection class VEGADIS 82 • 4 … 20 mA...

  • Page 37: Dimensions

    Fig. 19: VEGADIS 82 with plastic housing VEGADIS 82, Plastic housing (Panel mounting) 72,5 mm 22,5 mm 70 mm (2.85") (0.89") (2.76") 56 mm (2.20") 76 mm (2.99") Fig. 20: VEGADIS 82 with plastic housing for panel mounting VEGADIS 82 • 4 … 20 mA...
  • Page 38 Fig. 21: VEGADIS 82 with Aluminium housing VEGADIS 82, Stainless steel housing (precision casting) ø 86 mm ~ 75 mm (3.39") (2.95") 97 mm (3.82") Fig. 22: VEGADIS 82, with stainless steel housing (precision casting) VEGADIS 82 • 4 … 20 mA...
  • Page 39 Mounting elements 97 mm (3.82") 82 mm 7 mm (3.23") (0.28") Fig. 23: Adapter plate for carrier rail mounting of VEGADIS 82 48...84 mm (1.89"...3.31") 20 mm 20 mm (0.79") (0.79") Fig. 24: Brackets for tube mounting of VEGADIS 82...

  • Page 40: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com.
  • Page 41 Mounting – Carrier rail 11 – Front panel 13 – Position 11 – Tube 12 Recycling 33 Repair 32 Reset 25 Scaling 24 Service hotline 31 Set display parameters 23 Type label 7 VEGADIS 82 • 4 … 20 mA...
  • Page 42 Notes VEGADIS 82 • 4 … 20 mA...
  • Page 43 Notes VEGADIS 82 • 4 … 20 mA...
  • Page 44 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2017 VEGA Grieshaber KG Phone +49 7836 50-0 Am Hohenstein 113...
