Supero 7047GR-TPRF User Manual

Superworkstation
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

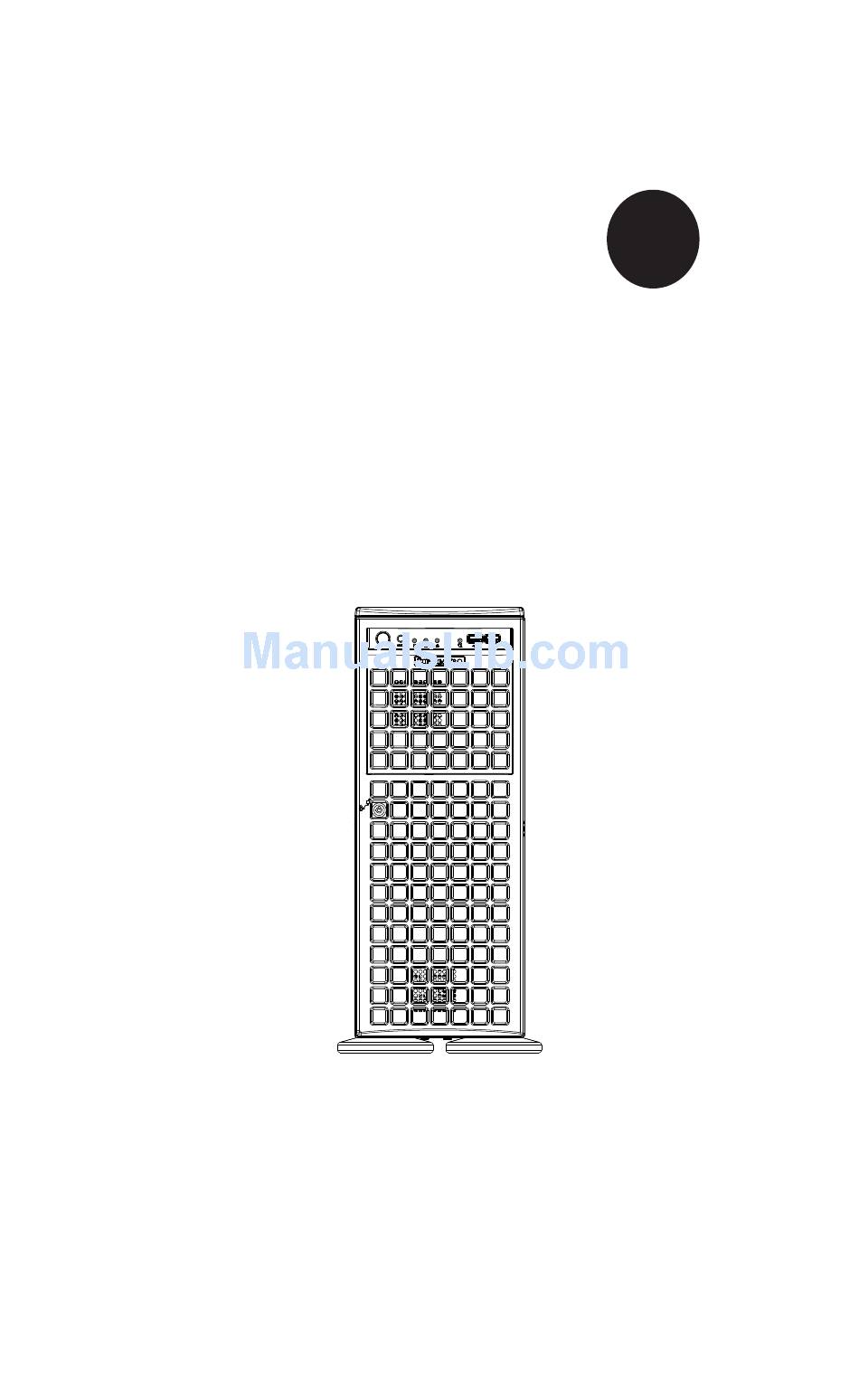

S
UPER
®
S
W
uper
orkstation
7047GR-TPRF
USER'S MANUAL
Revision 1.0b

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7047GR-TPRF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supero 7047GR-TPRF

Summary of Contents for Supero 7047GR-TPRF

  • Page 1 UPER ® uper orkstation 7047GR-TPRF USER’S MANUAL Revision 1.0b...
  • Page 2 The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.

  • Page 3: About This Manual

    This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperWorkstation 7047GR-TPRF. Installation and maintenance should be performed by experienced technicians only. The SuperWorkstation 7047GR-TPRF is based on the SC747TQ-R1620B 4U/Tower rackmount chassis and the Super X9DRG-QF serverboard.
  • Page 4 UPER ORKSTATION 7047GR-TPRF User's Manual this chapter when adding or removing processors or main memory and when reconfiguring the serverboard. Chapter 6: Advanced Chassis Setup Refer to Chapter 6 for detailed information on the SC747TQ-R1620B 4U/Tower rackmount chassis. You should follow the procedures given in this chapter when installing, removing or reconfiguring Serial ATA or peripheral drives and when replacing system power supply units and cooling fans.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    UPER ORKSTATION 7047GR-TPRF User's Manual Table of Contents Chapter 1 Introduction Overview ......................1-1 Serverboard Features ..................1-2 Processors ...................... 1-2 Memory ......................1-2 SATA ......................1-2 PCI Expansion Slots ..................1-2 Rear I/O Ports ....................1-2 IPMI ......................... 1-2 Chassis Features ....................
  • Page 7 Table of Contents Tower Mounting Instructions ................2-9 Installing the Chassis Cover ................2-9 Installing Feet on the Chassis ..............2-10 Chapter 3 System Interface Overview ......................3-1 Control Panel Buttons ..................3-2 Control Panel LEDs ..................3-2 Drive Carrier LEDs ..................3-4 Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements ............
  • Page 8 UPER ORKSTATION 7047GR-TPRF User's Manual X9DRG-QF Quick Reference ................ 5-14 Connector Definitions ................... 5-16 Jumper Settings .................... 5-23 5-10 Onboard Indicators ..................5-25 5-11 SATA Ports ....................5-26 5-12 Installing Software ..................5-27 SuperDoctor III ....................5-28 5-13 Onboard Battery .................... 5-29 Chapter 6 Advanced Chassis Setup Static-Sensitive Devices ..................

  • Page 9: Chapter 1 Introduction

    Chapter 1 Introduction Overview The SuperWorkstation 7047GR-TPRF is comprised of two main subsystems: the SC747TQ-R1620B 4U/Tower chassis and the X9DRG-QF dual Intel Xeon processor serverboard. Please refer to our web site for information on operating systems that have been certified for use with the system (www.supermicro.com).

  • Page 10: Serverboard Features

    ORKSTATION 7047GR-TPRF User's Manual Serverboard Features At the heart of the SuperWorkstation 7047GR-TPRF lies the X9DRG-QF, a dual processor serverboard based on the Intel C602 chipset. Below are the main features of the X9DRG-QF. (See Figure 1-1 for a block diagram of the chipset).

  • Page 11: Chassis Features

    Chapter 1: Introduction Supermicro workstation platforms. IPMI allows administrators to view a workstation’s hardware status remotely, receive an alarm automatically if a failure occurs, and power cycle a system that is non-responsive. Chassis Features The following is a general outline of the main features of the SC747TQ-R1620B chassis.

  • Page 12: Gpu Subsystem

    UPER ORKSTATION 7047GR-TPRF User's Manual GPU Subsystem The 7047GR-TPRF is a massively parallel-processing, quad-GPU server with support for up to four NVIDIA® Fermi™ GPUs (such as Fermi, Kepler K10, K20, K20X) and Xeon Phi Coprocessor GPUs, placing this system at the forefront of today's GPU computing solutions.
  • Page 13 Chapter 1: Introduction Figure 1-1. Intel C602 Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. JPEIC11 PCIE3.0 x8 JPEIC9 PCIE3.0 x8 JPEIC8 PCIE3.0 x16 JPEIC6 PCIE3.0 x16 CPU REAR U7C1 Socket 01 Processor Sandybridge P00_P11...

  • Page 14: Contacting Supermicro

    UPER ORKSTATION 7047GR-TPRF User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 15: Chapter 2 Workstation Installation

    Decide on a suitable location for setting up and operating the SuperWorkstation 7047GR-TPRF. It should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic fields are generated.

  • Page 16: Preparing For Setup

    UPER ORKSTATION 7047GR-TPRF User's Manual Preparing for Setup The box your workstation was shipped in may include two sets of rail assemblies, two rail mounting brackets and the mounting screws needed to install the system into the rack (optional parts). Please read this section in its entirety before you begin the installation procedure outlined in the sections that follow.

  • Page 17: Rack Mounting Considerations

    Chapter 2: Workstation Installation • Install the heaviest workstation components on the bottom of the rack first, and then work up. • Use a regulating uninterruptible power supply (UPS) to protect the workstation from power surges, voltage spikes and to keep your system operating in case of a power failure.

  • Page 18: Reliable Ground

    UPER ORKSTATION 7047GR-TPRF User's Manual Reliable Ground A reliable ground must be maintained at all times. To ensure this, the rack itself should be grounded. Particular attention should be given to power supply connec- tions other than the direct connections to the branch circuit (i.e. the use of power strips, etc.).
  • Page 19 Chapter 2: Workstation Installation Figure 2-1. Removing the Feet and Chassis Top Cover Chassis Cover Chassis Feet Chassis Cover Lock Warning! To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable.

  • Page 20: Identifying The Sections Of The Rack Rails

    UPER ORKSTATION 7047GR-TPRF User's Manual Identifying the Sections of the Rack Rails The chassis package includes two rack rail assemblies in the rack mounting kit. Each assembly consists of two sections: an inner fixed chassis rail that secures directly to the workstation chassis and an outer fixed rack rail that secures directly to the rack itself.

  • Page 21: Installing The Outer Rails To The Rack

    Chapter 2: Workstation Installation Figure 2-3. Installing the Inner Rack Rails Installing the Outer Rails to the Rack Installing the Outer Rails 1. Attach the rear bracket to the middle bracket. 2. Adjust both the brackets to the proper distance so that the rail fits snugly into the rack.

  • Page 22: Installing The Chassis Into A Rack

    UPER ORKSTATION 7047GR-TPRF User's Manual Figure 2-5. Installing the Rack Rails Note: figures are for illustrative purposes only. Always install servers to the bottom of a rack first. Installing the Chassis into a Rack Installing the Chassis 1. Confirm that chassis includes the inner rails and the outer rails.

  • Page 23: Tower Mounting Instructions

    Chapter 2: Workstation Installation Tower Mounting Instructions The SC747 chassis is shipped with the chassis cover and feet pre-installed. To use the chassis as a desktop workstation, no other installation is required. Use the instructions in this section if you have converted the chassis for rack use and need to return the chassis to tower mounting.

  • Page 24: Installing Feet On The Chassis

    UPER ORKSTATION 7047GR-TPRF User's Manual Figure 2-7. Placing Chassis Feet Chassis Foot Receptacle Chassis Foot Chassis Screw Installing Feet on the Chassis Installing the Chassis Feet 1. Place the chassis foot in the foot receptacle and slide the foot toward the front of the chassis.

  • Page 25: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel as well as others on the drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specific components.

  • Page 26: Control Panel Buttons

    UPER ORKSTATION 7047GR-TPRF User's Manual Control Panel Buttons There are two push-buttons located on the front of the chassis. These are power on/off button and a reset button. Power The main power switch is used to apply or remove power from the power supply to the workstation.

  • Page 27: Power Fail

    Chapter 3: System Interface NIC1 Indicates network activity on LAN1 when flashing. NIC2 Indicates network activity on LAN2 when flashing. Overheat/Fan Fail When this LED flashes it indicates a fan failure. When continuously on (not flashing) it indicates an overheat condition, which may be caused by cables obstructing the airflow in the system or the ambient room temperature being too warm.

  • Page 28: Drive Carrier Leds

    UPER ORKSTATION 7047GR-TPRF User's Manual Drive Carrier LEDs Each SATA drive carrier has two LEDs. • Green: Each drive carrier has a green LED. When illuminated, this green LED (on the front of the drive carrier) indicates drive activity. A connection to the SATA backplane enables this LED to blink on and off when that particular drive is being accessed.

  • Page 29: About Standardized Warning Statements

    Chapter 4: Warning Statements for AC Systems Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance.
  • Page 30 UPER ORKSTATION 7047GR-TPRF User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 31 Warning Statements for AC Systems ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬ ‫ل‬ ‫الىقائٍة‬...

  • Page 32: Installation Instructions

    UPER ORKSTATION 7047GR-TPRF User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de...

  • Page 33: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 34: Power Disconnection Warning

    UPER ORKSTATION 7047GR-TPRF User's Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
  • Page 35 Chapter 4: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 36: Equipment Installation

    UPER ORKSTATION 7047GR-TPRF User's Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.

  • Page 37: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 38: Battery Handling

    UPER ORKSTATION 7047GR-TPRF User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .)'‫כלי אבטחה בלבד (מפתח, מנעול וכד‬ ‫محظورة‬ ‫مناطق‬ ٍ‫نتركُبها ف‬ ‫هذه انىحذة‬ ‫تخصيص‬ ‫تم‬ ،‫أداة خاصت‬ ‫من خالل استخذاو‬...
  • Page 39 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 40: Redundant Power Supplies

    UPER ORKSTATION 7047GR-TPRF User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 41: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 42: Comply With Local And National Electrical Codes

    UPER ORKSTATION 7047GR-TPRF User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬ ‫عندما يكىن‬...

  • Page 43: Product Disposal

    Chapter 4: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬...

  • Page 44: Hot Swap Fan Warning

    UPER ORKSTATION 7047GR-TPRF User's Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 45 Chapter 4: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 46: Power Cable And Ac Adapter

    UPER ORKSTATION 7047GR-TPRF User's Manual Power Cable and AC Adapter Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only.
  • Page 47 Chapter 4: Warning Statements for AC Systems Attention Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné. L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement ou un incendie. Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué...
  • Page 48 UPER ORKSTATION 7047GR-TPRF User's Manual Notes 4-20...

  • Page 49: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to install the X9DRG-QF serverboard into the chassis, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are also described. A layout and quick reference chart are included in this chapter for your reference.

  • Page 50: Unpacking

    UPER ORKSTATION 7047GR-TPRF User's Manual Unpacking The serverboard is shipped in antistatic packaging to avoid electrical static discharge. When unpacking the board, make sure the person handling it is static protected. Connecting Cables Several cables need to be connected from the chassis to the serverboard. These include the data cables for the peripherals and control panel and the power cables.

  • Page 51: I/O Ports

    Chapter 5: Advanced Serverboard Setup Figure 5-1. Control Panel Header Pins Ground FP PWRLED 3.3 V HDD LED ID_UID_SW/3/3V Stby NIC1 Link LED NIC1 Activity LED NIC2 Activity LED NIC2 Link LED Blue+ (OH/Fan Fail/ Red+ (Blue LED Cathode) PWR FaiL/UID LED) Power Fail LED 3.3V Reset...

  • Page 52: Installing The Processor And Heatsink

    UPER ORKSTATION 7047GR-TPRF User's Manual Installing the Processor and Heatsink Warning: When handling the processor package, avoid placing direct pressure on the label area of the fan. Notes: • Always connect the power cord last and always remove it before adding, re- moving or changing any hardware components.
  • Page 53 Chapter 5: Advanced Serverboard Setup 3. With the lever labeled 'Close 1st' fully retracted, gently push down on the 'Open 1st' lever to open the load plate. Lift the load plate to open it completely. Gently push 4. Using your thumb and the index down to pop the load plate finger, remove the 'WARNING'...
  • Page 54 UPER ORKSTATION 7047GR-TPRF User's Manual Warning: You can only install the CPU to the socket in one direction. Make sure that the CPU is properly inserted into the socket before closing the load plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the load plate again and double-check that the CPU is aligned properly.

  • Page 55: Installation And Removal Of The Heatsink

    Chapter 5: Advanced Serverboard Setup Installation and Removal of the Heatsink Installing the Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die; the required amount has already been applied. Screw #1 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the retention mechanism.

  • Page 56: Installing Memory

    UPER ORKSTATION 7047GR-TPRF User's Manual Installing Memory Warning:Exercise extreme care when installing or removing DIMM modules to prevent any possible damage. Installing Memory Modules 1. Insert the desired number of DIMMs into the memory slots, starting with P1-DIMMA1. For best memory performance, please install memory modules of the same type and same speed on the memory slots as indicated on the tables below.

  • Page 57: Memory Support For The X9Drg-Qf Serverboard

    Chapter 5: Advanced Serverboard Setup Memory Support for the X9DRG-QF Serverboard The X9DRG-QF serverboard supports up to 1 TB ECC LRDIMM, 512 GB ECC RDIMM or 128 GB ECC/non-ECC UDIMM DDR3-1866/1600/1333/1066/800 memory in 16 DIMM slots. See the following table for memory installation. For the latest memory updates, please refer to our website a at http://www.supermicro.com/ products/serverboard.
  • Page 58 UPER ORKSTATION 7047GR-TPRF User's Manual Populating UDIMM (ECC/Non-ECC) Memory Modules Intel E5-2600(v2) Series Processor UDIMM Memory Support Ranks Memory Capacity Speed (MT/s) and Voltage Validated by Slot per Channel (SPC) and Per DIMM DIMM Per Channel (DPC) DIMM 2 Slots Per Channel 3 Slots Per Channel &...
  • Page 59 Chapter 5: Advanced Serverboard Setup Populating UDIMM (ECC/Non-ECC) Memory Modules Intel E5-2600 Series Processor UDIMM Memory Support Ranks Memory Capacity Speed (MT/s) and Voltage Validated by Slot per Channel (SPC) and Per DIMM DIMM Per Channel (DPC) DIMM 2 Slots Per Channel 3 Slots Per Channel &...
  • Page 60 UPER ORKSTATION 7047GR-TPRF User's Manual Populating LRDIMM (ECC) Memory Modules Intel E5-2600(v2) Series Processor LRDIMM Memory Support Ranks Memory Speed (MT/s) and Voltage Validated by Slot per Channel (SPC) and DIMM Per Capacity Channel (DPC) DIMM Per DIMM 2 Slots Per Channel 3 Slots Per Channel &...

  • Page 61: Adding Pci Add-On Cards

    Chapter 5: Advanced Serverboard Setup Adding PCI Add-On Cards The 7047GR-TPRF can support four PCI-E 3.0 x16 (may support four double-width GPU cards), two PCI-E 3.0 x8 (in x16) and one PCI-E 2.0 x4 (in x8) slots. Installing an Add-on Card 1.

  • Page 62: Serverboard Details

    UPER ORKSTATION 7047GR-TPRF User's Manual Serverboard Details Figure 5-8. X9DRG-QF Layout (not drawn to scale) LED3 USB2/3 USB0/1 COM1 JUIDB X9DRG-QF CTRL LAN2 LAN1 PS2 KB/MS Rev. 1.02 IPMI_LAN CLOSE 1st CPU2 CPU2 OPEN 1st BIOS CLOSE 1st CPU1 JBAT1...
  • Page 63 Chapter 5: Advanced Serverboard Setup Connector Description AUDIO_FP Front Panel Audio Header (Optional) COM1/COM2 Back Panel COM Port1/Front Accessible COM2 Header FAN#1~6, FAN CPU/System Fan Headers (Fan1~Fan4, Fan5: CPU1 Fan, #A~D, FAN11 Fan6: CPU2 Fan, FanA~FanD, Fan11) I-SATA 0-5 Two SATA 3.0 Ports (I-SATA 0-1), four SATA 2.0 Ports (I- SATA 2-5) JBAT1 Onboard Battery (See Chpt.

  • Page 64: Connector Definitions

    UPER ORKSTATION 7047GR-TPRF User's Manual Connector Definitions Power Connections 24-pin Main Power Connector Pin Definitions A 24-pin main power supply connector(JPW1), Pin# Definition Pin # Definition two 8-pin CPU PWR connectors (JPW2/ +3.3V +3.3V JPW3) and a 4-pin PWR connector (JPW4) -12V +3.3V...
  • Page 65 Chapter 5: Advanced Serverboard Setup NIC1/NIC2 LED Indicators GLAN1/2 LED Pin Definitions (JF1) The NIC (Network Interface Controller) Pin# Definition LED connection for GLAN port 1 is located on pins 11 and 12 of JF1, and NIC 2 LED the LED connection for GLAN Port 2 is on Pins 9 and 10.
  • Page 66 UPER ORKSTATION 7047GR-TPRF User's Manual Power Button The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both pins will power on/off Power Button Pin Definitions (JF1) the system. This button can also be configured to function as a suspend...
  • Page 67 Chapter 5: Advanced Serverboard Setup Standby Power Header Standby PWR Pin Definitions The +5V Standby Power header is Pin# Definition located at JSTBY1 on the serverboard. +5V Standby See the table on the right for pin Ground definitions. (You must also have a card Wake-up with a Standby Power connector and a cable to use this feature.)

  • Page 68: Chassis Intrusion

    UPER ORKSTATION 7047GR-TPRF User's Manual Fan Headers There are eleven system/CPU fan Fan Header headers (Fans 1~6, Fans A~D and Fan Pin Definitions 11) on the serverboard. All these 4-pin Pin# Definition fans headers are backward compatible Ground with traditional 3-pin fans, however, fan...
  • Page 69 Chapter 5: Advanced Serverboard Setup TPM/Port 80 Header Pin Definitions Pin # Definition Pin # Definition TPM Header/Port 80 Header LCLK LFRAME# <(KEY)> A Trusted Platform Module/Port 80 LRESET# +5V (X) header is located at JTPM1 to provide LAD 3 LAD 2 TPM support and Port 80 connection.
  • Page 70 UPER ORKSTATION 7047GR-TPRF User's Manual IPMB IPMB Header Pin Definitions A System Management Bus header Pin# Definition for IPMI 2.0 is located at JIPMB1. Data Connect the appropriate cable here Ground to use the IPMB I C connection on Clock your system.

  • Page 71: Jumper Settings

    Chapter 5: Advanced Serverboard Setup Jumper Settings Explanation of Jumpers To modify the operation of the serverboard, jumpers can be used Connector to choose between optional settings. Pins Jumpers create shorts between two pins to change the function of the connector.
  • Page 72 UPER ORKSTATION 7047GR-TPRF User's Manual VGA Enable/Disable VGA Enable/Disable Jumper Settings JPG1 allows you to enable or disable Jumper Setting Definition the VGA port. The default position is on Pins 1-2 Enabled pins 1 and 2 to enable VGA. See the...

  • Page 73: 5-10 Onboard Indicators

    Chapter 5: Advanced Serverboard Setup 5-10 Onboard Indicators Activity LED Link LED GLAN LEDs There are two GLAN ports on the serverboard. An additional IPMI Activity LED Link LED dedicated LAN port is also located above the USB 0/1 ports on the backpanel.

  • Page 74: 5-11 Sata Ports

    UPER ORKSTATION 7047GR-TPRF User's Manual Rear UID LED The rear UID LED is located at LED3 on the backplane. This LED is used in conjunction with the rear UID switch to provide easy identification of a system that might be in need of service. Refer to UID Switch on Page 2-17 for more information.

  • Page 75: 5-12 Installing Software

    Chapter 5: Advanced Serverboard Setup 5-12 Installing Software The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO file for your serverboard.

  • Page 76: Superdoctor Iii

    UPER ORKSTATION 7047GR-TPRF User's Manual SuperDoctor III The SuperDoctor® III program is a web-based management tool that supports remote management capability. It includes Remote and Local Management tools. The local management is called SD III Client. The SuperDoctor III program allows you to monitor the environment and operations of your system.

  • Page 77: 5-13 Onboard Battery

    Chapter 5: Advanced Serverboard Setup Figure 5-8. SuperDoctor III Interface Display Screen (Remote Control) Note: The SuperDoctor III program and User’s Manual can be downloaded from the Supermicro web site at http://www.supermicro.com/products/accessories/software/ SuperDoctorIII.cfm. For Linux, we recommend that you use the SuperDoctor II application instead.
  • Page 78 UPER ORKSTATION 7047GR-TPRF User's Manual Notes 5-30...

  • Page 79: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform maintenance on the chassis. The only tool you will need to install components and perform maintenance is a Phillips screwdriver. Tools Required: The only tool you will need to install components and perform maintenance is a Philips screwdriver.

  • Page 80: Static-Sensitive Devices

    UPER ORKSTATION 7047GR-TPRF User's Manual Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent damage to any printed circuit boards (PCBs), it is important to handle them very carefully. The following measures are generally sufficient to protect your equipment from...

  • Page 81: System Cooling

    Chapter 6: Advanced Chassis Setup System Cooling Eight heavy-duty fans provide cooling for the chassis. Four fans are located in the mid-section of the chassis and four fans are located in the rear. These fans circulate air through the chassis as a means of lowering the chassis internal temperature. The fans come pre-installed to the chassis.
  • Page 82 UPER ORKSTATION 7047GR-TPRF User's Manual Figure 6-3. Mid-System Chassis Fans FAN-0114L4 Mid Fan Release Tab FAN-0138L4 Figure 6-4. Rear System Chassis Fans FAN-0082L4 Rear Fan Release...
  • Page 83 Chapter 6: Advanced Chassis Setup Replacing External Fans (FAN-0116L4) 1. Two additional fans located on the outside of the back of the chassis are included to help cool the passive GPU cards used in the system. Visually inpect the fans to determine which one has failed. The chassis does not need to be powered-down when replacing these fans.

  • Page 84: Power Supply

    UPER ORKSTATION 7047GR-TPRF User's Manual Power Supply The SC747 chassis has a 1620W redundant, hot-swap power supply. This power supply is auto-switching capable. This enables it to automatically sense and operate at a 100v to 240v input voltage. An amber light will be illuminated on the power supply when the power is off.

  • Page 85: Power Supply Connections

    Chapter 6: Advanced Chassis Setup Figure 6-6. Power Supply Release Button Release Button Power Supply Connections Connect each of the following cables, as required, by your serverboard manufacturer. In some instances, some cables may not need to be connected. Some cables may not be available with your model.

  • Page 86: Configuring The Storage Module

    UPER ORKSTATION 7047GR-TPRF User's Manual Configuring the Storage Module This section covers configuring the storage module in the SC747 chassis. Figure 6-7. Chassis in Tower Mode Storage Module Figure 6-8. Chassis in Rack Mount Mode Storage Module Tower or Rack Configuration The SC747 chassis is shipped in tower mode and can be immediately used as workstation.

  • Page 87: Rotating The Storage Module

    Chapter 6: Advanced Chassis Setup Rotating the Storage Module Use the procedure below to rotate the storage module for rack configurations. Figure 6-9. Removing the Storage Module Storage Module Storage Module Release Lever Rotating the Storage Module for Rack Mounting 1.

  • Page 88: Installing Drives In The Storage Module

    UPER ORKSTATION 7047GR-TPRF User's Manual 5. Turn the storage module 90 degrees (as illustrated). 6. Reinsert the module into the chassis and reconnect the cords. Installing Drives in the Storage Module The storage module (Figure 6-10) includes three full sized drive bays and the front LED panel.

  • Page 89: Removing A Drive Carrier

    Chapter 6: Advanced Chassis Setup Removing a Drive Carrier Use the procedure below to add hard drives to the drive carriers. Adding Hard Drives to the Drive Carriers 1. Open the chassis cover. 2. Locate the drive tray release tab for the slot you want to place the peripheral drive (see Figure 6-11).
  • Page 90 UPER ORKSTATION 7047GR-TPRF User's Manual 4. Place the hard drive to the hard drive tray. The hard drive may not completely fill the tray. See Figure 6-12 for details. 5. Secure the hard drive to the carrier with four screws from the bottom.

  • Page 91: Adding Peripheral Drives

    Chapter 6: Advanced Chassis Setup Adding Peripheral Drives You can add up to three peripheral drives (DVD-ROM, CD-ROM, floppy drive, etc.) to the drive trays using the procedure below. Adding Peripheral Drives 1. Open the chassis cover. 2. Locate the drive tray release tab for the slot you want to place the peripheral drive.

  • Page 92: Installing Hard Drives In The Chassis

    UPER ORKSTATION 7047GR-TPRF User's Manual Installing Hard Drives in the Chassis Chassis hard drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airflow for the drive bays. Installing Hard Drives 1.
  • Page 93 Chapter 6: Advanced Chassis Setup 5. Place a hard drive in the drive tray (see Figure 6-15). 6. Secure the hard drive to the tray using four screws. Figure 6-15. Removing a Dummy Drive Tray Drive Tray SAS/SATA Hard Drive 7.
  • Page 94 UPER ORKSTATION 7047GR-TPRF User's Manual Notes 6-16...

  • Page 95: Chapter 7 Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AMI BIOS Setup utility for the X9DRG-QF. It also provides the instructions on how to navigate the AMI BIOS Setup utility screens. The AMI ROM BIOS is stored in a Flash EEPROM and can be easily updated. Starting BIOS Setup Utility To enter the AMI BIOS Setup utility screens, press the <Del>...

  • Page 96: Main Setup

    UPER ORKSTATION 7047GR-TPRF User's Manual How To Change the Configuration Data The configuration data that determines the system parameters may be changed by entering the AMI BIOS Setup utility. This Setup utility can be accessed by pressing <Delete> at the appropriate time during system boot.
  • Page 97 Chapter 7: BIOS System Date/System Time Use this option to change the system time and date. Highlight System Time or System Date using the arrow keys. Enter new values through the keyboard and press <Enter>. Press the <Tab> key to move between fields. The date must be entered in Day MM/DD/YY format.

  • Page 98: Advanced Setup Configurations

    UPER ORKSTATION 7047GR-TPRF User's Manual Advanced Setup Configurations Select the Advanced tab to access the following submenu items. Boot Features Quiet Boot This feature allows the user to select bootup screen display between POST mes- sages and the OEM logo. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages.

  • Page 99: Power Configuration

    Chapter 7: BIOS Interrupt 19 Capture Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Enabled, the ROM BIOS of the host adaptors will "capture" Interrupt 19 at bootup and allow the drives that are attached to these host adaptors to function as bootable disks.
  • Page 100 UPER ORKSTATION 7047GR-TPRF User's Manual • CPU Stepping • Maximum CPU Speed • Minimum CPU Speed • Processor Cores • Intel HT (Hyper-Threading) Technology • Intel VT-x Technology • Intel SMX Technology • L1 Data Cache • L1 Code Cache •...
  • Page 101 Chapter 7: BIOS Active Processor Cores Set to Enabled to use a processor's second core and above. (Please refer to Intel's website for more information.) The options are All, 1, 2, 4 and 6. Limit CPUID Maximum This feature allows the user to set the maximum CPU ID value. Enable this function to boot the legacy operating systems that cannot support processors with extended CPUID functions.

  • Page 102: Cpu Power Management Configuration

    UPER ORKSTATION 7047GR-TPRF User's Manual Intel® Virtualization Technology (Available when supported by the CPU) Select Enabled to support Intel Virtualization Technology, which will allow one platform to run multiple operating systems and applications in independent parti- tions, creating multiple "virtual" systems in one physical computer. The options are Enabled and Disabled.
  • Page 103 Chapter 7: BIOS CPU C6 Report (Available when Power Technology is set to Custom) Select Enabled to allow the BIOS to report the CPU C6 State (ACPI C3) to the operating system. During the CPU C6 State, the power to all cache is turned off.

  • Page 104: Chipset Configuration

    UPER ORKSTATION 7047GR-TPRF User's Manual Short Duration Power Limit This item displays the time period during which short duration power is main- tained. The default setting is 0. Chipset Configuration North Bridge This feature allows the user to configure the settings for the Intel North Bridge.
  • Page 105 Chapter 7: BIOS CPU1 Slot 4 PCI-E 3.0 x16 OPROM This feature allows the user to set the PCI-Exp bus speed for the slot specified above. The options are Gen1 (Generation 1), Gen2 and Gen3. IIO 2 PCIe Port Bifurcation Control This submenu configures the following IO PCIe Port Bifurcation Control settings for IIO 2 PCIe ports to determine how the available PCI-Express lanes to be distributed between the PCI-Exp.
  • Page 106 UPER ORKSTATION 7047GR-TPRF User's Manual DIMM Configuration This section displays the following DIMM information. Current Memory Mode This item displays the current memory mode. Current Memory Speed This item displays the current memory speed. Mirroring This item displays if memory mirroring is supported by the motherboard. Memory mirroring creates a duplicate copy of the data stored in the memory to enhance data security.
  • Page 107 Chapter 7: BIOS Channel Interleaving This feature selects from the different channel interleaving methods. The options are Auto, 1 Way, 2 Way, 3, Way, and 4 Way. Rank Interleaving This feature allows the user to select a rank memory interleaving method. The options are Auto, 1 Way, 2 Way, 4, Way, and 8 Way.

  • Page 108: South Bridge Configuration

    UPER ORKSTATION 7047GR-TPRF User's Manual South Bridge Configuration This feature allows the user to configure the settings for the Intel PCH chip. PCH Information This feature displays the following PCH information. Name: This item displays the name of the PCH chip.

  • Page 109: Sata Configuration

    Chapter 7: BIOS SATA Configuration When this submenu is selected, the AMI BIOS automatically detects the presence of IDE or SATA devices and displays the following items. SATA Port0~SATA Port5: The AMI BIOS displays the status of each SATA port as detected by the BIOS.
  • Page 110 UPER ORKSTATION 7047GR-TPRF User's Manual RAID Mode The following items are displayed when RAID Mode is selected: Port 0~5 Hot Plug Select Enabled to enable hot-plug support for the particular port. The options are Enabled and Disabled. SCU (Storage Control Unit) Configuration Storage Controller Unit Select Enabled to enable PCH SCU storage devices.
  • Page 111 Chapter 7: BIOS SERR# Generation Select Enabled to allow a PCI device to generate an SERR number for a PCI Bus Signal Error Event. The options are Enabled and Disabled. Maximum Payload Select Auto to allow the system BIOS to automatically set the maximum payload value for a PCI-E device to enhance system performance.

  • Page 112: Super Io Configuration

    UPER ORKSTATION 7047GR-TPRF User's Manual Network Stack Select Enabled enable PXE (Preboot Execution Environment) or UEFI (Unified Extensible Firmware Interface) for network stack support. The options are Enabled and Disabled. Super IO Configuration Super IO Chip: This item displays the Super IO chip used in the motherboard.

  • Page 113: Serial Port Console Redirection

    Chapter 7: BIOS Serial Port Console Redirection COM 1/COM 2 These two submenus allow the user to configure the following Console Redirection settings for a COM Port specified by the user. Console Redirection Select Enabled to use a COM Port selected by the user for Console Redirection. The options are Enabled and Disabled.
  • Page 114 UPER ORKSTATION 7047GR-TPRF User's Manual Stop Bits A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

  • Page 115: Acpi Settings

    Chapter 7: BIOS Console Redirection Settings  This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user. Out-of-Band Management Port The feature selects a serial port used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote server.
  • Page 116 UPER ORKSTATION 7047GR-TPRF User's Manual ponents (such as RAMs) to maintain the most critical functions of the system. The options are S1 (CPU_Stop_Clock), S3 (Suspend to RAM), and Suspend Disabled. NUMA (NON-Uniform Memory Access) This feature enables the Non-Uniform Memory Access ACPI support. The options are Enabled and Disabled.
  • Page 117 Chapter 7: BIOS TPM Owner Status This item displays the status of TPM Ownership. Intel TXT (LT-SX) Configuration Intel TXT (LT-SX) Hardware Support This feature indicates if the following hardware components support the Intel Trusted Execution Technology. CPU: TXT (Trusted Execution Technology) Feature Chipset: TXT (Trusted Execution Technology) Feature Intel TXT (LT-SX) Configuration This feature displays the following TXT configuration setting.
  • Page 118 UPER ORKSTATION 7047GR-TPRF User's Manual iSCSI Configuration: This item displays iSCSI configuration information: iSCSI Initiator Name This item displays the name of the iSCSI Initiator, which is a unique name used in the world. The name must use IQN format. The following actions can also be performed: •...

  • Page 119: Event Logs

    Chapter 7: BIOS • Chip Type • PCI Device ID • PCI Bus:Device:Function • Link Status • Factory MAC Address • Alternate MAC Address Event Logs Select the Event Logs tab to access the following submenu items. Change SMBIOS Event Log Settings ...
  • Page 120 UPER ORKSTATION 7047GR-TPRF User's Manual Runtime Error Logging Support Select Enabled to support Runtime Error Logging. The options are Enabled and Disabled. Memory Correctable Error Threshold This feature allows the user to enter the threshold value for correctable memory errors. The default setting is 10.

  • Page 121: Ipmi

    Chapter 7: BIOS View System Event Log This item allows the user to view the event in the system event log. Select this item and press <Enter> to view the status of an event in the log. Date/Time/Error Code/Severity IPMI Select the IPMI (Intelligent Platform Management Interface) tab to access the fol- lowing submenu items.
  • Page 122 UPER ORKSTATION 7047GR-TPRF User's Manual Erasing Settings Erase SEL Select Yes, On next reset to erase all system event logs upon next system reboot. Select Yes, On every reset to erase all system event logs upon each system reboot. Select No to keep all system event logs after each system reboot. The options are No, Yes, On next reset, and Yes, On every reset.

  • Page 123: Boot

    Chapter 7: BIOS Subnet Mask This item displays the sub-network that this computer belongs to. The value of each three-digit number separated by dots should not exceed 255. Station MAC Address This item displays the Station MAC address for this computer. Mac addresses are 6 two-digit hexadecimal numbers.

  • Page 124: Security

    UPER ORKSTATION 7047GR-TPRF User's Manual  Delete Boot Option This feature allows the user to select a EFI boot device to delete from the boot priority list. Delete Boot Option Select the desired boot device to delete. Security This menu allows the user to configure the following security settings for the system.

  • Page 125: Save & Exit

    Chapter 7: BIOS Save & Exit This submenu allows the user to configure the Save and Exit settings for the system. Discard Changes and Exit Select this option to quit the BIOS Setup without making any permanent changes to the system configuration, and reboot the computer. Select Discard Changes and Exit, and press <Enter>.
  • Page 126 UPER ORKSTATION 7047GR-TPRF User's Manual Discard Changes Select this feature and press <Enter> to discard all the changes and return to the BIOS setup. When the dialog box appears, asking you if you want to load previ- ous values, click Yes to load the values previous saved, or click No to keep the changes you've made so far.

  • Page 127: Appendix A Bios Error Beep Codes

    Appendix A: BIOS POST Error Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process.
  • Page 128 UPER ORKSTATION 7047GR-TPRF User's Manual Notes...

  • Page 129: Appendix B System Specifications

    Appendix B: System Specifications Appendix B System Specifications Processors Two Intel E5-2600 (v2) Series processors in LGA 2011 sockets Note: Please refer to our web site for a complete listing of supported processors. Chipset Intel C602 chipset BIOS 128 Mb AMIBIOS® SPI Flash ROM Memory Capacity Sixteen DIMM slots that can support up to 1 TB ECC LRDIMM, 512 GB ECC RDIMM or 128 GB ECC/non-ECC UDIMM DDR3-1866/1600/1333/1066/800...

  • Page 130: Operating Environment

    UPER ORKSTATION 7047GR-TPRF User's Manual Chassis SC747TQ-R1620B (4U/Tower rackmount) Dimensions: (WxHxD) 18.2 x 7 x 26.5 in. (462 x 178 x 673 mm) Weight Gross (Bare Bone): 62 lbs. (28.1 kg.) System Cooling Eight (four front and four rear) fans (fan speed controlled by IPMI)
  • Page 131 Appendix B: System Specifications Notes...
  • Page 132 UPER ORKSTATION 7047GR-TPRF User's Manual (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
