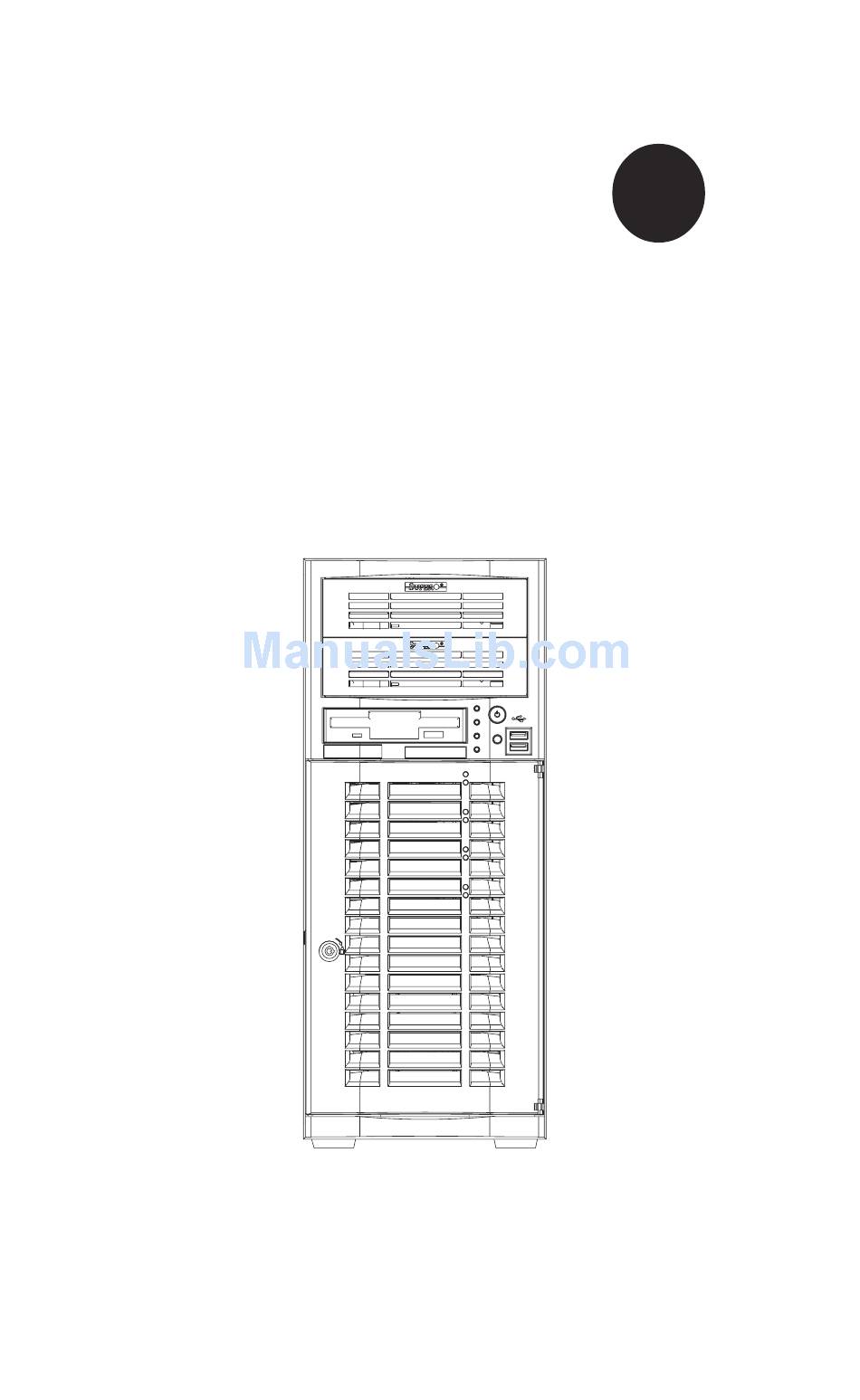

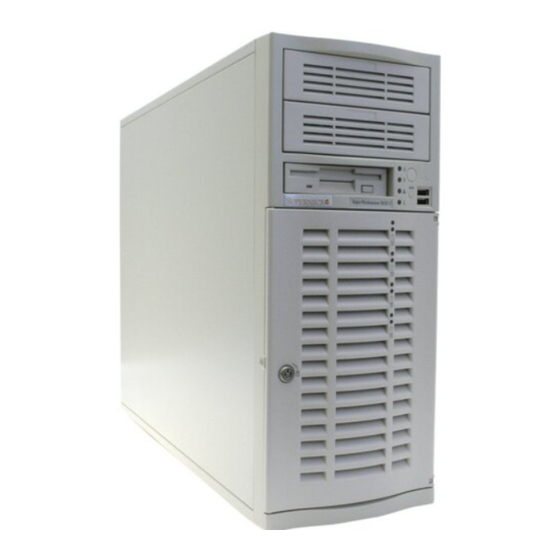

  • Page 1 ® UPER 5033C-T UPER ORKSTATION USER’S MANUAL Revision 1.0...
  • Page 2 The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product. Unless you request and receive written permission from SUPER MICRO COMPUTER, you may not copy any part of this document.

  • Page 3: About This Manual

    About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SuperWorkstation 5033C- T. Installation and maintainance should be performed by experienced techni- cians only. The 5033C-T is a high-end, single processor mid-tower workstation based on the SC733T-350 mid-tower workstation chassis and the Super P4SCT+II motherboard.
  • Page 4 You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the SuperWorkstation 5033C-T. Chapter 5: Advanced Motherboard Setup Chapter 5 provides detailed information on the P4SCT+II motherboard, including the locations and functions of connectors, headers and jumpers.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    Chassis Features ... 1-5 Contacting Supermicro ... 1-7 Chapter 2: System Installation Overview ... 2-1 Unpacking the SuperWorkstation 5033C-T ... 2-1 Setting up the System ... 2-2 Checking the Motherboard Setup ... 2-2 Checking the Drive Bay Setup ... 2-4 Chapter 3: System Interface Overview ...
  • Page 7 Chapter 5: Advanced Motherboard Setup Handling the P4SCT+II Motherboard ... 5-1 Motherboard Installation ... 5-2 Connecting Cables ... 5-3 Connecting Data Cables ... 5-3 Connecting Power Cables ... 5-3 Connecting the Control Panel ... 5-3 I/O Ports ... 5-4 Installing Processors ... 5-5 Installing Memory ...
  • Page 8 UPER ORKSTATION 5033C-T User's Manual Front Side Bus Speed ... 5-16 USB Wake-Up ... 5-17 Watch Dog Enable/Disable ... 5-17 Speaker Jumper ... 5-17 Keyboard Wake-Up ... 5-18 GLAN2 Enable/Disable ... 5-18 VGA Enable/Disable ... 5-18 Keylock Enable/Disable ... 5-18 SATA Enable/Disable ...
  • Page 9 7-4.7 Processor & Clock Options ... 7-12 Security ... 7-13 Boot ... 7-14 Exit ... 7-15 Appendices: Appendix A: BIOS POST Messages ... A-1 Appendix B: BIOS POST Codes ... B-1 Appendix C: Software Installation ... C-1 Appendix D: System Specifications ... D-1 Table of Contents...
  • Page 10 UPER ORKSTATION 5033C-T User's Manual Notes...

  • Page 11: Chapter 1 Introduction

    Overview Supermicro's 5033C-T is a high-end single processor workstation. The 5033C- T is comprised of two main subsystems: the SC733T-350 chassis and the P4SCT+II motherboard. The P4SCT+II supports a single 478-pin Intel Pentium 4 microPGA processor at up to 3.40 GHz with HT (hyper-threading) technology (or single a Intel Celeron processor of up to 2.80 GHz) and up to 4 GB of ECC...

  • Page 12: Motherboard Features

    UPER ORKSTATION 5033C-T User's Manual Motherboard Features At the heart of the SuperWorkstation 5033C-T lies the P4SCT+II, a single pro- cessor motherboard designed to provide maximum performance. Below are the main features of the P4SCT+II. Chipset Overview The P4SCT+II is based on Intel’s 875P chipset. See Figure 1-1 for a block diagram of the chipset.
  • Page 13 2.80 GHz with an integrated 128KB advanced transfer cache. Please refer to the support section of our web site for a complete listing of supported processors (http://www.supermicro.com/support/). Memory The P4SCT+II has four (4) 184-pin DIMM sockets that can support up to 4 GB of ECC or non-ECC unbuffered DDR400/333/266 SDRAM modules.

  • Page 14: Other Features

    UPER ORKSTATION 5033C-T User's Manual Onboard Controllers/Ports An onboard IDE controller supports one floppy drive and up to four Ultra ATA 100 hard drives or ATAPI devices. Onboard I/O backpanel ports include one serial COM port, one parallel port, four USB ports, PS/2 mouse and keyboard ports and two GLAN (RJ45) ports.

  • Page 15: Chassis Features

    The SuperWorkstation 5033C-T is a mid-tower workstation type configuration. The following is a general outline of the main features of the SC733T-350 chassis. System Power When configured as a SuperWorkstation 5033C-T, the SC733T-350 chassis in- cludes a single low-noise 350W power supply. Serial ATA Subsystem The SC733T-350 chassis was designed to support up to four Serial ATA hard drives.
  • Page 16 UPER ORKSTATION 5033C-T User's Manual Cooling System The SC733T-350 chassis has an innovative cooling design that features one 12- cm exhaust fan and one 9-cm thermal cooling fan. The fans plug into headers on the motherboard and operate at full rpm continuously. Figure 1-2.

  • Page 17: Contacting Supermicro

    Contacting Supermicro Headquarters Address: SuperMicro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: SuperMicro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
  • Page 18 UPER ORKSTATION 5033C-T User's Manual Notes...

  • Page 19: Chapter 2 System Installation

    Unpacking the SuperWorkstation 5033C-T You should inspect the box the SuperWorkstation 5033C-T was shipped in and note if it was damaged in any way. If the server itself shows damage, you should file a damage claim with the carrier who delivered it.

  • Page 20: Setting Up The System

    UPER ORKSTATION 5033C-T User's Manual Setting Up the System You should first open the left side panel (when facing the front of the chassis) to make sure the motherboard is properly installed and all connections have been made. Checking the Motherboard Setup 1.
  • Page 21 Chapter 2: System Installation Figure 2-1. Accessing the Inside of the 5033C-T...

  • Page 22: Checking The Drive Bay Setup

    UPER ORKSTATION 5033C-T User's Manual Checking the Drive Bay Setup Next, you should check to make sure the peripheral drives and the Serial ATA drive and Serial ATA backplane have been properly installed and all essen- tial connections have been made. 1.

  • Page 23: Chapter 3 System Interface

    Overview There are several LEDs on the control panel and one on each Serial ATA drive carrier to keep you constantly informed of the overall status of the system as well as the activity and health of specific components. There are also two buttons on the chassis control panel.

  • Page 24: Control Panel Leds

    UPER ORKSTATION 5033C-T User's Manual Control Panel LEDs The control panel located on the front of the SC733T-350 chassis has four LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 25: Serial Ata Drive Carrier Leds

    Chapter 3: System Interface Serial ATA Drive Carrier LEDs On the front of each Serial ATA drive carrier is a green LED. When illuminated, it indicates drive activity. A connection to the Serial ATA backplane enables this LED to blink on and off when that particular drive is being accessed.
  • Page 26 UPER ORKSTATION 5033C-T User's Manual Notes...

  • Page 27: Chapter 4 System Safety

    Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SuperWorkstation 5033C-T from damage: ! Be aware of the locations of the power on/off switch on the chassis as well as the room's emergency power-off switch, disconnection switch or electrical outlet.

  • Page 28: General Safety Precautions

    General Safety Precautions Follow these rules to ensure general safety: ! Keep the area around the SuperWorkstation 5033C-T clean and free of clutter. ! The SuperWorkstation 5033C-T weighs approximately 40 lbs (18.2 kg) when fully loaded. When lifting the system, two people at either end should lift slowly with their feet spread out to distribute the weight.

  • Page 29: Esd Precautions

    Chapter 4: System Safety ESD Precautions Electrostatic discharge (ESD) is generated by two objects with different electrical charges coming into contact with each other. An electrical discharge is created to neutralize this difference, which can damage electronic components and printed circuit boards. The following measures are generally sufficient to neutralize this difference before contact is made to protect your equipment from ESD:...

  • Page 30: Operating Precautions

    UPER ORKSTATION 5033C-T User's Manual Operating Precautions Care must be taken to assure that the chassis cover is in place when the 5033C-T is operating to assure proper cooling. Out of warranty damage to the 5033C-T system can occur if this practice is not strictly followed.

  • Page 31: Chapter 5 Advanced Motherboard Setup

    Advanced Motherboard Setup This chapter covers the steps required to install the P4SCT+II motherboard into the SC733T-350 chassis, connect the data and power cables and install add-on cards. All motherboard jumpers and connections are also described. A layout and quick reference chart are included in this chapter for your reference. Re- member to completely close the chassis when you have finished working with the motherboard to better cool and protect the system.

  • Page 32: Motherboard Installation

    UPER ORKSTATION 5033C-T User's Manual Unpacking The motherboard is shipped in antistatic packaging to avoid electrical static discharge. When unpacking the board, make sure the person handling it is static protected. Motherboard Installation This section explains the first step of physically mounting the P4SCT+II into the SC733T-350 chassis.

  • Page 33: Connecting Cables

    Connecting Cables After the motherboard is installed, the next step is to connect the cables to the board. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The ribbon cables used to transfer data from the peripheral devices have been carefully routed to prevent them from blocking the flow of cooling air that moves through the system.

  • Page 34: I/O Ports

    UPER ORKSTATION 5033C-T User's Manual Figure 5-1. Control Panel Header Pins Power LED Overheat LED I/O Ports The I/O ports are color coded in conformance with the PC 99 specification. See Figure 5-2 below for the colors and locations of the various I/O ports. Figure 5-2.

  • Page 35: Installing Processors

    Installing Processors Avoid placing direct pressure to the top of the processor package. Always remove the power cord first before adding, removing or changing any hardware components. Processor Support The P4SCT+II has a single 478-pin microPGA socket, which supports Intel Pentium 4 processors on .013 micron process.

  • Page 36: Installing Memory

    UPER ORKSTATION 5033C-T User's Manual Installing Memory CAUTION! Exercise extreme care when installing or remov- ing DIMM modules to prevent any possible damage. Memory support The P4SCT+II supports 4 GB of dual-channel, ECC or non-ECC unbuffered DDR-400/333/266 SDRAM. You must populate both DIMM0A and DIMM1A and/or DIMM0B and DIMM1B with the same size and type of memory modules.

  • Page 37: Adding Pci Cards

    Chapter 5: Advanced Motherboard Setup Figure 5-5. Top View of DIMM Slot Adding PCI Cards PCI-X/PCI card installation The P4SCT+II supports the use of three 64-bit, 66 MHz (3.3V) PCI-X add-on cards and two 32-bit, 33 MHz (5V) PCI add-on cards. To install an add-on card, begin by removing the I/O shield for the slot you wish to populate.

  • Page 38: Motherboard Details

    UPER ORKSTATION 5033C-T User's Manual Motherboard Details JPWAKE Keyboard/ COM2 JPUSB Mouse GLAN Controller USB1/2 82547 COM1 OH/CH FAN5 GLAN1 BANK0 GLAN2 BANK1 GLAN Controller 82541 J P L 2 J 1 5 BATTERY RAGE XL Jumpers not indicated are for test purposes only. Figure 5-6.

  • Page 39: P4Sct+Ii Quick Reference

    P4SCT+II Quick Reference Jumpers Description Speaker VGA Enable/Disable Keylock Header JBT1 CMOS Clear JP1/JP2 CPU Clock Speed Watch Dog Reset JP20 Power Force On JPL2 GLAN2 Enable/Disable JPS1 JS1-4 SATA En/Dis JPUSB USB1/2 Wake Up En/Dis JPWAKE Keyboard Wake Up Connectors Description DIMM0A/0B/1A/1B...

  • Page 40: Connector Definitions

    UPER ORKSTATION 5033C-T User's Manual Connector Definitions Power Supply Connectors The primary power supply connector on the P4SCT+II meets the SSI (Superset ATX) 24-pin specifica- tion. Refer to the table on the right for the pin definitions of the ATX 24-pin power connector.

  • Page 41: Reset Connector

    Reset Connector The reset connector is located on pins 3 and 4 of JF1 and attaches to the reset switch on the com- puter chassis. See the table on the right for pin definitions. Overheat LED (OH) Connect an LED to the OH connec- tion on pins 7 and 8 of JF1 to pro- vide advanced warning of chassis overheating.

  • Page 42: Ide Led

    UPER ORKSTATION 5033C-T User's Manual IDE LED The IDE LED is located on pins 13 and 14 of JF1. This LED is used to display all IDE and SATA activity on all drives. See the table on the right for pin definitions. Power_LED Connector The Power LED connector is located on pins 15 and 16 of JF1 (or you may...

  • Page 43: Ir Connector

    IR Connector The infrared connector is located on J16. See the table on the right for pin definitions. See the Technical Support section of our web page for information on the infrared devices you can connect to the system. Serial Ports Two serial ports are included on the motherboard: COM1 is a port lo- cated beside the mouse/keyboard...

  • Page 44: Chassis Intrusion

    UPER ORKSTATION 5033C-T User's Manual Chassis Intrusion The Chassis Intrusion header is des- ignated JL1. See the board layout in Chapter 1 for the location of JL1 and the table on the right for pin defini- tions. Wake-On-LAN The Wake-On-LAN header is des- ignated WOL on the motherboard.

  • Page 45: Universal Serial Bus

    Universal Serial Bus (USB) There are two Universal Serial Bus ports located on the I/O panel and an additional two USB headers located on the motherboard. These head- ers, labeled USB3/4, can be used to provide front side chassis access (cables not included).

  • Page 46: 5-10 Jumper Settings

    UPER ORKSTATION 5033C-T User's Manual 5-10 Jumper Settings Explanation of Jumpers To modify the operation of the motherboard, jumpers can be used to choose between optional set- tings. Jumpers create shorts be- tween two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board.

  • Page 47: Usb Wake-Up

    USB Wake-Up Use JPUSB1 to enable or disable USB Wake-Up, which allows you to wakeup the system by de- pressing a key on the keyboard or by clicking the mouse when either is connected to the USB1 or USB2 port. Enable the jumper to allow the system to be woken up from an S1 or S3 state in Windows OS.

  • Page 48: Keyboard Wake-Up

    UPER ORKSTATION 5033C-T User's Manual Keyboard Wake-Up The JPWAKE jumper is used to al- low the system to be woken up by depressing a key on the keyboard from an S1 or S3 state in Win- dows OS. See the table on the right for jumper settings.

  • Page 49: Sata Enable/Disable

    SATA Enable/Disable JSP1 is used to enable or disable Marvell's Serial ATA Controller. See the table on right for pin definitions. 5-11 Onboard Indicators Standby Power LED The Standby Power LED indicator is designated LE2. When the Standby PWR LED is on, it indicates the system standby power is on.

  • Page 50: Parallel Port, Floppy/Ide Hard Drive And Agp Connections

    UPER ORKSTATION 5033C-T User's Manual 5-12 Parallel Port, Floppy/IDE Hard Drive and AGP Connections Use the following information to connect the floppy and hard disk drive cables. • A floppy disk drive cable has seven twisted wires. • A red mark on a wire typically designates the location of pin 1. •...

  • Page 51: Floppy Connector

    Floppy Connector The floppy connector is located on J7. See the table on the right for pin definitions. IDE Connectors There are no jumpers to config- ure the onboard IDE interfaces J2 and J5. See the table on the right for pin definitions. must use the ATA100/66 cable included with your system to benefit from the ATA100/66...

  • Page 52: 8Xagp Slot

    UPER ORKSTATION 5033C-T User's Manual 1.5V 8xAGP Pro Slot The P4SCT+II includes an 8xAGP Pro slot for high-performance video cards. It is backward compatible with 4xAGP and 2xAGP graphics cards. To install a VGA card, power down the system and remove the I/O shield corre- sponding to the 8xAGP Pro slot.

  • Page 53: Chapter 6: Advanced Chassis Setup

    Advanced Chassis Setup This chapter covers the steps required to install components and perform simple maintenance on the SC733T-350 chassis. Following the component installation steps in the order given will eliminate most common problems. If some steps are unnecessary, skip ahead to the next step. Tools Required The only tool you will need is a Philips screwdriver.

  • Page 54: Front Control Panel

    UPER ORKSTATION 5033C-T Manual Front Control Panel The front control panel must be connected to the JF2 connector on the mother- board to provide you with system status and alarm indications. A ribbon cable has bundled these wires together to simplify this connection. Connect the cable from JF2 on the motherboard (making sure the red wire plugs into pin 1) to the appropriate comnnector on the front control panel PCB (printed circuit board).
  • Page 55 Chapter 6: Advanced Chassis Setup Figure 6-2. Chassis Front View 5.25" Drive Bays Floppy Drive Bay Main Power System Reset Front Side USB System LEDs SATA Active LED SATA Drive Configuration Drive IDs are marked on the Front Bezel Lock front bezel.
  • Page 56 UPER ORKSTATION 5033C-T Manual Figure 6-3. Power Supply IO Backplane PCI Expansion Slots Chassis Rear View Power Supply Fan 12-cm Exhaust Fan...

  • Page 57: System Fans

    (see Figure 6-5). Installing a new fan Replace the failed fan with an identical one (available from Supermicro). After the new fan has been installed into the fan duct, reassemble the fan duct and perform the removal procedure in reverse to install the entire fan duct assembly back into the chassis.
  • Page 58 UPER ORKSTATION 5033C-T Manual Figure 6-4. Removing the Fan Duct Assembly (9-cm Fan) Figure 6-5. Removing the 12-cm Exhaust Fan...

  • Page 59: Drive Bay Installation

    Drive Bay Installation A bezel covers the front of the chassis but does not need to be removed to access the drives. three tabs on the inside left side lip of the front chassis cover. slightly swing out the same (left) side of the cover - about ½ inch only. Remove by pushing on the open side of the cover to remove it from the chassis (do not try to swing or pull it straight out after opening the left side.
  • Page 60 UPER ORKSTATION 5033C-T Manual Mounting an SATA drive in a drive carrier: The SATA drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also work to promote proper airflow for the system. For this reason, even carriers without SATA drives must remain in the server.
  • Page 61 SATA backplane: All four SATA drives plug into the SATA backplane. There are two jumpers and two headers on the SATA backplane, as noted below. A ribbon cable from JA1 on the motherboard should be connected to the JP26 connector on the SATA backplane. There are also two power connectors on the backplane - both should be connected.

  • Page 62: Installing Components In The 5.25" Drive Bays

    UPER ORKSTATION 5033C-T Manual Installing Components in the 5.25" Drive Bays Drive bay configuration The 5033C-T has two 5.25" drive bays above the SATA drive bays. Compo- nents such as a floppy drive, IDE hard drives or CD-ROM drives can be installed in these 5.25"...

  • Page 63: Power Supply

    Power Supply The 5033C-T has a single 350W power supply that features noise-suppression technology for silent operation. The power supply has the capability to automati- cally sense and operate at 100 or 240V AC. This power supply also has the PFC (Power Factor Correction) feature built in.
  • Page 64 UPER ORKSTATION 5033C-T Manual Notes 6-12...

  • Page 65: Chapter 7: Bios

    Introduction This chapter describes the AwardBIOS for the P4SCT+II. The Award ROM BIOS is stored in a Flash chip and can be easily upgraded using a floppy disk-based program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 66: Running Setup

    UPER ORKSTATION 5033C-T User's Manual Running Setup *Optimal default settings are in bold text unless otherwise noted. The BIOS setup options described in this section are selected by choosing the appropriate text from the Main BIOS Setup screen. All displayed text is de- scribed in this section, although the screen display is often all you need to understand how to set the options (see on next page).
  • Page 67 Date/Time Set the system date and time. Key in the correct information in the "mm", "dd" and "yy" fields. Press the "Enter" key to save the data. Legacy Diskette A This setting allows the user to set the type of floppy disk drive installed as diskette A.

  • Page 68: 7-4 Advanced Bios Setup

    UPER ORKSTATION 5033C-T User's Manual 7-4 Advanced BIOS Setup Choose Advanced BIOS Setup from the Award BIOS main menu with the Left/ Right arrow keys. You should see the following display. Select one of the items in the left frame of the screen to go to the sub screen for that item. Advanced BIOS Setup options are displayed by highlighting the option using the arrow keys.

  • Page 69: 7-4.2 Advanced Chipset Control

    Chapter 7: BIOS ACPI Function Select "Enabled" to activate the function of BIOS Support for Advanced Configuration and Power Interface features. The settings are "Enabled" or "Disabled". ACPI Suspend Type If enabled, the option allows the user to determine the ACPI Suspend type. The options are "S1(POS)", "S3(STR)", and S1&S3.
  • Page 70 UPER ORKSTATION 5033C-T User's Manual ECC Configuration This setting allows you to enable or disable ECC (Error Correction and Checking). The options are "ECC" and "Non-ECC". CSA LAN (Giga-LAN) Select "Enabled" to activate the function of CSA LAN. The options are "Enabled"...

  • Page 71: 7-4.3 I/O Device Configuration

    Chapter 7: BIOS USB Legacy Support This setting allows you to enable or disable the functions of USB, Keyboard/ Mouse under POST and DOS. The options are Disabled, and Enabled. CPU THRM-Throttling THRM throttling is used to lower power consumption and reduce the heat generated by the CPU.
  • Page 72 UPER ORKSTATION 5033C-T User's Manual UART Mode Select This setting allows the user to select the UART mode for the BIOS. The options are "IrDA", "ASKIR" and "Normal". RxD, TxD Active This allows the user to change the settings for the "RxD, TxD Active" function.

  • Page 73: 7-4.4 Pnp Configuration

    Chapter 7: BIOS Power On Function This setting allows the user to decide which method to use to power on the system. The options are "Password", "Hot Key", "Mouse Left", "Mouse Right", "Any Key", and "Button Only". KB Power On Password This setting allows the user to enter the Password when the system is powered on via keyboard.

  • Page 74: 7-4.5 Console Redirection

    UPER ORKSTATION 5033C-T User's Manual Resources Controlled By This setting allows BIOS to automatically configure all boot and Plug and Play compatible devices. If you choose Auto, you cannot select the IRQ, DMA and memory base address fields because BIOS automatically assigns them.

  • Page 75: 7-4.6 Hardware Monitor

    Chapter 7: BIOS Agent after Boot Select "Disabled" to allows the Agent of Console Redirection to continue running after OS bootup. The Options are "Enabled", and "Disabled". 7-4.6 Hardware Monitor Choose Hardware Monitor from the Award BIOS main menu with the Left/Right arrow keys.

  • Page 76: 7-4.7 Processor & Clock Options

    ElectroMagnetic Interference. The options are "Enabled" and "Disabled". CPU Clock Key in a number between 100 and 233 to set the CPU clock (MHz). Supermicro does not recommend or make any guarantees with CPU overclocking. The default setting is "200 MHz". 7-12...

  • Page 77: Security

    Chapter 7: BIOS Security Choose Security from the Award BIOS main menu with the Left/Right arrow keys. You should see the following display: Set Supervisor Password When the item "Set Supervisor Password" is highlighted on the above screen, press the <Enter> key. When prompted, type the Supervisor Password in the dialogue box to set or to change the Supervisor Password.

  • Page 78: Boot

    UPER ORKSTATION 5033C-T User's Manual Boot Choose Boot from the Award BIOS main menu with the Left/Right arrow keys. You should see the following display: ! ! ! ! ! Removable Device Priority This setting allows you to set the priority of removable devices. The options are "Floppy Disks", "LS120", "Zip 100", "USB-FDD0", "USB-FDD1", "USB- ZIP0", and "USB-ZIP1".

  • Page 79: Exit

    Chapter 7: BIOS Second Boot Device This item allows the user to set the second boot-up device. The options are "Removable", "Hard Disks", "CDROM", "Legacy LAN", and "Disabled". Third Boot Device This item allows the user to set the Third boot-up device. The options are "Removable", "Hard Disks", "CDROM", "Legacy LAN", and "Disabled".
  • Page 80 UPER ORKSTATION 5033C-T User's Manual Load Fail-Safe Defaults Highlight this item and hit <Enter> to load the default settings for all items in the BIOS Setup. These are the safest settings to use. Load Optimized Defaults Highlight this item and hit <Enter> to load the optimized settings for all items in the BIOS Setup.

  • Page 81: Appendix A: Bios Post Messages

    Appendix A BIOS POST Messages During the Power-On Self-Test (POST), the BIOS will check for problems. If a problem is found, the BIOS will activate an alarm or display a message. The following is a list of such BIOS messages. Beeps 1 long beep 1 long beep+2 short beeps...
  • Page 82 UPER ORKSTATION 5033C-T User's Manual Notes...

  • Page 83: Appendix Bbios Post Codes

    BIOS POST Codes This section lists the POST (Power On Self Testing) Codes for the Award BIOS. POST (hex) Test CMOS R/W functionality. Early chipset initialization: -Disable shadow RAM -Disable L2 cache (socket 7 or below) -Program basic chipset registers Detect memory -Auto-detection of DRAM size, type and ECC.
  • Page 84 UPER ORKSTATION 5033C-T User's Manual POST (hex) Description Reserved Auto detect flash type to load appropriate flash R/W codes into the run time area in F000 for ESCD & DMI support. Reserved Use walking 1’s algorithm to check out interface in CMOS circuitry.
  • Page 85 POST (hex) Description 1. Initialize multi-language 2. Put information on screen display, including Award title, CPU type, CPU speed …. Reserved Reserved Reserved Reserved Reserved Reset keyboard except Winbond 977 series Super I/O chips. Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Test 8254...
  • Page 86 UPER ORKSTATION 5033C-T User's Manual POST (hex) Description Reserved Initialize the combined Trend Anti-Virus code. Reserved (Optional Feature) Show message for entering AWDFLASH.EXE from FDD (optional) Reserved 1. Initialize Init_Onboard_Super_IO switch. 2. Initialize Init_Onboard_AUDIO switch. Reserved Reserved Okay to enter Setup utility; i.e. not until this POST stage can users enter the CMOS setup utility.
  • Page 87 POST (hex) Description Reserved Reserved 1. Call chipset power management hook. 2. Recover the text font used by EPA logo (not for full screen logo) 3. If password is set, ask for password. Save all data in stack back to CMOS Initialize ISA PnP boot devices 1.
  • Page 88 UPER ORKSTATION 5033C-T User's Manual Notes...

  • Page 89: Appendix C: Software Installation

    After all the hardware has been installed, you must first configure the Adaptec Embedded Serial ATA RAID driver before you install the operating system. The necessary drivers are all included on the Supermicro bootable CDs that came packaged with your motherboard.
  • Page 90 UPER ORKSTATION 5033C-T User's Manual Non-Combined Mode: SATA only, with a maximum of two devices supported. Combined Mode: SATA and PATA devices, with support for two devices of each for a total of four devices maximum. For IDE(PATA)/SATA configurations, please refer to the table below.
  • Page 91 Appendix C: Software Installation C-2 Intel Hance Rapids Driver Installation a. Insert Supermicro's bootable CD that came with the system into the CD drive and restart the system. Upon reboot, a screen entitled "Super Micro Driver Diskette Maker" will appear.
  • Page 92 UPER ORKSTATION 5033C-T User's Manual C-3 Other Software Programs and Drivers After you've installed Windows Operating System, the screen shown below will appear. You are now ready to install the additional software programs and drivers included on the CD. To install these software programs and drivers, click the icons to the right of these items.
  • Page 93 Appendix C: Software Installation Supero Doctor III The Supero Doctor III program is a Web base management tool that supports remote management capability. It includes Remote and Local Management tools. The local management is called SD III Client. The Supero Doctor III program included on the CDROM that came with your motherboard allows you to monitor the environment and operations of your system.
  • Page 94 UPER ORKSTATION 5033C-T User's Manual Notes...

  • Page 95: Appendix D System Specifications

    Appendix D: System Specifications Appendix D System Specifications Processors Single Intel® Pentium® 4 processors of up to 3.40 GHz with HT technology or single Intel® Celeron® processors of up to 2.80 GHz at a 800/533/400 MHz front side bus speed Chipset Intel 875P Memory Capacity...
  • Page 96 UPER ORKSTATION 5033C-T User's Manual Chassis Model: SC733T-350 (mid-tower) Dimensions: (HxWxD) 16.7 x 7 x 22 in. (424 x 178 x 559 mm) Weight Gross Weight: 40 lbs. (18.2 kg.) System Cooling One (1) 12-cm thernal exhaust fan (FAN-0055) One (1) 9-cm thermal cooling fan (FAN-0060) System Input Requirements AC Input Voltage: 100-240 VAC Rated Input Current: 6A (115V) to 3A (230V)
