Supermicro SSH-C48Q User Manual

Top-of-rack omni-path switch
Hide thumbs Also See for SSH-C48Q:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual

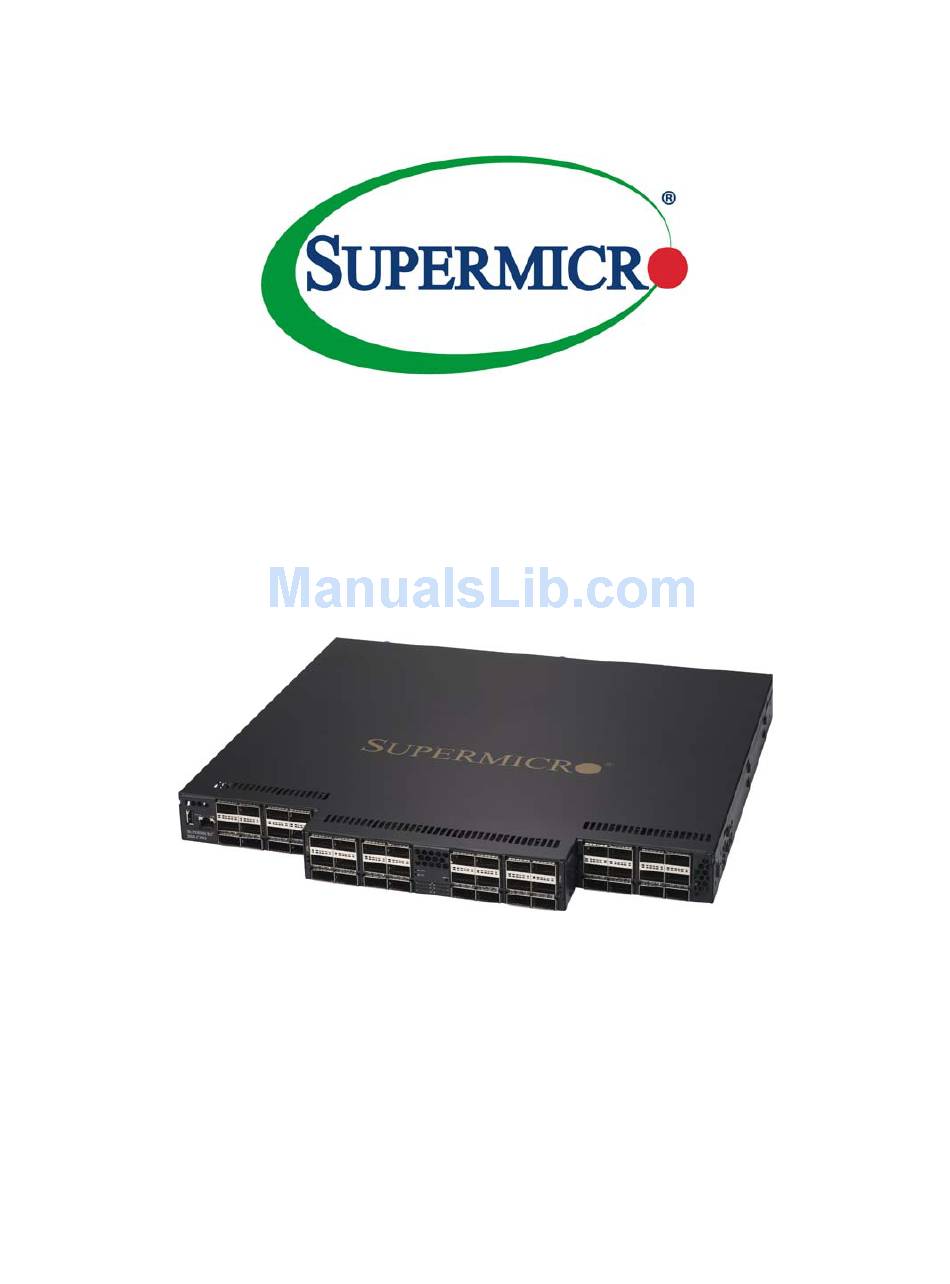

SSH-C48Q
Top-of-Rack Omni-Path Switch
Management GUI User's Manual
Revison 1.0a

Advertisement

Table of Contents
loading

Related Manuals for Supermicro SSH-C48Q

Summary of Contents for Supermicro SSH-C48Q

  • Page 1 SSH-C48Q Top-of-Rack Omni-Path Switch Management GUI User’s Manual Revison 1.0a...
  • Page 2 This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

  • Page 3: Intended Audience

    Preface ® This manual is part of the documentation set for the Supermicro ® Omni-Path Fabric (Supermicro OP Fabric), which is an end-to-end solution consisting of adapters, edge switches, director switches and fabric management and development tools. ® The Supermicro...

  • Page 4: Documentation Conventions

    SSH-C48Q Switch Management GUI User’s Manual Documentation Conventions This guide uses the following documentation conventions: • Note: provides additional information. • Caution: indicates the presence of a hazard that has the poten- tial of causing damage to data or equipment.

  • Page 5: Table Of Contents

    Details Header ............5 Chassis View Component Information Area ..6 Modifying Switch Component Information ..7 Rebooting Switches ..........8 Rebooting the Supermicro SSH-C48Q Switch .....8 Chassis View Component Information Area Tabs ......... 9 Standardized Warning Statements ...15 About Standardized Warning Statements ... 15...
  • Page 6 SSH-C48Q Switch Management GUI User’s Manual Warning Definition .............15 Installation Instructions ..........18 Circuit Breaker ............19 Power Disconnection Warning ........20 Equipment Installation ..........22 Restricted Area ............23 Battery Handling ............25 Redundant Power Supplies .........26 Backplane Voltage ............28 Comply with Local and National Electrical Codes ..29 Product Disposal ............30...
  • Page 7 Table of Contents Purging the Log ............46 Maintenance ............47 Select Boot Image ............48 Firmware Update ............50 LDAP Configuration ...........52 HTTP/CLI Session Configuration ......55 Subnet Manager Configuration File ......58 Post Diagnostics ............59 SNMP ..............61 Target Configuration ...........62 Creating a New Target Entry ........64 Target Configuration Window Field Descriptions ..64 Filter Status ..............68 Set Community Strings ..........70...
  • Page 8 SSH-C48Q Switch Management GUI User’s Manual View Port Statistics .............87 Understanding Port Naming Conventions ....88 Port Statistics Field Descriptions ........88 Port Beacon ..............91 Time Service ............93 Setting System Time ...........94 Using Network Time Protocol (NTP) ......96 Manually Setting System Time ........97 Setting Time Zone and Daylight Saving Time (DST) 97 Time Zone Tips .............98...
  • Page 9 Table of Contents Traditional Chinese Version Safety Warnings ..........A1...
  • Page 10 SSH-C48Q Switch Management GUI User’s Manual...

  • Page 11: Introduction

    ® The Chassis Viewer runs on the firmware of the Supermicro Omni-Path Switch family. The browser must be on a workstation that has IP connectivity to the LAN port (RJ-45 connector) on the switch.

  • Page 12: Accessing Chassis Viewer

    SSH-C48Q Switch Management GUI User’s Manual Accessing Chassis Viewer To access Chassis Viewer, point a browser to the IP address of the switch. : The default IP address is 192.168.100.9 and the ESULT NOTE default netmask is 255.255.255.0. If user authentication is enabled, a User Authentication window is displayed.

  • Page 13: Home Page

    (fans and power supplies), leaf modules, spine modules, and management module. The selected component provides hyperlinks to related menus and information where you can perform configuration and monitoring tasks. ® Figure 1: Supermicro OP Edge Switch 100 Family Home Page...

  • Page 14: Component Details Area

    SSH-C48Q Switch Management GUI User’s Manual The ? (HELP) button displays online help. Each help window provides a high-level, topic-specific description. Component Details Area The Component Details Area has three major sections: • Details Header • Information area • Menu...

  • Page 15: Details Header

    User Authentication parameter to Login Enabled through the HTTP Session Configuration submenu. For more information, see HTTP/CLI Session Configuration. • Reboot • View FRU [View Field Replaceable Unit (FRU) Information] • View Log ® • Home (Supermicro OP Director Switch 100 Family only) • ? / Help...

  • Page 16: Chassis View Component Information Area

    SSH-C48Q Switch Management GUI User’s Manual Chassis View Component Information Area The Chassis View Component Information Area allows you to monitor important information for each specific hardware component, as well as important system information. The information area is comprised of two different fields: •...

  • Page 17: Modifying Switch Component Information

    Introduction Modifying Switch Component Informa- tion Use the following procedure to modify the fields for switch components: Select the applicable tab: LED and Sensors, System, Chassis FRU, Power, Fan, or Backplane. Click on the row to be modified. In the text boxes, enter information for your network environ- ment.

  • Page 18: Rebooting Switches

    SSH-C48Q Switch Management GUI User’s Manual Rebooting Switches Rebooting the Supermicro SSH-C48Q Switch From the Chassis Details Header, click Reboot. ESULT A confirmation window is displayed. Click OK to reboot. ESULT The following rebooting status window is displayed.

  • Page 19: Chassis View Component Information Area Tabs

    Introduction Chassis View Component Information Area Tabs The tabs along the top of the information area present information about the following components: • LED and sensor information • Overall system information • Switch Field Replaceable Unit (FRU) Information • Power supply information •...
  • Page 20 SSH-C48Q Switch Management GUI User’s Manual Table 1: Chassis View Tabs and Descriptions Tab/Information Description LEDs and Sensors Tab Chassis Units Test Displays switch component LED information for chassis status, fan, and power supplies. NOTE: For a detailed explanation of physical...
  • Page 21 Introduction Tab/Information Description The elapsed time since the master System Uptime management module was re-initialized. System Contact The textual identification of the contact person and their contact information for this system, assigned by the administrator. System Name The name for the system, assigned by an administrator.
  • Page 22 SSH-C48Q Switch Management GUI User’s Manual Tab/Information Description A button for each row that displays additional Detail detail about the component. Additional details include: Part Number, Model, Version, Manufacturer Name, Product Name, Manufacturer Identification, and Manufactured Date (if available). Apply Button Saves any changes to memory.
  • Page 23 Introduction Tab/Information Description Backplane Tab The Backplane tab displays switch backplane information. The Backplane details button includes the following information: • Description • Serial Number • Part Number • Model • Version • Manufacturing Name • Product Name • Manufacturing ID •...
  • Page 24 Notes...

  • Page 25: Standardized Warning Statements

    The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.
  • Page 26 SSH-C48Q Switch Management GUI User’s Manual 電気回路に含まれる危険性に注意して、標準的な事故防止策に 精通して下さい。 此警告符号代表危险。 您正处于可能受到严重伤害的工作环境中。在您使用设备开始工作之前，必须充分意识到 触电的危险，并熟练掌握防止事故发生的标准工作程序。请根据每项警告结尾的声明号码 找到此设备的安全性警告说明的翻译文本。 此警告符號代表危險。 您正處於可能身體可能會受損傷的工作環境中。在您使用任何設備之前，請注意觸電的危 險，並且要熟悉預防事故發生的標準工作程序。請依照每一注意事項後的號碼找到相關的 翻譯說明內容。 Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 27 Standardized Warning Statements IMPORTANTES INFORMATIONS DE SÉCURITÉ Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents.

  • Page 28: Installation Instructions

    SSH-C48Q Switch Management GUI User’s Manual BELANGRIJKE VEILIGHEIDSINSTRUCTIES Dit waarschuwings symbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij een elektrische installatie betrokken risico's en dient u op de hoogte te zijn van de standaard procedures om ongelukken te voorkomen.

  • Page 29: Circuit Breaker

    Standardized Warning Statements ‫מתח‬ ‫את הוראות התקנה לפני חיבור המערכת למקור‬ ‫יש לקרוא‬ ‫ﻣﺼﺪر ﻟﻠﻄﺎﻗﺔ‬ ‫اﻟﻨﻈﺎم إﻟﻰ‬ ‫ﻗﺒﻞ ﺗﻮﺻﯿﻞ‬ ‫ﺘﺮﻛﯿﺐ‬ ‫اﻗﺮ إرﺷﺎدات اﻟ‬ 시스템을 전원에 연결하기 전에 설치 안내를 읽어주십시오 . Waarschuwing Raadpleeg de installatie-instructies voordat u het systeem op de voedingsbron aansluit.

  • Page 30: Power Disconnection Warning

    SSH-C48Q Switch Management GUI User’s Manual ¡Advertencia! Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio. Asegúrese de que el dispositivo de protección no sea superior a: 250 V, 20 A. Attention Pour ce qui est de la protection contre les courts-circuits (surtension), ce produit dépend de l'installation électrique du local.
  • Page 31 Standardized Warning Statements システムコンポーネントの取り付けまたは取り外しのために、 シャーシー内部にアクセ スするには、 システムの電源はすべてのソースから切断され、 電源コードは電源モジュールから取り 外す必要があります。 警告 在你打开机箱并安装或移除内部器件前 , 必须将系统完全断电 , 并移除电源线。 警告 在您打開機殼安裝或移除內部元件前，必須將系統完全斷電，並移除電源線。 Warnung Das System muss von allen Quellen der Energie und vom Netzanschlusskabel getrennt sein, das von den Spg.Versorgungsteilmodulen entfernt wird, bevor es auf den Chassisinnenraum zurückgreift, um Systemsbestandteile anzubringen oder zu entfernen.

  • Page 32: Equipment Installation

    SSH-C48Q Switch Management GUI User’s Manual 경고 ! 시스템에 부품들을 장착하거나 제거하기 위해서는 섀시 내부에 접근하기 전에 반드시 전원 공급장치로부터 연결되어있는 모든 전원과 전기코드를 분리해주어야 합니다 . Waarschuwing Voordat u toegang neemt tot het binnenwerk van de behuizing voor het installeren of verwijderen van systeem onderdelen, dient u alle spanningsbronnen en alle stroomkabels aangesloten op de voeding(en) van de behuizing te verwijderen.

  • Page 33: Restricted Area

    Standardized Warning Statements !‫אזהרה‬ .‫הציוד או לתת שירות עבור הציוד‬ ‫אי להתקין, להחליף את‬ ‫צוות מוסמך בלבד רש‬ ‫ھﺬا اﻟﺠﮭﺎز‬ ‫ﺧﺪﻣﺔ‬ ‫أو‬ ‫اﺳﺘﺒﺪال‬ ‫ﻟﺘﺮﻛﯿﺐ و‬ ‫واﻟﻤﺪرﺑﯿﻦ‬ ‫ﻟﻠﻤﻮظﻔﯿﻦ اﻟﻤﺆھﻠﯿﻦ‬ ‫ﻓﻘﻂ‬ ‫ﯾﺠﺐ أن ﯾﺴﻤﺢ‬ 경고 ! 훈련을 받고 공인된 기술자만이 이 장비의 설치 , 교체 또는 서비스를 수행할 수 있습니 다...
  • Page 34 SSH-C48Q Switch Management GUI User’s Manual Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido.

  • Page 35: Battery Handling

    Standardized Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. 電池の取り扱い...

  • Page 36: Redundant Power Supplies

    SSH-C48Q Switch Management GUI User’s Manual !‫אזהרה‬ ‫יש להחליף‬ .‫של הסוללה במידה והוחלפה בדרך לא תקינה‬ ‫פיצוץ‬ ‫קיימת סכנת‬ ‫צת‬ ‫יצרן מומל‬ ‫חברת‬ ‫התואם מ‬ ‫את הסוללה בסוג‬ .‫לפי הוראות היצרן‬ ‫יש לבצע‬ ‫המשומשות‬ ‫סילוק הסוללות‬ ‫ﻓﻌﻠﯿﻚ‬ ‫ﺑﻄﺮﯾﻘﺔ ﻏﯿﺮ ﺻﺤﯿﺤﺔ‬...

  • Page 37: Backplane Voltage

    Standardized Warning Statements Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden. ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones.
  • Page 38 SSH-C48Q Switch Management GUI User’s Manual バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、バックプレーン上にかかっています。 修理する際には注意ください。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf. Vorsicht bei der Wartung. ¡Advertencia! Cuando el sistema está en funcionamiento, el voltaje del plano trasero es peligroso.

  • Page 39: Comply With Local And National Electrical Codes

    Standardized Warning Statements Comply with Local and National Electrical Codes Warning! Installation of the equipment must comply with local and national electrical codes. 地方および国の電気規格に準拠 機器の取り付けはその地方および国の電気規格に準拠する必要 があります。 警告 设备安装必须符合本地与本国电气法规。 警告 設備安裝必須符合本地與本國電氣法規。 Warnung Die Installation der Geräte muss den Sicherheitsstandards entsprechen. ¡Advertencia! La instalacion del equipo debe cumplir con las normas de electricidad locales y nacionales.

  • Page 40: Product Disposal

    SSH-C48Q Switch Management GUI User’s Manual Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale elektriciteitsvoorschriften. Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄...

  • Page 41: Hot Swap Fan Warning

    Standardized Warning Statements 경고! 이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다. Waarschuwing De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen. Hot Swap Fan Warning Warning! The fans might still be turning when you remove the fan assembly from the chassis.

  • Page 42: Power Cable And Ac Adapter

    SSH-C48Q Switch Management GUI User’s Manual Attention Il est possible que les ventilateurs soient toujours en rotation lorsque vous retirerez le bloc ventilateur du châssis. Prenez garde à ce que doigts, tournevis et autres objets soient éloignés du logement du bloc ventilateur.
  • Page 43 Brand entstehen. Elektrische Geräte und Material Safety Law verbietet die Verwendung von UL-oder CSA-zertifizierte Kabel, UL oder CSA auf der Code für alle anderen elektrischen Geräte als Produkte von Supermicro nur bezeichnet gezeigt haben. ¡Advertencia! Al instalar el producto, utilice los cables de conexión previstos o designados, los cables y adaptadores de CA.
  • Page 44 SSH-C48Q Switch Management GUI User’s Manual Attention Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné. L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement ou un incendie. Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué...
  • Page 45 Elektrisch apparaat en veiligheidsinformatiebladen wet verbiedt het gebruik van UL of CSA gecertificeerde kabels die UL of CSA die op de code voor andere elektrische apparaten dan de producten die door Supermicro alleen.
  • Page 46 Notes...

  • Page 47: Configuration And Monitoring

    Configuration and Monitoring This section provides detailed, task-oriented descriptions for using the Chassis Viewer for configuration and monitoring.

  • Page 48: Chassis View Menu

    SSH-C48Q Switch Management GUI User’s Manual Chassis View Menu The Chassis View Menu contains the options shown in the following table. Table 1: Chassis View Menu Options Menu Image Description Logging Maintenance SNMP Configuration File Administration Chassis Traps Port Statistics...

  • Page 49: Logging

    Configuration and Monitoring Logging The Logging submenu allows you to view and purge the log message file. Figure 1: Logging Submenu...

  • Page 50: Viewing The Log

    SSH-C48Q Switch Management GUI User’s Manual Viewing the Log Each management module maintains a separate log. The View Log button allows you to view the message log. To view the message log: From the menu, select Logging. The View Log button is displayed.

  • Page 51: Set Level

    Configuration and Monitoring To save a log message for further analysis, perform the following steps: From the Log Messages window, select Edit, Select All (or CTRL + A). Select Edit, Copy (or CTRL + C). Open a text editing package, such as Notepad. Select Edit, Paste (or CTRL + V).
  • Page 52 SSH-C48Q Switch Management GUI User’s Manual From the menu, select Logging. The Set Level button is displayed. Click Set Level. The Log System Configurator window (Device tab) is displayed.

  • Page 53: Device Tab

    Configuration and Monitoring Device Tab The Device tab presents current log level configuration settings for the following software modules: • RAM – The circular log buffer contained in memory. To access the contents of this buffer, use the Chassis ViewerView Log button.
  • Page 54 • DUMP – Indicates that a problem has caused the system to produce a system dump file. Supermicro recommends that you retrieve the dump that was produced. Support engineers may require the information contained in the dump file to diagnose the cause of the problem.
  • Page 55 Configuration and Monitoring • CONFIGURATION – An informational message indicating changes that a user has made to the system configuration. You do not need to take any action. • INFO – Informational messages that occur during a system or component boot. You do not need to take any action. •...

  • Page 56: Preset Tab

    SSH-C48Q Switch Management GUI User’s Manual Preset Tab The Preset tab allows you to quickly change log level settings for all software modules on the switch. To change the log level settings: Click the On-Off check box to the right of the setting(s).

  • Page 57: Syslog Host Tab

    Click the Apply button to save the IP address. Configure Syslog on the Syslog Server To avoid losing log information in the event of a hardware failure, Supermicro recommends that you configure a syslog server as described in this section.

  • Page 58: Reset Log Levels

    SSH-C48Q Switch Management GUI User’s Manual : To centralize logging for all switches in a fabric, you can NOTE configure each switch to point to the same syslog server, which has the syslog daemon (syslogd) running. Edit the /etc/sysconfig/syslog file and ensure that the -r option is included in SYSLOGD_OPTIONS.
  • Page 59 Configuration and Monitoring Click Reset Levels. The Reset Levels window is displayed. To reset the logging levels, click OK.

  • Page 60: Purging The Log

    SSH-C48Q Switch Management GUI User’s Manual Purging the Log The Purge Log button purges the RAM, clearing the log file(s). To purge the log: From the menu, click Logging. The Purge Log button is displayed. Click Purge Log. The Purge Log confirmation window is displayed.

  • Page 61: Maintenance

    Configuration and Monitoring Click OK. The message log file is now purged. Maintenance The Maintenance menu allows you to select an alternate firmware file for the switch, reboot the switch, set and configure authentications for the switch, and set HTTP and CLI session time out parameters, as well as set security requirements for the switch.

  • Page 62: Select Boot Image

    SSH-C48Q Switch Management GUI User’s Manual Select Boot Image The Select Boot Image button allows you to choose an alternative boot image for the switch. To select a boot image: From the menu, select Maintenance. The Select Boot Image button is displayed.
  • Page 63 Configuration and Monitoring You can view additional information about each file by mousing over either radio button in the Boot Selection window. To choose a new boot image: Click on a radio button of the new boot image. Click Apply. The image selected runs after the next reboot.

  • Page 64: Firmware Update

    SSH-C48Q Switch Management GUI User’s Manual Firmware Update The Firmware Update button allows you to select an alternate firmware file for the switch. These alternate files are reflected in the drop-down lists in the Firmware Update window. To download firmware: From the menu, select Maintenance.
  • Page 65 Configuration and Monitoring Click Firmware Update. The Firmware Update window is displayed. In the Select Target Slot column, select the hardware compo- nent to change its firmware. : If there are multiple modules of the same type, you can NOTE select all slots that apply.

  • Page 66: Ldap Configuration

    SSH-C48Q Switch Management GUI User’s Manual LDAP Configuration The lightweight directory access protocol (LDAP) configuration feature allows you to set and configure authentication for the switch. The LDAP service resides on a server that has access to a usercode and password database.
  • Page 67 Configuration and Monitoring To set up LDAP authentication: From the menu, select Maintenance. The LDAP Configuration button is displayed.
  • Page 68 SSH-C48Q Switch Management GUI User’s Manual Click LDAP Configuration. The LDAP Authentication window is displayed. In the LDAP Server IP Address box, enter the address of the applicable LDAP server. In the LDAP Server Port box, enter the applicable server port number (the default is 389).

  • Page 69: Http/Cli Session Configuration

    Configuration and Monitoring HTTP/CLI Session Configuration The hyper text transfer protocol (HTTP) and command line interface (CLI) session configuration feature allows you to set HTTP and CLI session time out parameters, as well as set security requirements for the switch. The session time out duration is the length of time that a session remains active if there is no GUI activity.
  • Page 70 SSH-C48Q Switch Management GUI User’s Manual Click HTTP/CLI Session Config. The HTTP/CLI Session Configuration window is displayed. To modify the session time out duration (in seconds), click on the existing configuration. The row changes to orange. In the HTTP Timeout Duration field, enter the new timeout duration, in seconds.
  • Page 71 Configuration and Monitoring • Login Disabled - Does not require username or pass- word. • LDAP - Use an LDAP server. If the user name/password validation fails to complete successfully, check the data- base of the local switch. To change the HTTP Mode parameter, click on the HTTP Mode list.

  • Page 72: Subnet Manager Configuration File

    SSH-C48Q Switch Management GUI User’s Manual Subnet Manager Configuration File The Subnet Manager Configuration File window allows you to ® upload and download Supermicro Omni-Path Fabric Suite Fabric Manager embedded subnet manager files, as well as start and restart all applicable master and standby subnet managers using the new file.

  • Page 73: Post Diagnostics

    Configuration and Monitoring Post Diagnostics The Post Diagnostic feature allows you to choose tests for various switch components that can be run in real time. These are tests that are not run during the power-on phase. From the menu, select Maintenance. The Post Diagnostics button is displayed.
  • Page 74 SSH-C48Q Switch Management GUI User’s Manual The Post Diagnostics window is displayed.

  • Page 75: Snmp

    Configuration and Monitoring Select the test(s) to be run and click Run Tests. The test results are displayed in the Test Result column. Addi- tional information is posted to the Result-Ext column. SNMP The SNMP submenu allows you to view and modify SNMP trap configuration information.

  • Page 76: Target Configuration

    SSH-C48Q Switch Management GUI User’s Manual Target Configuration The Target Configuration button displays the SNMP Target Configuration window, allowing you to view and edit existing SNMP trap destinations. To display the Target Configuration window: From the menu, select SNMP. The Target Configuration button is displayed.
  • Page 77 Configuration and Monitoring Select Target Configuration. The SNMP Target Configuration window is displayed. The top section of the window, SNMP Target Addresses, allows you to determine what type of SNMP traps are sent, and where they are sent. The rows provide an area for specifying multiple trap destinations.

  • Page 78: Creating A New Target Entry

    SSH-C48Q Switch Management GUI User’s Manual Creating a New Target Entry To create a new target entry, use the following CLI command: snmpTargetAddr add -n name -a addr [-p port] [-t timeout] [-r retry_count] [-l tag_list] [-v parameters] [-s storage_type] For example, to add a trap target with the IP address 192.168.0.123...
  • Page 79 Configuration and Monitoring Name Description Specifies the IP address in dotted decimal format. Transport Address : The combination of the Transport Domain and the NOTE Transport Address determines the trap destination. Port Specifies the TCP or UDP port where the SNMP trap is sent.
  • Page 80 SSH-C48Q Switch Management GUI User’s Manual Name Description Indicates the current status of the row. The row may be Status in one of three states: • Active • Not in service • Not Ready : A status of not in service indicates that the...
  • Page 81 Configuration and Monitoring Name Description One of three options: Security Level • NoAuthNoPriv: No Authentication, no privacy. • AuthNoPriv: Authentication, no privacy. • AuthPriv: Authentication and privacy Specifies whether or not the entry is saved for each Storage Type reboot of the switch. •...

  • Page 82: Filter Status

    SSH-C48Q Switch Management GUI User’s Manual Filter Status The SNMP Filter Status window allows you to view parameters for RFC 2273 (SNMP-NOTIFICATION-MIB). To view SNMP filter status: From the menu, select SNMP The Filter Status button is displayed.
  • Page 83 Configuration and Monitoring Click Filter Status. The SNMP Filter Status window is displayed.

  • Page 84: Set Community Strings

    SSH-C48Q Switch Management GUI User’s Manual Set Community Strings The Set Community Strings window allows you to set two SNMP community names: • Read Only Community Name • Read/Write Community Name To set the Community Strings: From the menu, select SNMP.
  • Page 85 Configuration and Monitoring Click Set Community Strings. The Set Community Strings window is displayed. • The first field, Read Only Comm. Name is the commu- nity string that when specified in an SNMP client, allows read-only access to SNMP fields exported by the SNMP server.

  • Page 86: Configuration File Administration

    SSH-C48Q Switch Management GUI User’s Manual Configuration File Administration The Config File Admin menu allows you to perform various administrative tasks related to the configuration files for each module populating the switch. Figure 4: Configuration File Administration Menu...

  • Page 87: Administer

    Configuration and Monitoring Administer The Administer window allows you to set backup and restore scenarios for the configuration file of applicable switch modules. From the Chassis View menu, select Config File Admin. The Administer button is displayed. Click Administer. The Configuration File Administration window is displayed.
  • Page 88 SSH-C48Q Switch Management GUI User’s Manual Click on the module to be modified. The row changes to orange. In the Mode column, click the drop-down and select the configuration file administration mode for a module. The mode options include the following: •...

  • Page 89: Host Upload/Download

    Configuration and Monitoring : The Clear button deletes the configuration file from the NOTE switch. To save, click Apply. Host Upload/Download The Host Up/Download window allows you to: • Upload configuration files from a server. • Download saved configuration files from the switch to a server.
  • Page 90 SSH-C48Q Switch Management GUI User’s Manual Click Host Up/Down. The Configuration File Upload/Download window is displayed. To upload a configuration file from a server to the switch: For a selected module, click the Upload button. The Upload window is displayed.

  • Page 91: Trap Control

    Configuration and Monitoring To download a configuration file from the switch to a server: For a selected module, click the Download button. The File Download window is displayed. Click Save. In the Save As window, locate the correct path to the desired server location, and click Save.
  • Page 92 SSH-C48Q Switch Management GUI User’s Manual Click Trap Control. The Trap Control window is displayed. Select or deselect the desired trap(s). : To generate an immediate trap, click the applicable Gen NOTE Trap button. To save settings, click on Apply.
  • Page 93 You should resolve the error and reset the mode to the proper value for the affected slot. : The screen shot shows the default settings for this window. You NOTE should not change the default settings unless instructed by Supermicro Customer Support.

  • Page 94: Subnet Manager Configuration File

    SSH-C48Q Switch Management GUI User’s Manual Subnet Manager Configuration File The Subnet Manager Configuration File window allows you to ® upload and download Intel Omni-Path Fabric Suite Fabric Manager embedded subnet manager files, as well as start and restart all applicable master and standby subnet managers using the new file.
  • Page 95 Configuration and Monitoring Click Subnet Manager Config File. The Subnet Manager Configuration window is displayed. In the Upload Config File text box: enter the path to the alter- nate embedded subnet manager file (opafm.xml). If the path is not known, you can use the Browse... button to locate it. Once the new file is located, click the Upload button.

  • Page 96: Chassis Traps

    SSH-C48Q Switch Management GUI User’s Manual Chassis Traps The Chassis Trap Control window allows you to set default trap scenarios related to the switch. Figure 5: Chassis Traps Menu From the Chassis View menu, select Chassis Traps. The Trap Control button is displayed.
  • Page 97 Configuration and Monitoring Click Trap Control. The Chassis Trap Control window is displayed. Select or deselect the desired trap(s). : To generate an immediate trap, click the applicable Gen NOTE Trap button.
  • Page 98 SSH-C48Q Switch Management GUI User’s Manual To save settings, click on Apply. Definitions for each chassis trap are listed in the following table. Table 4: Chassis Traps Name Description Chassis Group icsChassisTrapSystemSelfTestFailur The chassis failed one or more of its self-test(s).
  • Page 99 Configuration and Monitoring Name Description A module has failed and is not icsChassisTrapModuleFailed operational. icsChassisTrapModuleSelfTestFailu The module failed one or more of its self tests. An error condition was encountered icsChassisTrapModuleEEPROMRe adFailure when reading the EEPROM of the module. icsChassisTrapModuleFPGAReadF An error condition was encountered when reading the ailure...
  • Page 100 SSH-C48Q Switch Management GUI User’s Manual Name Description An error condition was encountered icsChassisTrapPowerSupplyEEPRO MReadFailure when reading the EEPROM of the power supply. icsChassisTrapPowerSupplyFanFail A power supply fan has failed and is not operational. Fan Group icsChassisTrapFanNotResponding A fan is not responding to...

  • Page 101: Port Statistics

    Configuration and Monitoring Port Statistics The Chassis View Port Stats menu provides information for all of the external and internal ports of the switch. Figure 6: Port Stats Menu View Port Statistics To view port statistical information, do the following: From the Chassis View menu, click Port Stats.

  • Page 102: Understanding Port Naming Conventions

    Understanding Port Naming Conventions This section explains the conventions used in the Port Name column. On Supermicro SSH-C48Q Switch systems, an example portName is: Cable01, that is Cable Port 1. Port Statistics Field Descriptions The following table contains port statistics fields and descriptions.
  • Page 103 Configuration and Monitoring Field Description Indicates the number of full duplex serial links that Active Link Width are currently being used on a port. The current bandwidth capability of a port is determined by multiplying this value by the Active Link Speed of this port.
  • Page 104 SSH-C48Q Switch Management GUI User’s Manual Field Description Number of times a 8B10B encoding violation, or a Symbol Errors disparity violation was detected. If multiple errors are detected simultaneously (in more than one lane), the counter only increments by one. The value of the counter is not incremented past 65535.

  • Page 105: Port Beacon

    Configuration and Monitoring Field Description Indicates the number of times an invalid partition Pkey Violations Inbound key (PKey) was received. PKeys support an advanced feature for logically partitioning a physical subnet into logical access domains. Indicates the number of times an invalid PKey was Pkey Violations sent.
  • Page 106 SSH-C48Q Switch Management GUI User’s Manual Click Port Beacon. The Port Beacon window is displayed. For the desired port, select the Beacon Enabled check box. Click Apply. The physical port's LED blinks. In Chassis Viewer, the Link Status LED for the port is highlighted. The arrow in the...

  • Page 107: Time Service

    Configuration and Monitoring Time Service The System Time Information window allows you to set the system time using either network time protocol (NTP) or manual overrides. Figure 7: Time Service Menu...

  • Page 108: Setting System Time

    SSH-C48Q Switch Management GUI User’s Manual Setting System Time To set the system time: From the menu, select Time Service. : The Set System Time button is displayed. ESULT...
  • Page 109 Configuration and Monitoring Click Set System Time. : The System Time Information window is displayed. ESULT : If using Network Time Protocol (NTP) and host names NOTE (instead of IP addresses), DNS information must first be set up using the CLI command dnsParamsSet. Remember to reboot the switch after executing this command.

  • Page 110: Using Network Time Protocol (Ntp)

    SSH-C48Q Switch Management GUI User’s Manual Using Network Time Protocol (NTP) To use NTP: Click the Use Network Time Protocol? check box. ESULT Enter either the DNS host name or IP address for the NTP server. To save, click on Apply.

  • Page 111: Manually Setting System Time

    Configuration and Monitoring Manually Setting System Time To manually set the system time: Make sure the Use Network Time Protocol? check box is unchecked. ESULT Set the current date and time using the drop-downs for Month, Day, and Year as well as Hour, Minute, Seconds, and AM/PM.

  • Page 112: Time Zone Tips

    SSH-C48Q Switch Management GUI User’s Manual Using the Which, Dandy in Month drop-downs, set the start and end dates for daylight saving time. To save, click on Apply. Time Zone Tips In the United States, the following time zones are in effect: •...

  • Page 113: Oob Lan Ip Menu

    Configuration and Monitoring OOB LAN IP Menu Figure 8: OOB LAN IP Menu Configuring the Switch OOB IP Address To configure the Switch IP address: From the menu, select OOB LAN IP The Set OOB LAN IP button is displayed.
  • Page 114 SSH-C48Q Switch Management GUI User’s Manual Click Set OOB LAN IP. The Set OOB LAN IP window is displayed. Click the Out of Band LAN IP Address text box. Enter an applicable switch IP address. Click the Net Mask text box.
  • Page 115 Configuration and Monitoring Click Apply. If using IPv6, you can manually enter an applicable static IPv6 address (in hexadecimal format address/prefix) in the Out of Band LAN IP text box. To automatically configure and assign addresses from an IPv6 router, click the Auto Config Enabled radio button. : The IPv6 router must be configured to assign addresses NOTE using stateless address auto configuration.

  • Page 116: Configuring The Switch Default Gateway Ip Address

    SSH-C48Q Switch Management GUI User’s Manual Configuring the Switch Default Gateway IP Address The Set Default Gateway IP window allows you to configure the IP address for the default gateway to route packets from the OOB management port to an external network.

  • Page 117: Subnet Manager Control

    Configuration and Monitoring : If the DHCP option is selected, no gateway address is necessary. NOTE Subnet Manager Control This section discusses the embedded version of the Fabric Manager. Figure 9: Subnet Manager Control Button...

  • Page 118: Accessing The Subnet Manager Control Window

    SSH-C48Q Switch Management GUI User’s Manual Accessing the Subnet Manager Control Window The Subnet Manager Control window presents status information relating to the Supermicro Fabric Suite Fabric Manager and provides a mechanism for starting, restarting, and stopping the Fabric Manager.

  • Page 119: Starting The Fabric Manager

    Configuration and Monitoring Starting the Fabric Manager From the menu, click Subnet Manager. Click-control. The Subnet Manager Control window is displayed. To start the Fabric Manager, click Start. The system responds by displaying Starting up in the Status box of the Subnet Manager Control window. To confirm that the Fabric Manager has started, click Refresh.

  • Page 120: Stopping The Fabric Manager

    SSH-C48Q Switch Management GUI User’s Manual Click Close. Stopping the Fabric Manager From the menu, click Subnet Manager. Click Control. The Subnet Manager Control window is displayed. To stop the Fabric Manager, click Stop. The system responds by displaying Shutting Down in the Status box of the Subnet Manager Control window.

  • Page 121: Automatically Starting The Fabric Suite Fabric Manager

    Configuration and Monitoring Automatically starting the Fabric Suite Fabric Manager To enable the Fabric Manager to automatically start at boot time: From the menu, select Subnet Manager. The Configuration button is displayed. Click Configuration. The Subnet Manager Configuration window is displayed. To configure the Fabric Manager to automatically start with each boot, click Enabled.
  • Page 122 Notes For switches in a redundant management configuration, set the Start On Slave option to Disabled. In the event that the Fabric Manager on the master Manage- ment Module is disabled, the Fabric Manager on the slave Management Module turns on automatically when it becomes the chassis management module.
  • Page 123 Configuration and Monitoring...
  • Page 124 SSH-C48Q Switch Management GUI User’s Manual...
