Summary of Contents for Ovation E-910FC

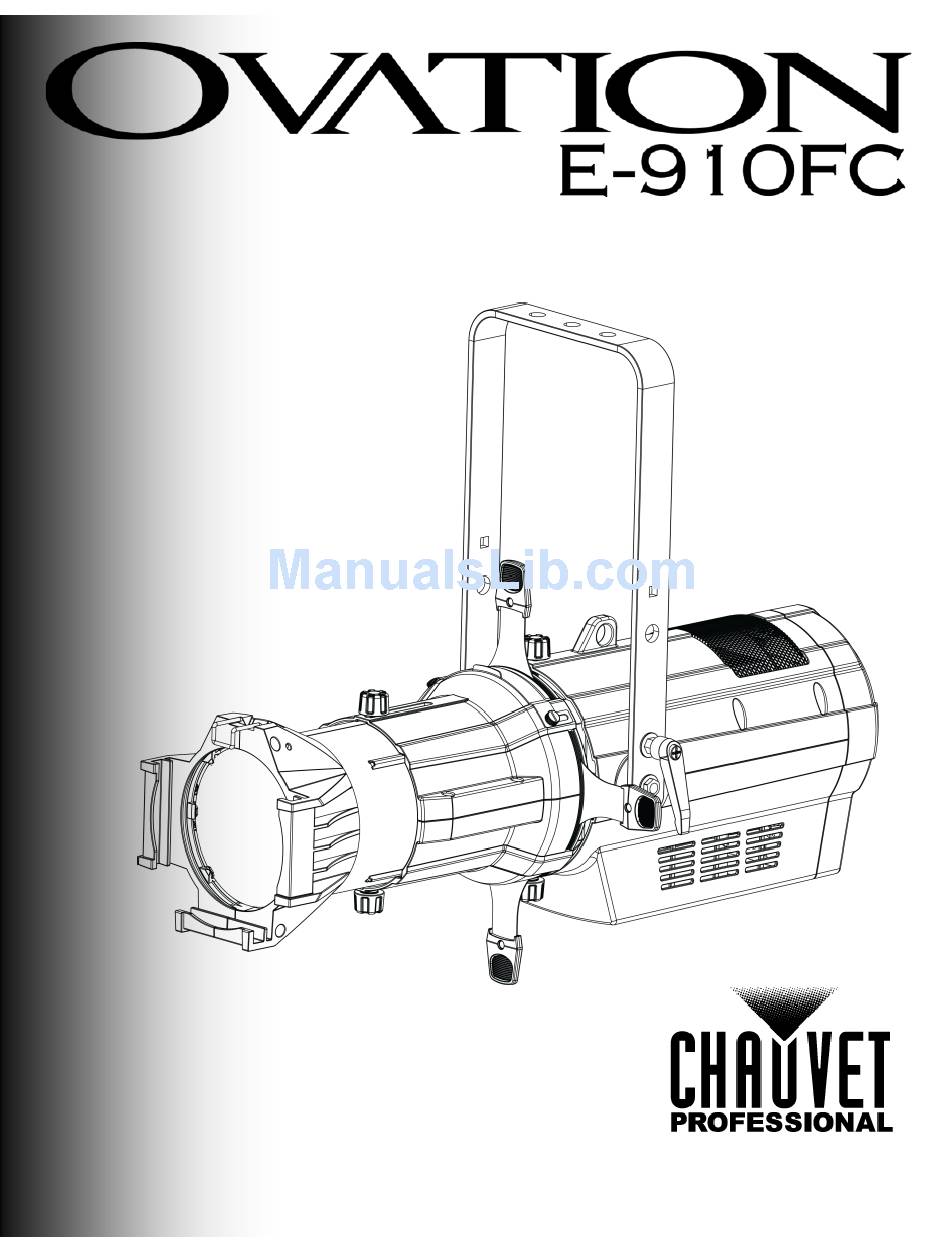

- Page 1 User Manual *Lens tubes sold separately...
- Page 2 Chauvet has no obligation to make, and does not commit to make, any such revisions.. The Ovation E-910FC User Manual Rev. 8 supersedes all previous versions of this manual. Document Discard any older versions of this manual and replace with this version.
-
Page 3: Table Of Contents
Software Information .................................... 14 RDM ........................................14 Configuration (DMX) ................................15 DMX Personalities ....................................15 DMX Control ......................................15 DMX Values ..................................15 15Ch ........................................15 13Ch ........................................16 12Ch ........................................16 10Ch ........................................17 7Ch ........................................17 Ovation E-910FC User Manual Rev. 8... - Page 4 Color Chart ......................................18 Preset Color Temperature Chart ............................19 5. Technical Information ............................20 Product Maintenance ................................20 Cleaning the Light Engine Lens ................................20 6. Technical Specifications ............................. 21 Returns ....................................22 Contact Us ................................23 -ii- Ovation E-910FC User Manual Rev. 8...
-
Page 5: Before You Begin
Important installation or configuration information. Failure to comply with this information may keep the product from working. Useful information. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Ovation E-910FC User Manual Rev. 8... -
Page 6: Safety Notes
In addition, limiting the overall projection intensity may also help to extend the LEDs’ lifespan. Ovation E-910FC User Manual Rev. 8... -
Page 7: Introduction

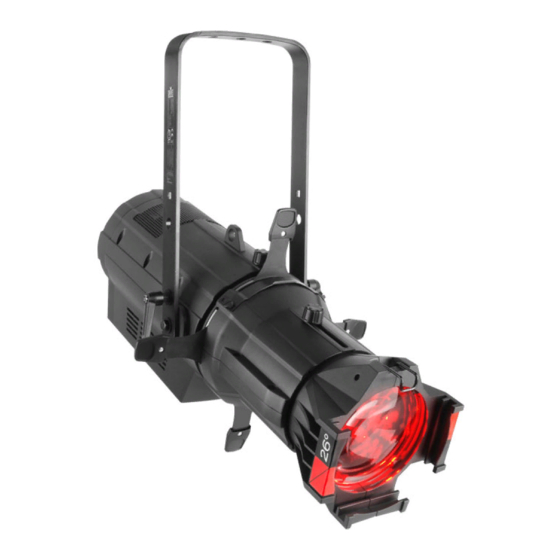

Introduction 2. Introduction The Ovation E-910FC is a high-power full color LED (RGBAL) ERS-style product. It features full Description RGBA-Lime color mixing with modes providing full 16-bit dimming (per color and master), selectable PWM, RDM, and on-board dimming curve selection. The Virtual Color Wheel matches popular gel colors comparable to those projected by a tungsten source. -
Page 8: Overview
Light Engine (sold separately) Bottom View Barrel Assembly Frame Holder Framing Shutter (x4) Side View Control Panel Handle Power In 3-and 5-pin Fuse DMX In 3-and 5-pin DMX Out Power Out Front View Rear View Ovation E-910FC User Manual Rev. 8... -
Page 9: Dimensions
Introduction Dimensions 6.86 in 174 mm 6.77 in 172 mm 11.17 in 283 mm 19.15 in 486 mm 25.90 in 657 mm 19.35 in 491 mm 23.33 in 592 mm Ovation E-910FC User Manual Rev. 8... -
Page 10: Setup
Each Ovation E-910FC has an auto-ranging power supply that works with an input voltage AC Power range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for each Ovation E-910FC, refer to the label affixed to the product. You can also refer to the Technical Specifications chart in this manual. -
Page 11: Dmx Linking
DMX-compatible products with the Ovation E-910FC, you can control each individually with a single DMX controller. The Ovation E-910FC uses a 3- or 5-pin DMX data connection for the 3, 5, 7, 10, 12, 13, and 15-channel DMX personalities. -
Page 12: Mounting
When hanging this product, always secure to a fastening device using a safety cable. For our CHAUVET Professional line of safety cables, go to http://trusst.com/products/. The Ovation E-910FC comes with a hanging/mounting bracket to which you can attach Procedure mounting clamps. The bracket has 13-mm holes, which are appropriate for this purpose. You must supply your own mounting clamps, so be sure the clamps are capable of supporting the weight of this product. -
Page 13: Manual Beam Focus Control
Make sure the barrel assembly is oriented with the pattern holder and Accessory slots at the top of the product. The Ovation E-910FC has an accessory slot, which holds a drop-in iris, a motorized Accessory Slot pattern device, or various other optional accessories (sold separately). -
Page 14: Operation
Navigates downward through the menu list or decreases the numeric <DOWN> value when in a function Set the Ovation E-910FC starting address in the 001–512 DMX range. This enables control of Control Options up to 34 products in the 15-channel 15Ch personality. - Page 15 Preset Color Temperature Chart 5000K section for specific values. 5600K 6000K 6500K Green Combine red, green, blue, amber, and Manual Color Mixer Blue <0–255> lime to make a custom color (0–100%) Amber Lime Ovation E-910FC User Manual Rev. 8 -11-...
- Page 16 Fixture Hours <_ _ _ _H> Shows total product hours Information Version <V_._> Shows installed software version UID: _ _ _ _ _ _ _ _ _ _ _ _ Shows product UID -12- Ovation E-910FC User Manual Rev. 8...
-
Page 17: Configuration (Standalone)
The DMX controller may interfere with signals from the master. · The master should be the first product in the daisy chain. The Ovation E-910FC offers over thirty pre-mixed colors based on gel colors. To select a gel Virtual Color color, do the following. -
Page 18: Dimmer Profiles
1. Go to the Fan Mode main level. 2. Select a fan mode (Auto, or On). This setting allows you to set the amount of time the backlight on the Ovation E-910FC’s display Back Light stays on after the last button is pressed on the control panel. -
Page 19: Configuration (Dmx)
Strobe, slow to fast 000ó255 Refer to the Virtual Color Wheel Chart section for Virtual Color Wheel specific values. 000ó255 Refer to the Preset Color Temperature Chart section Color Temperature for specific values. Ovation E-910FC User Manual Rev. 8 -15-... -
Page 20: 13Ch
000ó255 Slow to fast 000ó051 Preset dimmer speed from display menu 052ó101 Dimmer speed mode off Dimmer Speed 102ó152 Dimmer speed mode 1 (fastest) 153ó203 Dimmer speed mode 2 204ó255 Dimmer speed mode 3 (slowest) -16- Ovation E-910FC User Manual Rev. 8... -
Page 21: 10Ch
Percent/Setting Dimmer 000ó255 0-100% 000ó255 Refer to the Virtual Color Wheel Chart section for Virtual Color Wheel specific values. 000ó255 Refer to the Preset Color Temperature Chart section Color Temperature for specific values. Ovation E-910FC User Manual Rev. 8 -17-... -
Page 22: Virtual Color Wheel
The DMX values used to mix these colors are provided below. You may adjust the overall intensity of the Ovation fixture in order to more closely replicate colors you are familiar with. A chart is available on our website www.chauvetprofessional.com... -
Page 23: Preset Color Temperature Chart
Note: The color temperatures above are simulated renditions of the color output produced as compared to a tungsten lamp at the specified color temperature. Chauvet makes no guarantee of the color output accuracy. Ovation E-910FC User Manual Rev. 8 -19-... -
Page 24: Technical Information
Always close the framing shutters when transporting or storing the product. To remove the lens tube (sold separately), unscrew the beam focus knobs. Follow any maintenance and cleaning instructions supplied with the lens tube. -20- Ovation E-910FC User Manual Rev. 8... -
Page 25: Technical Specifications
113 °F (45 °C) Convection I/O Connectors Connector Type Channel Range 3- and 5-pin XLR Sockets 3, 5, 7, 10, 12, 13 or 15 Ordering Product Name Item Code UPC Number Ovation E-910FC 03121116 781462214647 Ovation E-910FC User Manual Rev. 8 -21-... -
Page 26: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be the customer’s responsibility. FedEx packing or double-boxing is recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). -22- Ovation E-910FC User Manual Rev. 8... -
Page 27: Contact Us
+52 (728) 690-2010 Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. Ovation E-910FC User Manual Rev. 8... - Page 28 User Manual Ovation E-910FC User Manual Rev. 8...
