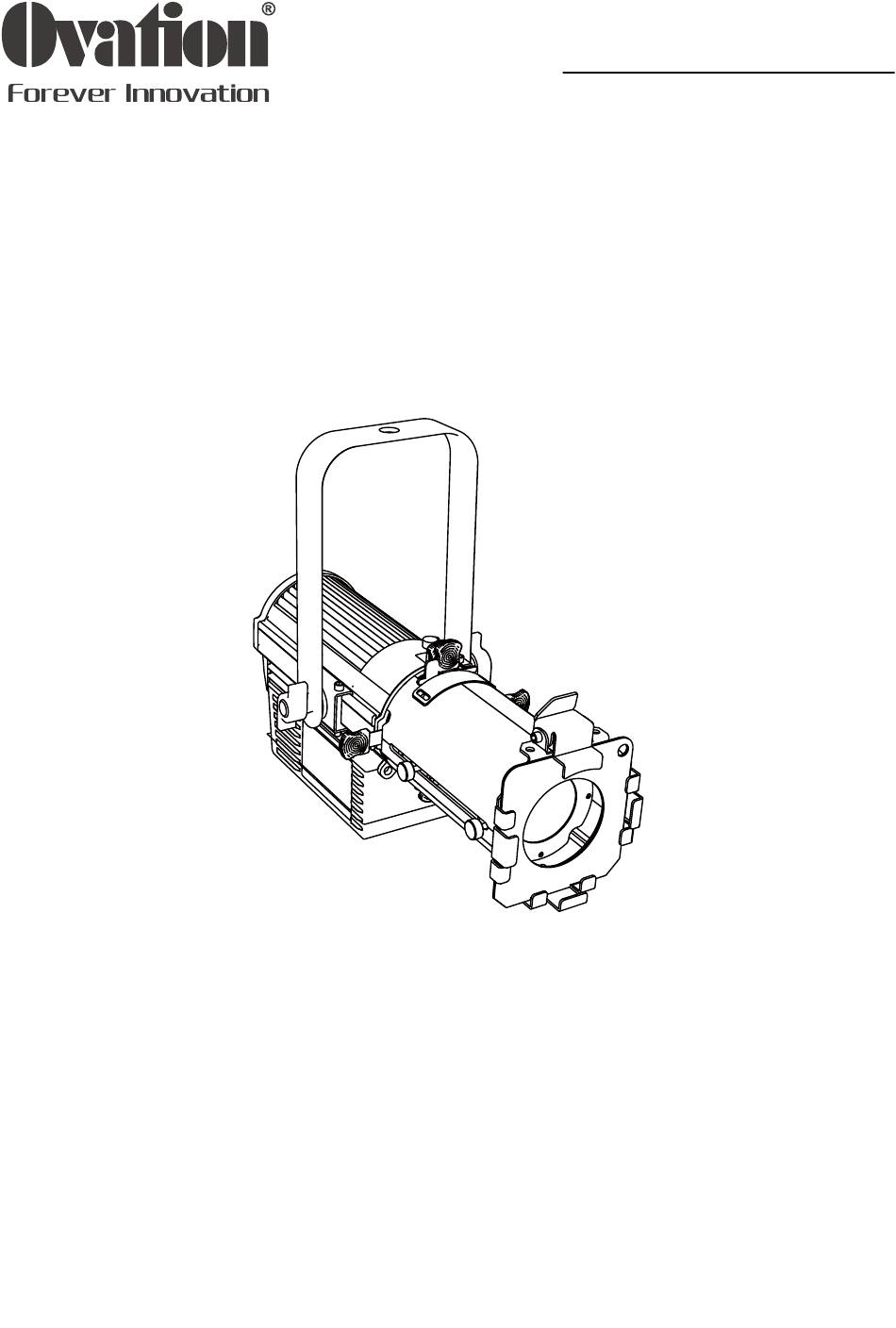

  • Page 1 PANTO LEKO 60 60W tunable LED profile zoom USER MANUAL...

  • Page 2: Table Of Contents

    Table of contents Caution! ������������������������������������������������������������������������������������������������������������������������������������������������ 3 Introduction ������������������������������������������������������������������������������������������������������������������������������������������ 3 Safety instructions ������������������������������������������������������������������������������������������������������������������������������� 3 Installation ������������������������������������������������������������������������������������������������������������������������������������������� 3 Read ‘Safety information’ before installing the fixture................3 Fastening the fixture to a flat surface ......................4 Mounting the fixture on a truss ........................4 Securing with a safety cable ........................4 DMX-512 connection/connection between fixtures ..................5 Power connection ............................5 Operation ���������������������������������������������������������������������������������������������������������������������������������������������...

  • Page 3: Caution

    - download the latest version of the user manual from the Internet Introduction Thank you for having chosen Panto Leko 60. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation.

  • Page 4: Fastening The Fixture To A Flat Surface

    Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over. If you install the fixture in a location where it may cause injury or damage if it falls, secure it as directed in this user manual using a securely anchored safety cable that will hold the fixture if the primary fastening method fails.

  • Page 5: Dmx-512 Connection/Connection Between Fixtures

    Earth(Ground) Operation The Panto Leko 60 can operate in three different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operating modes.

  • Page 6: Addressing

    In the case of the Panto Leko 60 , which is 1/2/3/5 channels fixture. If you set, for example, the address in the 2 channel mode to channel 2, the device will use the channel 2 to channel 3 for control.

  • Page 7: Control Menu Map

    Control Menu Map MENU SUB MENU OPERATION A001 001-512 DMX address setting CHnL 1/2/3/5 CH Channel Mode Strb S.00 - S.20 Strobe, speed increasing dinn 000 - 255 Master dimmer 0 - 100% uL-- u.000 - u.255 WW dimmer, 0 - 100% cL-- c.000 - c.255 CW dimmer, 0 - 100%...

  • Page 8: Fixture Cleaning

    4. Check that the fixture is dry before reapplying power. Technical specifications Model Panto Leko 60 Power supply: AC100-240V, 50/60Hz Light source: 60W WW + 60W CW COB LED...
