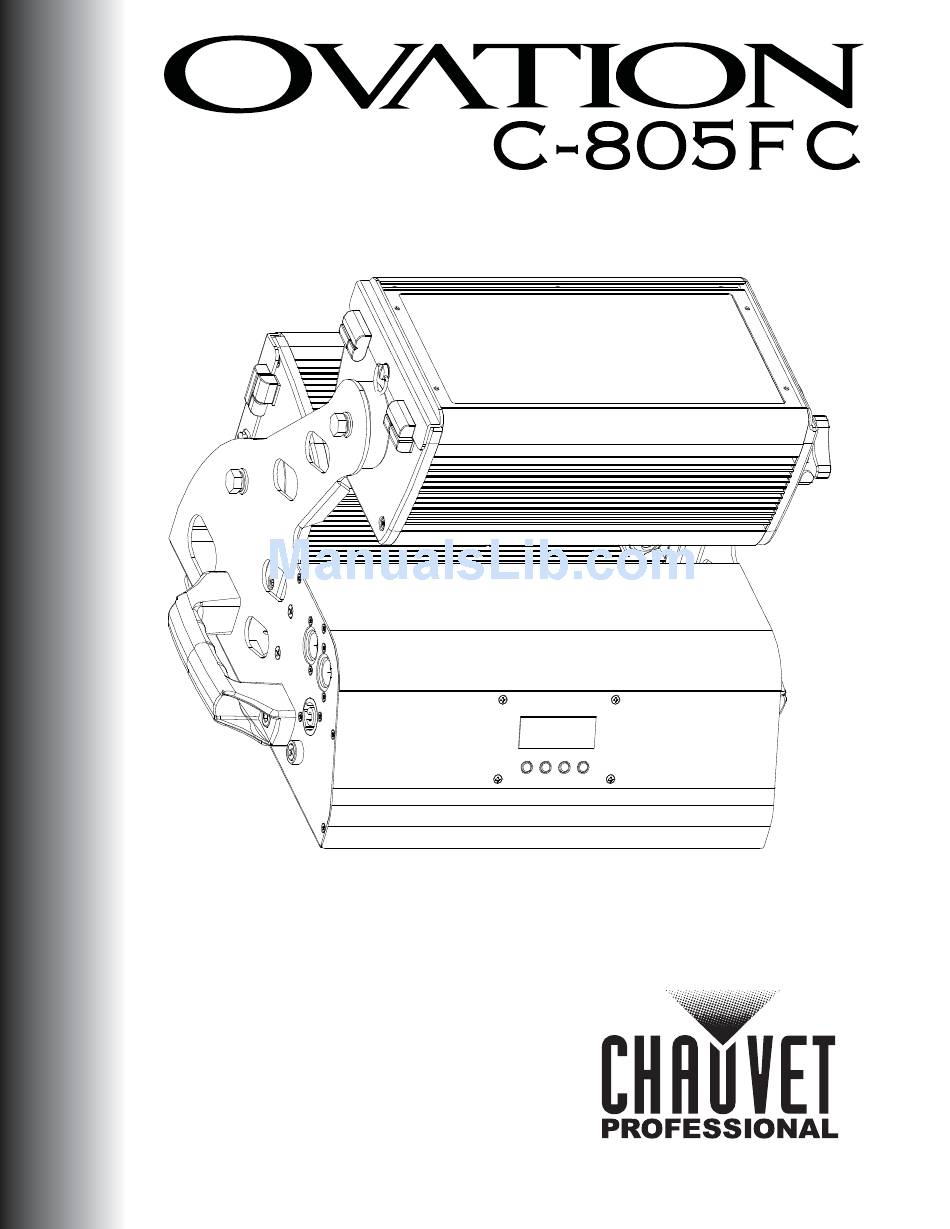

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    Rigging ........................... Procedure........................5. Operation ..................Control Panel Operation................10 Control Options ..................... 10 Programming....................10 Ovation C-805FC Sections for DMX Cell Control ............Menu Map ..................... 11 Configuration (DMX) ..................14 DMX Personalities......................DMX Control........................DMX Values ....................15 2-Cell Personalities ......................
  • Page 3 Preset Color Temperature Chart..................Virtual Color Wheel ......................Virtual Color Wheel Chart ....................6. Technical Information ..............Product Maintenance ..................25 7. Technical Specifications ............8. Returns..................9. Contact Us .................. Ovation C-805FC User Manual Rev. 3 TOC 2 of 2...

  • Page 4: Edition Notes

    OTES The Ovation C-805FC User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Ovation C-805FC as of the release date of this edition. Trademarks CHAUVET, the Chauvet logo and Ovation C-805FC are registered trademarks or trademarks of Chauvet &...

  • Page 5: Before You Begin

    Any reference to data or power connections in this manual assumes the use of Neutrik® powerCON® cables. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Ovation C-805FC User Manual Rev. 3 Page 2 of 28...

  • Page 6: Safety Notes

    40,000 to 50,000 hours. If extending this lifespan is vital, lower the operating temperature by improving the ventilation around the product, thus reducing the ambient temperature. In addition, limiting the overall projection intensity may extend the LEDs’ lifespan. Page 3 of 28 Ovation C-805FC User Manual Rev. 3...

  • Page 7: Introduction

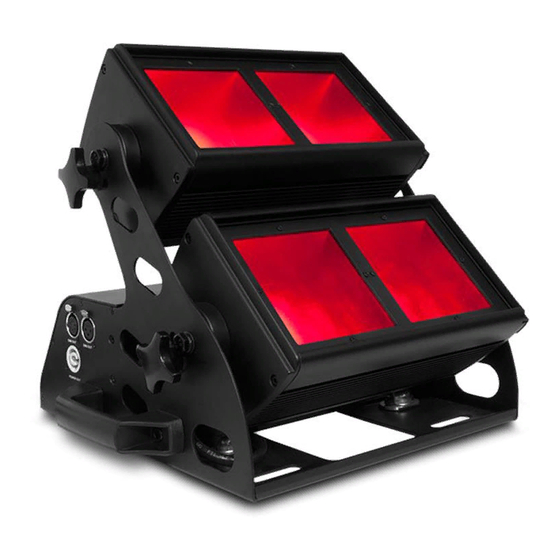

    NTRODUCTION Description The Ovation C-805FC is a compact cyclorama wash light capable of displaying a full spectrum of hues with RGBAL LEDs. It is theater-ready with full RGBA-Lime color mixing with modes providing full 16-bit dimming. Two individually adjustable heads offer great coverage.

  • Page 8: Product Overview

    NTRODUCTION Product Overview Display Menu Buttons 3- and 5-pin 3- and 5-pin Adjustment Adjustable DMX Input DMX Output Knobs Heads Fuse Holder powerCon Input powerCon Output Page 5 of 28 Ovation C-805FC User Manual Rev. 3...

  • Page 9: Product Dimensions

    NTRODUCTION Product Dimensions 11.7 in 298 mm 12.2 in 310 mm 15.3 in 390 mm Ovation C-805FC User Manual Rev. 3 Page 6 of 28...

  • Page 10: Setup

    DMX-compatible products with this product, you can control each individually with a single DMX controller. DMX Personalities The Ovation C-805FC uses a 3- or 5-pin DMX data connection for the 3, 4, 5, 6, 8, 9, 10, 15, 17, 19, 20, and 31-channel DMX personalities.

  • Page 11: Master/Slave Connectivity

    ETUP Master/Slave Connectivity The Master/Slave mode allows a Ovation C-805FC (the master) to control one or more Ovation C-805FC products (the slaves) without a DMX controller. One Ovation C-805FC becomes the master when running in auto show or VCW modes.

  • Page 12: Procedure

    ETUP Procedure The Ovation C-805FC comes with a double-bracketed yoke to which you can either attach mounting clamps for hanging or simply use as a floor stand. You must supply the mounting clamps. Make sure the clamps are capable of supporting the weight of this product. Use at least one mounting point per product.

  • Page 13: Operation

    <DOWN> function Control Options Set the Ovation C-805FC starting address in the 001-512 DMX range. This enables control of up to 16 products in the 31-channel RGBAL FULL 31CH personality. Programming Refer to the Menu Map to understand the menu options. The menu map shows the main level and a variable number of programming levels for each option.

  • Page 14: Menu Map

    RGBAL Fine 20CH cell) 31-channel: 16-bit dimmer, 16- bit RGBAL (per cell), virtual color wheel (per cell), color RGBAL FULL 31CH temperature (per cell), strobe (per cell), color macros, dimmer mode Page 11 of 28 Ovation C-805FC User Manual Rev. 3...
  • Page 15 Preset Color Temperature 5000K Chart section for specific 5600K values. 6000K 6500K Combine red, green, blue, Green amber, and lime to make a (Manual Color Blue custom color Mixer) Amber (0–100%) Lime Ovation C-805FC User Manual Rev. 3 Page 12 of 28...
  • Page 16 _ _ _ _ _ _ _ _ _ Shows product device ID _ _ _ _ _ _ _ _ _ _ _ _ Shows product UID Factory Reset to factory defaults Setting Page 13 of 28 Ovation C-805FC User Manual Rev. 3...

  • Page 17: Configuration (Dmx)

    Select the starting address (001–512). The highest recommended starting address for each DMX mode is as follows: DMX Personality 1-Cell 2-Cell DMX-VCW-CCT RGBA RGBAL RGB EXT RGBA EXT RGBAL EXT RGBAL Fine RGBAL FULL Ovation C-805FC User Manual Rev. 3 Page 14 of 28...

  • Page 18: Dmx Values

    Preset dimmer speed from display menu  Dimmer speed mode off  Dimmer Speed Dimmer speed mode 1 (fastest)  Dimmer speed mode 2  Dimmer speed mode 3 (slowest)  Page 15 of 28 Ovation C-805FC User Manual Rev. 3...
  • Page 19 Preset Color Temperature  Temperature 2 Chart section for specific values No function  Strobe 2 Strobe, slow to fast  No function  Strobe All Strobe, slow to fast  Ovation C-805FC User Manual Rev. 3 Page 16 of 28...
  • Page 20 Preset Color Temperature  Temperature 2 Chart section for specific values No function  Strobe 2 Strobe, slow to fast  No function  Strobe All Strobe, slow to fast  Page 17 of 28 Ovation C-805FC User Manual Rev. 3...
  • Page 21 RGB 6CH Channel Function Value Percent/Setting Red 1 0-100%  Green 1 0-100%  Blue 1 0-100%  Red 2 0-100%  Green 2 0-100%  Blue 2 0-100%  Ovation C-805FC User Manual Rev. 3 Page 18 of 28...
  • Page 22 0-100%  Green 0-100%  Green Fine 0-100%  Blue 0-100%  Blue Fine 0-100%  Amber 0-100%  Amber Fine 0-100%  Lime 0-100%  Lime Fine 0-100%  Page 19 of 28 Ovation C-805FC User Manual Rev. 3...
  • Page 23 No function  Strobe Strobe, slow to fast  RGBAL Channel Function Value Percent/Setting 0-100%  Green 0-100%  Blue 0-100%  Amber 0-100%  Lime 0-100%  Ovation C-805FC User Manual Rev. 3 Page 20 of 28...

  • Page 24: Configuration (Standalone)

    The auto programs cannot be edited. Master/Slave The Master/Slave mode allows a group of Ovation C-805FC products (the slaves) to simultaneously duplicate the output of another Ovation C-805FC (the master) without a DMX controller. To set each of the slaves: Go to the Master/Slave main level.

  • Page 25: White Balance

    PERATION White Balance This setting allows for selection of the white balance shown by the Ovation C-805FC when the color setting is RGBAL and the DMX controller’s red, green, blue, amber, and lime faders are set to 255. Go to the White Balance main level.

  • Page 26: Back Light

    PERATION Back Light This setting allows for selection of the amount of time the backlight on the Ovation C-805FC’s display stays on after the last button is pressed on the control panel. Go to the Back Light main level. Select On (remains on), 10S (10 seconds), 20S (20 seconds), or 30S (seconds).

  • Page 27: Virtual Color Wheel

    PERATION Virtual Color Wheel The Ovation C-805FC includes a feature called the Virtual Color Wheel (VCW). This feature is available as a stand-alone control mode for manual use and also as a control channel in each of the products’ DMX personalities.

  • Page 28: Technical Information

    Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 25 of 28 Ovation C-805FC User Manual Rev. 3...

  • Page 29: Technical Specifications

    3, 4, 5, 6, 8, 9, 10, 15, 17, 19, 20, or 31 Ordering Product Name Item Code UPC Number Ovation C-805FC 01031218 781462215668 UL 1573 CSA C22.2 No. 166 E113093 Ovation C-805FC User Manual Rev. 3 Page 26 of 28...

  • Page 30: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Page 27 of 28 Ovation C-805FC User Manual Rev. 3...

  • Page 31: Contact Us

    Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record. Ovation C-805FC User Manual Rev. 3 Page 28 of 28...
