Summary of Contents for Ovation MIN-E-10CW

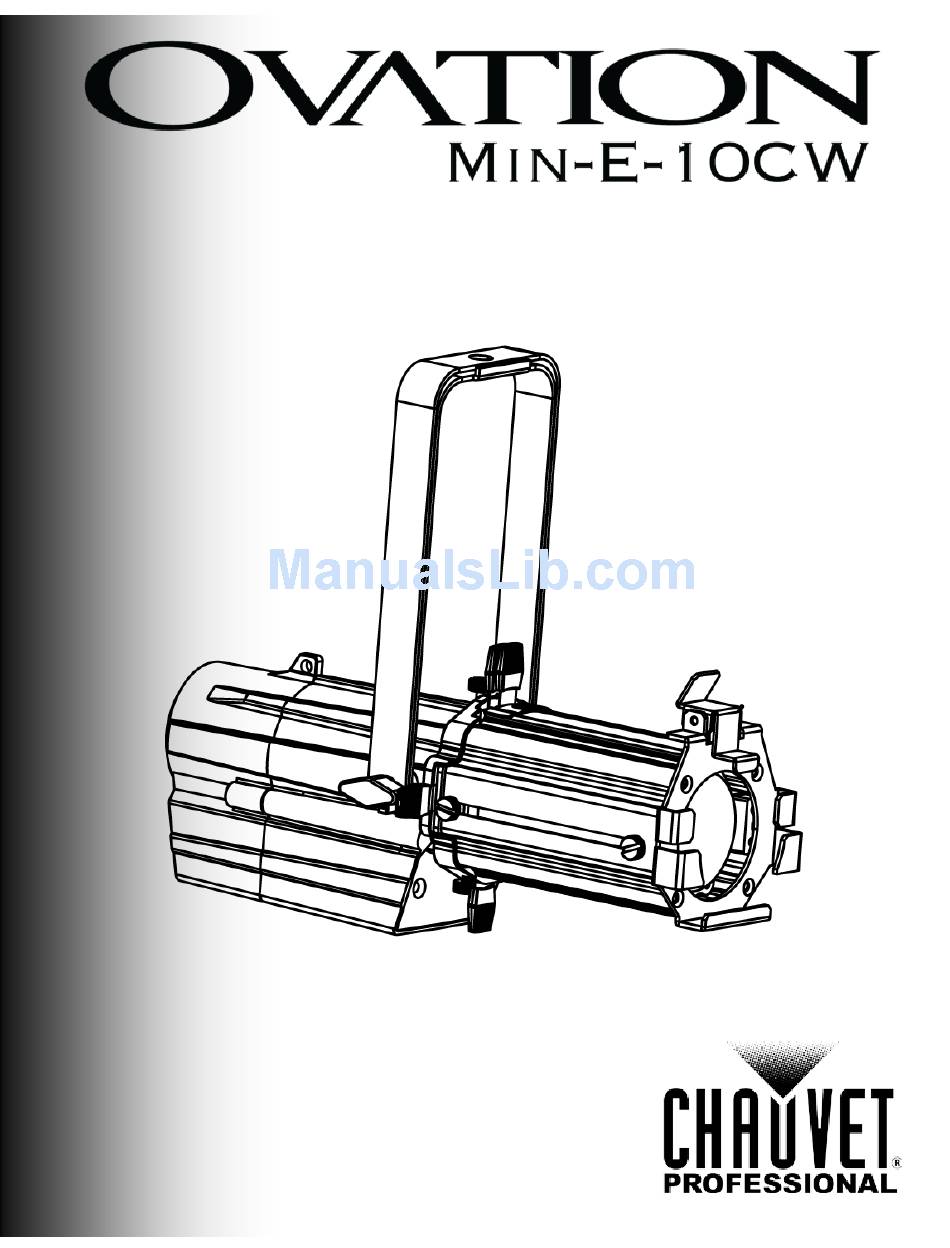

  • Page 1 User Manual...
  • Page 2 Document The OVATION Min-E-10CW User Manual Rev. 3 supersedes all previous versions of this manual. Discard any older versions of this manual and replace with this version. Go to Revision www.chauvetprofessional.com...
  • Page 3: Table Of Contents

    Manual Beam Focus Control ................................ 7 Gel Frame Holder ..................................7 5. Technical Information ..........................8 Product Maintenance ..............................8 Cleaning the Reflector Housing Lens ............................8 6. Technical Specifications ........................... 9 Returns ..................................10 Contact Us ..............................10 OVATION Min-E-10CW User Manual Rev. 3...
  • Page 5: Before You Begin

    Important installation or configuration information. Failure to comply with this information may keep the product from working. Useful information. OVATION Min-E-10CW User Manual Rev. 3...
  • Page 6: Safety Notes

    In addition, limiting the overall projection intensity may also help to extend the LEDs’ lifespan. OVATION Min-E-10CW User Manual Rev. 3...
  • Page 7: Introduction

    Introduction 2. I NTRODUCTION The OVATION Min-E-10CW is a compact cool white LED ellipsoidal product. The OVATION Min- Description E-10CW features standard beam shaping shutters, a gobo/effect slot, lens barrels that are interchangeable, and the capability to run on standard theater dimmers as well as 0–10 VDC dimmers.
  • Page 8: Dimensions

    Introduction Dimensions 5.12 in 130 mm 11.42 in 290 mm 9.76 in 248 mm 8.9 in 225 mm OVATION Min-E-10CW User Manual Rev. 3...
  • Page 9: Setup

    Technical Specifications chart in this manual. The OVATION Min-E-10CW has a second power input for a 0–10 V dimmer. The input is a 0–10 VDC push-button terminal connector, with a button for each wire.
  • Page 10: Mounting

    When hanging this product, always secure to a fastening device using a safety cable. For our CHAUVET Professional line of safety cables, go to http://trusst.com/products/. The OVATION Min-E-10CW comes with a yoke to which you can either attach a mounting Procedure clamp for hanging.
  • Page 11: Operation

    Framing Shutters Use the framing shutters to tighten and shape the beam of the OVATION Min-E-10CW, or open them completely to allow the full beam to pass. The gobo holder slot has a sliding cover and is located in front of the top framing shutter. The...
  • Page 12: Technical Information

    2. Use a Phillips screwdriver to remove the lens from its fixed cover, if necessary. 3. Clean the lens as described in Product Maintenance. Always close the framing shutters when transporting or storing the product. OVATION Min-E-10CW User Manual Rev. 3...
  • Page 13: Technical Specifications

    Field angle 18° 34° Thermal Max. External Temperature Cooling System 113 °F (45 °C) Convection Ordering Product Name Item Code UPC Number OVATION Min-E-10CW 01121125 781462214739 (120 V) OVATION Min-E-10CW 01121161 781462215095 (230 V) OVATION Min-E-10CW User Manual Rev. 3...
  • Page 14: Returns

    +52 (728) 285-5000 Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. OVATION Min-E-10CW User Manual Rev. 3...
