Summary of Contents for Ovation E-260CW

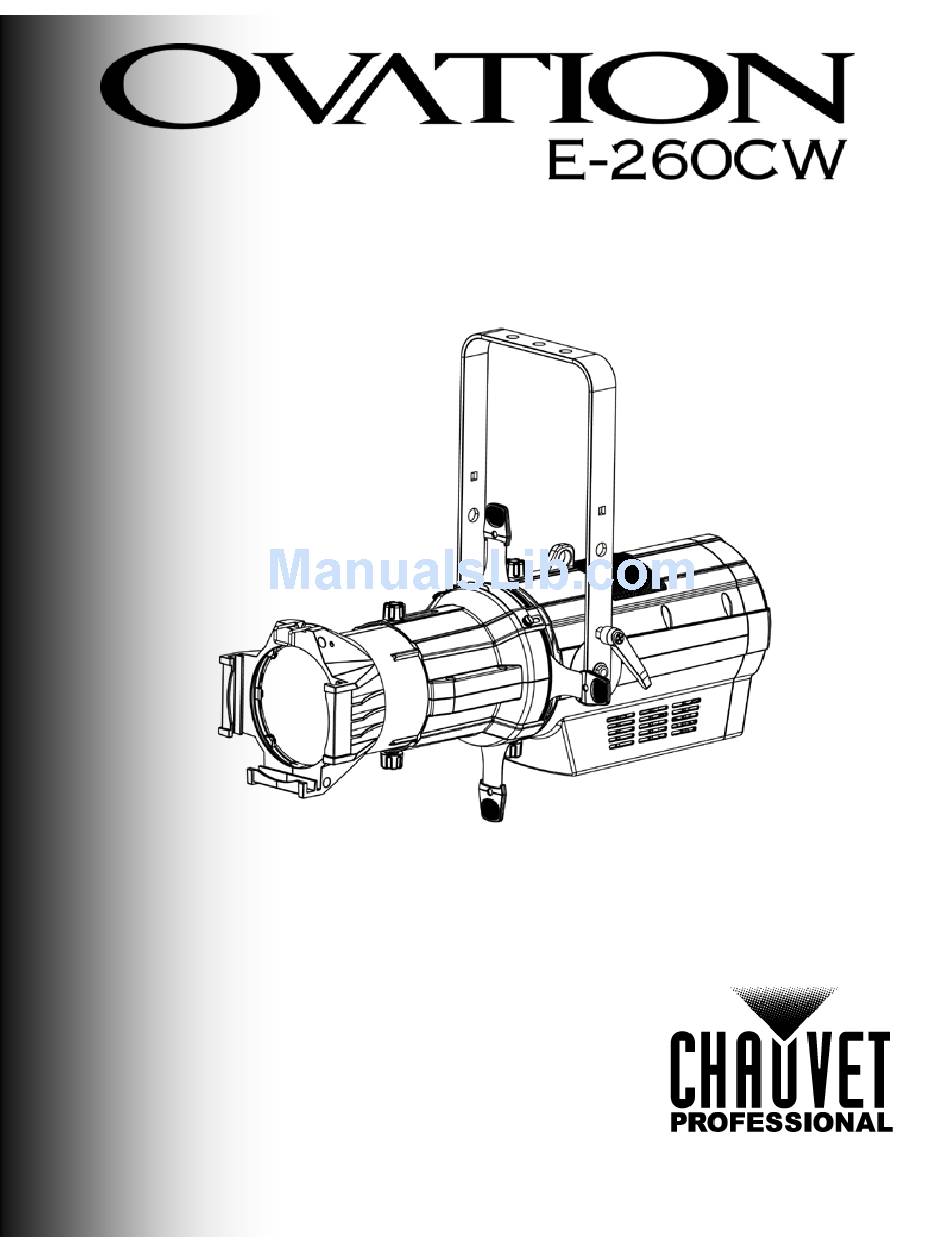

- Page 1 User Manual *Lens tubes sold separately...
- Page 2 Edition Notes The Ovation E-260CW User Manual Rev. 2 includes a description, safety precautions, and Edition installation, programming, operation, and maintenance instructions for the Ovation E-260CW as Notes of the release date of this edition in October 2016. CHAUVET, the Chauvet logo and Ovation E-260CW are registered trademarks or trademarks of Trademarks Chauvet &...
-
Page 3: Table Of Contents
Dimmer Profiles ..................................12 LED Frequency ..................................13 Fan Mode ....................................13 Back Light ....................................13 Run Time ....................................13 Software Information .................................. 13 RDM ......................................13 Configuration (DMX) ..............................13 DMX Personalities ..................................13 Ovation E-260CW User Manual Rev. 2... - Page 4 Table of Contents DMX Control....................................13 DMX Values ................................14 5. Technical Information ..........................15 Product Maintenance ..............................15 6. Technical Specifications ......................... 16 Returns ..................................17 Contact Us ..............................18 -ii- Ovation E-260CW User Manual Rev. 2...
-
Page 5: Before You Begin
Important installation or configuration information. Failure to comply with this information may keep the product from working. Useful information. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Ovation E-260CW User Manual Rev. 2... -
Page 6: Safety Notes
In addition, limiting the overall projection intensity may also help to extend the LEDs’ lifespan. Ovation E-260CW User Manual Rev. 2... -
Page 7: Introduction

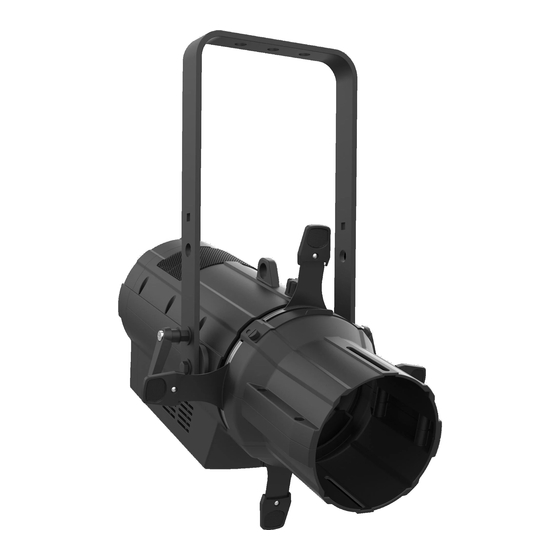

Introduction 2. Introduction The Ovation E-260CW delivers an excellent white light with a cool color temperature and a Description beautiful flat field. It also features standard beam shaping shutters, a gobo/effect slot and lens barrels that are interchangeable with other popular ERS fixtures. Selectable dimming curves ensure smooth fading cues that intermix well with the output of conventional theatre ellipsoidals. -
Page 8: Overview
Gel Frame Holder Side View Barrel Lens Tube Light Assembly (sold separately) Engine Handle Menu Buttons Fuse Holder Display powerCON® Input 3- and 5-pin DMX In powerCON® 3- and 5-pin DMX Out Output Rear View Ovation E-260CW User Manual Rev. 2... -
Page 9: Dimensions
6.7 in 15 in 8.7 in 171 mm 222 mm 380 mm 12 in 7.1 in 305 mm 180 mm 25.4 in 645 mm Top View 6.25 in 6.9 in 159 mm 174 mm Ovation E-260CW User Manual Rev. 2... -
Page 10: Setup
Each Ovation E-260CW has an auto-ranging power supply that works with an input voltage AC Power range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for each Ovation E- 260CW, refer to the label affixed to the product. You can also refer to the... -
Page 11: Dmx Linking
Setup You can link the Ovation E-260CW to a DMX controller using a 3- or 5-pin DMX connection. If DMX Linking using other DMX-compatible products with the Ovation E-260CW, you can control each individually with a single DMX controller. The Ovation E-260CW uses the standard DMX data connection for the 1-, 2-, 3- and 6- channel DMX modes. -
Page 12: Mounting
When hanging this product, always secure to a fastening device using a safety cable. For our CHAUVET Professional line of safety cables, go to http://trusst.com/products/. The Ovation E-260CW comes with a hanging/mounting bracket to which you can attach Procedure mounting clamps. The bracket has 13-mm holes, which are appropriate for this purpose. You must supply your own mounting clamps, so be sure the clamps are capable of supporting the weight of this product. -
Page 13: Manual Beam Focus Control
Make sure the barrel assembly is oriented with the pattern holder and accessory slots at the top of the product. The Ovation E-260CW has an accessory slot, which holds a drop-in iris, a motorized Accessory Slot pattern device, or various other optional accessories (sold separately). -
Page 14: Operation
Navigates downward through the menu list or decreases the numeric value when in a function Control Set the Ovation E-260CW starting address in the 001–512 DMX range. This enables control of up to 85 products in the 6-channel 6CH personality. Options... -
Page 15: Menu Map (Cont.)
Fixture Hours <_ _ _ _H> Shows total product hours Information Version <V_._> Shows installed software version UID: _ _ _ _ _ _ _ _ _ _ _ _ Shows product UID Ovation E-260CW User Manual Rev. 2 -11-... -
Page 16: Configuration (Standalone)
· The master should be the first product in the daisy chain. This setting determines how fast the output of the Ovation E-260CW changes when you modify Dimmer Profiles the values of the white, and dimmer faders. This setting provides four different options to simulate the dimming curve of an incandescent lighting product. -
Page 17: Led Frequency
1. Go to the Fan Mode main level. 2. Select a fan mode (Auto, or On). This setting allows you to set the amount of time the backlight on the Ovation E-260CW’s Back Light display stays on after the last button is pressed on the control panel. -
Page 18: Dmx Values
Slow to fast 000ó051 Preset dimmer speed from display menu 052ó101 Dimmer speed mode off Dimmer Speed 102ó152 Dimmer speed mode 1 (fastest) 153ó203 Dimmer speed mode 2 204ó255 Dimmer speed mode 3 (slowest) -14- Ovation E-260CW User Manual Rev. 2... -
Page 19: Technical Information
7. Gently polish the lens surfaces until they are free of haze and lint. Always dry the external surfaces thoroughly and carefully after cleaning them. Do not spin the cooling fans while blowing compressed air into them. Ovation E-260CW User Manual Rev. 2 -15-... -
Page 20: Technical Specifications
Cooling System 113 °F (45 °C) Fan-Assisted Convection I/O Connectors Connector Type Channel Range 3- and 5-pin XLR Sockets 1, 2, 3, 6 Ordering Product Name Item Code UPC Number Ovation E-910FC 03121186 781462215347 -16- Ovation E-260CW User Manual Rev. 2... -
Page 21: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be the customer’s responsibility. FedEx packing or double-boxing is recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Ovation E-260CW User Manual Rev. 2 -17-... -
Page 22: Contact Us
Voice: +52 (728) 285-5000 Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record. -18- Ovation E-260CW User Manual Rev. 2...
