Summary of Contents for Ovation E-260WW IP
-

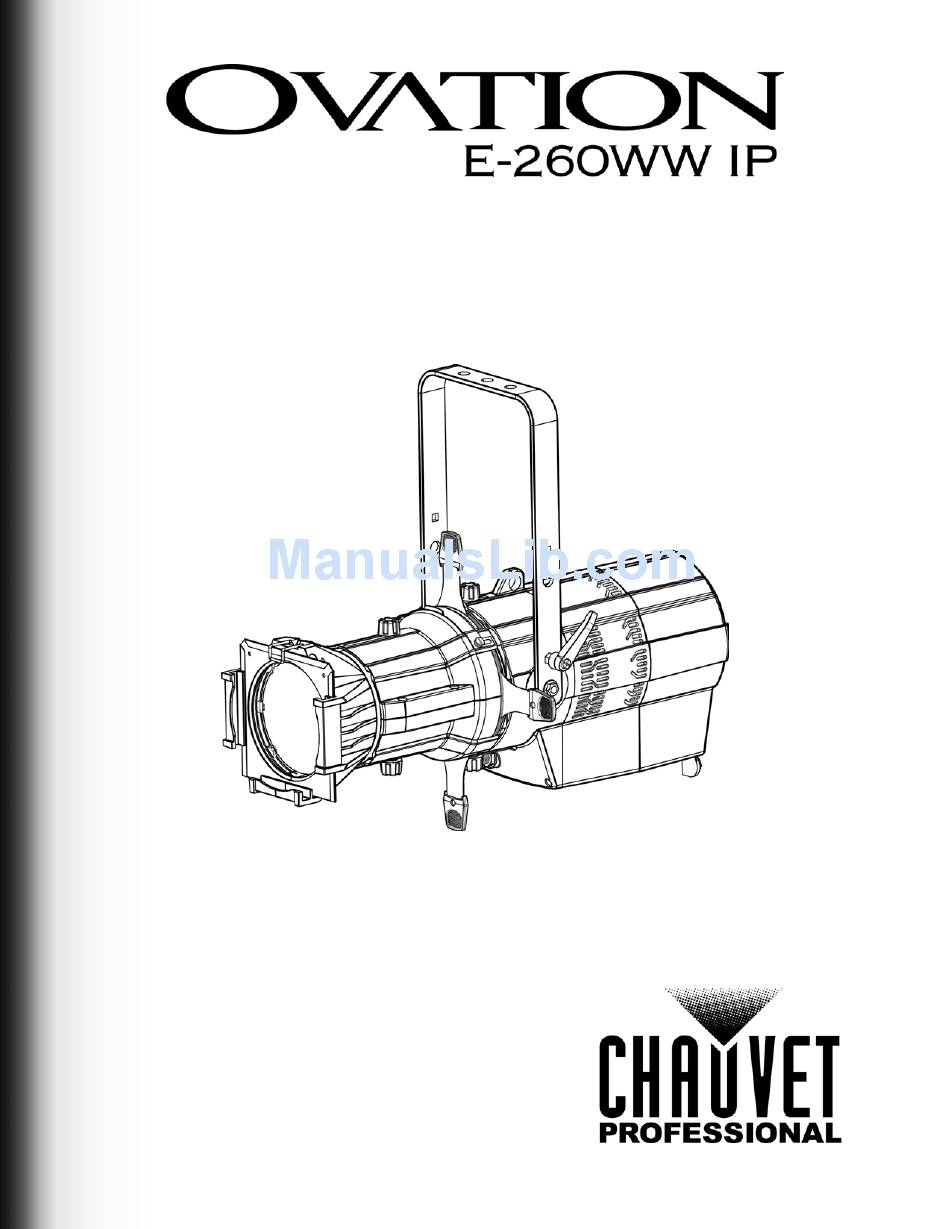

Page 1: User Manual
User Manual *Lens tubes sold separately... - Page 2 DITION OTES The Ovation E-260WW IP User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Ovation E-260WW IP as of the release date of this edition. Trademarks CHAUVET, the Chauvet logo and Ovation E-260WW IP are registered trademarks or trademarks of Chauvet &...
-
Page 3: Table Of Contents
Configuration (Standalone) ................12 Static Mode ........................Focus Mode ........................Auto Programs ....................... Master/Slave ........................Dimmer Profiles......................LED Frequency ......................Fan Mode ........................Back Light ........................Gobo Power ........................System Information ......................Factory Reset......................... Ovation E-260WW IP User Manual Rev. 2 TOC 1... - Page 4 DMX Personalities......................DMX Control........................DMX Values ....................14 6 Ch..........................3 Ch..........................2 Ch..........................1 Ch..........................5. Technical Information ..............Product Maintenance ..................15 Technical Specifications ............... Returns.................... Contact Us ..................TOC 2 Ovation E-260WW IP User Manual Rev. 2...
-
Page 5: Before You Begin
Any reference to data or power connections in this manual assumes the use of Seetronic IP rated cables. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Ovation E-260WW IP User Manual Rev. 2 Page 1 of 18... -
Page 6: Safety Notes
40,000 to 50,000 hours. If extending this lifespan is vital, lower the operating temperature by improving the ventilation around the product, thus reducing the ambient temperature. In addition, limiting the overall projection intensity may extend the LEDs’ lifespan. Page 2 of 18 Ovation E-260WW IP User Manual Rev. 2... -
Page 7: Introduction

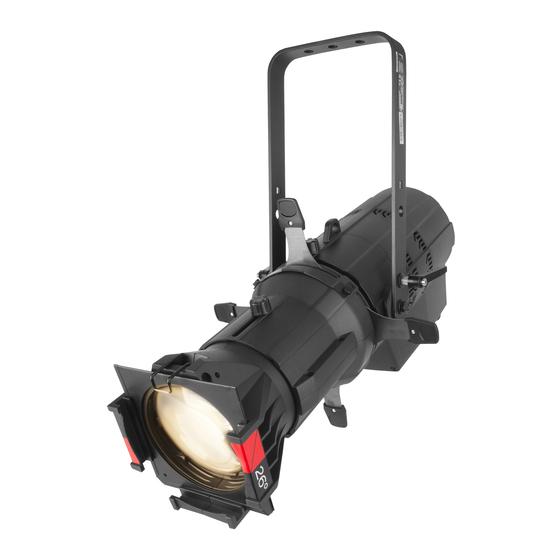

NTRODUCTION Description The Ovation E-260WW IP is a high-powered warm white ellipsoidal light that projects a flat, even field. Standard framing shutters, a gobo/effect slot, and interchangeable lens barrels provide versatility to fit any application. The Ovation E-260WW IP is IP65 rated and features IP rated power and DMX connections. -
Page 8: Product Overview
Accessory Slot Framing Shutter (x4) Beam Focus Knobs Barrel Rotation Knobs Gel Frame Holder Gobo Power Out (For Future Use) Lens Tube Barrel Light Engine (sold separately) Assembly Page 4 of 18 Ovation E-260WW IP User Manual Rev. 2... -
Page 9: Product Dimensions
NTRODUCTION Product Dimensions 19.92 in 506 mm 13.46 in 342 mm 12.64 in 321 mm 23.5 in 597 mm Ovation E-260WW IP User Manual Rev. 2 Page 5 of 18... -
Page 10: Setup
Each Ovation E-260WW IP has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for each Ovation E-260WW IP, refer to the label affixed to the product. You can also refer to the Technical Specifications chart in this manual. -
Page 11: Dmx Linking
ETUP DMX Linking You can link the Ovation E-260WW IP to a DMX controller using a 5-pin DMX connection. If using other DMX-compatible products with this product, you can control each individually with a single DMX controller. DMX Personalities The Ovation E-260WW IP uses a 5-pin DMX data connection for the 1-, 2-, 3-, and 6-channel DMX personalities. -
Page 12: Mounting
Only loosen or tighten the bracket knob manually. Using tools could damage the knob. Procedure The Ovation E-260WW IP comes with a hanging/mounting bracket to which mounting clamps can be attached. The bracket has 13-mm holes, which are appropriate for this purpose. Be sure the clamps used are capable of supporting the weight of this product. -
Page 13: Manual Beam Focus Control
Make sure the barrel assembly is oriented with the pattern holder and accessory slots at the top of the product. Accessory Slot The Ovation E-260WW IP has an accessory slot, which holds a drop-in iris, a motorized pattern device, or various other optional accessories (sold separately). Loosen the thumbscrews on the slot cover. -
Page 14: Operation
<DOWN> Navigates downward through the menu list or decreases the numeric value when in a function Control Options Set the Ovation E-260WW IP starting address in the 001-512 DMX range. This enables control of up to 85 products in the 6-channel 6Ch personality. -
Page 15: Menu Map
Shows total product hours Information Version <V_._> Shows installed software version _ _ _ _ _ _ _ _ _ _ _ _ Shows product ID Reset Factory Reset to factory defaults Ovation E-260WW IP User Manual Rev. 2 Page 11 of 18... -
Page 16: Configuration (Standalone)
The master should be the first product in the daisy chain. Dimmer Profiles This setting determines how fast the output of the Ovation E-260WW IP changes when you modify the output value. This setting provides four different options to simulate the dimming curve of an incandescent lighting product. -
Page 17: Fan Mode
Back Light This setting allows for selection of the amount of time the backlight on the Ovation E-260WW IP’s display stays on after the last button is pressed on the control panel. Go to the Back Light main level. -
Page 18: Dmx Values
255 Strobe, slow to fast 2 Ch Channel Function Value Percent/Setting Dimmer 255 0–100% Fine Dimmer 255 0–100% 1 Ch Channel Function Value Percent/Setting Dimmer 255 0–100% Page 14 of 18 Ovation E-260WW IP User Manual Rev. 2... -
Page 19: Technical Information
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Ovation E-260WW IP User Manual Rev. 2 Page 15 of 18... -
Page 20: Technical Specifications
113 °F (45 °C) Fan-assisted convection I/O Connector Channel Range 5-pin XLR 1, 2, 3 or 6 Ordering Product Name Item Name Item Code UPC Number Ovation E-260WW IP OVATIONE260WWIP 03121239 781462215873 Page 16 of 18 Ovation E-260WW IP User Manual Rev. 2... -
Page 21: Returns
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Ovation E-260WW IP User Manual Rev. 2 Page 17 of 18... -
Page 22: Contact Us
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., United Kingdom, Ireland, Mexico or Benelux, contact the dealer of record. Page 18 of 18 Ovation E-260WW IP User Manual Rev. 2...
