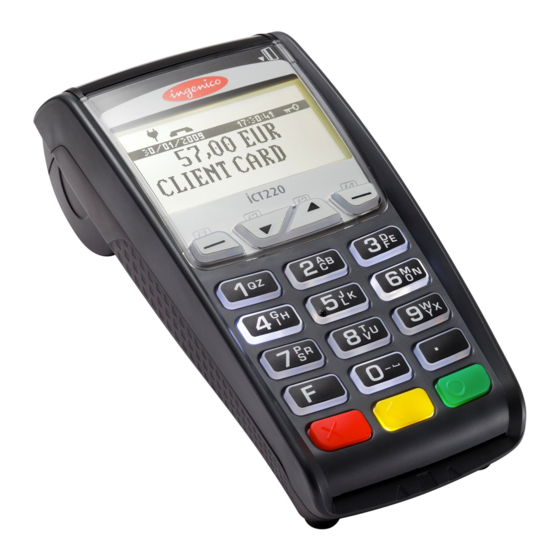

Ingenico iCT220 Quick Start Manual

Quick Start Guide - iCT220

Getting Started

Set up the terminal in a convenient location.
Plug the power supply unit into a mains socket and
plug the power connector into the power socket on the
'Magic Cable' connector unit. Plug the telephone lead
into the BT socket and the IN socket on the 'Magic
Cable' connector unit.
Once the mains power is connected your terminal will
be powered on.
After a short initialisation process the main idle screen
will be displayed, the terminal is now ready to use.
SUPERVISOR PASSWORD:
01483
The default Supervisor Password is 01483. NB: You should change this password.
F1-F4 Keys:
1 These four function keys enable you
to choose the options on screen and correspond
to the labels displayed on the screen.
MENU Key:
2 To enter the application menus press
the key from the idle screen. Pressing the key
again moves to the next menu (if available).
3 Correction Keys:
letters, the yellow
at a time, while the red
line (this key also cancels transactions).
ENTER Key:
The green
4
anything that has been typed into the terminal.
The Chip Card Reader
Customer cards must be inserted as shown, with the
chip upwards. Push the card fully into the slot below
the keypad and follow the instructions on screen.
If you see a BAD READ message, check the card
orientation and try again. After three bad reads the
terminal will prompt you to swipe the card.
DO NOT remove the card until instructed to do so
by the terminal.
When entering numbers or
key deletes one character
key deletes the entire
key is used to confi rm
1
2
4
3
