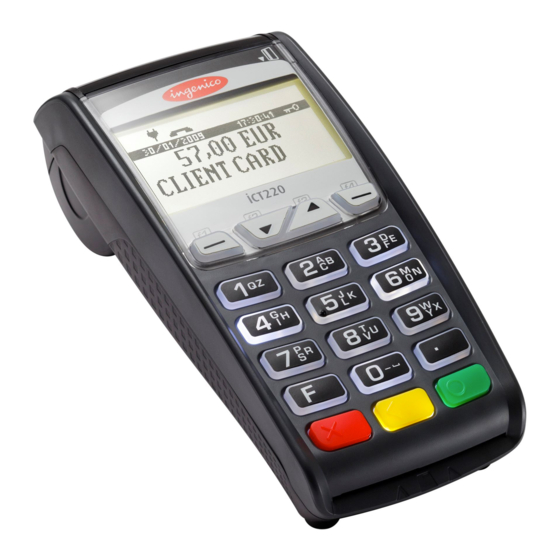

Ingenico iCT220 Function Manual
Hide thumbs Also See for iCT220:

Advertisement

The most important
Ingenico iCT220, iCT250 and iWL250 functions
Payment
1.
Push the <green button> or <F>, <1> "Transactions" and <1> "Payment"
2.
Enter amount and confirm with <green button>.
The amount is separated (e.g. euros/cents) with a comma.
Amounts less than "1" are registered with a "0," at the beginning.
3.
Depending on the type of card use magstripe, inserted into the chip card reader or
tapped to the contactless reader.
4.
The amount is displayed for the customer to read. When using a card with an
associated PIN, the customer is instructed to enter the PIN code (4 to 12 digits)
and confirm with <green button>.
When using a card without a PIN, only the amount must be confirmed. The
transaction can be interrupted by pressing <red button>.
Timeout: If a transaction is not concluded within 30 seconds, the process is
aborted.
5.
OPTIONAL: if the DCC is enabled and the card is foreign, you would be prompted
to ask cardholder if he/she wants to pay in his/hers or local currency. Choose the
right option with <up/down> button and confirm with <green button>.
6.
Payments are processed and, when appropriate, authorized online.
Chip cards: The card must remain inserted in the chip reader during the
transaction until the instructions appear to remove the card.
7.
Receipt is printed out. Please follow the terminal's instructions: If the customer's
signature is necessary, request that he or she provide one.
If the transaction was contactless before the CVM limit, receipt is optional.
8.
To print a copy of the receipt: Push the <green button> button.
To not print a copy of the receipt: Push the <red button> button.
If no button is pushed, a copy is automatically printed after 10 seconds.
(green button)
Amount
(green button)
PIN
(green button)
(green button)
(green button)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the iCT220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ingenico iCT220

  • Page 1 The most important Ingenico iCT220, iCT250 and iWL250 functions Payment Push the <green button> or <F>, <1> “Transactions” and <1> “Payment” (green button) Enter amount and confirm with <green button>. Amount The amount is separated (e.g. euros/cents) with a comma.
  • Page 2: Reversal

    Reversal Push <F>, <1> “Transactions” and <3> “Reversal” Push the <3> button. “Reversal” is activated. 3 Reversal Enter the terminal’s password and confirm with <green button>. Password (Password should be provided during the installation by the person installing terminal) (green button) The amount of the previous transaction is displayed, and confirm it with <green button>.
  • Page 3: Daily Closing

    Credits are processed. Chip cards: The card must remain inserted in the chip reader during the transaction until the instructions appear to remove the card. Receipt is printed out. To print a copy of the receipt: Push the <green button>. To not print a copy of the receipt: Push the <red button>.
  • Page 4 Notes about the unit Note! Please always keep the unit turned on so that the latest configuration parameters can be loaded. Function Description Buttons Setup > password Call up the main menu with the <F> button. Select <5> for <F> <5> is requested the Setup function.
