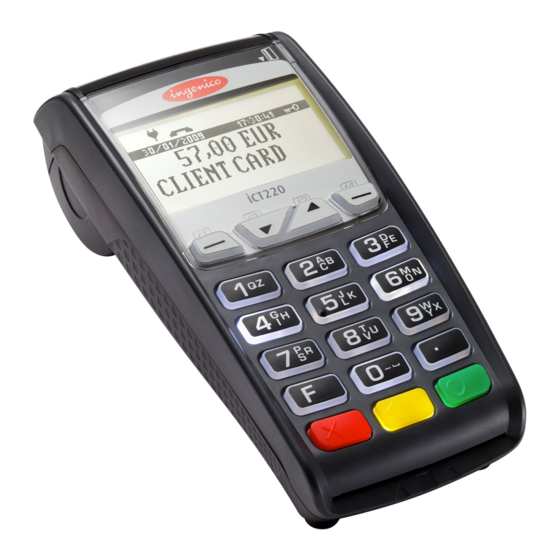

Ingenico ICT220 User Manual

USER GUIDE Ingenico ICT220 or ICT250

Setting up

1. Connect the terminal's power cable and plug it into the wall, ensuring the wall socket is on.
2. Plug the phone cable into the IN port.
3. Plug the Ethernet cable into the ETH port.

Logging on

Your terminal will log you on automatically. To perform a manual logon:
1. Select Menu
2. Select option 4 – ACTIVATA ADMIN MENU
3. Select option 1 – LOGON
4. After logon is accepted, press CANCEL

Security

After a logon or settlement cutover, you'll be required to enter a PIN. If you have a merchant card,
you'll be required to enter your PIN with every transaction. The default PIN is 12369, which can be
changed if required. To change the PIN or the security level on your terminal, please contact Activata
customer care.
For your security, ensure you receive confirmed payment BEFORE processing any Activata transaction.

Selling mobile top ups

1. Press MENU from the idle screen
2. Select option 5 – ACTIVATA TRANS MENU
3. Select option 1 - VOUCHER
4. Select Voucher Type
5. Select the desired amount from the available amounts
6. The terminal will print the top up voucher. To print your copy of the receipt, select ENTER when
prompted, else press CANCEL
Activata Retailer Guide – Ingenico ICT220 or ICT250
PAYMENT FIRST
V1.0 Page 1
