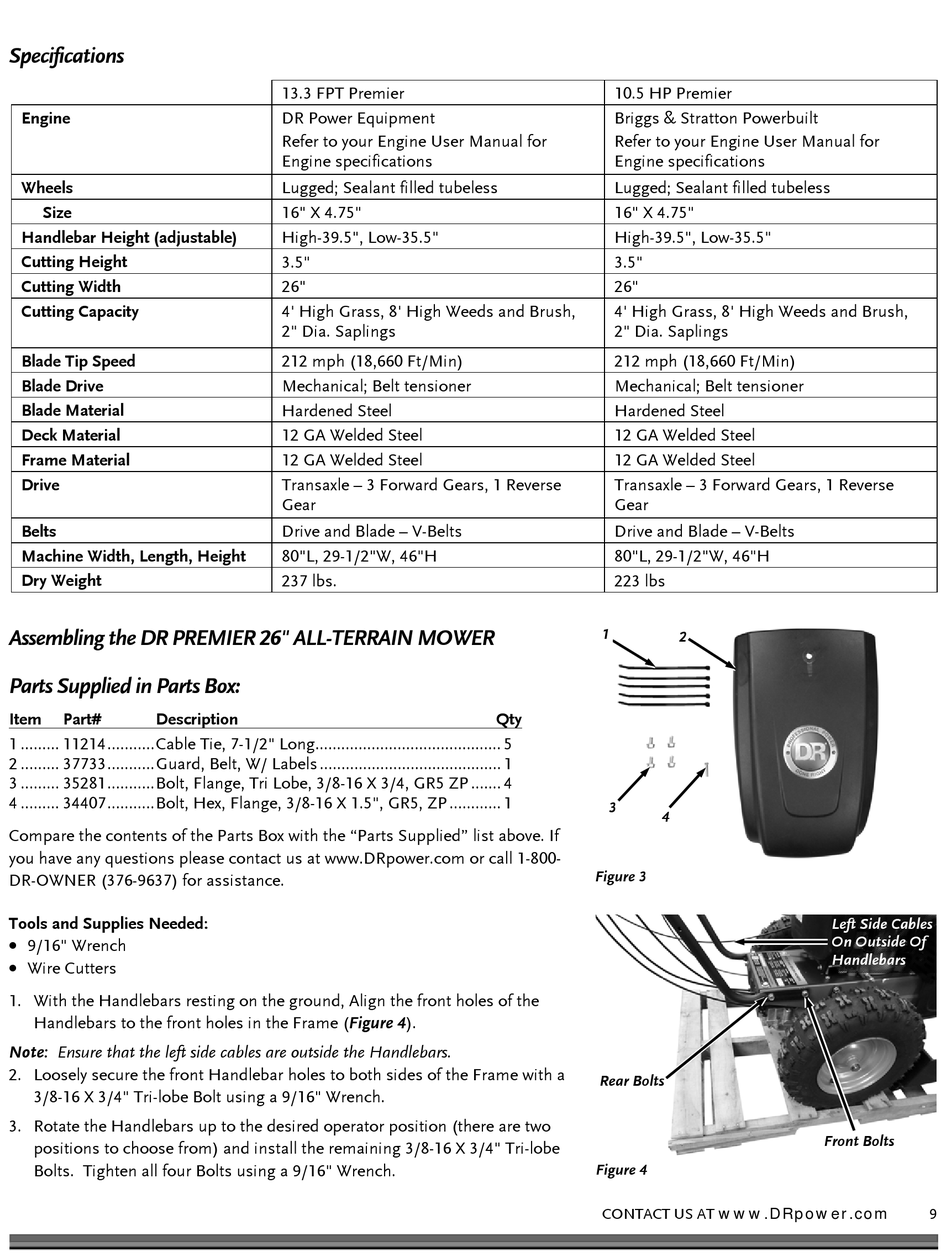

Specifications; Assembly; Parts Supplied In Parts Box - DR PREMIER 26" Safety & Operating Instructions Manual

Specifications

Engine
Wheels
Size
Handlebar Height (adjustable)
Cutting Height
Cutting Width
Cutting Capacity
Blade Tip Speed
Blade Drive
Blade Material
Deck Material
Frame Material
Drive
Belts
Machine Width, Length, Height
Dry Weight
Assembling the DR PREMIER 26" ALL-TERRAIN MOWER

Parts Supplied in Parts Box:

Item Part# Description
1 ......... 11214 ........... Cable Tie, 7-1/2" Long ........................................... 5
2 ......... 37733 ........... Guard, Belt, W/ Labels .......................................... 1
3 ......... 35281 ........... Bolt, Flange, Tri Lobe, 3/8-16 X 3/4, GR5 ZP ....... 4
4 ......... 34407 ........... Bolt, Hex, Flange, 3/8-16 X 1.5", GR5, ZP ............ 1
Compare the contents of the Parts Box with the "Parts Supplied" list above. If
you have any questions please contact us at www.DRpower.com or call 1-800-
DR-OWNER (376-9637) for assistance.
Tools and Supplies Needed:

9/16" Wrench

Wire Cutters
1. With the Handlebars resting on the ground, Align the front holes of the
Handlebars to the front holes in the Frame (Figure 4).
Note: Ensure that the left side cables are outside the Handlebars.
2. Loosely secure the front Handlebar holes to both sides of the Frame with a
3/8-16 X 3/4" Tri-lobe Bolt using a 9/16" Wrench.
3. Rotate the Handlebars up to the desired operator position (there are two
positions to choose from) and install the remaining 3/8-16 X 3/4" Tri-lobe
Bolts. Tighten all four Bolts using a 9/16" Wrench.
13.3 FPT Premier
DR Power Equipment
Refer to your Engine User Manual for
Engine specifications
Lugged; Sealant filled tubeless
16" X 4.75"
High-39.5", Low-35.5"
3.5"
26"
4' High Grass, 8' High Weeds and Brush,
2" Dia. Saplings
212 mph (18,660 Ft/Min)
Mechanical; Belt tensioner
Hardened Steel
12 GA Welded Steel
12 GA Welded Steel
Transaxle – 3 Forward Gears, 1 Reverse
Gear
Drive and Blade – V-Belts
80"L, 29-1/2"W, 46"H
237 lbs.
10.5 HP Premier
Briggs & Stratton Powerbuilt
Refer to your Engine User Manual for
Engine specifications
Lugged; Sealant filled tubeless
16" X 4.75"
High-39.5", Low-35.5"
3.5"
26"
4' High Grass, 8' High Weeds and Brush,
2" Dia. Saplings
212 mph (18,660 Ft/Min)
Mechanical; Belt tensioner
Hardened Steel
12 GA Welded Steel
12 GA Welded Steel
Transaxle – 3 Forward Gears, 1 Reverse
Gear
Drive and Blade – V-Belts
80"L, 29-1/2"W, 46"H
223 lbs
1
Qty
3
4
Figure 3
Rear Bolts
Figure 4
CONTACT US AT www.DRpower.com
2
Left Side Cables
On Outside Of
Handlebars
Front Bolts
9
