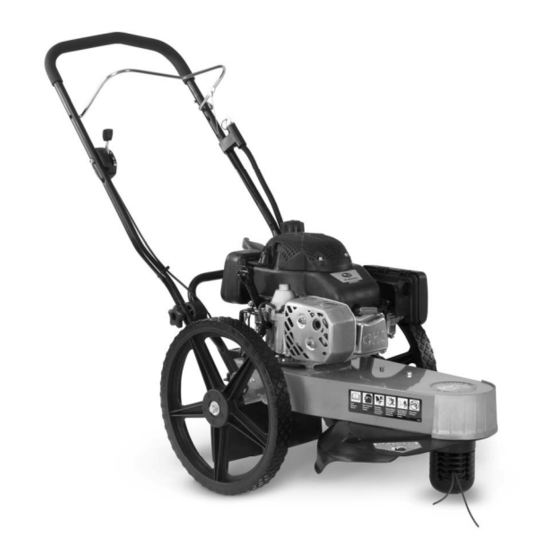

DR Premier Safety & Operating Instructions Manual

Trimmer/mower
Hide thumbs Also See for Premier:
Table of Contents

Advertisement

Quick Links

See also: Safety & Operating Instructions Manual
®

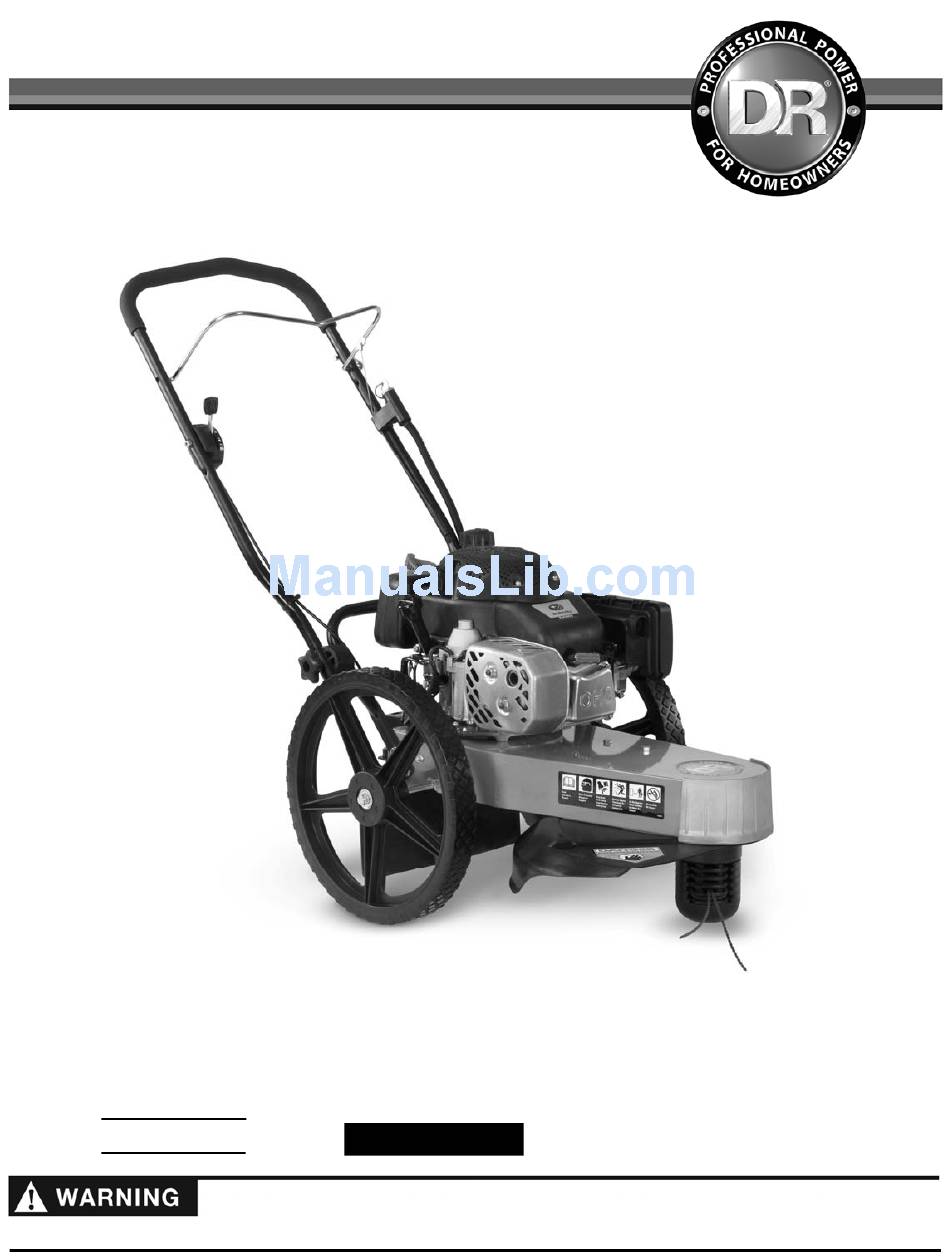

DR
TRIMMER/MOWER™
SAFETY & OPERATING INSTRUCTIONS
Models: Premier, Premier Plus, Pro, Pro-XL
Serial No.
Order No.
Read and understand this manual and all instructions before operating the DR TRIMMER/MOWER.
Original Language
DR Power Equipment
Toll-free phone: 1-800-DR-OWNER (376-9637)
Fax: 1-802-877-1213
Website: www.DRpower.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Premier and is the answer not in the manual?

Questions and answers

Jack
April 24, 2025

Bought a self propelled model. It came without a throttle. Dealer says does not come with one, the manual shows one. Which is correct?

0

Related Manuals for DR Premier

Summary of Contents for DR Premier

  • Page 1 SAFETY & OPERATING INSTRUCTIONS Models: Premier, Premier Plus, Pro, Pro-XL DR Power Equipment Toll-free phone: 1-800-DR-OWNER (376-9637) Serial No. Fax: 1-802-877-1213 Original Language Order No. Website: www.DRpower.com Read and understand this manual and all instructions before operating the DR TRIMMER/MOWER.

  • Page 2: Table Of Contents

    Additional Information and Potential Changes DR Power Equipment reserves the right to discontinue, change, and improve its products at any time without notice or obligation to the purchaser. The descriptions and specifications contained in this manual were in effect at printing. Equipment described within this manual may be optional.

  • Page 3: Chapter 1: General Safety Rules

     Keep bystanders at least 50 feet away from your work area at all times. The tips of the cutting cords on the DR TRIMMER/MOWER can throw sticks, small stones, gravel, and bits of debris over long distances at great velocity. Do not travel over loose materials such as gravel or mulch with the trimmer head spinning.
  • Page 4  While using the DR TRIMMER/MOWER, do not hurry or take things for granted. When in doubt about the equipment or your surroundings, stop the machine and take the time to look things over. Make sure that you have 100% control of the mower at all times.
  • Page 5 No list of warnings and cautions can be all-inclusive. If situations occur that are not covered by this manual, the operator must apply common sense and operate this DR TRIMMER/MOWER in a safe manner. Contact us at www.DRpower.com or call 1-800- DR-OWNER (376-9637) for assistance.

  • Page 6: Chapter 2: Setting Up The Dr Trimmer/Mower

    Chapter 2: Setting Up The DR TRIMMER/MOWER It may be helpful to familiarize yourself with the controls and features of your DR TRIMMER/MOWER as shown in Figure 1 before If you have any questions at all, please feel free to contact us at www.DRpower.com.

  • Page 7: Specifications

    Cover Cover Cover Cover FOR PROPER SETUP OF YOUR NEW DR TRIMMER/MOWER PERFORM ALL THE FOLLOWING STEPS IN THIS CHAPTER. Adjusting the DR TRIMMER/MOWER Handlebar Notches The Handlebar folds down for easy storage and the DR Trimmer/Mower is Lined Up Upper shipped to you with them folded.
  • Page 8 Side Installing the Cutting Cords Openings There are two installation points on each Line Plate. Each point is 180 degrees apart. Always install two Cords, one opposite the other at the same height. 1. Insert the ends of the Cords into the side openings in the Line Plate (Figure 3).
  • Page 9 Adding Oil and Gasoline Note: Refer to the Engine Manufacturers Manual for more detailed Engine information. Tip: To avoid confusion, we recommend leaving the caps ON the Fuel and Oil Fills until you are ready to pour either gasoline or oil into the correct Fill.

  • Page 10: Chapter 3: Operating The Dr Trimmer/Mower

    Note: Briggs and Stratton 6.75 Fuel and Oil fills are on opposite sides from what is shown in figure 7. 1. Check the oil level every time you use the DR TRIMMER/MOWER (Figure 7). 2. Check the fuel level. 3. Remove any debris buildup from the top of the Engine and the underside of the machine.

  • Page 11: Engaging The Trimmer Head

    Electric Starting Bail Bar Note: Use the following steps with Electric-Starting models only. Handlebar 1. Push the Throttle Control Lever on the right side of the Handlebar (Figure 8) all the way forward (Rabbit or Choke position depending upon model). 2.
  • Page 12 Setting the Cutting Height Setting the Cutting Height is easy. Cutting heights range in 1/2-inch increments from 1-1/2 inches (minimum) when using the bottom Line Plate, to 3-1/2" approximately 3-1/2 inches when using the top Line Plate (Figure 10). 3" 2-1/2"...
  • Page 13 Cord Tips We ship two (2) thicknesses of Cutting Cord with your DR TRIMMER/MOWER. The Cords are Blue (175-mil) and Green (155-mil). Because conditions and vegetation vary so much, you should experiment with Cord weights (diameters) to discover what works best for your particular mowing and trimming situations. Here are a few things to keep in mind: ...
  • Page 14 Obstacle Tips Dealing with obstacles in the terrain is easy with your new DR TRIMMER/MOWER. The following section explains how to approach most common obstacles. The trimmer engine's power can easily throw stones, sticks, and other debris at great velocity, which could cause personal injury or property damage.
  • Page 15 Windrows The DR TRIMMER/MOWER Cutting Cords cut even tall grass in just one pass, so you can collect clippings and leaves for mulch without raking. The machine ejects cut material to its right side, so you can use it like a lawn broom to make windrows for easy clean-up.

  • Page 16: Chapter 4: Maintaining The Dr Trimmer/Mower

    Chapter 4: Maintaining The DR TRIMMER/MOWER Regular maintenance is the way to ensure the best performance and long life of your machine. Please refer to this manual and the engine manufacturer's owner's manual for maintenance procedures. Service intervals listed in the checklist below supersede those listed in the engine manufacturer's owner's manual.
  • Page 17 CUTTING HEAD REASSEMBLY Spacer Anti Wrap Improper installation can cause damage to the trimmer bearings. Follow Canister these directions carefully to protect your machine from damage. Reassemble the components in the order shown in figure 18. 1. Place the Spacer and Anti Wrap Canister (with the lip facing up) onto the Line Plates Shaft (Figure 18).
  • Page 18 Replacing the Belt Use only DR belts on your machine. Do not use hardware store variety belts. Tools and Parts needed: Bolts and Flat Trimmer Cord  3/8" Wrench Washers  7/16" Wrench Trimmer  9/16" Wrench Guard Note: Do not tip the machine too far back for the following procedures.
  • Page 19 3. Make sure to securely tighten the Gas Fill Cap. 4. Using the handle of the DR TRIMMER/MOWER, tip the machine to drain the oil out through the Oil Filler Tube into a suitable receptacle (Figure 23).
  • Page 20 Adjusting the Belt Tension through the Trimmer Control Cable Before adjusting the trimmer head belt tension cable, check that the belt is properly installed (see Figure 21 on page 16). Also make sure the Cable is attached to the bail bar. The Belt will stretch a little when new, then more over time.

  • Page 21: Charging The Battery

    Operate the Trimmer Engine for at least 45 minutes to maintain proper Battery charge. If the Battery loses its charge, you will need to use a trickle Charger (like the DR Battery Charger) to recharge it. The Charger should have an output of 12 volts at no more than 2 amps.
  • Page 22 Disposing of the Battery Responsibly The Battery is a sealed lead-acid Battery. Recycle or dispose of it in an environmentally sound way.  Do not dispose of a lead-acid Battery in a fire; the Battery may explode or leak.  Do not dispose of a lead-acid Battery in your regular, household trash.

  • Page 23: Chapter 5: Troubleshooting

    Spark Plug hole and pull the Recoil Cord several times to blow out any oil in the Cylinder, then wipe off the Spark Plug and reinsert it.  If the Engine still will not start, visit our web site at www.DRPower.com or call 1-800-DR- OWNER (376-9637) for assistance.
  • Page 24 45 minutes at a time, the Battery may need to be periodically charged. See the Battery Care section on page 21.  If your Battery is charged and your DR TRIMMER/MOWER still won’t start, visit our web site at www.DRPower.com or call 1-800-DR-OWNER (376-9637) for assistance.
  • Page 25 Cords won’t last as long against obstacles as in the open. Work on controlling the cutting pattern. With practice, you’ll learn to cut closer to obstacles without hitting them.  If none of the above helps, visit our web site at www.DRPower.com or call 1-800-DR- OWNER (376-9637) for assistance.

  • Page 26: Chapter 6: Parts Lists And Schematic Diagrams

    Chapter 6: Parts Lists and Schematic Diagrams Parts List – Main Frame Assembly NOTE: Part numbers listed are available through DR Power Equipment. Ref# Part# Description Ref# Part# Description 311301 Frame W/ Labels, TR4 143751 Washer, .505" ID X 1" OD 311321 Engine W/ Label, Kohler, 6.50, M/S, 50st...
  • Page 27 Schematic – Main Frame Assembly 020413 CONTACT US AT www.DRpower.com...
  • Page 28 Parts List – Handlebar and Axle Assembly NOTE: Part numbers listed are available through DR Power Equipment. Ref# Part# Description Ref# Part# Description 311071 Axle, Welded 311141 Cable, PTO, Snap-On 311171 Screw, HWH, 1/4-20 X .75", Taptite 312971 Cable, PTO, Snap-On, Switch Mount...
  • Page 29 Schematic – Handlebar and Axle Assembly 020413 CONTACT US AT www.DRpower.com...
  • Page 30 Notes: ® TRIMMER/MOWER...
  • Page 31 Notes: CONTACT US AT www.DRpower.com...
  • Page 32  Never store the DR Trimmer/Mower with fuel in the fuel tank inside a building where ignition sources are present, such as hot water and space heaters, clothes dryers and the like. If you are going to drain the fuel tank, do this outdoors. Allow the engine to cool before storing in any enclosure.
