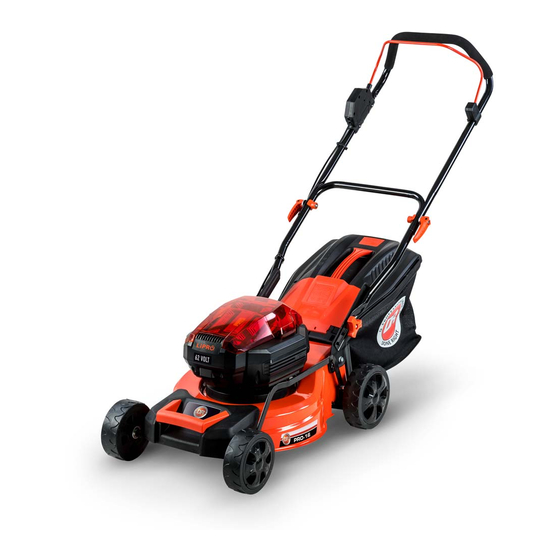

PRO-16 BATTERY LAWN MOWER
SAFETY & OPERATING INSTRUCTIONS
Serial No.
Order No.
Read and understand this manual and all instructions before operating the DR PRO-16 Battery Lawn Mower.
DR Power Equipment
Toll-free phone: 1-800-DR-OWNER (376-9637)
Fax: 1-802-877-1213
Website: www.DRpower.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DR PRO-16

Summary of Contents for DR PRO-16

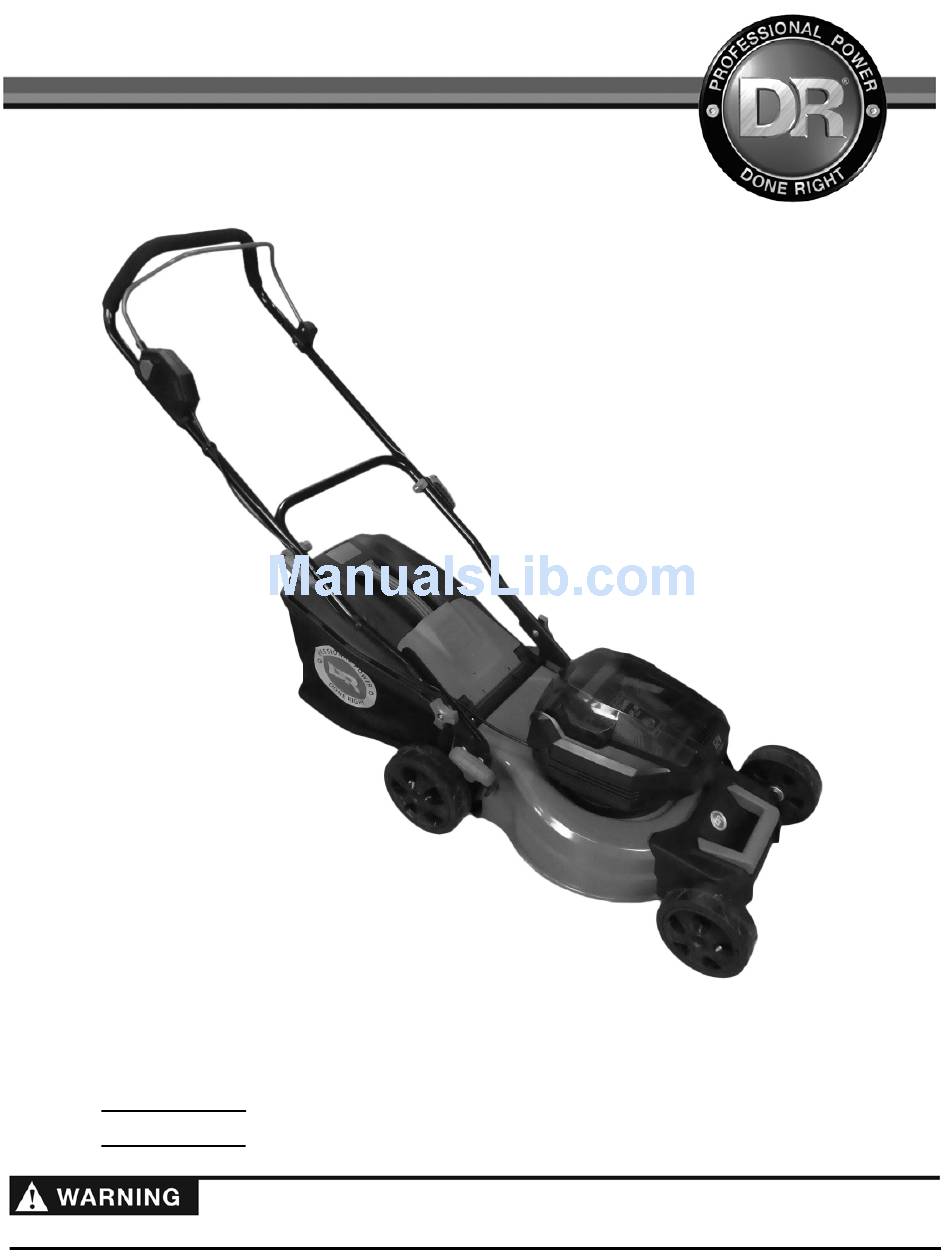

  • Page 1 ® PRO-16 BATTERY LAWN MOWER SAFETY & OPERATING INSTRUCTIONS DR Power Equipment Toll-free phone: 1-800-DR-OWNER (376-9637) Serial No. Fax: 1-802-877-1213 Order No. Website: www.DRpower.com Read and understand this manual and all instructions before operating the DR PRO-16 Battery Lawn Mower.

  • Page 2: Table Of Contents

    Table of Contents Chapter 1: General Safety Rules ................................3 Chapter 2: Setting Up the DR PRO-16 Battery Lawn Mower ....................... 7 Chapter 3: Operating the DR PRO-16 Battery Lawn Mower ........................ 10 Chapter 4: Maintaining the DR PRO-16 Battery Lawn Mower ......................13 Chapter 5: Troubleshooting ..................................

  • Page 3: Chapter 1: General Safety Rules

    Labels Your DR PRO-16 Battery Lawn Mower carries prominent labels as reminders for its proper and safe use. Shown below are copies of all the Safety and Information labels that appear on the equipment. Take a moment to study them and make a note of their location on your Mower as you set up and before you operate the unit.
  • Page 4 • Use only the DR ® 62V Charger with DR ® 62V Battery Packs. Do not use the DR ® 62V Charger with Battery Packs from other manufacturers or other DR ® products. Use of a different Charger may cause a fire or explosion.
  • Page 5 Stop the blade when crossing surfaces other than grass, and when transporting the lawnmower to and from the area to be mowed. • See manufacturer’s instructions for proper operation and installation of accessories. Only use accessories approved by DR Power Equipment. •...
  • Page 6 No list of warnings and cautions can be all-inclusive. If situations occur that are not covered by this manual, the operator must apply common sense and operate this DR PRO-16 Battery Lawn Mower in a safe manner. Contact us at www.DRpower.com or call 1-800-DR-OWNER (376-9637) for assistance.

  • Page 7: Chapter 2: Setting Up The Dr Pro-16 Battery Lawn Mower

    Chapter 2: Setting Up the DR PRO-16 Battery Lawn Mower It may be helpful to familiarize yourself with the controls and features of your DR PRO-16 Battery Lawn Mower as shown in Figure If you have any questions at all, please feel free to contact us at www.DRpower.com.

  • Page 8: Specifications

    Charge the Battery Pack before your first use Figure 3 The DR PRO-16 Battery Lawn Mower uses a sealed, Lithium-Ion Battery Pack. You MUST charge the Battery Pack for at least 60 minutes before you use the Mower for the first time. If you do not charge it before using the Mower, the...

  • Page 9: Installing The Battery

    Assembling the Handlebar Assembly Upper Handlebar 1. Position the Mower Assembly on a flat clean surface. Cable 2. Move the Upper Handlebar Assembly off to the side (Figure 5). Ensure that the Cable is positioned away from the Lower Handlebar mounting area. 3.

  • Page 10: Chapter 3: Operating The Dr Pro-16 Battery Lawn Mower

    Chapter 3: Operating the DR PRO-16 Battery Lawn Mower It may be helpful to better familiarize yourself with the features of your Mower by reviewing Figure 2 in Chapter 2 before beginning the steps outlined in this chapter. Read and understand all warnings listed in “Chapter 2 General Safety Rules” before operating this Mower.
  • Page 11 2. Place the Corner Tabs of the Bagger Assembly onto the Rear Cover Brackets Bagger on both sides (Figure 12). 3. Lower the Rear Cover onto the Bagger Assembly. Make sure the Cover aligns correctly and fits fully into the grooves of the Bagger Assembly. Mulching Setup Rear Cover Bracket Setting up the Mower for Mulching allows the material to remain under the...

  • Page 12: Operating Tips

    The Mower Handlebar can be folded down in a compact position so the machine can be stored vertically. The mower will take up less space stored in this manner. Remove the Battery before storing the Mower. Refer to “Chapter 2: Setting Up the DR PRO-16 Battery Lawn Mower”...

  • Page 13: Chapter 4: Maintaining The Dr Pro-16 Battery Lawn Mower

    Chapter 4: Maintaining the DR PRO-16 Battery Lawn Mower Regular maintenance is the way to ensure the best performance and long life of your machine. Please refer to this manual for maintenance procedures. Before performing any maintenance procedure or inspection on the Mower, release the Blade Engage Wire Trigger and then remove the Safety Key.
  • Page 14 If the Battery does not hold its charge for very long under normal conditions or it simply won’t hold a charge, then replace it. You can purchase a replacement Battery directly from us at www.DRpower.com Charger Figure 18 ® PRO-16 Battery Lawn Mower...
  • Page 15 A Battery Pack may last much longer if you charge it as soon as it starts to lose power and not let it completely discharge. Recharge the Battery Pack as soon as the trimming power of your DR Hedge Trimmer is no longer effective. This would be a good time to have a spare Battery Pack ready to go.

  • Page 16: Chapter 5: Troubleshooting

    Most problems are easy to fix. Consult the Troubleshooting Table below for common problems and their solutions. If you continue to experience problems, contact us at www.DRpower.com or call toll-free 1-800-DR-OWNER (376-9637) for support. Before performing any maintenance procedure or inspection on the Mower, release the Blade Engage Wire Trigger to shut down the Motor and then remove the Battery and Safety Key.

  • Page 17: Chapter 6: Parts Lists And Schematic Diagrams

    Chapter 6: Parts Lists and Schematic Diagrams Parts List – PRO-16 Battery Lawn Mower Note: Part numbers listed are available through DR Power Equipment. Ref# Part# Description Ref# Part# Description 41423 2.5 Ah Battery 42089 Hexagon Flange Head Bolt 42046...
  • Page 18 Schematic – PRO-16 Battery Lawn Mower ® PRO-16 Battery Lawn Mower...
  • Page 19 Bolt, Hex, M5X12 32293 Guide, Pull Start  The DR PRO-16 BATTERY LAWN MOWER is warranted for two (2) years (except for the Battery, which carries a one 41646 Nut, Square, M5 32294 Bracket, Cable (1) year warranty) against defects in materials or workmanship when put to ordinary and normal personal residential...
  • Page 20 Before performing any maintenance procedure or inspection on the Mower, release the Blade Engage Wire Trigger to shut down the Motor and then remove the Battery and Safety Key. To help maintain your DR PRO-16 Battery Lawn Mower for optimum performance, we recommend you follow this checklist each time you use your Mower.
