DR

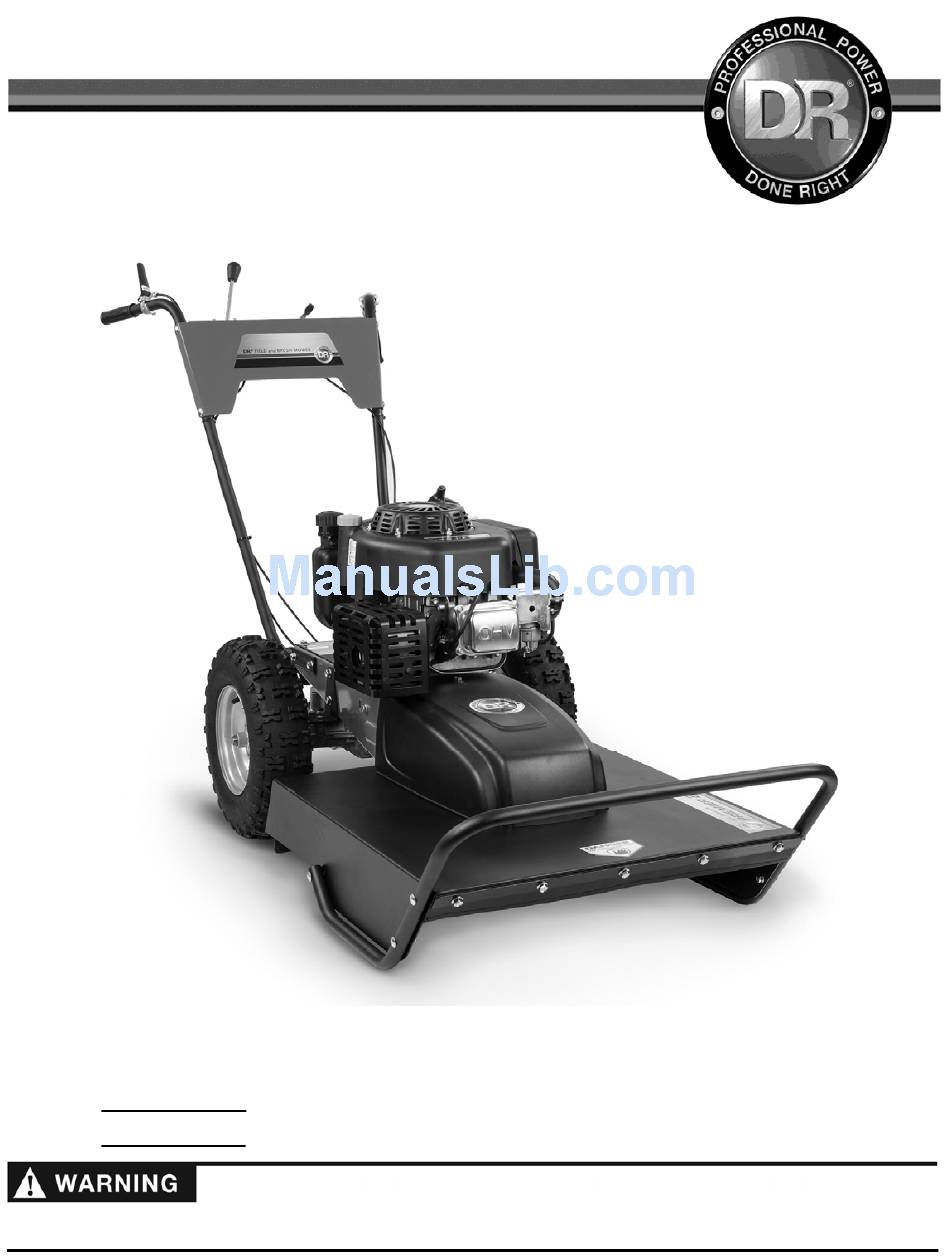

PREMIER 26" ALL-TERRAIN MOWER
SAFETY & OPERATING INSTRUCTIONS
Serial No.
Order No.
Read and understand this manual and all instructions before operating this DR PREMIER 26" ALL-TERRAIN MOWER.
®
DR
Power Equipment
Toll-free phone: 1-800-DR-OWNER (376-9637)
Fax: 1-802-877-1213
Web site: www.DRpower.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PREMIER 26" and is the answer not in the manual?

Questions and answers

Robert Cook
April 7, 2025

How do I tighten the cutter belt

0
1 comments:
Mr. Anderson
April 9, 2025

To tighten the cutter belt on a DR PREMIER 26", follow these steps:

1. Locate the Trimmer Head Cable along the left handlebar.
2. Find the In-Line Adjuster on the cable.
3. Hold the hex flat sections of the adjuster.
4. Rotate the body of the adjuster clockwise (as you look down on the cable) to increase tension.
5. If the adjuster is turned all the way and more tension is needed, replace the belt.
6. After installing a new belt, adjust the In-Line Adjuster all the way in.
7. Engage the Bail Bar 10 times, holding it for 3 seconds each time to wear in the belt.

This answer is automatically generated

0

Related Manuals for DR PREMIER 26"

Summary of Contents for DR PREMIER 26"

  • Page 1 PREMIER 26" ALL-TERRAIN MOWER SAFETY & OPERATING INSTRUCTIONS ® Power Equipment Toll-free phone: 1-800-DR-OWNER (376-9637) Serial No. Fax: 1-802-877-1213 Order No. Web site: www.DRpower.com Read and understand this manual and all instructions before operating this DR PREMIER 26" ALL-TERRAIN MOWER.

  • Page 2: Table Of Contents

    Chapter 1: General Safety Rules ................................4   Chapter 2: Setting Up Your DR PREMIER 26" ALL-TERRAIN MOWER ....................8  Chapter 3: Operating Your DR PREMIER 26" ALL-TERRAIN MOWER ....................14  Chapter 4: Maintaining Your DR PREMIER 26" ALL-TERRAIN MOWER .................... 17 ...
  • Page 3 CONTACT US AT www.DRpower.com...

  • Page 4: Chapter 1: General Safety Rules

    Labels Your DR PREMIER 26" ALL-TERRAIN MOWER carries prominent labels as reminders for its proper and safe use. Shown below are copies of all the Safety and Information labels that appear on the equipment. Take a moment to study them and make a note of their location on your Mower as you set up and before you operate the unit.
  • Page 5 Safety for Children and Pets Tragic accidents can occur if the operator is not alert to the presence of children and pets. Children are often attracted to the Never machine and the mowing activity. assume that children will remain where you last saw them. Always follow these precautions: ...

  • Page 6: Slope Operation

    Slope Operation Slopes are a major factor related to slip and fall accidents, which can result in severe injury. All slopes require caution. If you feel uneasy on a slope, do not mow it. Always take the following precautions when using this machine on slopes: ALWAYS: ...

  • Page 7: Additional Information And Potential Changes

    No list of warnings and cautions can be all-inclusive. If situations occur that are not covered by this manual, the operator must apply common sense and operate this Mower in a safe manner. Contact us at www.DRpower.com or call 1 (800) DR-owner (376- 9637) for assistance.

  • Page 8: Chapter 2: Setting Up Your Dr Premier 26" All-Terrain Mower

    Chapter 2: Setting Up Your DR PREMIER 26" ALL-TERRAIN MOWER It may be helpful to familiarize yourself with the controls and features of your DR PREMIER 26" ALL-TERRAIN MOWER as shown If you have any questions at all, please feel free to contact us at in Figure 1 before beginning these procedures.

  • Page 9: Specifications

    Machine Width, Length, Height 80"L, 29-1/2"W, 46"H 80"L, 29-1/2"W, 46"H Dry Weight 237 lbs. 223 lbs Assembling the DR PREMIER 26" ALL-TERRAIN MOWER Parts Supplied in Parts Box: Item Part# Description 1 ..11214 ... Cable Tie, 7-1/2" Long ........... 5 2 ..
  • Page 10 4. Secure the Cables to the Handlebars with the Cable Ties Figure 5 . Cut off the excess from the Cable Ties using the Wire Cutters. Note: Because the Handlebars came uninstalled from the factory, the Blade Engage Cable Ties Cable should be checked/adjusted before you use your Brush mower.
  • Page 11 To get an accurate reading when checking the oil level: - The machine should be on a level surface. - The dipstick should be screwed down for Briggs & Stratton Engines and should not be screwed down for DR Engines to ensure an accurate oil level reading.
  • Page 12 Check the Tire Pressure Do not over inflate the tires. Inflate to the manufacturer’s recommended pressure found on the tires. Tools Needed:  Tire Pressure Gauge  Air Compressor 1. Remove the Valve Stem Protective Cap (Figure 12) and check the tire Valve Stem pressure with a tire pressure gauge.
  • Page 13 CONTACT US AT www.DRpower.com...

  • Page 14: Chapter 3: Operating Your Dr Premier 26" All-Terrain Mower

    Figure 14 Note: Always release the Traction Drive Lever when shifting gears (Figure 15). 1. Move the Shift Lever to the desired gear (Figure 13). Always disengage the blade of the DR PREMIER 26” ALL-TERRAIN MOWER Blade Traction before shifting into reverse.
  • Page 15 Never touch the exhaust areas when reaching for the spark plug—they are very hot. Slopes  When operating the DR PREMIER 26” ALL-TERRAIN MOWER over uneven terrain or slopes, use extreme caution not to tip the machine over.  Never use the DR PREMIER 26” ALL-TERRAIN MOWER on slopes greater than 20 degrees (Figure 17). Doing so could result in serious injury or damage to your machine.
  • Page 16 If the machine gets hung up  Disengage the Blade. NEVER try to free the machine from stumps or debris with the Blade engaged.  Try putting the machine in reverse and backing away from the obstacle.  Try pushing down on the handlebars to lift the mowing deck over the obstacle. Cutting Brush and Saplings ...

  • Page 17: Chapter 4: Maintaining Your Dr Premier 26" All-Terrain Mower

    Replace Fuel Filter  * SAE 30 Oil; NEVER use penetrating oil. Lubrication Your DR PREMIER 26" ALL-TERRAIN MOWER was lubricated at the Factory. Blade Engage Cable The Spindle and Transaxle are lubricated for life and sealed at the factory. The...
  • Page 18 Changing the Engine Oil (DR Engine) Tools and Supplies Needed:  10mm Wrench  12mm Wrench  SAE 30 Oil  Oil Drain Container (at least 50 oz. capacity) Manually: 1. Remove the Oil Filler Cap (see “Adding Oil and Gasoline” in Chapter 2) and...
  • Page 19 Two 9/16" Wrenches  Gloves Use only DR belts on your machine. They have been thoroughly tested and proven for many hours of use 1. Remove the Belt Guard by unscrewing the Bolt using a 9/16" Wrench Bolt (Figure 21).
  • Page 20 Removing and Replacing the Blade Tools and Supplies needed:  15/16" Socket with 1/2" Drive Breaker Bar (Air Wrench preferred)  Gloves Fins  Block of wood to brace the Blade (at least 2" thick) pointing up Loosen Use caution when pushing or pulling the wrench next to the blade. Wear Tighten Wood gloves;...
  • Page 21 Changing the Blade Pulley Brake Pad Bolt Tools needed: Belt  Guard 9/16" Wrench  3/8" Wrench  1/8" Allen Wrench 1. Remove the Belt Guard by unscrewing the Bolt using a 9/16" Wrench (Figure 27). 2. Unhook the end of the Brake Spring where it attaches to the Spring Bracket Figure 27 (Figure 28).

  • Page 22: Chapter 5: Troubleshooting

    Most problems are easy to fix. Consult the Troubleshooting Table below for common problems and their solutions. If you continue to experience problems, contact us at www.DRpower.com or call 1-800-DR-OWNER (376-9637) for support. Shut down the engine, remove the spark plug wire and wait 5 minutes before performing any maintenance procedure or inspection on the Mower.
  • Page 23 Troubleshooting Table (Continued) Shut down the engine, remove the spark plug wire and wait 5 minutes before performing any maintenance procedure or inspection on the Mower. YMPTOM OSSIBLE AUSE The Belt frays or rolls  A Pulley groove may be nicked. Check the Belt for wear and hard spots. File off any nicks on the over the Pulley.

  • Page 24: Chapter 6: Parts Lists, Schematic Diagrams And Warranty

    Chapter 6: Parts Lists, Schematic Diagrams And Warranty Parts List - HANDLEBAR ASSEMBLY NOTE: Part numbers listed are available through DR Power Equipment. Ref# Part# Description Ref# Part# Description 33332 Nut, Nylon Lock, Flanged, 5/16-18 35118 Cable, Traction Drive 10913 Bolt, Carr, 5/16-18 X 1.5, ZP...
  • Page 25 Schematic – HANDLEBAR ASSEMBLY CONTACT US AT www.DRpower.com...
  • Page 26 Parts List – DRIVE ASSEMBLY NOTE: Part numbers listed are available through DR Power Equipment. Ref# Part# Description Ref# Part# Description 38883 Mount, Engine, W/ Labels 37750 Bolt,HHCS,1/4-20 X .50, Flanged, GR5, 33332 Nut, Nylon Lock, Flanged, 5/16-18 38884 Rail, Frame, Left...
  • Page 27 Schematic – DRIVE ASSEMBLY CONTACT US AT www.DRpower.com...
  • Page 28 Parts List – BRUSH DECK ASSEMBLY NOTE: Part numbers listed are available through DR Power Equipment. Ref# Part# Description Ref# Part# Description 34425 Brush Bar, 26" 33333 Nut, Nylon Lock, Flanged, 3/8-16 33332 Nut, Nylon Lock, Flanged, 5/16-18 37074 Idler Arm, Brush Deck 10913 Bolt, Carr, 5/16-18 X 1.5", ZP...
  • Page 29 Schematic – BRUSH DECK ASSEMBLY CONTACT US AT www.DRpower.com...
  • Page 30 Notes: ® PREMIER 26" ALL-TERRAIN MOWER...
  • Page 31 PREMIER 26" ALL-TERRAIN MOWER is fit for ordinary purposes for which a product of this type is used. DR Power Equipment however, limits the implied warranties of merchantability and fitness in duration to a period of two (2) years in consumer use, ninety (90) days for any other use.
  • Page 32  If your Engine has a Fuel Filter, replace it.  If your DR PREMIER 26" ALL-TERRAIN MOWER will be idle for more than 30 days, we recommend using a gas stabilizer. This will prevent sediment from gumming up the Carburetor. If there is dirt or moisture in the gas or tank, remove it by draining the tank.
