DR

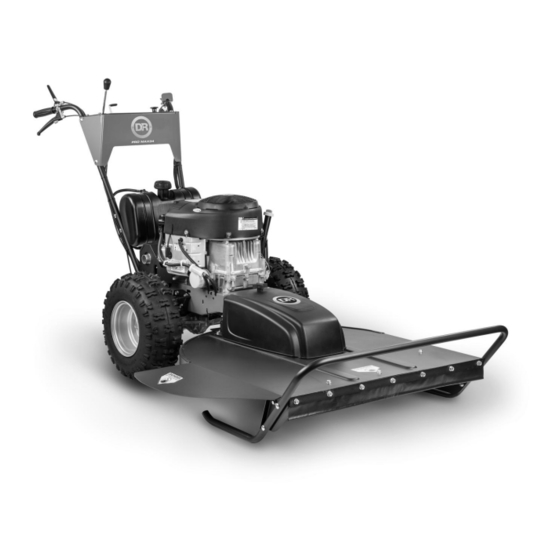

FIELD and BRUSH MOWER
SAFETY & OPERATING INSTRUCTIONS
Models:
PRO 26 (10.5HP)
PRO 26 (14.5HP)
PRO XL30 (16.5HP)
PRO XL30 (20.0HP)
PRO MAX34 (20.0HP)
Serial No.
Order No.
Read and understand this manual and all instructions before operating the DR FIELD and BRUSH MOWER.
DR Power Equipment
Toll-free phone: 1-800-DR-OWNER (376-9637)
Website: www.DRpower.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO 26 and is the answer not in the manual?

Questions and answers

Al Huber
March 15, 2025

Pro xl 30 won’t start battery is good. Fuse is good

1 comments:
Mr. Anderson
May 14, 2025

If the DR PRO 26 won't start despite having a good battery and fuse, possible issues could include:

1. Fuel Shutoff Valve is closed — it should be turned counterclockwise to open.
2. Choke Control is not in the correct position — it should be set to "choke" when starting a cold engine.
3. Throttle is not set correctly — it should be set to "choke" for starting.
4. No fuel or old fuel — ensure there is fresh 87 octane fuel with no more than 10% ethanol.
5. Extension cord not connected properly (for electric start models).
6. Safety interlock or switch not engaged.

Check each of these starting steps to identify the issue.

This answer is automatically generated

Summary of Contents for DR PRO 26

  • Page 1 PRO 26 (14.5HP) PRO XL30 (16.5HP) PRO XL30 (20.0HP) PRO MAX34 (20.0HP) DR Power Equipment Serial No. Toll-free phone: 1-800-DR-OWNER (376-9637) Order No. Website: www.DRpower.com Read and understand this manual and all instructions before operating the DR FIELD and BRUSH MOWER.
  • Page 2 ® FIELD and BRUSH MOWER...
  • Page 3: Table Of Contents

    Table of Contents Chapter 1: General Safety Rules ................................4 Chapter 2: Setting Up the DR FIELD and BRUSH MOWER ........................ 7 Chapter 3: Operating the DR FIELD and BRUSH MOWER ......................... 12 Chapter 4: Maintaining the DR FIELD and BRUSH MOWER ......................19 Chapter 5: Troubleshooting ..................................
  • Page 4: Chapter 1: General Safety Rules

    Labels The DR FIELD and BRUSH MOWER carries prominent labels as reminders for its proper and safe use. Shown below are copies of all the Safety and Information labels that appear on the equipment. Take a moment to study them and make a note of their location on your mower as you set up and before you operate the unit.
  • Page 5 Before mowing, clear the area of objects such as rocks, toys, wire, bones, sticks, etc.  Never remove or alter standard parts or add anything to the DR FIELD and BRUSH MOWER especially all shields and guards.  Before and while moving backwards, look behind, and down, for small children.
  • Page 6 No list of warnings and cautions can be all-inclusive. If situations occur that are not covered by this manual, the operator must apply common sense and operate this DR FIELD and BRUSH MOWER in a safe manner. Contact us at www.DRpower.com or call 1-800-DR-OWNER (376-9637) for assistance.
  • Page 7: Chapter 2: Setting Up The Dr Field And Brush Mower

    Chapter 2: Setting Up the DR FIELD and BRUSH MOWER It may be helpful to familiarize yourself with the controls and features of your DR FIELD and BRUSH MOWER as shown in Figure 2 before beginning these procedures. If you have any questions at all, please feel free to contact us at www.DRpower.com.
  • Page 8 339 lbs. SETUP for DR FIELD and BRUSH MOWER ATTACHMENTS: Cable Tie The DR FIELD and BRUSH MOWER is shipped with a Brush Deck. It will also accept other attachments including the DR SNOWTHROWER, DR CHIPPER Detent Pin ATTACHMENT, DR LAWNDECK and DR SNOW/GRAVEL BLADE. Setup of these attachments is quick and easy.
  • Page 9 4. Insert the belt over the Tensioner Spring and through the inside of the Deck Deck Pivot Belt Bracket Pivot Bracket (Figure 5). 5. Wrap the Belt around the Clutch Pulley under the Power Unit (Figure 6). Your hands could get pinched when installing the Belt onto the Deck Pulley. Wear Gloves to prevent injury.
  • Page 10 Adding Oil and Gasoline Gas Fill Cap Note: Please refer to your Engine Owner’s Manual for detailed oil information (except Premier) regarding Oil weight based on ambient temperature Fill/Dipstick 1. Place the machine on a level surface and initially add 1/2 of oil recommended by the Engine manufacturer into the Oil Fill (Figure 10, Electric Start Machines) or (Figure 11, Manual Start Machines).
  • Page 11 Handlebar Height Adjustment We ship all DR Field and Brush Mowers with the handlebars in the highest position setting. If you would like to lower the handlebars to the Low position Handlebar High please follow these steps: Position hole Tools Needed: ...
  • Page 12: Chapter 3: Operating The Dr Field And Brush Mower

    Chapter 3: Operating the DR FIELD and BRUSH MOWER You may find it helpful to review the DR FIELD and BRUSH MOWER Controls and Features in Figure 2 on page 7 before reading this chapter. Steering Brake Burnishing and Clutch Burnishing are very important procedures that must be done prior to using the Brush Mower to ensure optimum performance.
  • Page 13 Before Starting the Engine 1. Check the Engine Oil level every time before you use the machine (Figure Tank 10/11 on page 10). 2. Check the gas level (Figure 10/11 on page 10). 3. Ensure that the Fuel Shut-Off Valve located under the Fuel Tank is open (Figure 15).
  • Page 14  Mowing Speed may impact cutting performance. Mowing in a slower gear Lever will improve cut quality.  For best operator control of the DR Field and Brush Mower, always select a Wheel Speed drive speed that matches the conditions. For example, use a slower speed Lever when operating in wet, heavy growth, slippery, and/or steeply sloped areas.
  • Page 15 Mower. Obstacle Tips Dealing with obstacles in the terrain is easy with your new DR FIELD and BRUSH MOWER. The following section explains how to approach most common obstacles. The mower’s blade can easily throw stones, sticks, and other debris at great velocity, which could cause personal injury or property damage.
  • Page 16  Do not use the DR FIELD and BRUSH MOWER on slopes greater than 20 degrees. Doing so could result in serious injury or damage to your machine.  Do not shift while on a slope, doing so could result in a “free-wheel” condition.
  • Page 17 If the machine gets hung up 1. Disengage the Blade. Do not try to free the machine from stumps or debris with the Blade engaged. 2. Push down on the Handlebars to lift the Mowing Deck over the obstacle. 3. Shift the machine in reverse and try backing away from the obstacle. Cutting Brush and Saplings If you need to leave the operating position to clear debris from the deck, stop the engine, wait five minutes to allow all parts to cool.
  • Page 18 Bracket. Cold Weather Operation Figure 26 At temperatures below 30°F and a high dew point, the DR FIELD and BRUSH MOWER Engine may experience icing of the carburetor and/or the crankcase Belt breather system. DR Power Equipment offers an optional Engine cover to prevent icing in these weather conditions.
  • Page 19: Chapter 4: Maintaining The Dr Field And Brush Mower

    Chapter 4: Maintaining the DR FIELD and BRUSH MOWER Regular maintenance will ensure the best performance and long life of your machine. Please refer to this manual and the engine manufacturer's owner's manual for maintenance procedures. Service intervals listed in the checklist below supersede those listed in the engine manufacturer's owner's manual.
  • Page 20 4. If the engine has an oil filter, remove the old Oil Filter with an Oil Filter Wrench and replace with a new Oil Filter as described in the Engine Operator Manual. 5. Replace the Oil Drain Hose Assembly onto the Storage Hook and close the Oil Drain Cap. Replace the Oil as described in the Engine Operator Manual.
  • Page 21 The Drive Belt should not need replacing under typical working conditions. If it does become necessary to replace the Drive Belt due to unexpected damage, please contact us at DRpower.com or call toll-free 1-800-DR-OWNER (376-9637) and one of our Technical Support Representatives will be happy to help you.
  • Page 22 Removing and Replacing the Blade Replace the Blade when worn or damaged, but do not use it for over five years. Blade Tools and Supplies needed:  15/16" Wrench or Socket  Torque Wrench (optional) Loosen  Gloves  2" x 4" to brace the Blade 1.
  • Page 23 Adjusting the Brake Cables Micro Adjust Knob Tools needed:  5.5mm Allen Wrench Cable On each brake caliper there is a tool free Micro Adjust Knob (Figure 46). For most maintenance this knob can be unscrewed and will tension the cable. Brake Once the Micro Adjust Knob is close to the end of its thread travel, it is Caliper...
  • Page 24 Operate the Mower Engine for at least 45 minutes to maintain proper Battery charge. If the Battery loses its charge, you'll need to use a trickle Charger (like the DR Battery Charger) to recharge it. The Charger should have an output of 12 volts at no more than 2 amps.
  • Page 25: Chapter 5: Troubleshooting

    Most problems are easy to fix. Consult the Troubleshooting Table below for common problems and their solutions. If you continue to experience problems, contact us at www.DRpower.com or call toll-free 1-800-DR-OWNER (376-9637) for support. Before performing any maintenance procedure or inspection, stop the engine, wait five minutes to allow all parts to cool.
  • Page 26 Troubleshooting Table (Cont.) YMPTOM OSSIBLE AUSE Machine is difficult to  There may be added resistance from the driveline when trying to shift on a slope or while shift pressing against an obstacle. Lifting one tire will relieve any residual load in the driveline and shifting should become much easier.
  • Page 27 CONTACT US AT www.DRpower.com...
  • Page 28: Chapter 6: Parts Lists And Schematic Diagrams

    Chapter 6: Parts Lists and Schematic Diagrams Parts List - Handlebar Assembly Note: Part numbers listed are available through DR Power Equipment. Ref# Part# Description Ref# Part# Description 139051 Cable, Throttle, 50" 164961 Grip, 1.00" 353171 Cable, Throttle, 61" (10.5hp only)
  • Page 29 Schematic – Handlebar Assembly CONTACT US AT www.DRpower.com...
  • Page 30 Parts List – Power Assembly Note: Part numbers listed are available through DR Power Equipment. Ref# Part# Description Ref# Part# Description 334651 Frame A0000757044 Bracket, Axle Mount, Left 112411 Washer, Flat, 5/16" USS A0000757054 Bracket, Axle Mount, Right 344481 Engine, B&S, 20hp V-Twin, ES, w/...
  • Page 31 Schematic – Drivetrain Assembly CONTACT US AT www.DRpower.com...
  • Page 32 Parts List – Brush Deck Assembly Note: Part numbers listed are available through DR Power Equipment. Ref# Part# Description Ref# Part# Description 333321 Nut, Nylon Lock, Flanged, 5/16-18 164451 Pulley, V, 8.5" OD 5l or B Belt 109131 Bolt, Carr, 5/16-18 X 1.5", ZP 352881 Knob, 2.5", Stud, 3/8-16 X 3/4"...
  • Page 33 Schematic – Brush Deck Assembly CONTACT US AT www.DRpower.com...
  • Page 34 Wiring Diagram –Electric Start Wiring Diagram –Manual Start ® FIELD and BRUSH MOWER...
  • Page 35 FIELD and BRUSH MOWER is fit for ordinary purposes for which a product of this type is used. DR Power Equipment however, limits the implied warranties of merchantability and fitness in duration to a period of two (2) years in consumer use, ninety (90) days for any other use except all emission related components.
  • Page 36  If your Engine has a Fuel Filter, replace it.  If your DR FIELD and BRUSH MOWER will be idle for more than 30 days, we recommend using a gas stabilizer. This will prevent sediment from gumming up the Carburetor. If there is dirt or moisture in the gas or Tank, remove it by draining the Tank.
