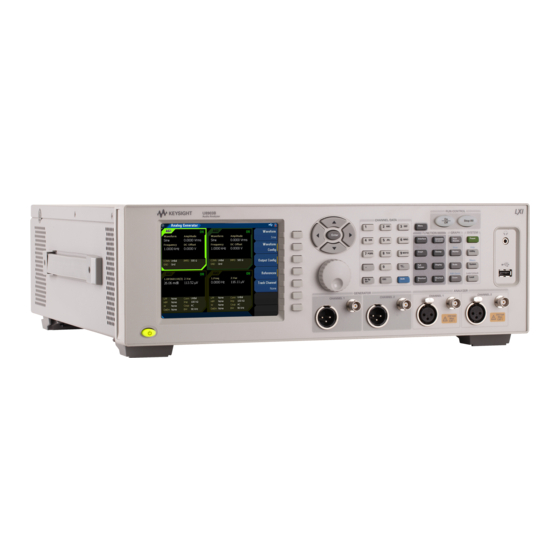

Performance Audio Analyzer
Configuration
Guide

Advertisement

loading

Related Manuals for Keysight U8903B

Summary of Contents for Keysight U8903B

  • Page 1 Keysight U8903B Performance Audio Analyzer Configuration Guide...

  • Page 2: Copyright Notice

    Declarations of Conformity for this understood and met. where in the EULA. Keysight shall be product and for other Keysight prod- under no obligation to update, revise or ucts may be downloaded from the otherwise modify the Software.
  • Page 3 Configuring the U8903B Performance Audio Analyzer This step-by-step process will help you configure your performance audio analyzer. Tailor the performance to meet your requirements. For detailed specifications, refer to the U8903B Performance Audio Analyzer data sheet (http://literature.cdn.keysight.com/litweb/pdf/5991-4551EN.pdf). The standard U8903B Performance Audio Analyzer includes: –...
  • Page 4 This is only applicable when U8903B-AN8 is selected. Refer “Order combinations” on page 5 for more information. – By default, U8903B-STD will be selected when extra channels, digital audio NOTE card, or Buetooth card option is added. – U8903B provides flexibility in configuring the measurement option in order to tailor to customer application needs.
  • Page 5 U8903B-AN4 + U8903B-BLU – 2 analog analyzer channels (rear panel) – Bluetooth card – Standard box – 2 analog analyzer channels (rear panel) U8903B-AN4 + U8903B-DGT + U8903B-BLU – Digital audio card – Bluetooth card – Standard box U8903B-AN8 + U8903B-BL2 –...
  • Page 6 4 analog analyzer channels, digital audio U8903B-210 card with N3434A digital audio software option (refer to card (AES3/SPDIF and DSI digital “Step 2: Select software options” on page 7 for more audio), and Bluetooth. information), and Bluetooth card. Keysight U8903B Configuration Guide...

  • Page 7: Software Options

    This option enables the AES3, SPDIF, and DSI digital audio N3434A (fixed perpetual license) option. This option can only be ordered with U8903B-DGT. – All software options are fixed perpetual licenses and are tied to the individual NOTE performance audio analyzer.
  • Page 8 Cable, accessory – Male XLR – 2 male to the Migrating Balanced Measurements from HP 8903B U8903A-107 BNC analyzer, 0.26 m to Keysight U8903A Audio Analyzer application note (http://literature.cdn.keysight.com/litweb/pdf/ 5991-0435EN.pdf) This is for the generator output to convert the balanced measurement from HP 8903B.
