Service manual
CHOCOLINO DUO
CAFÉLINO DUO
S / EN
Your retail dealer
...............................................................................
Rev. 110901
...............................................................................

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHOCOLINO DUO and is the answer not in the manual?

Questions and answers

Related Manuals for Coffee Queen CHOCOLINO DUO

Summary of Contents for Coffee Queen CHOCOLINO DUO

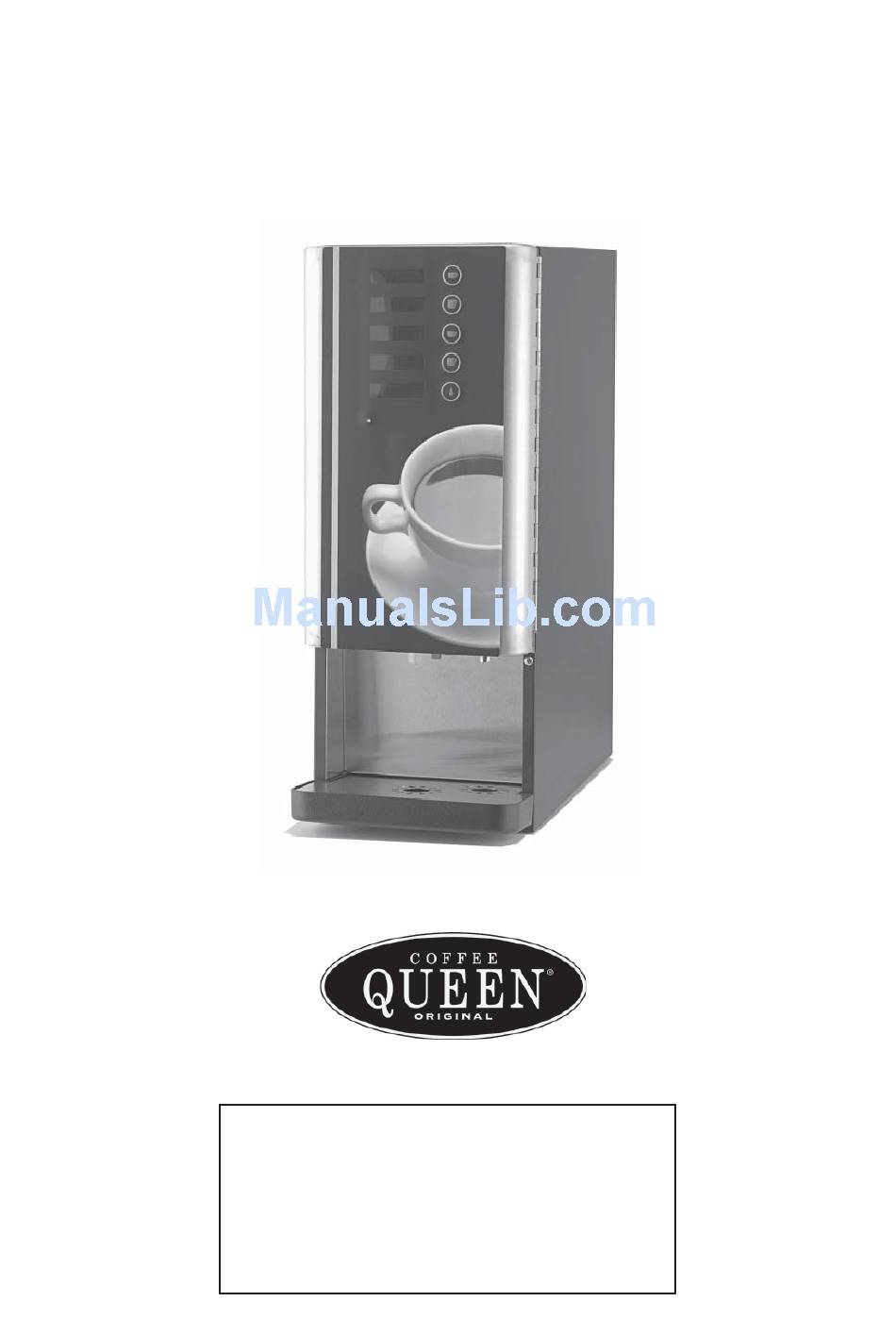

  • Page 1 Service manual CHOCOLINO DUO CAFÉLINO DUO S / EN Your retail dealer ................Rev. 110901 ................

  • Page 2: Table Of Contents

    1. Contents. Contents sid. General Component overview, front Component overview, inside machine Component overview, programming switch Component overview, function buttons SERVICE; Installation and Start-up Position machine Hook up water to machine Start machine Fill concentrate in container OPERATION Dispensing drink into cup CLEANING Every day Cleaning of entire mixer system...

  • Page 3: General

    2. General. Chocolino Duo / Cafélino Duo Thank you for choosing a Chocolino Duo/Cafélino Duo. We hope you enjoy it! The machine must be connected correctly for your own safety. Read the user guide before using the machine. - The guide contains important instructions for proper and safe use of the machine.

  • Page 4: Component Overview, Front

    3. Component view, front. Chocolino Duo / Cafélino Duo Touch panel Menu for drinks Tap for drink Drip tray insert Drip tray Hot water outlet Service plug Connection of Emptying of water tank power cord Water hook-up...

  • Page 5: Component Overview, Inside Machine

    3. Component view, inside machine. Chocolino Duo / Cafélino Duo Cleaning button Concentrate container Chute Steam trap Mixer bowl ON/OFF switch 4 Amp fuse Container: Width Depth Height Chocolino duo Cafélino duo Chocolate Coffee Chocolate Topping...

  • Page 6: Component Overview, Programming Switch

    3. Component view, electronic switch. Chocolino Duo / Cafélino Duo Programming switch Programming switch, placed behind concentrate containers.

  • Page 7: Component Overview, Function Buttons

    3. Component view, function buttons. Chocolino Duo/ Cafélino Duo Function buttons Standard cup (group 1) Large cup (group 1) Standard cup (group 2) Large cup (group 2) Hot water Cleaning of mixing system. Ready lamp The lamp lights constantly when the machine is ready.

  • Page 8: Service; Installation And Start-Up

    4. Service. Installation and Start-up Chocolino Duo / Cafélino Duo Place the machine on a fl at Connect the plug to an waterproof surface. earthed 230V 10A wall outlet. Note: Make sure air is able to circulate freely behind the machine.

  • Page 9: Fill Concentrate In Container

    4. Service. Installation and start-up Chocolino Duo/Cafélino Duo Fill concentrate into canister. Remove the concentrate container to avoid spilling the concentrate in the machine) and fi ll with ingredients. Twist the concentrate tube up out of the mixing bowl. Lift the front edge of the concentrate container and pull out.

  • Page 10: Operation Dispensing Drink Into Cup

    5. OPERATION; Dispensing drink into cup Chocolino Duo/Cafélino Duo Dispensing drink into cup, Chocolate, etc. Centre a cup on the drip tray. Select a drink the lamp will fl ash. Wait until the light stops fl ashing before removing the cup.

  • Page 11: Cleaning Of Entire Mixer System

    6. CLEANING: Cleaning once a day Chocolino Duo/Cafélino Duo Rinsing the mixing system: The mixing bowl can be cleaned easily using the cleaning button. We recommend you clean/rinse the entire mixing system at least once a day. Centre a large cup on the drip tray.

  • Page 12: Cleaning

    6. CLEANING: Cleaning once a day Disassemble blender system. Cleaning once a day. 3. Loosen the mixer 4. Loosen the mounting 1.Turn the lever(A) 2. Loosen the blender cup (C) by pulling it plate.Turn the lever counter counter clockwise. Pull straight out (B). straight out.

  • Page 13: Recipe Programming

    7. Programming. Chocolino Duo/Cafélino Duo Recipe PROGRAMMING. To open the menu, follow the instructions below. The pin code is 1000. Remember to always confi rm your selection by pressing button Press button Press button until the display reads Recipes. Service mode:...
  • Page 14 7. Programming. Chocolino Duo/Cafélino Duo PROGRAMMING: using the pin code. Press button and the third number reads 0. PIN code= I00I Confi rm by pressing button Press button and the fourth number reads 0. PIN code= I000 Confi rm by pressing button The display reads OK.
  • Page 15 7. Programming. Chocolino Duo/Cafélino Duo PROGRAMMING: adjust value of drinks Select drink = 1 select a drink by pressing button or button Select drink 1 Select drink 2 Select drink 3 Select drink 4 Press button to select which drink to adjust To set and adjust a recipe, see the table on page 16 - 19.
  • Page 16 7. Programming. Recipe for chocolate Chocolino Duo / Cafélino Duo PROGRAMMING: adjust recipe values, chocolate. Adjust recipe values for drink 1 Drink 1 Start 1 Stop 1 Start 2 Stop 2 Chocolate Ingred 1 Ingred 2 Mixer 1 Mixer 2...
  • Page 17 7. Programming. Recipe for chocolate Chocolino Duo / Cafélino Duo PROGRAMMING: adjust recipe values, chocolate. Adjust recipe values for drink 3 Drink 3 Start 1 Stop 1 Start 2 Stop 2 chocolate Ingred 1 Ingred 2 Mixer 1 Mixer 2...
  • Page 18 7. Programming. Recipe coffee/espresso Chocolino Duo/ Cafélino Duo PROGRAMMING: adjust recipe values, espresso, coffee Adjust recipe values for drink 1 Drink 1 Start 1 Stop 1 Start 2 Stop 2 Espresso Ingred 1 Ingred 2 Mixer 1 Mixer 2 Adjust recipe values for drink 2...
  • Page 19 7. Programming. recipe latte/cappuccino Chocolino Duo/ Cafélino Duo PROGRAMMING: adjust recipe values, cappuccino, latte. Adjust recipe values for drink 3 Drink 3 Start 1 Stop 1 Start 2 Stop 2 Cappuccino Ingred 1 Ingred 2 Mixer 1 Mixer 2 Adjust recipe values for drink 4...

  • Page 20: Reset Cup Counter

    8. Reset Cup counter. Chocolino Duo / Cafélino Duo Cup counter: The machine has a built-in Cup Counter that can be reset. Take out the concentrate container. The display (5) shows 000 cups. To reset the counter: Press button to setting Reset Counters.

  • Page 21: Storage And Transportation

    9. Storage / Transportation. Chocolino Duo/ Cafélino Duo Long-term storage and transportation Switch off the machine, unplug it and close the water tap. The machine must not be stored in freezing temperatures, and all water must removed befor long-term storage.

  • Page 22: Dimension Sketch

    10. Dimension sketch. Chocolino Duo/ Cafélino Duo...

  • Page 23: Cleaning And Care

    11. Cleaning and care. Chocolino Duo/ Cafélino Duo To clean the outside of the machine, use a soft cloth and a non-abrasive liquid detergent.

  • Page 24: Spare Part List

    12. Spare part list. Door Chocolino Duo/ Cafélino Duo Pos. Article no Benämning/Description Antal/Amount Gäller för sida/Valid for page 25 260046 Drip tray insert 1264002 Drip Tray ChocoDuo ABS 1665008 Membrane Switch Cafeduo 1603858 Membrane Switch Display Quattro...

  • Page 25: Exploded View

    13. Exploded view. Door Chocolino Duo/ Cafélino Duo...
  • Page 26 12. Spare part list. Machine Chocolino Duo/ Cafélino Duo Pos. Article nr Benämning/Description Antal/Amount Gäller för sida/Valid for page 27 300043 Chassis Assy Chocolino Duo 1604083 Quattro PCB 160801-04 Rocket Switch Single(orange) 1604841 WATER CONNECTION COMPLETE NA 1608281 Magnetic Vitality...
  • Page 27 13. Exploded view. Machine Chocolino Duo / Cafélino Duo...
  • Page 28 12. Spare part list. Tank Chocolino Duo/ Cafélino Duo Pos. Article nr Benämning/Description Antal/Amount Gäller för sida/Valid for page 29 1203543 Tank Chocolino and Lid 1561010 Seal for Outlet Valve 711000 NTC Thermistor Belong 1605362 Double Seal Level Sensor 1206588...
  • Page 29 13. Exploded view. Tank Chocolino Duo/ Cafélino Duo...
  • Page 30 Spare part list. Mixing system and canister. Chocolino Duo/ Cafélino Duo Pos. Article nr Benämning/Description Antal/Amount Gäller för sida/Valid for page 31 1206703 Whipper 1206704 Mixing bowl 1604804 Slinger disc 120638 O-ring 1206702 Mounting plate 120655-02 Grommet for whipper pin...
  • Page 31 13. Exploded view. Mixing system and canister Chocolino Duo/ Cafélino Duo...

  • Page 32: Serviceintervals

    14. Service intervals. Chocolino Duo/ Cafélino Duo Serviceintervals - Cafelino/Chocolino MONTHS MAIN COMPONENTS PARTS ARTICLE NO BOILER Outlet valve Membrane 1501191 CHECK REPLACE Sealing 160537-03 CHECK REPLACE Levelsensor Levelpins CLEAN CLEAN 1205302 CLEAN CLEAN 1205301 Sensor CHECK CHECK 711000 Sealing...
  • Page 33 FOR SERVICE Please contact your dealer Your dealer ................................................CREM International AB Box 10, Viksgränd 2, SE-670 40 Åmotfors, Sweden Tel: +46 (0)570-477 00, Fax: +46 (0)570-47719 E-mail: info.se@creminternational.com www.creminternational.com Art.nr. 1740046...
