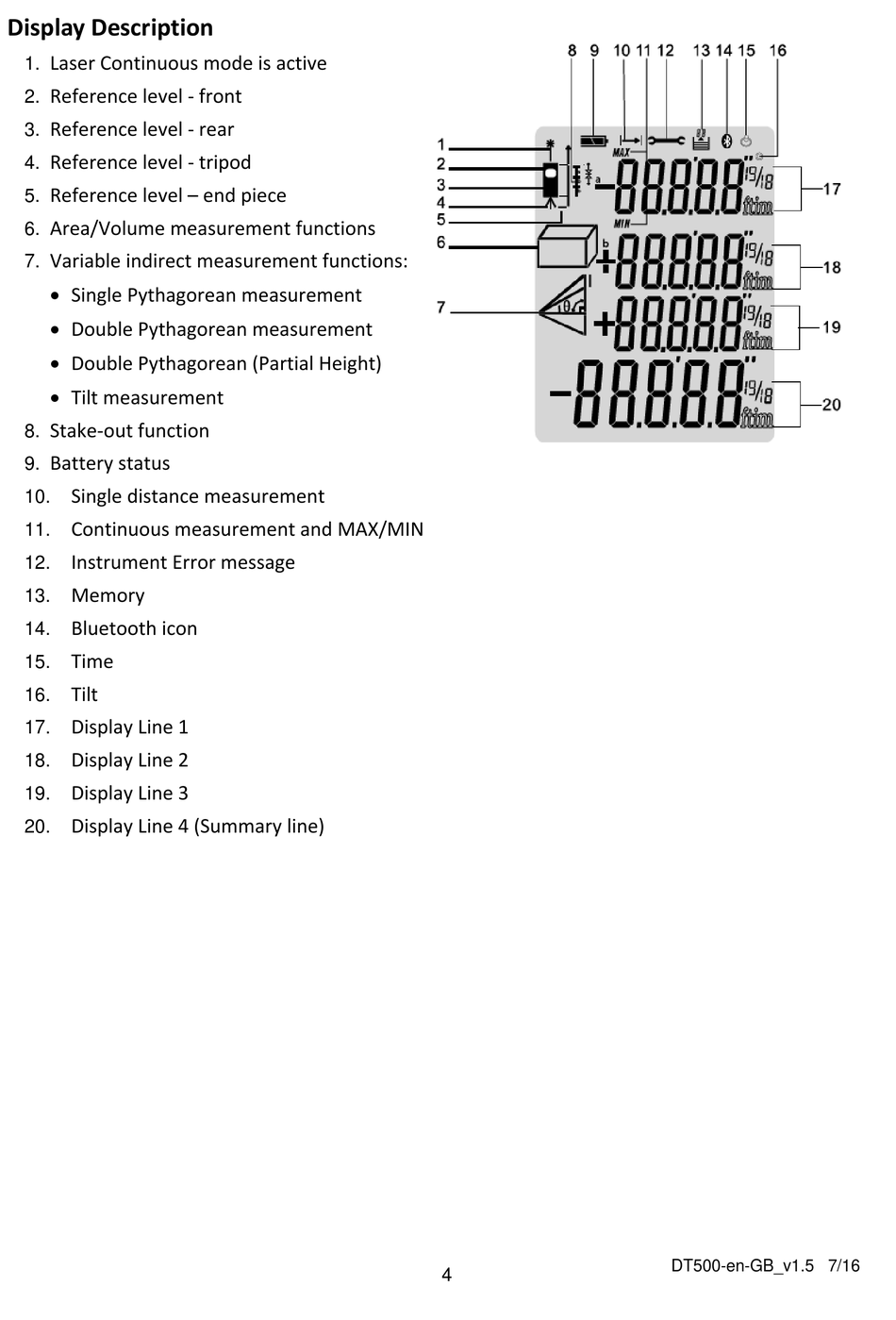

Display Description
Laser Continuous mode is active
1.
Reference level ‐ front
2.
Reference level ‐ rear
3.
Reference level ‐ tripod
4.
Reference level – end piece
5.
Area/Volume measurement functions
6.
Variable indirect measurement functions:
7.
 Single Pythagorean measurement
 Double Pythagorean measurement
 Double Pythagorean (Partial Height)
 Tilt measurement
Stake‐out function
8.
Battery status
9.
Single distance measurement
10.
Continuous measurement and MAX/MIN
11.
Instrument Error message
12.
Memory
13.
Bluetooth icon
14.
Time
15.
Tilt
16.
Display Line 1
17.
Display Line 2
18.
Display Line 3
19.
Display Line 4 (Summary line)
20.
