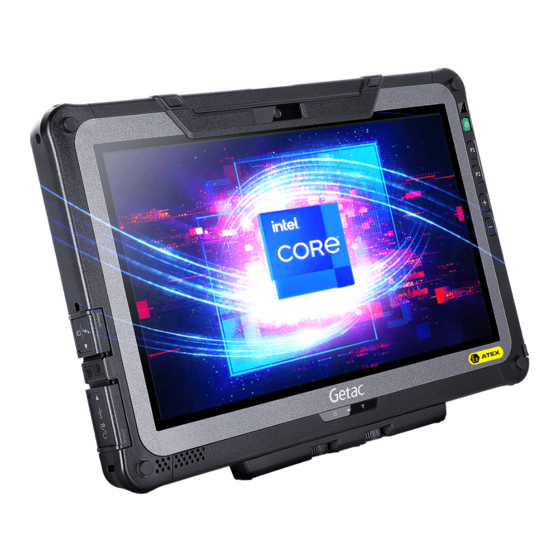

Getac F110 Series User Manual

Hide thumbs Also See for F110 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
F110 Series
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F110 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Getac F110 Series

Summary of Contents for Getac F110 Series

  • Page 1 F110 Series USER MANUAL...
  • Page 2 Rugged Mobile Computing Solutions October 2023 Trademarks The Bluetooth® word mark and logos are registered trademarks owned by...
  • Page 3 Specifications and manuals are subject to change without notice. Getac assumes no liability for damage incurred directly or indirectly from errors, omissions, or discrepancies between the device and the manuals. Note For the latest version of the manual, please visit the Getac website at www.getac.com.

  • Page 4: Table Of Contents

    Table of Contents Chapter 1 Getting Started ................1 Getting the Tablet PC Running ........... 2 Unpacking ................2 Installing the Battery Packs ............. 3 Installing the Micro-SIM Card (Optional) ......... 4 Connecting to AC Power ............5 Using the Tether..............6 Turning On and Off the Tablet PC ..........
  • Page 5 Using the Bluetooth Feature ..........26 Using the WWAN Feature (Optional) ........27 Using the Fingerprint Scanner (Optional)........29 Using the Barcode Scanner (Optional) ........31 Notes ..................32 Chapter 3 Managing Power ..............33 AC Adapter ................34 Battery Pack ................36 Charging the Battery Pack ............
  • Page 6 Anti-Explosion Protective Covers.......... 65 Use of Accessories ............... 66 ENERGY STAR ................. 67 About Battery and External Enclosure Replacement ....68 Battery ................... 68 External Enclosure ..............68...

  • Page 7: Chapter 1 Getting Started

    Chapter 1 Getting Started This chapter first tells you step by step how to get the Tablet PC up and running. Then, you will find a section briefly introducing the external components of the Tablet PC. CAUTION: Safety instructions are provided in related sections throughout the User Manual.

  • Page 8: Getting The Tablet Pc Running

    Inspect all the items. If any item is damage or missing, notify your dealer immediately. NOTE: Specific models do not have the AC adapter and power cord as standard items. To purchase the AC adapter kit for your model, contact a Getac authorized distributor. (Check https://www.getac.com/en/contact/...

  • Page 9: Installing The Battery Packs

    Installing the Battery Packs Your Tablet PC has two battery compartments for two battery packs; each is installed in the same way. 1. With the battery pack correctly oriented, attach its connector side to the battery compartment at an angle ( ) and then press down the other side ...

  • Page 10: Installing The Micro-Sim Card (Optional)

    Correct Incorrect (revealing red part) Installing the Micro-SIM Card (Optional) 1. Locate the micro-SIM card slot. Slide the protective cover to the unlocked position and open the cover. 2. Remove one screw to detach the small metal plate that covers the micro-SIM card slot.

  • Page 11: Connecting To Ac Power

    4. Close the cover. Connecting to AC Power CAUTION: Use only the AC adapter included with your Tablet PC. Using other AC adapters may damage the Tablet PC. NOTE: The battery pack is shipped to you in power saving mode that protects it from ⚫...

  • Page 12: Using The Tether

    NOTE: The power cord type varies with countries. The look of your power cord and electrical outlet might not match the one shown in this document. 3. Power is being supplied from the electrical outlet to the AC adapter and onto your Tablet PC.
  • Page 13 2. Insert the other loop to the tether hole on the Tablet PC ( ). Then, insert the  stylus through the loop ( ) and pull it tight.  3. When storing the stylus in the holder, note the orientation of the stylus. There is a protruding part at the end of the stylus.

  • Page 14: Turning On And Off The Tablet Pc

    Turning On and Off the Tablet PC Turning On Press the power button ( ). The Windows operating system should start. NOTE: Tapping the screen during startup may invoke a pre-boot menu (unless the default settings have been changed). If the menu appears, simply select Continue. Turning Off When you finish a working session, you can stop the system by turning off the power or leaving it in Sleep or Hibernation mode:...

  • Page 15: Taking A Look At The Tablet Pc

    Taking a Look at the Tablet PC NOTE: Depending on the model you purchased, the appearance of your Tablet PC may not be exactly the same as those shown in this manual. CAUTION: You need to open the protective covers to access the connectors. When not using a connector, make sure to close the cover completely for water- and dust- proof integrity.
  • Page 16 Component Description  Microphone Receives sound and voice to record voice.  IR sensor Detects the infrared energy of objects to form an image. (optional) The sensor flashes red light when in use. The near infrared (IR) imaging capability allows you to use Windows Hello face authentication.
  • Page 17 Component Description Touchscreen Displays and receives information for the Tablet PC. Speaker Sends out sound and voice from your Tablet PC. Indicators Power Lights blue when the power is on. Blinks blue when the system is in Sleep mode. Battery Lights amber when the battery is being charged.

  • Page 18: Rear Components

    The hardware buttons (except the power button) can be re-defined using ⚫ G-Manager. Some of the hardware buttons provide keyboard key functions on “POST/BIOS ⚫ Setup/Non-ACPI” occasions. (See “Button Functions on Special Occasions” in Appendix A for information.) Rear Components Component Description ...

  • Page 19: Right-Side Components

    NOTE: If you have the high-capacity battery model, the battery pack looks different from the one shown here.  Camera indicator Lights up when the camera lens beside it is in use. (optional)  Flash (optional) Provides extra light when taking pictures. ...

  • Page 20: Left-Side Components

    Component Description  Power Connects the AC adapter. connector  Select models have one of the below components. a Fingerprint Serves as the fingerprint verification, preventing scanner unauthorized access to your Tablet PC. b RFID reader Reads data from RFID tags. Left-Side Components For covers with an arrowhead icon, push the cover toward one side to unlock and the other side to lock.
  • Page 21 Component Description  USB 3.2 Gen 2 Connects a USB device. port  Combo audio Connects a set of headphones or external speakers connector with amplifier. Supports a headset microphone with 4-pole TRRS 3.5mm jack.  Kensington lock Locks the Tablet PC to a stationary object for security.

  • Page 22: Top Components

    Top Components Component Description  a None Or can be one of the below components depending on your model: b RS-232 serial port Connects a serial device. NOTE: This option comes together with the RJ45 connector (located at the rear side).

  • Page 23: Bottom Components

    Component Description c MicroSD card slot Accepts a microSD card for removable storage media. d USB 2.0 port Connects a USB device. e Barcode scanner Scans and reads barcodes. lens f RJ45 connector Connects the LAN cable. Bottom Components Component Description ...

  • Page 24: Operating Your Tablet Pc

    Chapter 2 Operating Your Tablet PC This chapter provides information about the use of the Tablet PC. If you are new to computers, reading this chapter will help you learn the operating basics. If you are already a computer user, you may choose to read only the parts containing information unique to your Tablet PC.

  • Page 25: Navigating On The Screen

    (as shown below). Enables simultaneous use Select this mode when liquids, with Getac stylus or finger such as raindrops, are falling on touch. (You must use the the screen and should be stylus supplied with your rejected as input.
  • Page 26 NOTE: In high temperatures (above 60 C / 140 F), set the mode to Finger instead of ⚫ Glove or Stylus mode. If liquid is spilled on the touchscreen causing a wet area, the area will stop ⚫ responding to any inputs. For the area to function again, you must dry it. The following table shows how you use the touchscreen to obtain equivalent mouse functions.
  • Page 27 Actions Gestures Descriptions = finger down; = finger up) Use panning to see (Scroll) another part of a page that has scroll bars. Drag 1 or 2 fingers up or down. Zoom Use zooming to make (Pinch) an item (a photo for example) on the screen larger or smaller.
  • Page 28 Actions Gestures Descriptions = finger down; = finger up) Press Use press and tap to and Tap access the shortcut menu. Press on target and tap using a second finger. Two- The function is defined finger by applications that support the specific gesture.

  • Page 29: Using The Dual Mode Display (Optional)

    Using the Dual Mode Display (Optional) Dual mode display (if your model has the feature) incorporates both touchscreen and digitizer functions. The display is set to Touchscreen mode by default. Touchscreen mode provides all the functionalities that an ordinary touchscreen has. When the Tablet PC receives signals from the digitizer pen, the display automatically switches to Digitizer mode.

  • Page 30: Using Network And Wireless Connections

    Using Network and Wireless Connections Using the LAN (Optional) To connect the network cable to the LAN module (if your model has the feature, connect one end of the LAN cable to the RJ45 connector on the Tablet PC and the other end to the network hub.

  • Page 31: Using The Wlan

    Using the WLAN The WLAN (Wireless Local Area Network) module supports IEEE 802.11ax. Turning On/Off the WLAN Radio To turn on the WLAN radio: Select the network icon in the lower right of the taskbar. Then, select the Wi-Fi button. To turn off the WLAN radio: You can turn off the WLAN radio the same way you turn it on.

  • Page 32: Using The Bluetooth Feature

    4. Some networks require a network security key or passphrase. To connect to one of those networks, ask your network administrator or Internet service provider (ISP) for the security key or passphrase. For more information on setting a wireless network connection, refer to Windows online help.

  • Page 33: Using The Wwan Feature (Optional)

    Connecting to another Bluetooth Device 1. Make sure that the Bluetooth function is enabled (as described above). 2. Make sure that the target Bluetooth device is turned on, discoverable and within close range. (See the documentation that came with the Bluetooth device.) 3.
  • Page 34 Turning On/Off the WWAN Radio To turn on the WWAN radio: Select the network icon in the lower right of the taskbar. Then, select the Cellular button. To turn off the WWAN radio: You can turn off the WWAN radio the same way you turn it on. If you want to quickly turn off all wireless radio, simply switch on Airplane mode.

  • Page 35: Using The Fingerprint Scanner (Optional)

    Using the Fingerprint Scanner (Optional) WARNING: We shall not be liable for any loss or damage whatsoever resulting from your ⚫ use of the fingerprint scanner or neglect of fingerprint scanner use, or any data loss resulting from such developments as fingerprint authentication malfunctioning.
  • Page 36 2. Select the fingerprint option. 3. Follow the onscreen instructions to complete.

  • Page 37: Using The Barcode Scanner (Optional)

    Using the Barcode Scanner (Optional) NOTE: For enhanced applications and customization of the module, you can use the Barcode Manager program. (For detailed information on the program, see the program’s online help.) If your model has the barcode scanner module, you can scan and decode most common 1D and 2D symbologies.

  • Page 38: Notes

    CAUTION: When or immediately after using the barcode scanner for a long time, do not touch the lens area as the area might be hot. 4. Upon a successful scan, the system beeps and the decoded barcode data is entered. Notes Pulse repetition rate: 57.67 Hz ⚫...

  • Page 39: Chapter 3 Managing Power

    Chapter 3 Managing Power Your Tablet PC operates either on external AC power or on internal battery power. This chapter tells you how you can effectively manage power. To maintain optimal battery performance, it is important that you use the battery in the proper way.

  • Page 40: Ac Adapter

    AC Adapter CAUTION: The AC adapter is designed for use with your Tablet PC only. Connecting the ⚫ AC adapter to another device can damage the adapter. The AC power cord supplied with your Tablet PC is for use in the country where ⚫...

  • Page 42: Battery Pack

    Battery Pack Your Tablet PC has two battery packs. The battery pack is the internal power source for the Tablet PC. It is rechargeable using the AC adapter. CAUTION: Always keep both battery packs installed, especially when the Tablet PC is running on battery power.

  • Page 43: Initializing The Battery Pack

    The two battery packs are charged in parallel. The charging time is approximately 5 hours (for the standard battery packs) and 6 hours (for the high- capacity battery packs) when the power is off. CAUTION: After the Tablet PC has been fully recharged, do not immediately disconnect and reconnect the AC adapter to charge it again.

  • Page 44: Battery Low Signals And Actions

    By Operating System You can check the approximate battery level using the battery meter function of the operating system. To read the battery level in Windows, tap the battery icon on the taskbar. By Gas Gauge On the exterior side of the battery pack is a gas gauge for displaying the estimated battery charge.

  • Page 45: Replacing The Battery Pack

    Battery Icon Battery Level Description The battery charge has reached the low- battery level. Critically The battery charge has reached the critical battery level. By default, Windows will display a notification and put your Tablet PC into Hibernation. When the battery is low, the Tablet PC’s Battery Indicator ( ) also blinks red to alert you to take actions.
  • Page 46 Do not attempt to disassemble the battery pack. ⚫ A battery pack can get hot due to long working hours. Do not touch a hot battery ⚫ pack with bare hands. After removing a battery pack, put it in a well-ventilated area.
  • Page 47 5. Fit another battery pack into place. With the battery pack correctly oriented, attach its connector side to the battery compartment at an angle ( ) and  then press down the other side (  6. Slide the battery latch toward the locked position ( CAUTION: Make sure the battery latch is correctly locked, not revealing the underneath red part.

  • Page 49: Power-Saving Tips

    Power-Saving Tips Aside from enabling your Tablet PC’s power saving mode, you can do your part to maximize the battery’s operating time by following these suggestions. Do not disable Power Management. ⚫ Decrease the LCD brightness to the lowest comfortable level. ⚫...

  • Page 50: Appendix A Specifications

    Appendix A Specifications NOTE: Specifications are subject to change without any prior notice. Parts Specifications 13th Gen platform - Intel® Core™ i5-1345U (vPro) - Intel® Core™ i7-1355U (vPro) - Intel® Core™ i7-1365U (vPro) BIOS Insyde, Flash EEPROM, UEFI, supporting TPM, vPro, NIST, Absolute DDS, HDD Security Erasure, BIOS self-diagnostic, Device Guard &...
  • Page 51 Parts Specifications Standard USB 3.2 Gen 2, USB-C Thunderbolt 4, combo audio (4-pole ports TRRS 3.5mm type), Docking Optional One of the below: RS-232 + RJ45 / USB 2.0 / barcode scanner / microSD / RJ45 Card readers Smart Card (option) MicroSD (option) HF RFID (option) Barcode scanner...
  • Page 52 Parts Specifications Humidity 95% relative humidity, non-condensing Drop** 1.8 m (6 ft) drop resistant Table Notes: * When using the computer with AC power, a low temperature down to -29 °C (-20°F) and the temperature range for MIL-STD-810 are supported. When using the computer with only battery power in a temperature down to -21 °C (-6 °F), it is advised that the system be booted in a warm environment, if possible, before being taken into an extreme cold environment for work.
  • Page 53 Button Function –  Down...

  • Page 54: Appendix B Regulatory Information

    Appendix B Regulatory Information This appendix provides regulatory statements and safety notices on your Tablet NOTE: Marking labels located on the exterior of your Tablet PC indicate the regulations that your model complies with. Please check the marking labels and refer to the corresponding statements in this appendix.

  • Page 55: Safety Notices

    Safety Notices About the Battery If the battery is mishandled, it may cause fire, smoke or an explosion and the battery’s functionality will be seriously damaged. The safety instructions listed below must be followed. Danger Do not immerse the battery with liquid such as water, sea water or soda. ⚫...
  • Page 56 Warning Keep the battery away from infants. ⚫ Stop using the battery if there are noticeable abnormalities such as ⚫ abnormal smell, heat, deformities, or discoloration. Stop charging if the charging process cannot be finished. ⚫ In case of a leaking battery, keep the battery away from flames and do not ⚫...
  • Page 57 NORWEGIAN ADVARSEL: Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner. SWEDISH VARNING: Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion.

  • Page 58: About The Ac Adapter

    Attention (for USA Users) The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of its useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

  • Page 59: Heat Related Concerns

    Heat Related Concerns Your device may become very warm during normal use. It complies with the user-accessible surface temperature limits defined by the International Standards for Safety. Still, sustained contact with warm surfaces for long periods of time may cause discomfort or injury. To reduce potential heat-related concerns, follow these guidelines: Keep your device and its AC adapter in a well-ventilated area when in use or ⚫...

  • Page 60: North America

    North America Federal Communications Commission Radio Frequency Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 61 (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Company name Getac Inc. 15495 Sand Canyon Rd., Suite 350 Address Irvine, CA 92618 USA Phone...
  • Page 62 Replace the battery with battery model BP3S1P2680B or BP3S2P2100S-02, ⚫ manufactured by Getac Technology Corporation only. Use of another battery may present a risk of fire or explosion. California Proposition 65 For California USA:...
  • Page 63 purchase, we are giving this warning on our packaging and user manual to keep our consumers well informed. WARNING This product can expose you to chemicals including lead, TBBPA or formaldehyde, which are known to the State of California to cause cancer and birth defects or other reproductive harm.

  • Page 64: Canada

    Canada Canadian ICES-003 CAN ICES-3(B)/NMB-3(B) This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 65: User Notification Of Take-Back Service

    Please see the product type below for information on Getac product, battery and packaging recycling in USA and Canada. For Product Recycling: ⚫ If you have a Getac computer that needs to go to a recycling house, Getac...
  • Page 66 They contain 90 percent (by weight) recycled content. Your packaging materials can be recycled at your local recycling center. Or, if you would like Getac to recycle your packaging, please contact us at (866) 394 – 3822 and we will make arrangements for you.

  • Page 67: Europe Marking And Compliance Notices

    Text der EU Konformitätserklärung ist verfügbar unter: https://support.getac.com/Portal/Page/846 Español Por la presente, Getac declara que el producto cumple con la Directiva de la UE 2014/53/UE. El texto completo de la declaración UE de conformidad se encuentra a continuación. https://support.getac.com/Portal/Page/866 Français...
  • Page 68 : https://support.getac.com/Portal/Page/879 Italiano Getac con la presente dichiara che questo dispositivo è conforme ai requisiti essenziali e alle altre disposizioni pertinenti con la direttiva 2014/53/EU. Il testo completo della dichiarazione di conformità UE è disponibile all’indirizzo: https://support.getac.com/Portal/Page/892 Notices Max power: WLAN 2400-2483.5 MHz: 20 dBm...
  • Page 69 UK (NI) Restriction or Requirement in the UK: 5150 to 5350 MHz and 5925 to 6425 MHz indoor-use only. Waste Electrical and Electronic Equipment (WEEE) This symbol means that according to local laws and regulations your product shall be disposed of separately from household waste.

  • Page 70: Restriction Of Hazardous Substances (Rohs) Directive

    Restriction of Hazardous Substances (RoHS) Directive EU RoHS Getac products meet the requirements of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment. For more information about RoHS, go to: https://www.getac.com/us/environment/ Company name Getac Technology GmbH.

  • Page 71: About F110-Ex

    About F110-Ex F110-Ex is suitable for use in potentially explosive atmospheres (zone 2 and zone 22). Follow the instructions in this section if you have the F110-Ex model (with certification model name as F110-Exc). Special Conditions for Safe Use Ambient temperature range: -21 °C to +60 °C ⚫...

  • Page 72: Use Of Accessories

    While not in an Ex-hazardous area, you can remove this cover in order to access any connector behind it. Use of Accessories F110-Ex can be used with the following accessories provided by Getac: Shoulder strap ⚫ Hand strap ⚫ Shoulder harness strap ⚫...

  • Page 73: Energy Star

    ® All Getac products with ENERGY STAR logo comply with the ENERGY STAR ® ® standard, and the power management feature is enabled by default. Getac’s ENERGY STAR qualified products are listed on the EPA website. ® https://www.energystar.gov/products...

  • Page 74: About Battery And External Enclosure Replacement

    Enclosure Replacement Battery The batteries of your product include two battery packs and a button cell (or called RTC battery). All batteries are available from Getac authorized service centers. The battery pack is user-replaceable. Replacement instructions can be found in “Replacing the Battery Pack”...
