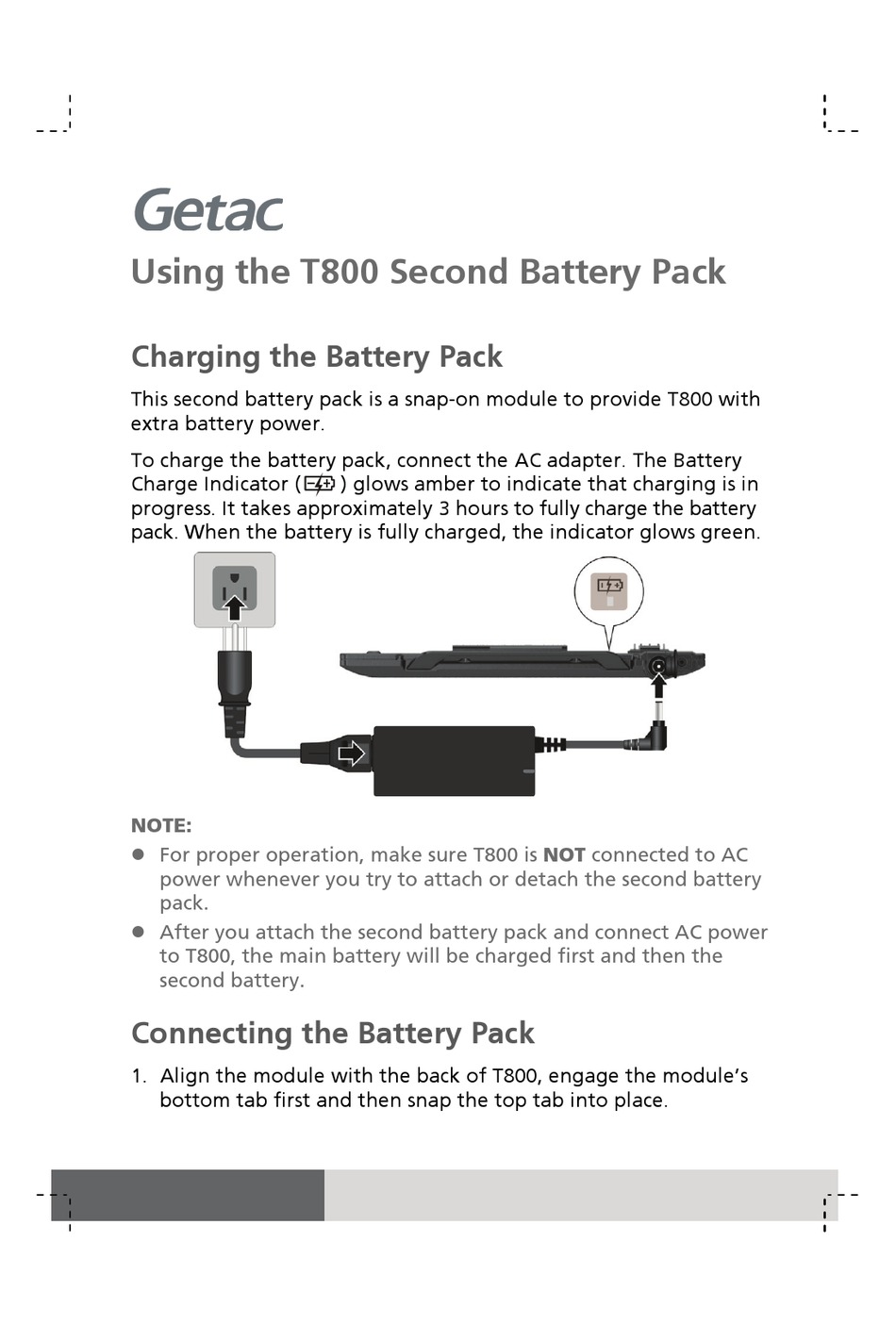

Using the T800 Second Battery Pack

This second battery pack is a snap-on module to provide T800 with

extra battery power.

To charge the battery pack, connect the AC adapter. The Battery

Charge Indicator (

progress. It takes approximately 3 hours to fully charge the battery

pack. When the battery is fully charged, the indicator glows green.

NOTE:

 For proper operation, make sure T800 is NOT connected to AC

power whenever you try to attach or detach the second battery

pack.

 After you attach the second battery pack and connect AC power

to T800, the main battery will be charged first and then the

second battery.

1. Align the module with the back of T800, engage the module's

bottom tab first and then snap the top tab into place.

) glows amber to indicate that charging is in

Table of Contents

Do you have a question about the T800 and is the answer not in the manual?

Page 1 Using the T800 Second Battery Pack Charging the Battery Pack This second battery pack is a snap-on module to provide T800 with extra battery power. To charge the battery pack, connect the AC adapter. The Battery Charge Indicator ( ) glows amber to indicate that charging is in progress.
Page 2 2. Firmly press the connector area to ensure the connection. The module has an icon indicating where to press. 3. Tighten four screws. 4. When connected, the second battery will be discharged first and then the main battery. Checking the Battery Level NOTE: If the operating system does not seem to recognize the second battery pack, try disconnecting and reconnecting it.
