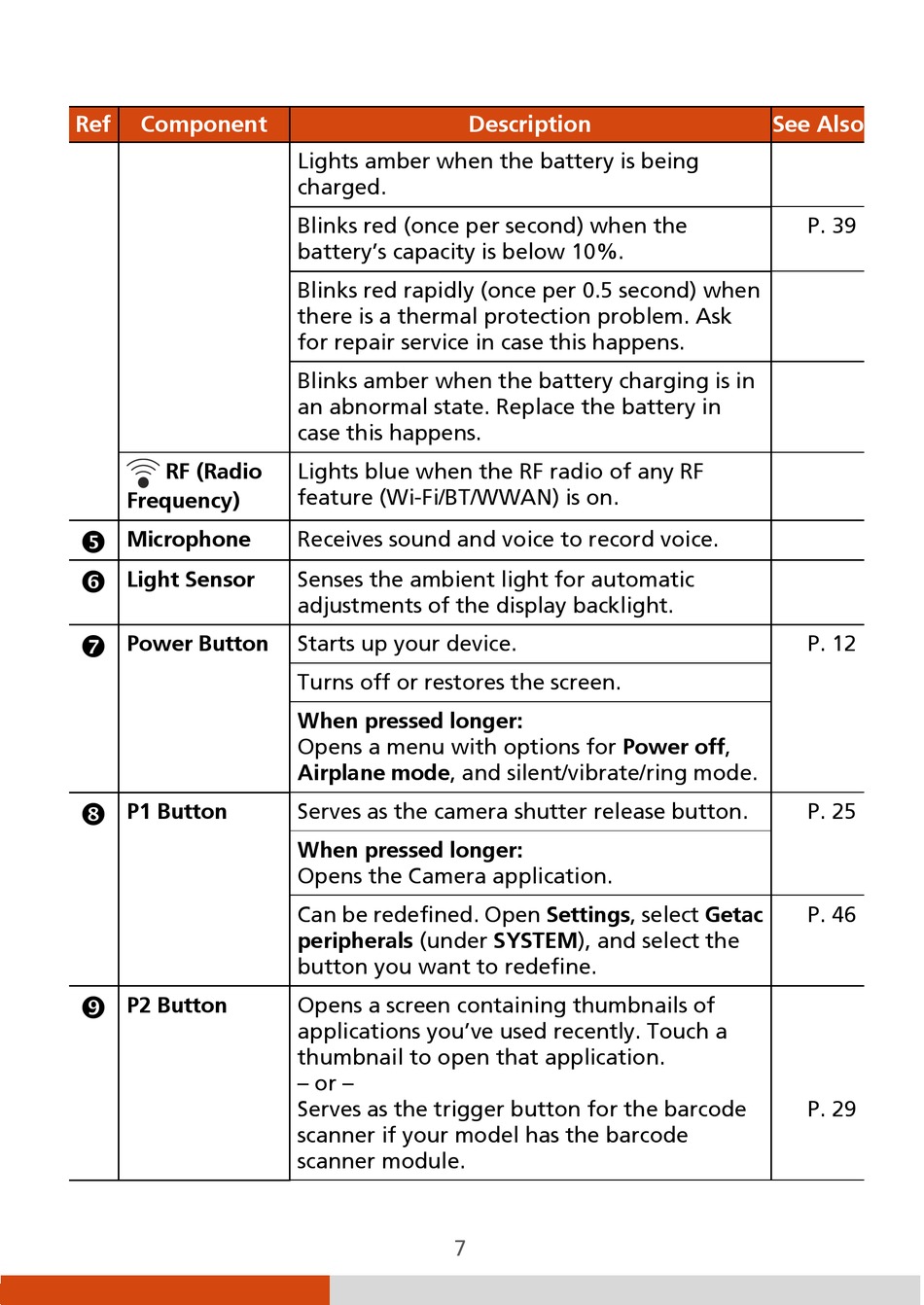

Ref Component
RF (Radio
Frequency)

Microphone
 Light Sensor

Power Button

P1 Button

P2 Button
Description
Lights amber when the battery is being
charged.
Blinks red (once per second) when the
battery's capacity is below 10%.
Blinks red rapidly (once per 0.5 second) when
there is a thermal protection problem. Ask
for repair service in case this happens.
Blinks amber when the battery charging is in
an abnormal state. Replace the battery in
case this happens.
Lights blue when the RF radio of any RF
feature (Wi-Fi/BT/WWAN) is on.
Receives sound and voice to record voice.
Senses the ambient light for automatic
adjustments of the display backlight.
Starts up your device.
Turns off or restores the screen.
When pressed longer:
Opens a menu with options for Power off,
Airplane mode, and silent/vibrate/ring mode.
Serves as the camera shutter release button.
When pressed longer:
Opens the Camera application.
Can be redefined. Open Settings, select Getac
peripherals (under SYSTEM), and select the
button you want to redefine.
Opens a screen containing thumbnails of
applications you've used recently. Touch a
thumbnail to open that application.
– or –
Serves as the trigger button for the barcode
scanner if your model has the barcode
scanner module.
7
See Also
P. 39
P. 12
P. 25
P. 46
P. 29
