Extron electronics SMP 111 User Manual page 39

Collapse and expand panels
Click the Expand arrow button (see figure 12,
opens to a full view, or as much as possible with the current display settings.
Click the Collapse arrow button (
the controls and provides additional room for other panels.

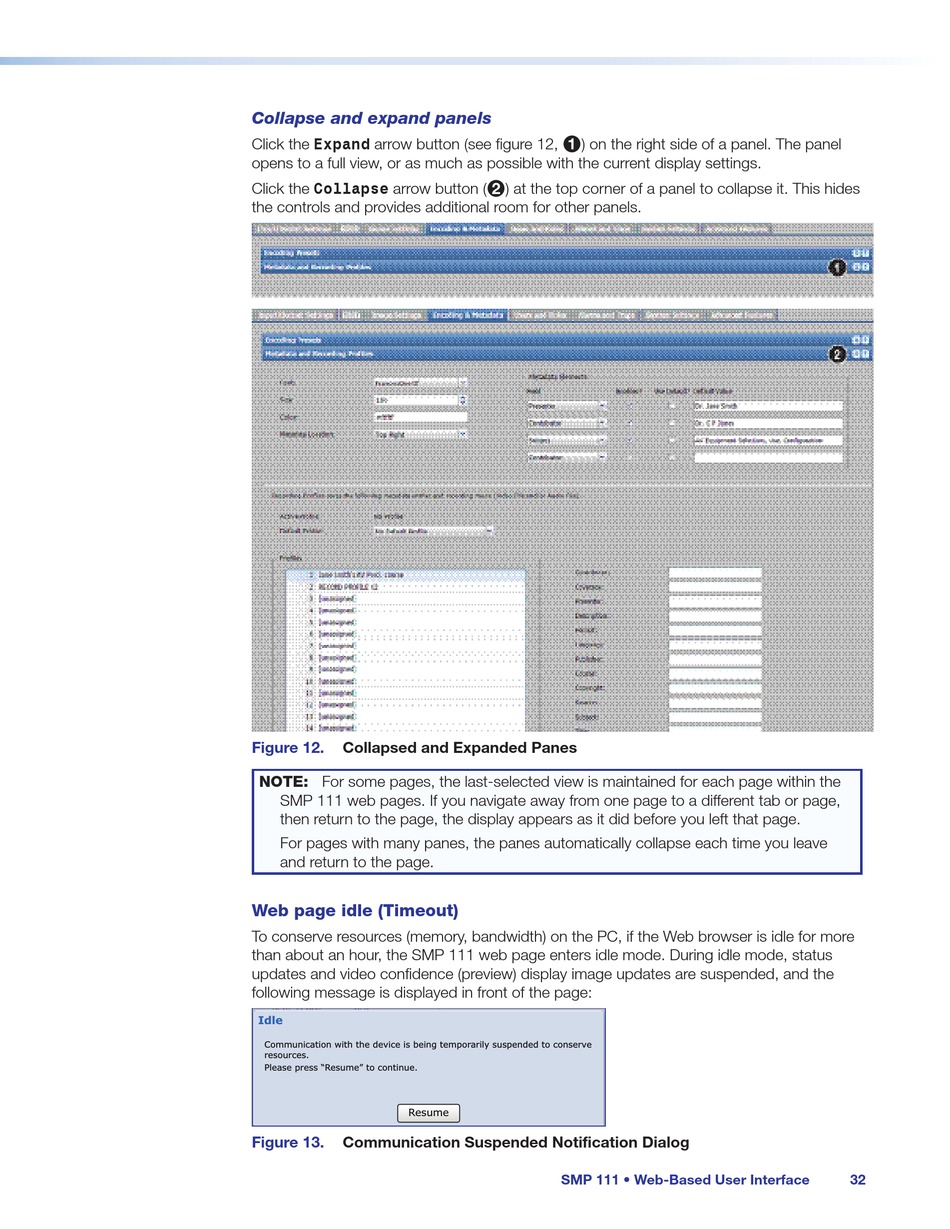

Figure 12. Collapsed and Expanded Panes
NOTE: For some pages, the last-selected view is maintained for each page within the
SMP 111 web pages. If you navigate away from one page to a different tab or page,
then return to the page, the display appears as it did before you left that page.
For pages with many panes, the panes automatically collapse each time you leave
and return to the page.
Web page idle (Timeout)
To conserve resources (memory, bandwidth) on the PC, if the Web browser is idle for more
than about an hour, the SMP 111 web page enters idle mode. During idle mode, status
updates and video confidence (preview) display image updates are suspended, and the
following message is displayed in front of the page:
Idle
Communication with the device is being temporarily suspended to conserve
resources.
Please press "Resume" to continue.
Resume
Figure 13. Communication Suspended Notification Dialog
) on the right side of a panel. The panel
1
) at the top corner of a panel to collapse it. This hides
2
SMP 111 • Web-Based User Interface 32
