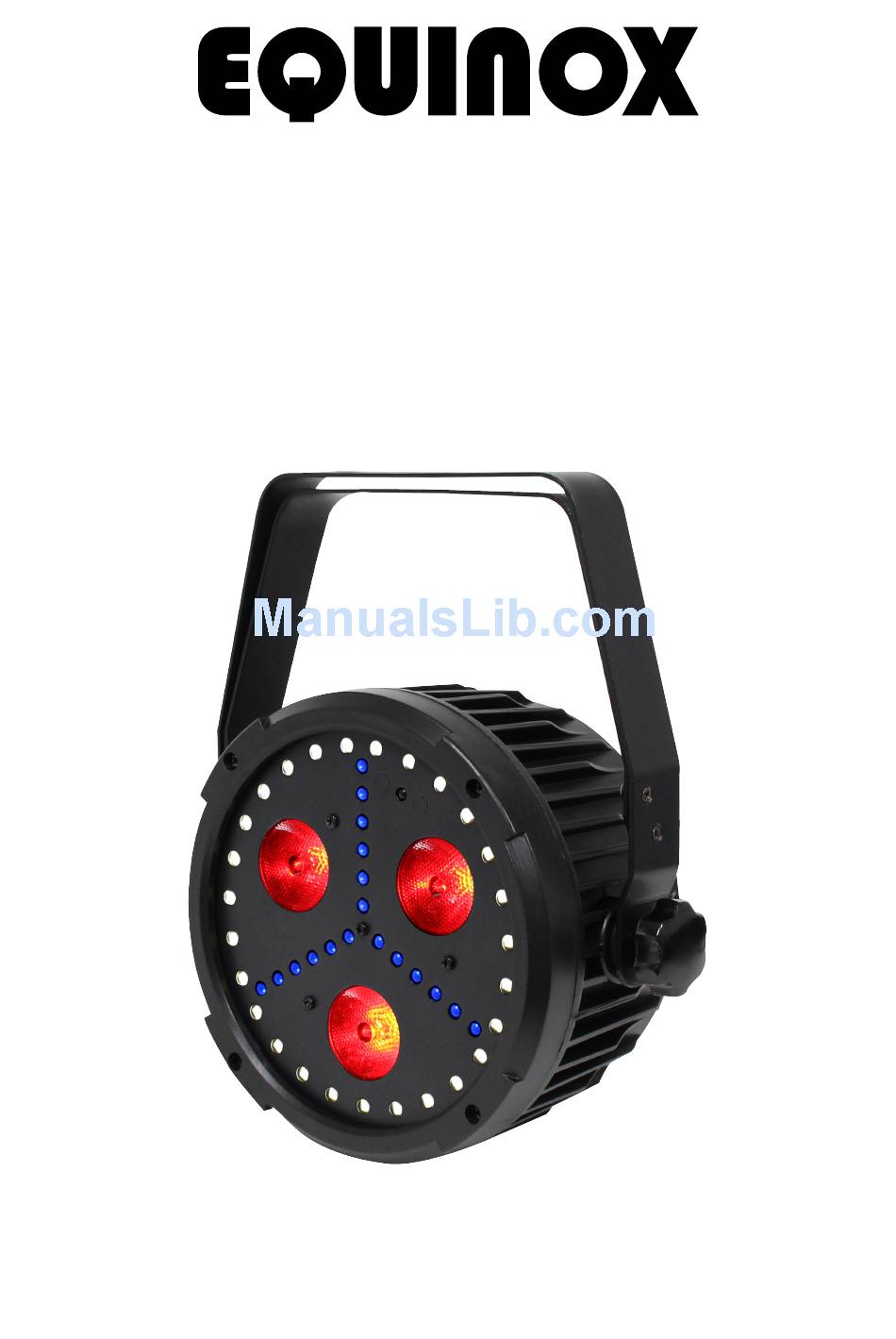

- Page 1 Aztec User Manual Order code: EQLED368...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! TAKE CARE USING KEEP THIS EQUIPMENT THIS EQUIPMENT! AWAY FROM RAIN, HIGH VOLTAGE-RISK MOISTURE AND LIQUIDS OF ELECTRIC SHOCK!! IMPORTANT:... - Page 3 • 0 - 100% dimming and variable strobe • Bracket allows for multiple rigging and floor standing applications • 4 push button menu with LED display • IEC power input/output • 3-Pin XLR input/output • Fan cooled 25° - Lux • Supplied with IR remote FULL ON 4000 1003 1630 65.1 2420 Specifications Aztec 23.6 13.3 Power consumption Power supply 100~240V, 50/60Hz Fuse F1A 250V 25° Dimensions 250 x 210 x 123mm Weight 1.2kg Order codes EQLED368 210mm 123mm www.prolight.co.uk Aztec User Manual...
-
Page 4: Technical Specifications
Technical specifications www.prolight.co.uk MENU DOWN ENTER SAFETY EYE DMX INPUT DMX OUTPUT POWER INPUT: 100-240V~50/60Hz POWER OUTPUT: FUSE: F1A 250V 100-240V~50/60Hz POWER CONSUMPTION: 38W 01 - LED display 05 - 3-Pin DMX output In the box: 1 x fixture, 02 - Function buttons 06 - IEC power input 09 - Bracket knobs 1 x IR remote, 03 - Microphone 07 - IEC power output 10 - Bracket 1 x power cable, &... -
Page 5: Dmx Settings
Operating instructions Operating instructions 1 C h d 0 0 1 A d d r 7 C h DMX settings d 5 1 2 1 1 C h S 0 1 S t @ t Static colour mode (par LEDs) S 1 7 A u 1 A u t o... -
Page 6: Dmx Mode
Operating instructions DMX mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. To access the DMX mode, press the “MENU” button and use the “UP” and “DOWN” buttons to show Addr on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose one of the 1/7 or 11 DMX channel modes. Press the “ENTER” button to confirm the setting. Addr The display will now show on the LED display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to set the required DMX address. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. 1 channel mode: Channel Value Function 000-009 No function Auto mode 1 - Par 010-039 LEDs + Tri SMD LEDs + White SMD LEDs Auto mode 2 - 040-069 Par LEDs (slow-fast) Auto mode 3 - 070-099 Tri SMD LEDs + White SMD LEDs Auto mode 4 - 100-129 White SMD LEDs Sound mode 1 - Par 130-159 LEDs + Tri SMD LEDs + White SMD LEDs... - Page 7 Operating instructions 7 channel mode: Channel Value Function Channel Value Function 000-255 Master dimmer (0-100%) 000-009 No function 000-255 Strobe (slow-fast) Auto mode 1 - Par 010-039 LEDs + Tri SMD LEDs 000-009 No function + White SMD LEDs 010-019 Auto mode 2 040-069 020-029 Green - Par LEDs (slow-fast) 030-039 Blue Auto mode 3 070-099 - Tri SMD LEDs + 040-049 UV White SMD LEDs 050-059 Yellow Auto mode 4 060-069 Magenta 100-129...
- Page 8 Operating instructions 11 channel mode: Channel Value Function Channel Value Function 000-255 Master dimmer (0-100%) 000-009 No function 000-255 Strobe (slow-fast) Auto mode 1 - Par LEDs 010-039 + Tri SMD LEDs + White 000-255 Red dimmer (0-100%) SMD LEDs 000-255 Green dimmer (0-100%) Auto mode 2 040-069 000-255 Blue dimmer (0-100%) - Par LEDs (slow- 000-255 UV dimmer (0-100%) fast) Auto mode 3 070-099 - Tri SMD LEDs + White 000-009 No function SMD LEDs 010-019 Auto mode 4 020-029 Green...
-
Page 9: Auto Modes
Operating instructions Static colour mode (par LEDs): To access the static colour mode, press the “MENU” button and use the “UP” and “DOWN” buttons to St@t show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons S 01 S 17 to choose one of the static colours between Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Colour macros: Magenta Turquoise Dark Blue Green Cyan Light Green Pink Blue Dark Orange Orange Lime Green Lavender Yellow Salmon Pink Light Blue Auto modes: To access the auto modes, press the “MENU” button and use the “UP” and “DOWN” buttons to show Auto on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to Au 1 Au 4 choose one of the auto modes between... -
Page 10: Speed Setting
Operating instructions Speed setting: To access the speed setting for auto and sound modes, press the “MENU” button and use the “UP” and SPEE “DOWN” buttons to show on the LED display. Now press the “ENTER” button and use the “UP” SP 1 SP 9 and “DOWN” buttons to select between Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Sound sensitivity: To access the sound sensitivity setting, press the “MENU” button and use the “UP” and “DOWN” buttons SEns to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” SE 1 SE 9 buttons to select the sound sensitivity between Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Colour mix mode: CoLo To access the colour mix mode, press the “MENU” button to show on the LED display. r001 Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose Press the “ENTER” button and use the “UP” and “DOWN” buttons to select the brightness of Red between . Value: 000 - 255 (000 = low, 255 = high). Now press the “ENTER” button and repeat for Green, Blue and... -
Page 11: Master/Slave Mode
Master/slave mode: To set the master unit, press the “MENU” button and use the “UP” and “DOWN” buttons to select one of the program modes. To set the other units in slave mode, press the “MENU” button and use the “UP” and “DOWN” buttons to SLAV show on the LED display. Press the “ENTER” button to confirm the setting. The unit will now run in sequence with the master unit. To exit out of any of the above options, press the “MENU” button. Please ensure that all slave units are set to the same DMX channel mode as the master unit. IR remote setting: To access the IR remote setting, press the “MENU” button and use the “UP” and “DOWN” buttons to InFr show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between or . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Aztec User Manual... - Page 12 Operating instructions IR remote functions: 01 - Sets the unit into blackout off/on (LED on/off) 02 - Activates the auto modes, use the ‘+’ and ‘–’ buttons to select the auto mode. Pressing the ‘speed’ button followed by the ‘+’ and ‘–’ buttons will then allow the auto mode speed to be adjusted BLACK AUTO SOUND 03 - Activates the sound modes, use the ‘+’ and ‘–’ buttons to select the sound mode. Pressing the ‘sensitivity’ button SENSI- STROBE SPEED followed by the ‘+’ and ‘–’ buttons will then allow the TIVITY sound sensitivity be adjusted FADE 04 - Activates the strobe, use the ‘+’ and ‘–’ buttons MANUAL UNIT to adjust the strobe speed 05 - Activates the auto mode speed. Press this button followed by the ‘+’ and ‘–’ buttons to adjust the program speed 06 - Activates the sound mode sensitivity. Press this button followed by the ‘+’ and ‘–’ buttons to adjust the sound sensitivity 07 - Activates the DMX mode Please note: the DMX address and channel must be preset in the menu 08 - Activates the static colour/manual modes, use the ‘+’ and ‘–’ buttons to select a colour from the pre- programmed static colours or use the ‘R’, ‘G’, ‘B’, ‘UV’ or ‘W’ buttons to create a manual colour. Pressing the ‘Fade/ unit’ button allows the chosen colour to enter the fade program 09 - Activates the fade mode 10 - Manual colour selection...
-
Page 13: Dmx Setup
DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a fixture that occupies or uses 7 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the chain starts at 107. DMX 512: DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out” terminal). DMX linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. -
Page 14: Line Termination
DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used, Termination reduces signal transmission you may need to use a terminator on problems and interference. it is always advisable to connect a DMX terminal, the last unit to avoid erratic behaviour. (resistance 120 Ohm 1/4 W) between pin 2 Using a cable terminator will decrease (DMX-) and pin 3 (DMX+) of the last fixture. the possibilities of erratic behaviour. (3-pin - Order ref: CABL90, 5-pin - Order ref: CABL89) 5-pin XLR DMX connectors: Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion. -
Page 15: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Aztec User Manual... - Page 16 www.prolight.co.uk Aztec User Manual...
