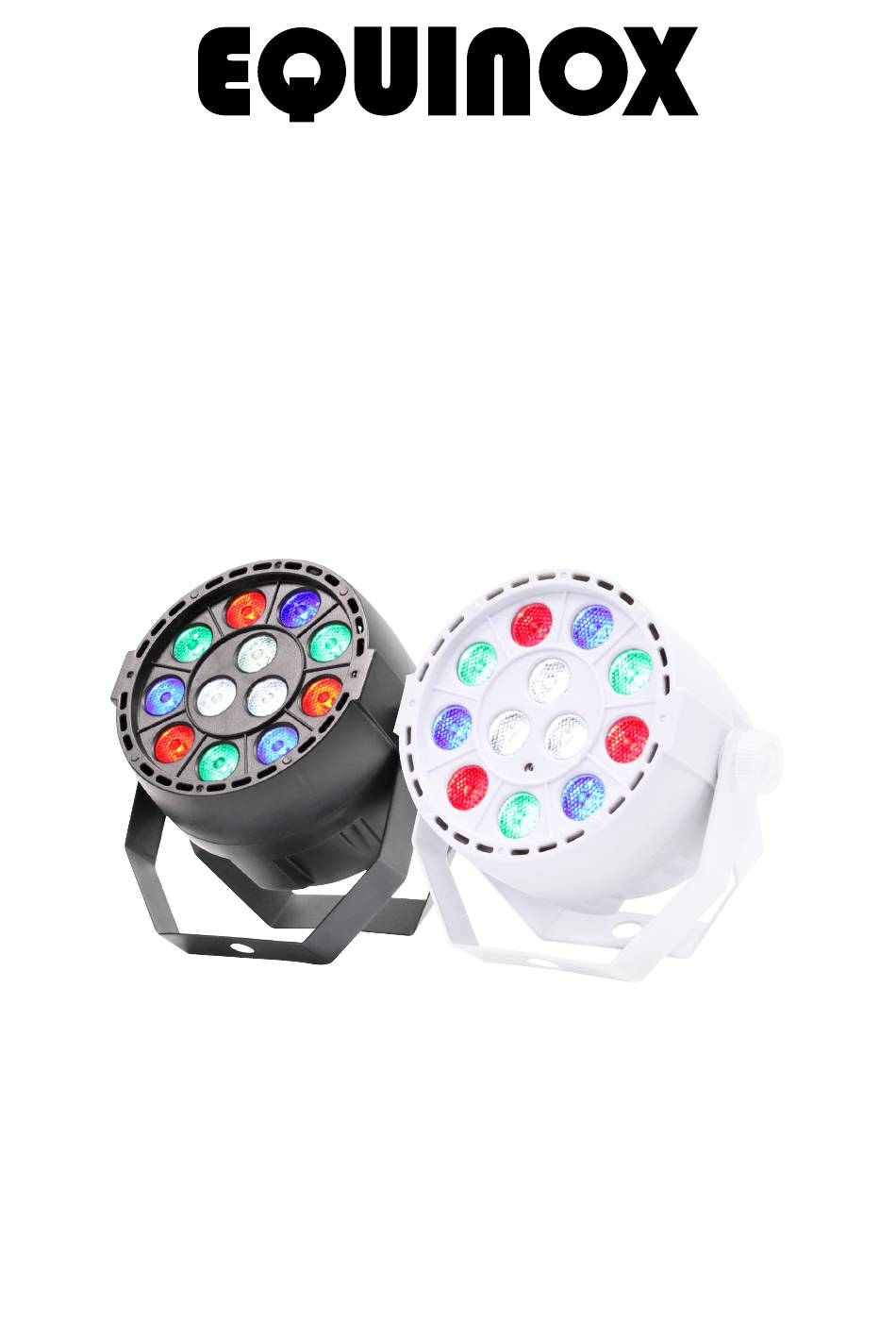

- Page 1 Micro Batt User Manual Order codes: EQLED160 - Black Housing EQLED160A - White Housing...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CARE- FULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! TAKE CARE USING KEEP THIS EQUIPMENT THIS EQUIPMENT! AWAY FROM RAIN, HIGH VOLTAGE-RISK MOISTURE AND LIQUIDS OF ELECTRIC SHOCK!! - Page 3 Micro Batt Rechargeable lithium battery powered LED slim par can utilising 1W RGBW LEDs for stage or wall washing. The internal battery will keep a charge for up to 6 hours from a single charge, and with no power cables to connect you are free to set up the unit wherever you want.
- Page 4 Operating instructions Operating instructions d 0 0 1 d 0 0 1 DMX address settings d 5 1 2 A 1. 0 1 A 1. 0 1 Static colour mode A 1. 1 8 A 2. 0 1 A 2. 0 1 Colour change mode A 2.
- Page 5 Operating instructions DMX mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. To access the DMX address mode, press the “MENU” button on the rear of the unit to show d001 on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the required DMX address. Press the “ENTER” button to confirm the setting. 8 channel mode: Channel Value Function 000-010 No function 011-050 Static colour mode 051-100 Colour change mode 101-150 Colour fade mode 151-200 Sound active mode 201-255 Strobe mode 000-039 White (RGBW) 040-049 050-059 Green 060-069 Blue 070-079 Yellow 080-089 Cyan 090-099 Magenta 100-109...
- Page 6 Static colour mode: A1. 0 1 To access static colour mode, press the “MENU” button on the rear of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select the A1. 0 1 A1. 1 8 static colour required between ~ . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. A1. 0 1 A1. 0 6 A1. 1 1 A1. 1 6 - White (RGBW) - Cyan - Pastel Red - Pastel Magenta A1. 0 2 A1. 0 7 A1.
-
Page 7: Master/Slave Mode
Operating instructions Manual dimming mode: r. 0 01 To access the manual dimming mode, press the “MENU” button until the display shows on the r. 0 00 LED display. Use the “UP” and “DOWN” buttons to select the required brightness of red from r. 2 55 . Press the “ENTER” button followed by the “MENU” button and repeat for (green), (blue) and (white). Press the “ENTER” button to confirm the setting. Value: 000 - 255 (000 = low brightness, 255 = high brightness) To exit out of any of the above options, press the “MENU” button. Master/slave mode: To set the master unit select your desired program (static colour, colour change, colour fade, sound active or strobe. To set the other units in slave mode, press the “MENU” button on the front of the unit to d001 show... - Page 8 Operating instructions IR remote functions: Button functions: 01 - Sets the unit into blackout on or off 02 - Static colour mode - Use the ‘+’ and ‘ -’ buttons to select the desired colour 03 - Colour change mode - Use the ‘+’ and ‘ -’ buttons to select the desired speed 04 - Colour fade modes - Use the ‘+’ and ‘ -’ buttons to – COLOR select the desired speed 05 - Sound active modes - Use the ‘+’ and ‘ -’ buttons to select the desired speed – 06 - Strobe modes - Use the ‘+’ and ‘ -’ buttons to select SPEED the desired speed 07 - Sets the static colour 08 - Sets the speed of colour change, colour fade, sound active and strobe modes 09 - Puts the unit into DMX mode - Use the ‘+’ and ‘-’ buttons to select the desired DMX address – www.prolight.co.uk Micro Batt User Manual...
-
Page 9: Dmx Setup
DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a fixture that occupies or uses 7 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the chain starts at 107. DMX 512: DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out” terminal). DMX linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. -
Page 10: Line Termination
DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used, Termination reduces signal transmission you may need to use a terminator on problems and interference. It is always advisable to connect a DMX terminal, the last unit to avoid erratic behaviour. (resistance 120 Ohm 1/4 W) between pin 2 Using a cable terminator will decrease (DMX-) and pin 3 (DMX+) of the last fixture. the possibilities of erratic behaviour. (3-pin - Order ref: CABL90, 5-pin - Order ref: CABL89) 5-pin XLR DMX connectors: Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion. -
Page 11: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Micro Batt User Manual... - Page 12 www.prolight.co.uk Micro Batt User Manual...
