Maxi Batt
User Manual
Order codes:

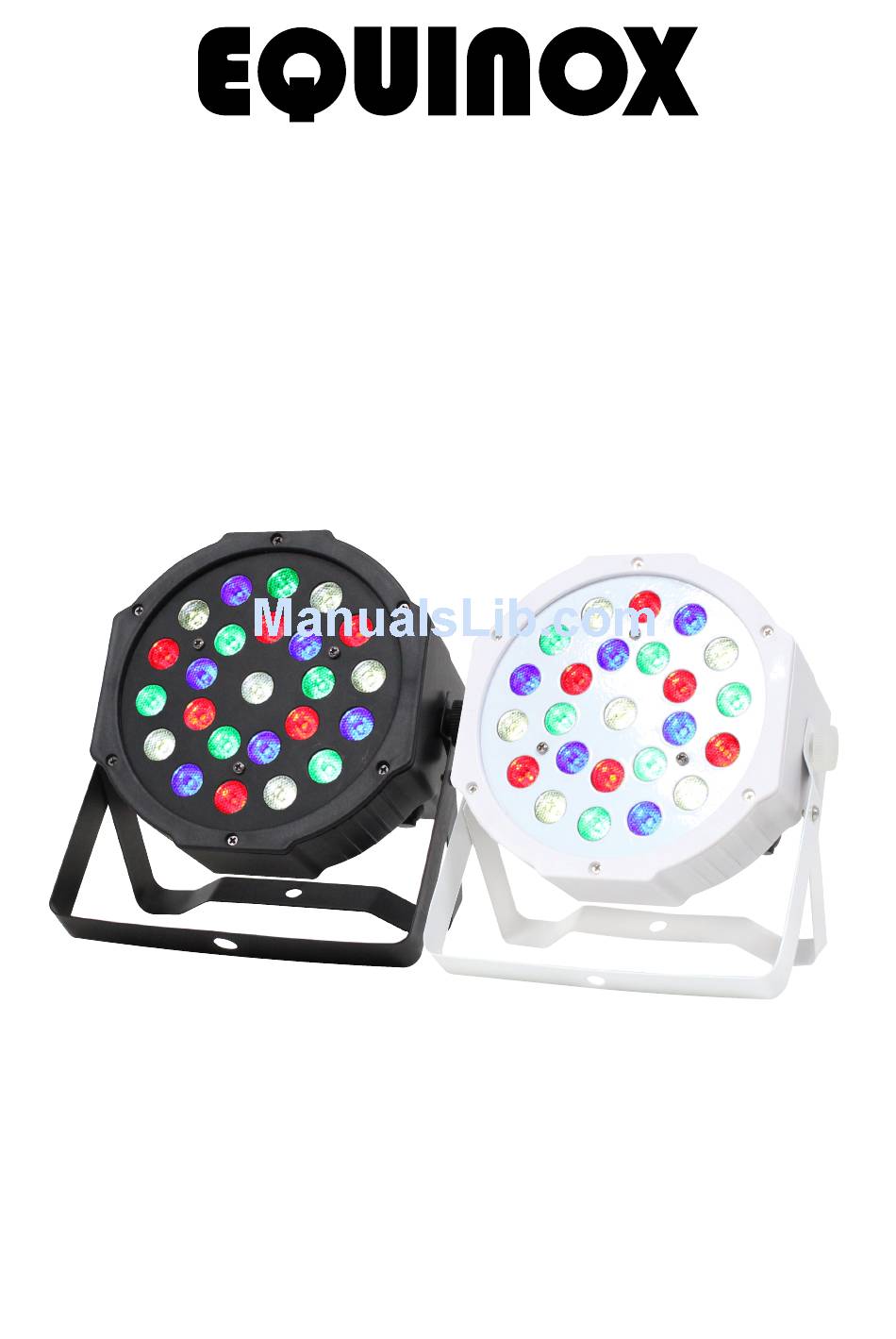

EQLED162 - Black Housing
EQLED162A - White Housing

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EQLED162 and is the answer not in the manual?

Questions and answers

Summary of Contents for Equinox Systems EQLED162

  • Page 1 Maxi Batt User Manual Order codes: EQLED162 - Black Housing EQLED162A - White Housing...
  • Page 2: Safety Advice

    Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CARE- FULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! TAKE CARE USING KEEP THIS EQUIPMENT THIS EQUIPMENT! AWAY FROM RAIN, HIGH VOLTAGE-RISK MOISTURE AND LIQUIDS OF ELECTRIC SHOCK!!
  • Page 3 • DC 12V charging input fade, auto, sound active and master/ Power supply 100~240V, 50/60Hz (via the included charger) slave modes Battery 12V 4400mAh • 3-Pin XLR input/output • 0-100% dimming and variable strobe Dimensions 230 x 200 x 155mm • Fan cooled • 4 push button menu with LED display Weight 1.1kg • Bracket allows for multiple rigging or Order code EQLED162 - Black housing floor standing applications EQLED162A - White housing 155mm 200mm 25° - Lux FULL ON 4400 1102 91.6 51.5 2140 85.6 68.4 30.4 17.1 10.9 POWER 1360 85.3...
  • Page 4 Operating instructions Operating instructions A 0 0 1 A 0 0 1 DMX address & channel settings (8CH mode) A 5 1 1 d 0 0 1 d 0 0 1 DMX address & channel settings (5CH mode) d 5 1 1 S L A u Slave mode C F 0 1...
  • Page 5 Operating instructions DMX mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. To access the DMX address and channel mode for 5 channel DMX, press the “MENU” button on the rear d001 of the unit to show on the LED display. This is now in 5 channel mode. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the required DMX address. Press the “ENTER” button to confirm the setting. Press the “ENTER” button to confirm the setting. To access the DMX address and channel mode for 8 channel DMX, press the “MENU” button on the rear A001 of the unit to show on the LED display. This is now in 8 channel mode. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the required DMX address. Press the “ENTER” button to confirm the setting. Press the “ENTER” button to confirm the setting. 5 channel mode: Channel Value Function 000-255 Master dimmer (0-100%) 000-255 Red (0-100%) 000-255 Green (0-100%) 000-255 Blue (0-100%) 000-255 White (0-100%) 8 channel mode: Channel Value Function 000-255 Master dimmer (0-100%)
  • Page 6 Colour fade mode 1: CF01 To access colour fade mode 1, press the “MENU” button on the rear of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the CF01 CF99 speed between ~ . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Value: 01 - 99 (01 = slow speed, 99 = fast speed) Colour change mode: CJ01 To access colour change mode, press the “MENU” button on the rear of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the CJ01 CJ99 speed between ~ . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Value: 01 - 99 (01 = slow speed, 99 = fast speed) Colour fade mode 2: CP01 To access colour fade mode 2, press the “MENU” button on the rear of the unit to show...
  • Page 7 Operating instructions Master/slave mode: To set the master unit select your desired program (colour change, colour fade, auto, sound active or strobe. To set the other units in slave mode, press the “MENU” button on the front of the unit to SLAu show on the LED display. Press the “ENTER” button to confirm the setting. The unit will now run in sequence with the master unit. To exit out of any of the above options, press the “MENU” button. Please ensure that all slave units are set to the same DMX channel mode as the master unit. Auto mode: dEno To access auto mode, press the “MENU” button on the rear of the unit to show on the LED display. The fixture will now run through all its built-in programs To exit out of any of the above options, press the “MENU” button. Sound mode: Soud To access sound mode, press the “MENU” button on the rear of the unit to show on the LED display. The fixture will now run in sound mode. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Maxi Batt User Manual...
  • Page 8 Operating instructions IR remote functions: Button functions: 01 - Sets the unit into blackout on or off ON/OFF ON/OFF 02 - Use to select between 5CH, 8CH or Slave modes Auto 03 - Static colour mode - Use to select one of the preset colours 04 - Auto mode - Use this button to select auto mode 05 - Colour change mode - Use the ‘+’ and ‘ -’ buttons to Jump Fade Strobe select the desired speed 06 - Colour fade modes - Press this to switch between Fade 1 and Fade 2 modes. Use the ‘+’ and ‘ -’ Sound buttons to select the desired speed 07 - Strobe mode - Use the ‘+’ and ‘ -’ buttons to select the desired speed 08 - Sound active mode - Use this button to select sound active mode GREEN BLUE 09 - Use these buttons to adjust the speed of any of the colour change, colour fade or strobe programs. ROSE AMBER CYAN – WHITE SPEED www.prolight.co.uk Maxi Batt User Manual...
  • Page 9: Dmx Setup

    DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a fixture that occupies or uses 7 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the chain starts at 107. DMX 512: DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out” terminal). DMX linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers.
  • Page 10: Line Termination

    DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used, Termination reduces signal transmission you may need to use a terminator on problems and interference. It is always advisable to connect a DMX terminal, the last unit to avoid erratic behaviour. (resistance 120 Ohm 1/4 W) between pin 2 Using a cable terminator will decrease (DMX-) and pin 3 (DMX+) of the last fixture. the possibilities of erratic behaviour. (3-pin - Order ref: CABL90, 5-pin - Order ref: CABL89) 5-pin XLR DMX connectors: Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion.
  • Page 11: Weee Notice

    WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Maxi Batt User Manual...
  • Page 12 www.prolight.co.uk Maxi Batt User Manual...
