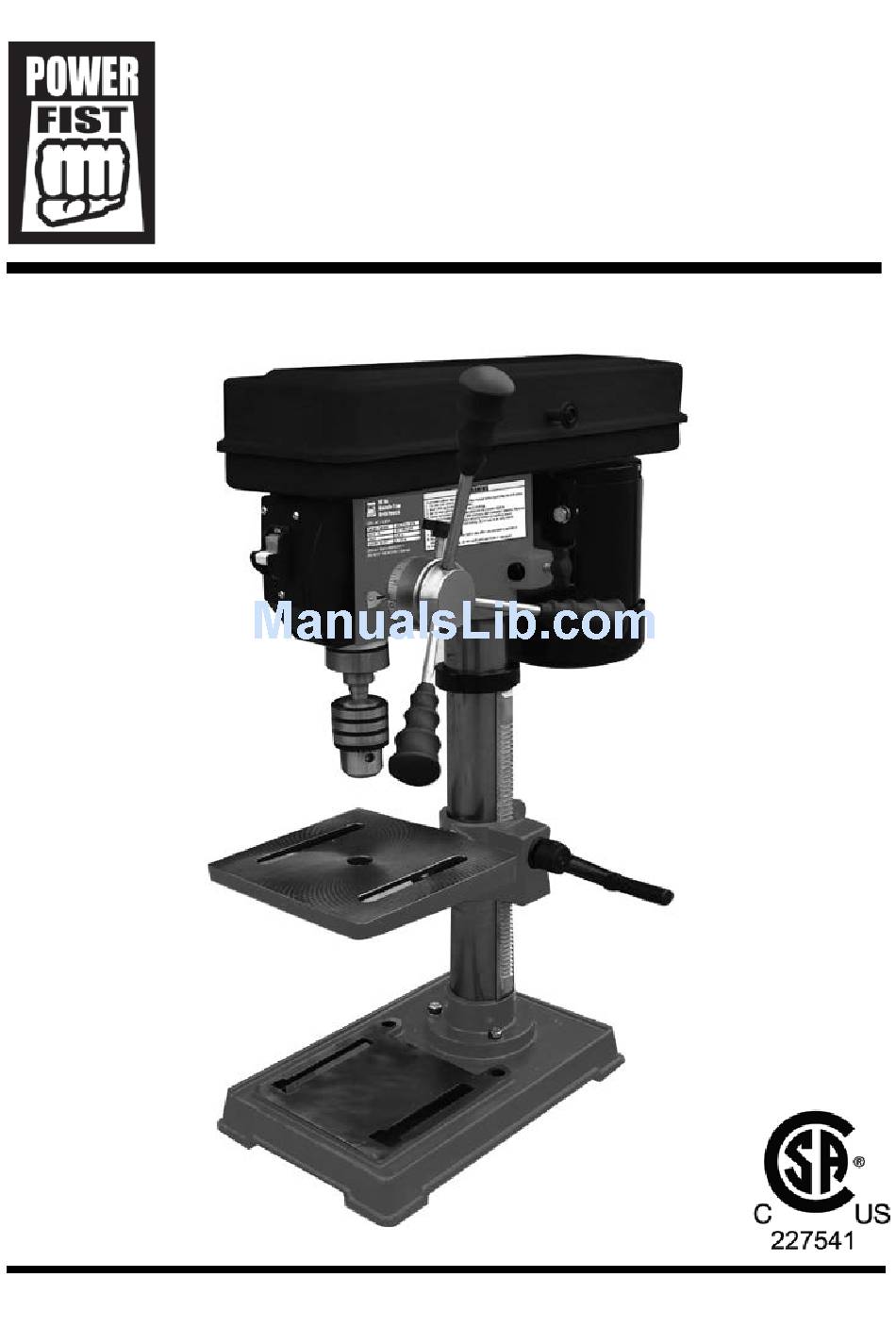

Page 1: Drill Press
V 4.0 8654337 10 in. Bench-Top Drill Press User Manual Please read and understand all instructions before use. Retain this manual for future reference. -
Page 2: Specifications
8654337 10 in. Bench-Top Drill Press V 4.0 10 in. Bench-Top Drill Press SPECIFICATIONS Number of Speeds Speed(s) RPM 300, 370, 470, 570, 630, 690, 950, 1,400, 1,620, 1,760, 2,550 and 2,900 Chuck Size 5/8 in. Spindle Travel 2-3/8 in. -
Page 3: Work Area
V 4.0 10 in. Bench-Top Drill Press 8654337 DANGER! This notice indicates an immediate and specific hazard that will result in severe personal injury or death if the proper precautions are not taken. WARNING! This notice indicates a specific hazard or unsafe practice that could result in severe personal injury or death if the proper precautions are not taken. -
Page 4: Specific Safety Precautions
8654337 10 in. Bench-Top Drill Press V 4.0 Wear protective clothing designed for the work environment and tool. Non-skid footwear is recommended to maintain footing and balance in the work environment. Wear steel toe footwear or steel toe caps to prevent a foot injury from falling objects. -
Page 5: Vibration Precautions
V 4.0 10 in. Bench-Top Drill Press 8654337 VIBRATION PRECAUTIONS This tool vibrates during use. Repeated or long-term exposure to vibration may cause temporary or permanent physical injury. Take frequent breaks when using the tool. If you feel any medical symptoms related to vibrations (such as tingling, numbness and white or blue fingers), seek medical attention as soon as possible. - Page 6 8654337 10 in. Bench-Top Drill Press V 4.0 Do not touch an operating motor. Motors can operate at high temperatures and can cause a burn injury. Only use accessories that are specifically designed for use with the tool. Ensure the accessory is tightly installed.
-
Page 7: Electrical Safety
V 4.0 10 in. Bench-Top Drill Press 8654337 hot water, kerosene or gum and pitch remover. Never use gasoline. Allow to dry before using. Discard the bit if the gum or pitch cannot be removed. Do not apply side pressure on the bit unless it is designed for such a purpose. - Page 8 8654337 10 in. Bench-Top Drill Press V 4.0 Do not expose tool to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Do not disconnect the power cord in place of using the ON/OFF switch on the tool.
-
Page 9: Power Cord
V 4.0 10 in. Bench-Top Drill Press 8654337 POWER CORD Insert the power cord plug directly to the power supply whenever possible. Use extension cords or surge protectors only when the tool's power cord cannot reach a power supply from the work area. -
Page 10: Assembly And Installation
8654337 10 in. Bench-Top Drill Press V 4.0 Avoid long and regular bursts of energy while operating the tool. Use the tool for short or intermittent periods of time. This will prevent a pacemaker from interpreting the signal as a rapid heartbeat. -
Page 11: Operation
V 4.0 10 in. Bench-Top Drill Press 8654337 Slide the Height Crank (#23) over the Shaft (#24) on the side of the Table Support (#21). Secure it to the Shaft using the Screw (#22) against the flat part of the Shaft. -
Page 12: Table Adjustment
8654337 10 in. Bench-Top Drill Press V 4.0 TABLE ADJUSTMENT Raise or lower the Table by loosening the Pivot Lever (#20) and turning the Height Crank (#23), clockwise to raise and counterclockwise to lower. Pivot the Table (#26) around the Column (#6) by loosening the Pivot Lever (#20). -
Page 13: General Operating Instructions
V 4.0 10 in. Bench-Top Drill Press 8654337 When the Belts have been correctly positioned, tighten them by pushing the Motor away from the Headstock until the belt deflects by approximately 1/2 in. at its center when using reasonable thumb pressure. Lock this position in with the two Motor Tension Knobs (#70). -
Page 14: Care And Maintenance
8654337 10 in. Bench-Top Drill Press V 4.0 An irregularly shaped workpiece may not lay flat on the table. Block and clamp it securely as any tilting, twisting or shifting will create a rough drill hole and may damage the drill bit or drill. - Page 15 V 4.0 10 in. Bench-Top Drill Press 8654337 LUBRICATION NOTICE! NEVER use a penetrating oil to lubricate the tool. Penetrating oil may act as a solvent that can break down the grease and cause the tool to seize up. Inspect and lubricate the tool when required. Lubricate the table support mechanism, rack and spindle splines.
-
Page 16: Troubleshooting
8654337 10 in. Bench-Top Drill Press V 4.0 TROUBLESHOOTING Visit a Princess Auto Ltd. location for a solution if the tool does not function properly or parts are missing. If unable to do so, have a qualified technician service the tool. -
Page 17: Parts Breakdown
V 4.0 10 in. Bench-Top Drill Press 8654337 PARTS BREAKDOWN Visit www.princessauto.com for more information... -
Page 18: Parts List
8654337 10 in. Bench-Top Drill Press V 4.0 PARTS LIST PART# DESCRIPTION Spindle Base Ball Bearing 6201 Spindle Sleeve Column Support Flat Washer 8 Spring Washer O-Ring Bolt M8 × 25 Ball Bearing 6005 Column Retaining Ring 12 Rack Retaining Ring 42... - Page 19 V 4.0 10 in. Bench-Top Drill Press 8654337 Motor Support PART# DESCRIPTION Screw ST2.9 × 10 Flat Washer 10 Switch Cover Bolt M8 × 20 Power Switch Motor Bracket Switch Box Spring Washer 10 Nut M8 Nut M10 Screw Motor...
- Page 20 Perceuse à colonne d'établi de 10 po...
- Page 21 Perceuse à colonne d'établi de 10 po...
