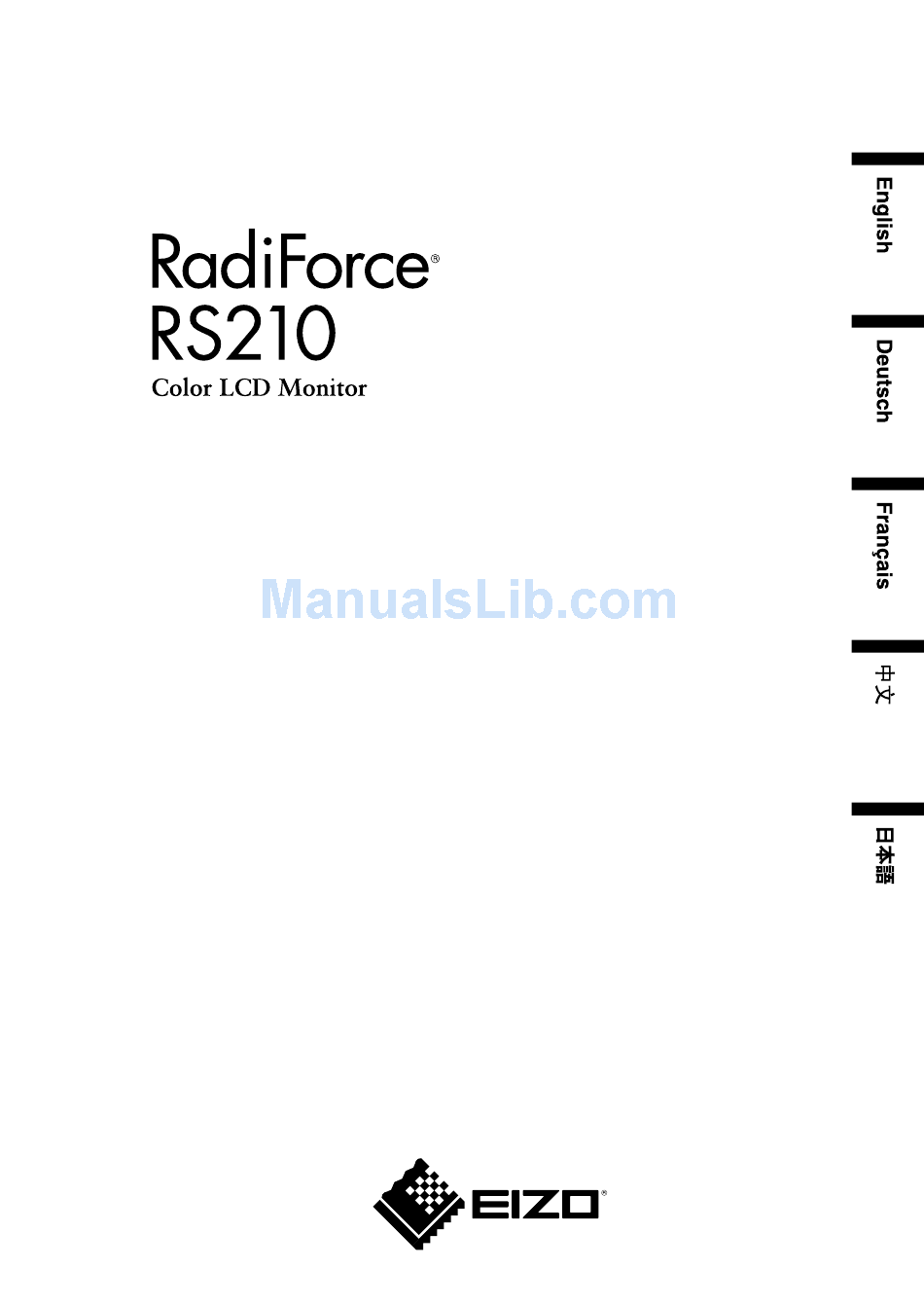

Instructions for Use
■ User's Manual
Important
Please read this User's Manual carefully to familiarize yourself with safe and effective
usage. Please retain this manual for future reference.
Wichtig
Lesen Sie die dieses Benutzerhandbuch aufmerksam durch, um sich mit der sicheren
und effizienten Bedienung vertraut zu machen. Bewahren Sie dieses Handbuch zum
spateren Nachschlagen auf.
Important
Veuillez lire attentivement ce Manuel d'utilisation afin de vous familiariser avec ce
produit et de l'utiliser efficacement et en toute securite. Veuillez conserver ce manuel
pour reference ulterieure.
重要
请仔细阅读用户手册,掌握如何安全、有效地使用本产品。
请保留本手册,以备日后参考。
重要
ご使用前には必ずこの取扱説明書をよくお読みになり、正しくお使いください。
この取扱説明書は大切に保管してください。

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RadiForce RS210 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eizo RadiForce RS210

  • Page 1 Instructions for Use ■ User’s Manual Important Please read this User’s Manual carefully to familiarize yourself with safe and effective usage. Please retain this manual for future reference. Wichtig Lesen Sie die dieses Benutzerhandbuch aufmerksam durch, um sich mit der sicheren und effizienten Bedienung vertraut zu machen.
  • Page 2: Fcc Declaration Of Conformity

    Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. - AC Cord...
  • Page 3 Instructions for Use ■ User’s Manual It shall be assured that the final system is in compliance to IEC60601-1-1 requirements.
  • Page 4: Safety Symbols

    EIZO Corporation. EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information.
  • Page 5: Precautions

    PRECAUTIONS PRECAUTIONS IMPORTANT! • This product has been adjusted specifically for use in the region to which it was originally shipped. If the product is used outside the region, it may not operate as specified in the specifications. • To ensure personal safety and proper maintenance, please read this section and the caution statements on the unit (refer to the figure below).
  • Page 6 PRECAUTIONS WARNING If the unit begins to emit smoke, smells like something is burning, or makes strange noises, disconnect all power connections immediately and contact your dealer for advice. Attempting to use a malfunctioning unit may result in fire, electric shock, or equipment damage.
  • Page 7 PRECAUTIONS WARNING Use the enclosed power cord and connect to the standard power outlet of your country. Be sure to remain within the rated voltage of the power cord. Not doing so may result in fire or electric shock. Power supply: 100-120/200-240 Vac, 50/60 To disconnect the power cord, grasp the plug firmly and pull.
  • Page 8 PRECAUTIONS WARNING Fluorescent backlight lamps contain mercury (the products that have LED backlight lamps contain no mercury), dispose according to local, state or federal laws. Before installation, make sure that desks, walls, and others an arm stand is fixed on have adequate mechanical strength. CAUTION Handle with care when carrying the unit.
  • Page 9: Notice For This Monitor

    Notice for this monitor Notice for this monitor This product is intended to be used in displaying and viewing digital images for diagnosis of X-ray or MRI, etc. by trained medical practitioners. It does not support the display of mammography images for diagnosis.
  • Page 10: To Use The Monitor Comfortably

    Notice for this monitor Cleaning Note • Chemicals such as alcohol and antiseptic solution may cause gloss variation, tarnishing, and fading of the cabinet or panel, and also quality deterioration of the image. • Never use any thinner, benzene, wax, and abrasive cleaner, which may damage the cabinet or panel.. Tips •...
  • Page 11: Table Of Contents

    3-4. Displaying Lower Resolutions ....................28 3-5. Enabling/Disabling Mode Selection [Mode Preset] ..............29 3-6. Locking Buttons [Key Lock] ...................... 29 3-7. Setting the EIZO Logo Display [Logo] ..................30 3-8. Setting Orientation ........................30 3-9. Setting the Power Saving [Power Save] ................... 31 3-10.
  • Page 12: Chapter 1 Introduction

    Chapter 1 Introduction Chapter 1 Introduction Thank you very much for choosing an EIZO Color Monitor. 1-1. Features • Resolution: 2M pixels (Landscape: 1600 × 1200 dots (H × V)) • Applicable to DisplayPort (applicable to 8 bit or 10 bit, not applicable to audio signals) •...
  • Page 13: Controls And Connectors

    Chapter 1 Introduction 1-3. Controls and Connectors Front Adjustment menu Operation buttons Switches input signals for display when more than two PCs are button connected to the monitor. Allows you to switch the CAL Switch mode. button Displays the information about monitor or input signals. button Cancels the adjustment/setting or exit the adjustment menu.
  • Page 14 Chapter 1 Introduction Rear Main Power switch Turns the main power on or off. 10 Power connector Connects the power cord. 11 Input signal connectors DisplayPort Connector × 1 12 Input signal connectors DVI-I Connector × 2 13 USB port (Up) Connects the USB cable to use the software that needs USB connection, or to use USB Hub function.
  • Page 15: Chapter 2 Cable Connection

    Chapter 2 Cable Connection Chapter 2 Cable Connection 2-1. Before Connecting Before connecting your monitor to the PC, change the display screen settings (resolution and frequency) in accordance with the charts below. Tips • When your computer and monitor support VESA DDC, the appropriate resolution and the refresh rate are set just by plugging your display into the computer without any manual settings.
  • Page 16: Connecting The Signal Cable

    Chapter 2 Cable Connection 2-2. Connecting the Signal Cable Note • Be sure that the power switches of both the PC and the monitor are OFF. • Refer to the PC user's manual when connecting the monitor. Connect the monitor to the PC with a signal cable that matches the connectors.
  • Page 17 Chapter 2 Cable Connection Press to turn on the monitor. The monitor’s power indicator lights up blue. Turn on the PC. When turning on the monitor and PC for the first time with the analog signal, the Auto Adjustment function works to adjust the clock, phase, and display position automatically. If an image does not appear, refer to "Chapter 4 Troubleshooting"...
  • Page 18: Chapter 3 Adjustment And Settings

    Chapter 3 Adjustment and Settings Chapter 3 Adjustment and Settings 3-1. Basic Operation and Functions Basic operation of Adjustment menu Displaying Adjustment Menu Press The adjustment menu appears. Menu title Current mode Item Settings Menu Adjusting/Setting Choose a menu to adjust/set with , and press Choose an item to adjust/set with , and press...
  • Page 19: Showing Button Guide

    Chapter 3 Adjustment and Settings Exiting Press a few times. The adjustment menu finishes. Showing Button Guide Press the front buttons (except button), the button guide appears above the button. (When using the monitor with “Portrait“ position, the button guide appears next to the button.) Tips •...
  • Page 20 Chapter 3 Adjustment and Settings Functions The following table shows all the Adjustment menu’s adjustment and setting menus. Main Menu Item Adjusting/Setting page 23 Color “3-3. Color Adjustment”( Brightness Contrast Temperature Gamma Advanced Settings Saturation Outline Enhancer Gain 6 Colors “3-11.
  • Page 21: Displaying Screen Correctly

    Chapter 3 Adjustment and Settings Tools “5-2. Connecting More than Two Input Selection PCs to the Monitor”(page 37) “3-5. Enabling/Disabling Mode Mode Preset Selection”(page 29) Displaying signal information Signal Info Displaying monitor information Monitor Info “3-11. Restoring the Default All Reset Setting”(page 32) * The adjusting/setting function on the <Color>...
  • Page 22: Adjustment Procedure

    When the screen is displayed correctly, go to step 5 “To adjust color gradation automatically [Range]”. Prepare the display pattern for the analog display adjustment. Download the “Screen adjustment pattern files” from our site: http://www.eizo.com. Tips •...
  • Page 23 Chapter 3 Adjustment and Settings Choose <Analog Adjustment> from the <Screen> menu, and press To proceed with the subsequent adjustments, select an item in <Analog Adjustment> of the <Screen> menu. Choose <Auto Adjustment>, and press The auto adjustment function works (the message “In Progress” appears) to adjust the flickering, screen position, and screen size correctly.
  • Page 24 Chapter 3 Adjustment and Settings ● To correct screen position [Hor.Position] [Ver.Position] Tips • Since the number of pixels and the pixel positions are fixed on the LCD monitor, only one position is provided to display images correctly. The position adjustment is made to shift an image to the correct position.
  • Page 25: Color Adjustment

    Chapter 3 Adjustment and Settings 3-3. Color Adjustment ● To select the display mode (CAL Switch) CAL Switch allows you to select easily the adequate mode suitable for the monitor’s application. CAL Switch mode Mode Purpose 1-DICOM Available to display in DICOM mode. 2-Custom Available for the color settings according to your preference.
  • Page 26: Adjustment Items In Each Mode

    Chapter 3 Adjustment and Settings ● Adjustment items in each mode According to the mode selected, the adjustable function differs. (You can not select any function unavailable for adjustment or setting.) The adjustments or settings made for each mode are applied to all input signals. For the adjustment method of each function, refer to subsequent pages.
  • Page 27 Chapter 3 Adjustment and Settings ● To adjust the contrast [Contrast] The luminance of the screen is adjusted by varying the video signal level. Adjustable range: 0 to 100% Procedure Choose <Color> from the Adjustment menu, and press Choose <Contrast> from the <Color> menu, and press Adjust the contrast with Press to exit the adjustment.
  • Page 28 Chapter 3 Adjustment and Settings ● To adjust the gamma value [Gamma] The gamma value can be adjusted. The luminance of the monitor varies depending on the input signal, however, the variation rate is not proportional to the input signal. To keep the balance between the input signal and the luminance of the monitor is called as “Gamma correction”.
  • Page 29 Chapter 3 Adjustment and Settings ● To enhance the outline of the image [Outline Enhancer] When the image with the resolution lower than the recommended resolution is displayed in “Full” or ”Enlarged” mode, characters and/or lines of the displayed image may appear blurred. In this case, you can adjust <Outline Enhancer>...
  • Page 30: Displaying Lower Resolutions

    Chapter 3 Adjustment and Settings 3-4. Displaying Lower Resolutions ● To change screen size [Screen Size] The image with the resolution other than the recommended resolution is displayed in full screen automatically. You can change the screen size by using <Screen Size> from <Screen> menu. Menu Function Full...
  • Page 31: Enabling/Disabling Mode Selection [Mode Preset]

    Chapter 3 Adjustment and Settings 3-5. Enabling/Disabling Mode Selection [Mode Preset] Allows you to select the specified modes only. Use this function when all the display modes are not available or when keeping the display mode unchanged. Procedure Choose <Tools> from the Adjustment menu, and press Choose <Mode Preset>...
  • Page 32: Setting The Eizo Logo Display [Logo]

    Chapter 3 Adjustment and Settings 3-7. Setting the EIZO Logo Display [Logo] The EIZO logo appears on the display when turning on the monitor. This function allows you to display, or not, the EIZO logo. (Default settings : Off) Procedure Press to turn off the monitor.
  • Page 33: Setting The Power Saving [Power Save]

    Chapter 3 Adjustment and Settings 3-9. Setting the Power Saving [Power Save] This function allows you to set the monitor into the power saving mode according to the PC status. When the monitor enters the power saving mode, no image is displayed on the screen. Attention •...
  • Page 34: Restoring The Default Setting

    Chapter 3 Adjustment and Settings 3-11. Restoring the Default Setting There are two types of Reset. One is to reset the color adjustment only to the default settings, and the other is to reset all the settings to the default settings. Attention •...
  • Page 35: Chapter 4 Troubleshooting

    Chapter 4 Troubleshooting Chapter 4 Troubleshooting If a problem still remains after applying the suggested remedies, contact your local dealer. • No-picture problems → See No.1 - No.2. • Imaging problems (digital input) → See No.3 - No.8. • Imaging problems (analog input) → See No.3 - No.12. •...
  • Page 36 Chapter 4 Troubleshooting Problems Possible cause and remedy 3. The screen is too bright or too dark. • Adjust using [Brightness] or [Contrast]. (The LCD monitor backlight has a fixed life span. When the screen becomes dark or begins to flicker, contact your local dealer.) 4.
  • Page 37 Chapter 4 Troubleshooting Problems Possible cause and remedy 15. The auto adjust function does not • This function does not work when digital signal is input. work correctly. • This function is intended for use on the Macintosh and on AT-compatible PC running Windows. It may not work properly in either of the following cases.
  • Page 38: Chapter 5 Reference

    5-1. How To Attach the Optional Arm An optional arm (or an optional stand) can be attached by removing the stand section. Please refer to our web site for the corresponding optional arm (or optional stand). http://www.eizo.com Attention • When attaching an arm or stand, follow the instructions of their user’s manual.
  • Page 39: Connecting More Than Two Pcs To The Monitor

    Chapter 5 Reference 5-2. Connecting More than Two PCs to the Monitor More than two PCs can be connected to the monitor through the DVI-I and the DisplayPort connector on the back of the monitor. ● To switch the input signal The input signal switches each time is pressed.
  • Page 40: Making Use Of Usb (Universal Serial Bus)

    Required System Environment A PC equipped with a USB port or another USB hub connected to a USB compatible PC Windows 2000/XP/Vista/7/8 or Mac OS 9.2.2 and Mac OS X 10.2 or later EIZO USB cable (MD-C93) Attention • This monitor may not work depending on PC, OS or peripheral devices to be used. For USB compatibility of peripheral devices, contact their manufactures.
  • Page 41: Specifications

    Chapter 5 Reference 5-4. Specifications LCD Panel Size 21.3-inch (540mm) TFT color LCD Surface treatment Anti-Glare Surface hardness Viewing angle Horizontal 170°, Vertical 170° (CR:10 or more) Dot Pitch 0.270mm Response Time Approx. 25ms Horizontal Scan Analog 31-100kHz Digital 31-100kHz Frequency Vertical Scan Analog...
  • Page 42: Outside Dimensions

    Chapter 5 Reference Standard USB Specification Revision 2.0 Port Upstream port × 1, Downstream port × 2 Communication Speed 480Mbps(high), 12Mbps(full), 1.5Mbps(low) Supply current Downstream: Max. 500mA/1 port Classification of Equipment Type of protection against electric shock : Class I EMC class : EN60601-1-2:2007 Group 1 Class B Classification of medical device (MDD 93/42/EEC) : Class I Mode of operation : Continuous...
  • Page 43: Connector Pin Assignment

    Chapter 5 Reference Connector Pin Assignment • DVI-I connector 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Signal Signal Signal T.M.D.S. Data 2- T.M.D.S. Data1/3 Shield T.M.D.S.
  • Page 44: Accessories List

    + Data Serial data Ground Cable ground Accessories List Calibration Kit EIZO “RadiCS UX1” Ver.3.3.1 or later Network QC Management EIZO “RadiNET Pro” Ver.3.3.1 or later Software Cleaning Kit EIZO “ScreenCleaner” For the latest information about the accessories and information about the latest compatible graphics board, refer to our web site.
  • Page 45: Glossary

    Chapter 5 Reference 5-5. Glossary Clock The analog input monitor needs to reproduce a clock of the same frequency as the dot clock of the graphics system in use, when the analog input signal is converted to a digital signal for image display.
  • Page 46: Range Adjustment

    Chapter 5 Reference HDCP (High-bandwidth Digital Content Protection) Digital signal coding system developed to copy-protect the digital contents, such as video, music, etc. This helps to transmit the digital contents safely by coding the digital contents sent via DVI terminal on the output side and decoding them on the input side. Any digital contents cannot be reproduced if both of the equipments on the output and input sides are not applicable to HDCP system.
  • Page 47: Appendix

    APPENDIX/ANHANG/ANNEXE/ 附录 / 付録 APPENDIX/ANHANG/ANNEXE/ 附录 / 付録 Preset Timing Voreingestellte Taktraten Synchronisation prédéfinie 预设定时 プリセットタイミング The following table shows factory preset video timing (for analog signal only) Die folgende Tabelle enthält die werkseitig voreingestellten Videotaktraten (nur bei analogem Signal) Le tableau suivant indique la synchronisation vidéo prédéfinie en usine (pour les signaux analogiques uniquement).
  • Page 48 APPENDIX/ANHANG/ANNEXE/ 附录 / 付録 Frequency Polarity 周波数 極 性 Resolution Applicable signal clock: 解像度 対応信号 Horizontal: Vertical: Horizontal Vertical ドット 水平:kHz 垂直:Hz 水平 垂直 クロッ ク:MHz Nega Posi 720 × 400 VGA TEXT 28.32 31.46 70.09 負 正 Nega Nega 640 × 480 25.18 31.46 59.94...
  • Page 49: Emc Information

    EMC Information Essential performance of RadiForce series is to display images and operate functions normally. CAUTION The RadiForce series requires special precautions regarding EMC and need to be installed, put into service and used according to the following information. Do not use any cables other than the cables that provided or specified by us. Using other cables may cause the increase of emission or decrease of immunity.
  • Page 50 Guidance and manufacturer’s declaration - electromagnetic immunity The RadiForce series is intended for use in the electromagnetic environment specified below. The customer or the user of the RadiForce series should assure that it is used in such an environment. Immunity test IEC60601 test level Compliance level Electromagnetic environment -...
  • Page 51 Guidance and manufacturer’s declaration - electromagnetic immunity The RadiForce series is intended for use in the electromagnetic environment specified below. The customer or the user of the RadiForce series should assure that it is used in such an environment. Immunity test IEC60601 test level Compliance level Electromagnetic environment -...
  • Page 52 Recommended separation distances between portable and mobile RF communications equipment and the RadiForce Series The RadiForce series is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the RadiForce series can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the RadiForce series as recommended below, according to the maximum output power of the communications equipment.
  • Page 53 关于电子信息产品污染控制标识 本标识根据「电子信息产品污染控制管理办法」 ,适用于在中华人民共和国销售的电子信息 产品。标识中央的数字为环保使用期限的年数。只要您遵守该产品相关的安全及使用注意事 项,在自制造日起算的年限内,不会产生对环境污染或人体及财产的影响。上述标识粘贴在 机器背面。 • 有毒有害物质或元素的名称及含量 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI) ) (PBB) (PBDE) 印刷电路板 × ○ ○ ○ ○ ○ 机箱 ○ ○ ○ ○ ○ ○ 液晶显示器 × × ○...
  • Page 54 Phone: +86 512 6252 0100 Fax: +86 512 6252 1508 〒924-8566 石川県白山市下柏野町 153 番地 Siemensallee 84, 76187 Karlsruhe, Germany Phone: +49 721 20321 0 Fax: +49 721 20321 471 http://www.eizo.com http://www.eizo.co.jp 6th Edition-January, 2014 Printed in Japan. 00N0L517F1 Copyright © 2009-2014 EIZO Corporation All rights reserved. (U.M-RS210)
