Instructions for Use ■ User’s Manual Important Please read PRECAUTIONS, this User’s Manual, and the Setup Manual (separate volume) carefully to familiarize yourself with safe and effective usage. • Please refer to the Setup Manual for basic information ranging from connection of the monitor to a PC to using the monitor.
Page 2
EIZO Corporation. EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.
The backlight of the LCD panel has a fixed lifetime. When the screen becomes dark or begins to flicker, please contact your local EIZO representative. Do not press on the panel or edge of the frame strongly, as this may result in display malfunctions, such as interference patterns, etc.
When the monitor is cold and brought into a room or the room temperature goes up quickly, dew condensation may occur on the interior and exterior surfaces of the monitor. In that case, do not turn the monitor on. Instead wait until the dew condensation disappears, otherwise it may cause some damage to the monitor.

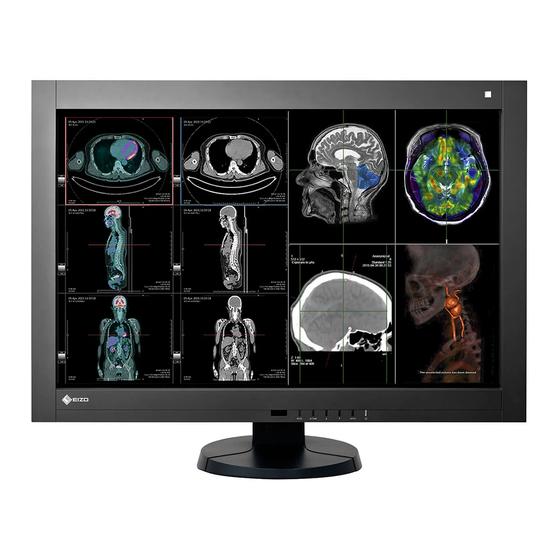

Chapter 1 Introduction Thank you very much for choosing an EIZO color LCD monitor. 1-1. Features • 29.8 inches • Supports a resolution of 4M pixels (2560 × 1600 dots) • Uses high-contrast panel (1100:1). Enables the display of sharp images.
Refer to the User’s Manual of the graphics board for details. 1-2. EIZO LCD Utility Disk An “EIZO LCD Utility Disk” (CD-ROM) is supplied with this product. The following table shows the disk contents and the overview of the software programs. ●...
1-3. Basic Operations and Functions ● Basic Adjustment menu operations Displaying Adjustment menu 1. Press . The Adjustment menu appears. Menutitle Currentmode Item Setting Menu Adjusting/Setting 1. Select a menu to adjust/set with or , and then press 2. Select an item to adjust/set with or , and then press 3.
● Functions The following table shows the Adjustment menu and setting items of each menu. Main Menu Item Reference Color “2-4.AdjustingColor”(page15) Brightness Contrast Temperature Gamma Advanced Settings Saturation Gain GrayArea ColorArea BaseArea HybridAssignment HighlightArea Sensitivity LambTarget(Low) LambTarget(Std.) LambTarget(High) CurrentStatus “3-11.ResettingtoDefault”(page32) ColorReset RadiCSSelfQC “4-1.ExecutingCalibration”(page33)
Chapter 2 Adjusting Screens 2-1. Compatible Resolutions For details on compatible resolutions, refer to “Compatible Resolutions” in the Setup Manual. 2-2. Setting the Resolution ● Windows 8 / Windows 7 1. For Windows 8, click the “Desktop” tile on the Start Screen to display the desktop. 2.
2-3. Selecting Single, PbyP or PinP display Single, PbyP, or PinP display can be selected. Procedure 1. Press to turn off the monitor. 2. Hold down while pressing for at least two seconds to turn on the monitor. The “Optional Settings” menu appears. 3.
Page 14
Note • The DisplayPort or DVI-1 signal is displayed on the main screen. • The DVI-2 signal is displayed on the sub screen. • The compatible resolutions of the sub screen (Sub) for “PinP” are shown below: Resolution Applicable Signals 720×400 VGATEXT 640×480...
● Performing advanced adjustments “Color” of the Adjustment menu allows you to configure and save a separate set of color settings for each mode. Attention • It takes about 30 minutes for the performance of electrical parts to stabilize. Please wait 30 minutes or more after the monitor power has been turned on or the monitor has recovered from the power saving mode, and then adjust the monitor.
● Adjusting Brightness The screen brightness is adjusted by changing the brightness of the backlight (light source from the LCD back panel). Setting Range 0 to 100% Procedure 1. Select “Color” from the Adjustment menu, and press 2. Select “Brightness” from “Color”, and press 3.
● Adjusting Temperature The color temperature can be adjusted. The color temperature is normally used to express the hue of “white” and/or “black” by a numerical value. The value is expressed in degrees “K” (Kelvin). The screen becomes reddish at a low color temperature, and bluish at a high color temperature, like the flame temperature.
● Adjusting Saturation The color saturation can be adjusted. Setting Range -100 to 100 Procedure 1. Select “Color” from the Adjustment menu, and press 2. Select “Advanced Settings” from “Color”, and press 3. Select “Saturation”, and press 4. Use for adjustment. 5.
● Setting the mode in the monochrome image display area The mode suitable for the monochrome image display area can be set (see “Selecting the display mode (CAL Switch mode)” (page 15)). Setting Range DICOM, CAL1, CAL2, CAL3 Procedure 1. Select “Color” from the Adjustment menu, and press 2.
Allowsyoutosetthedisplayareamanuallyusingsoftware(HybridGammaManager). 4. Press to exit. Note • For Hybrid Gamma Manager, contact your local EIZO representative. ● Setting the highlight area in the image display area On/Off for the highlight area in the image display area can be set. Procedure 1.
● Setting ambient illuminance and related settings for Lamb In the ALT mode, the brightness and LUT of the monitor display are changed according to the desired target value specified for the ambient luminance (Lamb). Three types of settings are available according to your environment.
2-5. Selecting Screen Size ● Single The image with the resolution other than the recommended resolution is displayed in full screen automatically. You can change the screen size by using the “Screen Size” function from “Screen”. Example: Image size 1280 × 1024 Full Enlarged Normal...
● PinP Procedure 1. Select “Screen” from the Adjustment menu, and press 2. Select “Screen Size” from “Screen”, and press 3. Select “Full”, “Enlarged”, or “Normal” with or , and press The display size of the main screen (Main) is set. 4.
● PinP The display position of the sub screen (Sub) is set. Setting Range Upper Left, Upper Right, Lower Left, Lower Right Procedure 1. Select “Screen” from the Adjustment menu, and press 2. Select “PinP Position” from “Screen”, and press 3.
2-8. Selecting the Screen for which the CAL Switch Mode is Applied You can select which screen the CAL switch mode is applied to when is pressed. This is enabled when “PbyP” or “PinP” is selected from “Optional Settings” – “Display Setup”. Procedure 1.
Chapter 3 Setting Monitor 3-1. Setting Orientation The display direction of the image can be changed according to your environment. Attention • Refer to the User’s Manual of the graphics board. • The setting is available even when the PC is not started up. •...
● PbyP Procedure 1. Press to turn off the monitor. 2. Hold down while pressing for at least two seconds to turn on the monitor. The “Optional Settings” menu appears. 3. Select “Signal Selection” from “Optional Settings”, and press 4. Select “Orientation (Main)”, and press 5.
3-3. Enabling/Disabling Mode Selection Only the modes currently being set can be selected. This setting is suitable when you are using limited display modes and you do not want to change the customized display state. Procedure 1. Select “Tools” from the Adjustment menu, and press 2.
3-6. Showing and hiding the EIZO logo You can choose to show or hide the display of the EIZO logo. Procedure 1. Press to turn off the monitor. 2. Hold down while pressing for at least two seconds to turn on the monitor.
3-8. Showing and hiding the Grayscale Display Error If a 6bit (64 color) signal is detected when connecting to the DisplayPort, a grayscale display error can be displayed. If the error message appears, please turn off the main power, and then turn it on again. Attention •...
3-10. Enabling/Disabling DC5V Output The DC5V output can be enabled/disabled. Turn off this setting normally. Procedure 1. Press to turn off the monitor. 2. Hold down while pressing for at least two seconds to turn on the monitor. The “Optional Settings” menu appears. 3.
Chapter 4 Controlling Monitor Quality This product has the built-in Integrated Front Sensor, which allows the user to perform periodic calibration and Grayscale Check for the monitor independently. The pattern images for checking the quality of the monitor are loaded on the monitor so that the patterns can be checked with an independent monitor.
4-2. Checking Grayscale Grayscale Check can be executed and the latest result can be viewed. In addition, when the schedule is set using RadiCS, the next grayscale check schedule appears. ● Executing Grayscale Check Procedure 1. Select “RadiCS SelfQC” from the Adjustment menu, and press 2.
4-4. Setting On/Off for Warning and QC History The warning and QC history displays for the failure of the Grayscale Check result can be set to on/off. Procedure 1. Select “RadiCS SelfQC” from the Adjustment menu, and press 2. Select “Settings” from “RadiCS SelfQC”, and press 3.
Chapter 5 Power Saving Functions 5-1. Setting Power Save The monitor can be set to the power saving mode according to the PC status. When the monitor has shifted to the power saving mode, the images on the screen are not displayed. Attention •...
5-3. Setting DisplayPort Power Save The power setting of the DisplayPort of the monitor can be switched in the power saving mode. Attention • When “On” is set, the display position on the window may not be positioned correctly when the monitor power is turned on or off.
5-4. Setting the Power Saving Mode when a Person Leaves the Monitor The sensor on the front side of the monitor detects the movement of a person by setting Presence Sensor to “Auto” or “Manual”. When a person moves away from the monitor, it shifts to the power saving mode automatically and does not display the images on the screen to reduce the power consumption.
Chapter 6 Troubleshooting If a problem still remains after applying the suggested remedies, contact your local EIZO representative. 6-1. No Picture Problem Possible cause and remedy 1. No picture • Checkwhetherthepowercordisconnectedproperly. • Powerindicatordoesnotlight. • Turnthemainpowerswitchon. • Press . • Turnoffthemainpower,andthenturnitonagainafew...
Verticalscanfrequency 6-2. Imaging Problems Problem Possible cause and remedy 1. The screen is too bright or too dark. • Use“Brightness”or“Contrast”intheAdjustmentmenu toadjustit.(TheLCDmonitorbacklighthasalimitedlife span.Whenthescreenbecomesdarkorbeginstoflicker, contactyourlocalEIZOrepresentative.) 2. Characters are blurred. • CheckwhetherthePCisconfiguredtomeettheresolution andverticalscanfrequencyrequirementsofthemonitor (see“CompatibleResolutions”intheSetupManual.). 3. Afterimages appear. • AfterimagesareparticulartoLCDmonitors.Avoid displayingthesameimageforalongtime. • Usethescreensaverorpowersavingfunctiontoavoid...
4. The monitor connected with the USB cable • CheckwhethertheUSBcableisconnectedcorrectly(see is not detected. / USB devices connected “7-3.MakingUseofUSB(UniversalSerialBus)”(page46)). to the monitor does not work. • ChangetheUSBporttoanotherone.IfthePCor peripheraldevicesworkscorrectlybychangingtheUSB port,contactyourlocalEIZOrepresentative.(Refertothe manualofthePCfordetails.) • RebootthePC. • IftheperipheraldevicesworkcorrectlywhenthePCand peripheraldevicesareconnecteddirectly,pleasecontact yourlocalEIZOrepresentative. • CheckwhetherthePCanditsOSareUSBcompliant.(For USBcomplianceoftherespectivedevices,consulttheir manufacturers.) •...
Chapter 7 Reference 7-1. Attaching Arm An optional arm (or an optional stand) can be attached by removing the stand section. Attention • When attaching an arm or stand, follow the instructions of their User’s Manual. • When using another manufacturer’s arm or stand, confirm the following in advance and select one conforming to the VESA standard.
7-2. Connecting Multiple PCs The product has multiple connections to PCs and allows you to switch to one of the connections for display. Connection examples DisplayPort DVI-Dconnector DVI-Dconnector connector Digital Digital (DVI) (DisplayPort) Signalcable Signalcable Signalcable DVI-D-DVI-D DVI-D-DVI-D DisplayPort-DisplayPort (SingleLink) (DualLink) (supplied) (option)
● Setting input signal switching procedure Setting Function Auto ThemonitorrecognizestheconnectorthroughwhichPCsignalsareinput. WhenaPCisturnedofforentersthepowersavingmode,themonitorautomatically displaysanothersignal. Manual Themonitordisplaysthesignalfromtheselectedconnectordespitethesignalinput.Select anactiveinputsignalwith“Input”. Procedure 1. Select “Tools” from the Adjustment menu, and press 2. Select “Input Selection” from “Tools”, and press 3. Select “Auto” or “Manual” with or . 4.
7-3. Making Use of USB (Universal Serial Bus) This monitor has a USB hub. It works as a USB hub when connected to a USB-compatible PC, allowing the connection of peripheral USB devices. ● Required system environment • A PC equipped with a USB port •...
7-4. Showing Monitor Information ● Displaying signal information The information about the current input signals can be displayed. Procedure 1. Select “Tools” from the Adjustment menu, and press 2. Select “Signal Info” from “Tools”, and press The “Signal Info” appears. (Example) ●...
Page 49
Environmental Temperature Operating: 0˚C-35˚C(32˚F-95˚F) conditions Transportation/Storage: -20˚C-60˚C(-4˚F-140˚F) Humidity Operating: 20%-80%R.H.(nocondensation) Transportation/Storage: 10%-90%R.H.(nocondensation) Airpressure Operating: 700hPa-1060hPa Transportation/Storage: 200hPa-1060hPa USBSpecificationRevision2.0 Standard Port Upstreamport,1pc.,Downstreamport,2pcs. Communicationspeed 480Mbps(high),12Mbps(full), 1.5Mbps(low) Supplycurrent Downstream:Max.500mA/1port Main Default Settings CAL Switch Mode: The default display setting is 1-DICOM. Mode Brightness Temperature Gamma value DICOM...
Page 50
310 (12.2) 100 (3.9) PIVOT RANGE 18.5 (0.73) 256.5 (10.1) 255 (10.0) 281.5 (11.1) HIGHEST POSITION Accessories CalibrationKit EIZO“RadiCSUX1”Ver.4.1.3orlater EIZO“RadiCSVersionUpKit”Ver.4.1.3orlater NetworkQCManagementSoftware EIZO“RadiNETPro”Ver.4.1.3orlater CleaningKit EIZO“ScreenCleaner” Signalcable DD200 DVI-D-DVI-D(SingleLink) DD300 For the latest information about the accessories and information about the latest compatible graphics board, refer to our web site.
Chapter 8 Glossary DDC (Display Data Channel) VESA provides the standardization for the interactive communication of the setting information, etc. between a PC and the monitor. DICOM (Digital Imaging and Communication in Medicine) The DICOM standard was developed by the American College of Radiology and the National Electrical Manufacturer’s Association of the USA.
Page 52
HDCP (High-bandwidth Digital Content Protection) Digital signal coding system developed to copy-protect the digital contents, such as video, music, etc. This helps to transmit the digital contents safely by coding the digital contents sent via the DVI or HDMI connector on the output side and decoding them on the input side. Any digital contents cannot be reproduced if both of the equipments on the output and input sides are not applicable to HDCP system.
EIZO, the EIZO Logo, ColorEdge, DuraVision, FlexScan, FORIS, RadiCS, RadiForce, RadiNET, Raptor, and ScreenManager are registered trademarks of EIZO Corporation in Japan and other countries. ColorNavigator, EcoView NET, EIZO EasyPIX, EIZO ScreenSlicer, i • Sound, Screen Administrator, and UniColor Pro are trademarks of EIZO Corporation.
Medical Standards • It shall be assured that the final system is in compliance to IEC60601-1-1 requirement. • Power supplied equipment can emit electromagnetic waves, that could influence, limit or result in malfunction of the monitor. Install the equipment in a controlled environment, where such effects are avoided.
EMC Information Essential performance of RadiForce series is to display images and operate functions normally. CAUTION The RadiForce series requires special precautions regarding EMC and need to be installed, put into service and used according to the following information. Do not use any cables other than the cables that provided or specifi ed by us. Using other cables may cause the increase of emission or decrease of immunity.
Page 58
Recommended separation distances between portable and mobile RF communications equipment and the RadiForce Series TheRadiForceseriesisintendedforuseinanelectromagneticenvironmentinwhichradiatedRFdisturbances arecontrolled.ThecustomerortheuseroftheRadiForceseriescanhelppreventelectromagneticinterferenceby maintainingaminimumdistancebetweenportableandmobileRFcommunicationsequipment(transmitters)andthe RadiForceseriesasrecommendedbelow,accordingtothemaximumoutputpowerofthecommunicationsequipment. Ratedmaximumoutput Separationdistanceaccordingtofrequencyoftransmitter poweroftransmitter 150kHzto80MHz 80MHzto800MHz 800MHzto2.5GHz d=1.2√ P d=1.2√ P d=2.3√ P 0.01 0.12 0.12 0.23 0.38 0.38 0.73 For transmitters rated at a maximum output power not listed above, the recommended separation distance “d” in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where “P”...
