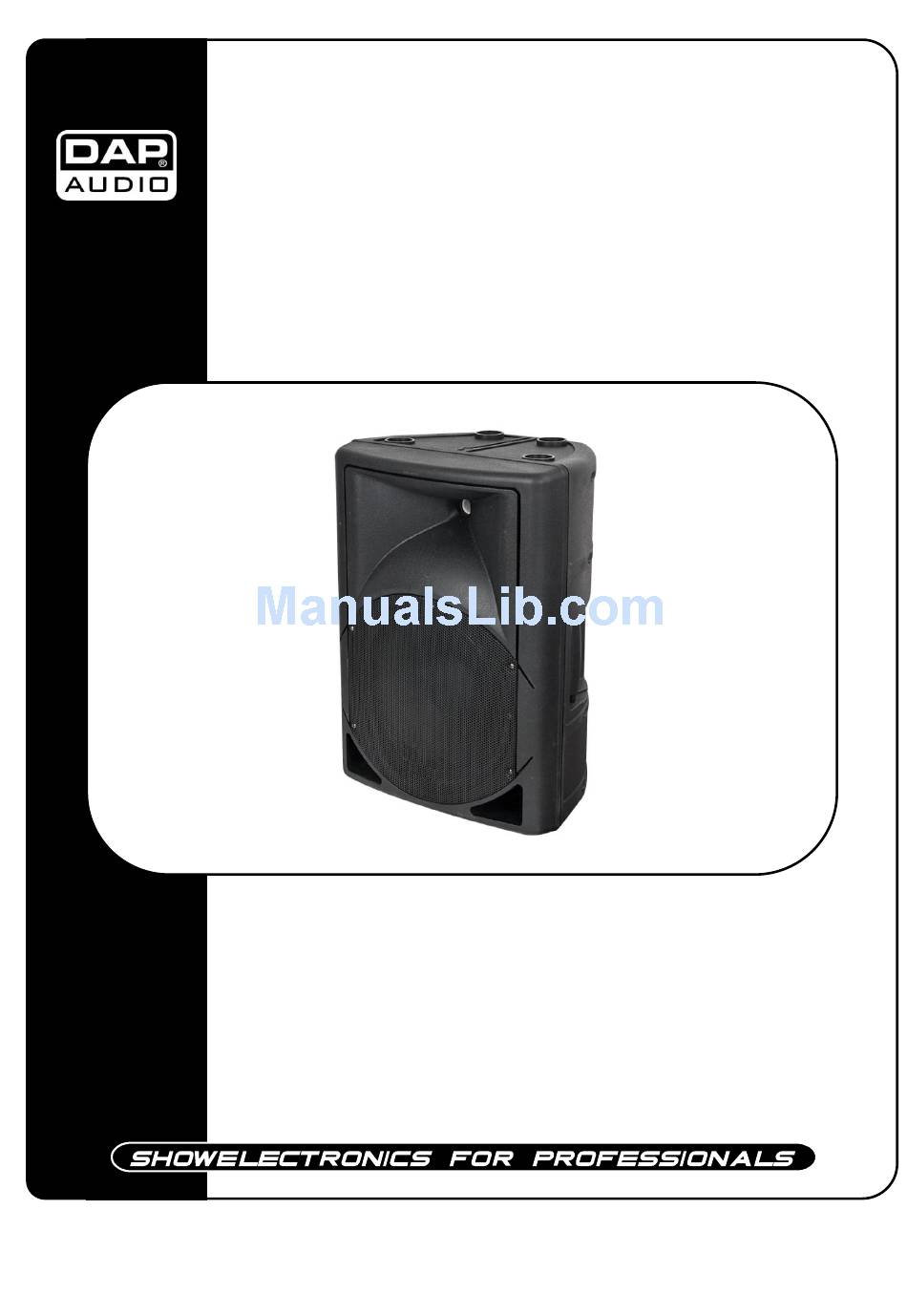

- Page 1 PS-112A ORDERCODE D3575...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio PS-112A brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio PS-112A Product Guide Warning..…...................…………………………………………....Safety-instructions………………………………………………………………………………………….…....Operating Determinations……………………………………………………………………………………....Description..…................……….…………………………………....Features………………………………………………………………………………….………………….…....Overview ..…………………………………………………………………………………..……......... ControlPanel..…………………………………………………………………………………….……......Installation..............……………………………..…………………………....Set Up and Operation..............……..…………………………….……....Connection Cables......…........………..………….…….………….…....Maintenance………......…........………..………….…….………….…....Replacing the Fuse................…………………….…………………....Troubleshooting………......…........………..………….…….………….…...... Product Specifications..............……………….…….…………………..... - Page 4 Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP PS-112A • IEC cable • User manual Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
-
Page 5: Warning
WARNING CAUTION! Keep this system away from rain and moisture! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires! Before you initial start-up, please make sure that there is no damage caused by transportation. -
Page 6: Operating Determinations
If your Dap Audio device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Dap Audio dealer for service. -
Page 7: Description

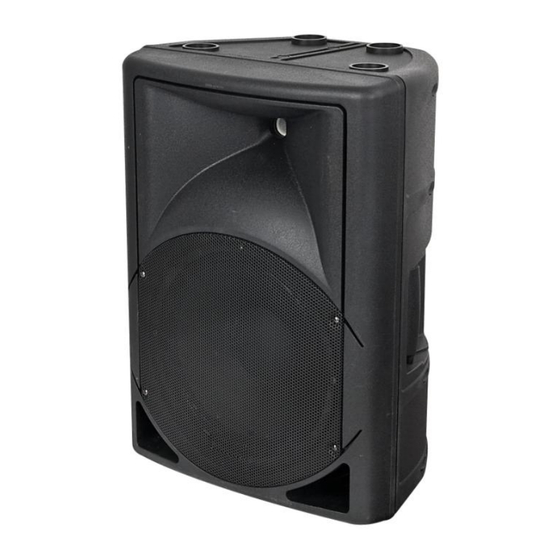

Description of the device Features The PS-112A is an active 12" 2-way Fullrange speakersystem: • Adjustable Line/Mic Input with Combo connector. • Treble level control • Bass level control • Master volume control with Clip-LED • Roadproof housing made of plastics •... -
Page 8: Controlpanel
Replace the fuse only with a fuse of same specification (F8A). Operation Installation Remove all packing materials from the PS-112A. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 9: Connection Cables
Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 10: Maintenance
Maintenance The PS-112A requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp cloth. -
Page 11: Product Specifications
Product Specifications Power supply: 230V 50/60Hz Fuse: F8A Woofer: 12" Neodymium, 4Ω, 65mm voice coil High driver: 1,35" Titanium dome, 8Ω 34mm voice coil Freq. response: 60 Hz-18 kHz Max. power Low- amp: 300Wrms in 4 Ohm Max. Power High-amp: 150Wrms in 8 Ohm SPL (1W/1M): 122,5dB dB 1W/1m Crossover Frequency: 1700 Hz Diversity (HxV): 90°... - Page 12 2009 Dap Audio.
