Hyundai H-CDM8041 Instruction Manual

Cd/mp3/wma receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H-CDM8041
CD/MP3/WMA RECEIVER
CD/MP3/WMA
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for Hyundai H-CDM8041

Summary of Contents for Hyundai H-CDM8041

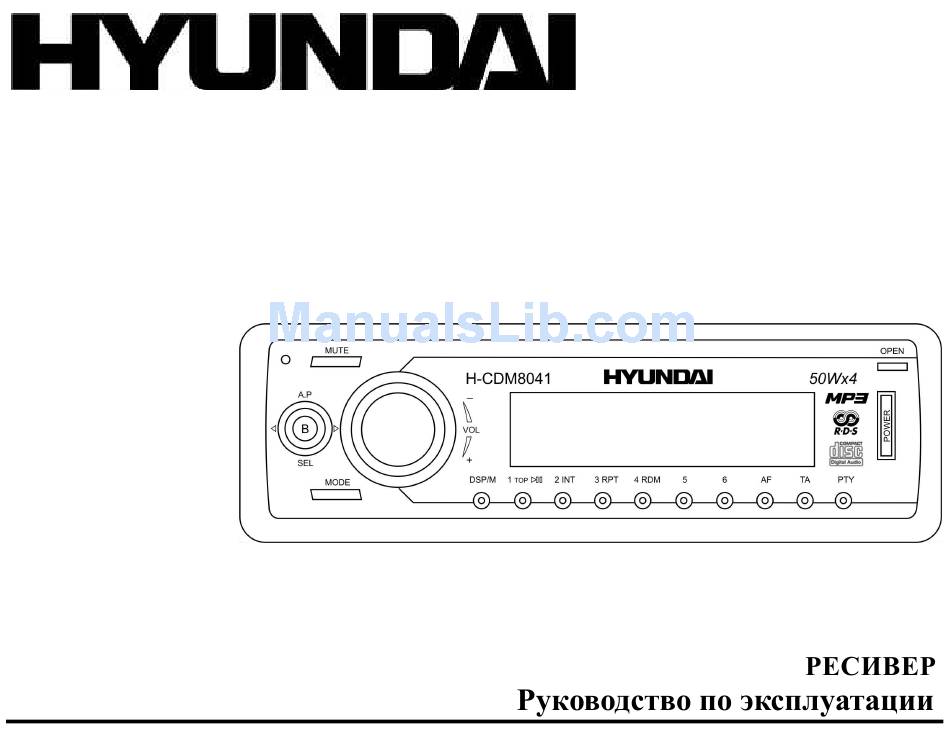

  • Page 1 H-CDM8041 CD/MP3/WMA RECEIVER CD/MP3/WMA Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ...............................2 Important safeguards ............................3 Installation/ connection............................4 Panel controls ..............................8...

  • Page 3: Important Safeguards

    Important safeguards Using the device at temperature below -10º may cause the breakage of the device. BEFORE USING PLEASE HEAT UP THE PASSENGER COMPARTMENT TO THE RECOMMENDED TEMPERATURE! Read carefully through this manual to familiarize yourself with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.

  • Page 4: Installation/ Connection

    Installation/ connection First complete the electrical connections, and then check them for correctness. Installation way It is an anti-theft installation way. The chassis wear a metal sliding housing. Please have the wiring connection of the power supply, speakers and antenna as for the requirement of the manual.
  • Page 5 Detachable control panel Detaching the front panel Press the OPEN button on the front panel. The panel will go down. 2. Push the panel to the left and then pull it towards you. Attaching the control panel 1. Insert the left side of the control panel into the main unit and press it. Note: the control panel must be attached into the T-Joint.

  • Page 6: Electrical Connection

    Electrical connection Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. Prohibit to make the conductors of auto antenna and ground touch with each other.
  • Page 7 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit.

  • Page 8: Panel Controls

    Panel controls Front panel 1. A.P / SEL / B / buttons In Radio mode press the A.P button to scan the preset memorized stations. Press it and hold for 2 seconds to store the programs with the best reception into preset buttons automatically. Press the SEL button repeatedly to select the audio modes: BAS =>...
  • Page 9 In Radio mode press the buttons to start automatic station search. In Radio mode press and hold for 2 seconds the buttons to enter the manual station search. During playback press the buttons to go to previous/next track. During playback press and hold for 2 seconds the buttons to change fast previous/forward playing speed.
  • Page 10 11. RDM button Press to start random playback. 12. PRESET STATION [1-6] buttons 13. AF button Press it to enter the AF mode. Press and hold for 2 seconds to turn the EON function on/off. 14. TA button Press it to activate/ deactivate the TA function. Press and hold for 2 seconds to turn the LOUD function on/off.
  • Page 11 Back of the front panel Press the RELEASE button on the front panel to flip it down. 1. EJECT button 2. Disc slot 3. RESET button 4. Anti-theft LED indicator Note: Pressing the RESET button will erase the clock setting and stored stations. Panel status indicator lights up when you slide the panel down;...

  • Page 12: General Operations

    General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press OPEN button on the panel to open the panel and press the RESET button with thin hard object to restore the unit to the original factory settings.
  • Page 13 Adjusting the system menu Press and hold for 2 seconds the DSP/M button, press it or the button repeatedly to select the system menu settings: STAND BY LCD => SCREEN SAVER => PTM => VOLUME PGM => LCD MODE => DATE SET =>...
  • Page 14 TA volume - the value define the minimum value of the TA Volume can be adjusted down. The adjustable range is 0~40. The default one is 18. Region - set the region code function ON or OFF. Note: during setting up press A.P button to exit. Turning the sound off Press the MUTE button to turn the sound off.

  • Page 15: Digital Tuner Operations

    Digital tuner operations Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. Band selection Press the MODE button to select RADIO. Press BAND once or more to select: FM1, FM2, FM3, AM1, AM2.
  • Page 16 Preset scan Select a band. Press A.P button to scan all preset stations in the memories of the current band and stay on each memory stations for about 7 seconds. To stop preset scan, press the button again. Local/ Distant mode Press PTY button and hold for 2 seconds to turn the LOCAL function On or Off.
  • Page 17 AF (Alternative Frequencies) function Press the AF button on the panel to turn on or turn off the AF function. If the AF function is on the display will show AF . The RDS program will be automatically searched and received. After turning on, if the RDS signal is week or even no signal, the unit will search another frequency with this RDS program.

  • Page 18: Cd Operations

    CD operations Discs for playback This unit can play disc types: CD/CD-R/-RW. Compatible with formats: MP3/WMA/CDDA. Loading a disc 1. Turn the power on. 2. Press the OPEN button on the panel. 3. Insert the disc with the printed side facing upward into the slot. 4.
  • Page 19 Fast forward and backward playback Press and hold for 2 seconds the buttons to fast the playing in backward or forward direction. Release the button when the desired location is found. Scanning (intro) You can play the beginning of every track for 10 seconds in sequence. Press the INT button shortly to start intro playback of tracks.
  • Page 20 6. Press SEL to start the selected file playback. Displaying the ID3 information Under MP3 mode press the A.P button repeatedly, the folder name, file name, title, artist and album information will be scrolling on the LCD display. As long as the current playing MP3 music contains relevant ID3 tag information in version 1.0/2.0 format, the 3 items underlined above will be scrolling on the LCD display;...

  • Page 21: Mp3 Overview

    MP3 overview Notes on MP3: MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.

  • Page 22: Anti-Theft System

    Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc. You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.

  • Page 23: Handling Discs

    Handling discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 24: Troubleshooting Guide

    Troubleshooting guide Cause Solution Symptom General The car ignition is not on. If the power supply is properly connected to the car No power The fuse is blown. accessory switch the ignition key to ACC . Replace the fuse. Disc Presence of disc inside the player.

  • Page 25: Specification

    Specification General Power supply: 12 V DC Current consumption: max. 15 A Maximum power output: 50 W x 4 channels Dimensions (L x W x H): 178 x 165 x 50 mm Working temperature range: -10º - +60º FM Stereo Radio Frequency range: 65 74 / 87.5 - 108.0 MHz Usable sensitivity (S/N = 30 dB):...
  • Page 26 ..............................26 ..........................27 ..........................28 ............................32 ............................36 ............................39 CD ........................42 3 ..............................45 ..........................47 ............................47 ..............................48 ....................49 ........................50...
  • Page 27 -10º...
  • Page 29 OPEN...
  • Page 31 ISO, (+)--- (-)--- (+)--- 12 (+)/ (-)--- (+)--- ((-)--- ACC+/ (+)--- (-)---...
  • Page 32 A.P / SEL / B / SEL, BAS => MID => TREBLE => LOUD => 3D GAIN => BAL/FAD => BEEP TONE. BAL/FAD FADER, BALANCE.
  • Page 33 OPEN : RADIO ( ) => DISC ( ) => AUX. VOL+/- DSP/M : PTY ( ) => Spectrum ( ) => Animations ( ) => : STAND BY LCD => SCREEN SAVER => PTM => VOLUME PGM => LCD MODE => DATE SET => CLOCK => TIME FORMAT =>...
  • Page 34 TOP/ PLAY/PAUSE DISC PLAY/PAUSE, RDM ( (1-6) AF ( EON. TA ( LOUD. PTY ( LOCAL...
  • Page 35 POWER POWER, RELEASE, EJECT RESET 4. LED RESET...
  • Page 36 RESET ( OPEN. RESET, POWER, VOL+/-, SEL, : BAS ( ) => MID => TRE LE ( ) => LOUD ( ) => 3D GAIN ( ) => BAL ( )/ FAD ( ) => BEEP TONE.
  • Page 37 BAL/FAD FADER, BALANCE. DSP/M, : STAND BY LCD => SCREEN SAVER => PTM => VOLUME PGM => LCD MODE => DATE SET => CLOCK => TIME FORMAT => LOCAL/DISTANT => AREA => AUTO SEEK => TA SEEK => TA VOLUME => REGION. Stand by LCD: : DEMO, TIME ( PTM, OFF (...
  • Page 38 Region: A.P. MOD , : RADIO( ) => DISC ( ) => AUX. : PTY ( ) => Spectrum ) => Animations ( ) => (LOUD) (LOUD).
  • Page 39 RDS ( MOD , - RADIO. B ND, : FM1, FM2, FM3, AM1, AM2. (18 FM, 12 1~6, 1~6.
  • Page 40 1~6. EON. TA ( (ON) (OFF). DSP/M, TA VOLUME. 40).
  • Page 41 DSP/M, SEEK. AF ( PTY ( PTY, PTY.
  • Page 42 : CD/CD-R/-RW. : MP3/WMA/CDDA. OPEN EJECT, PLAY/PAUSE, PLAY/PAUSE...
  • Page 43 MP3/WMA 5 6, Intro INT, MP3/WMA INT, MP3/WMA RPT, RDM,...
  • Page 44 MP3/WMA SEL, SEL, SEL, 1.0/2.0,...
  • Page 45 MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. .mp3 . .mp3 , 256. VBR, . VBR:...
  • Page 46 CD-R CD-RW, 44,1 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW 1. ID3TAG.
  • Page 47 POWER, OPEN,...
  • Page 49 RESET.
  • Page 50 178 165 50 -10º - +60º 65 74 / 87.5 - 108.0 MW LW - 1620 RMS (+/-3 (A-vtd): Classic, Rock, Pop, Flat . 2000...
