Hyundai H-CDM8070 Instruction Manual

Hyundai H-CDM8070 Instruction Manual

Cd/mp3-receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H- CDM8070
CD/MP3-RECEIVER
CD/MP3-
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for Hyundai H-CDM8070

Summary of Contents for Hyundai H-CDM8070

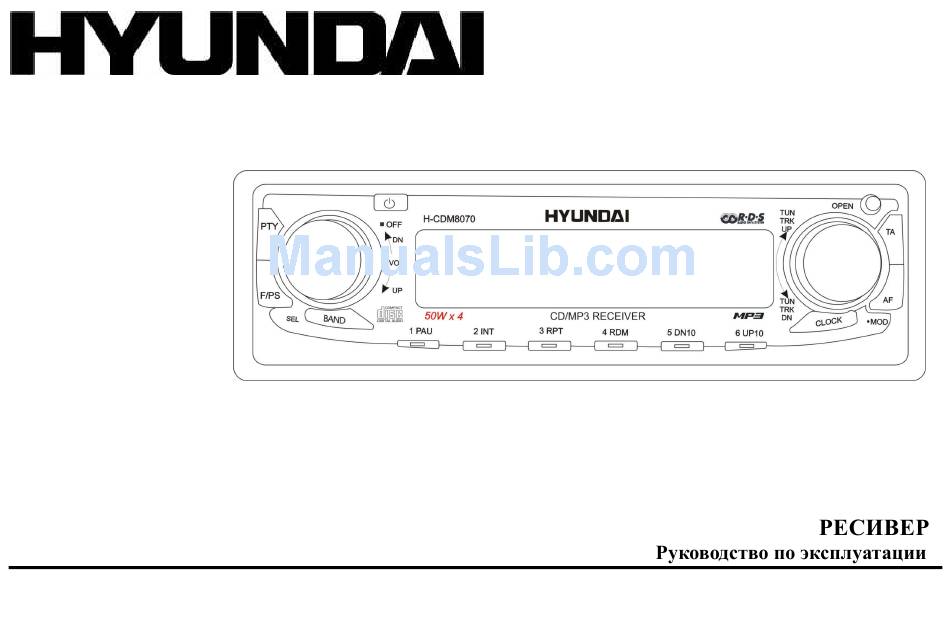

  • Page 1 H- CDM8070 CD/MP3-RECEIVER CD/MP3- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ..................................2 Important safeguards.................................

  • Page 3: Important Safeguards

    Important safeguards · Read carefully through this manual to familiarize yourself with this high-quality sound system. · Use only in a 12-volt DC negative-ground electrical system. · Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. · When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

  • Page 4: Installation/Connections

    Installation/Connections...
  • Page 5 Din front-mount (method 1) · After inserting the holder into the dashboard, select the appropriate tab and bend them inwards to secure to the place · Insert fingers into the groove in the front of frame and remove it. · Insert the levers supplied with the unit to the grooves at both sides.
  • Page 6 Din rear-mount (method 2) Installation using the screw holes at both sides of the unit. 1. Select a position where the screw holes of the main unit are fitted for aligned, and tighten the screws at 2 positions at each sides.
  • Page 7 Electrical connections...

  • Page 8: Panel Controls

    Panel controls 1. V-SEL/ MENU/ ENTER (SEL); VOLUME-UP/DOWN, MENU-UP/DOWN (+/-) BUTTONS. 2. POWER BUTTON. Press any button except the OPEN button to turn on the unit, 3. PRESET STATION [1-6] AND PLAY/PAUSE, INT, RPT, RDM BUTTONS. 4. Display 5. TUNING KNOB/UP AND DOWN KNOB 6.
  • Page 9 12. Disc playback: Track random play. 13. Disc playback: Track repeat play. 14. Disc playback: Intro play (10 seconds). 15. Disc playback: Play/ Pause. Top play (press more than 2 seconds). 16. Band switch: FM1, FM2, FM3, MW1, MW2. 17. F/PS button: automatic scan/Store. 18.

  • Page 10: Menu Function

    Menu Function Press the POWER button to turn the unit on, the display will show a message to indicate it is ready to use. Press the BAND for the radio mode, press MODE to select between Radio mode and CD play. Press the POWER button again to turn the unit off.

  • Page 11: Loud Mode

    Time clock setting Part of the RDS data is used to transmit the current time and date, therefore the clock of this radio never has to be adjusted, and will automatically set itself for summer and winter time changes. To view the time display, press the CLK Button at any time so that the time will display on the LCD screen. Preset EQ function This unit incorporates the high technology of digital equalizer preset.
  • Page 12 Preset Volume level Press the SEL button for 2 Seconds, the Display wills how TA SEEK. Continuously press the SEL button to choose the options in the MENU, until VOL LAST is displayed. In this mode the unit will be turned on with the same volume level at which the unit was shut down the last time. You can rotate the SEL Button to choose to choose VOL ADJ.
  • Page 13 Save Your Preset Stations There are Six numbered preset buttons which can store and recall stations for each band. There are 5 bands and 30 available preset stations slot. 3 FM bands, F1, F2, and F3 making a total of 18 preset stations in FM band. 2MW bands, MW1 and MW2 making a total of total 12 preset stations in MW band.
  • Page 14 AF- ALTERNATIVE FREQUENCY Press the AF button so that the unit will choose the strongest FM signal for the selected station, so that you do not have to re-tune the stations when driving between different transmitter coverage areas. When AF is on, it means RDS information is received;...
  • Page 15 Track - Forward / Fast Forward Rotate the knob to advance disc to the next track, the track numbers will be shown on the LCD display. Rotate and hold the knob to fast forward. Disc will play normal when the button is released. Tracks - Backward / Fast Backward Rotate the knob to backward disc to the previous track, the track numbers will be shown on the LCD display.

  • Page 16: Mp3 Play Back

    MP3 Play back MP3 Electronic Shock Protection This unit is built-in with 120 seconds of electronic shock protection for Mp3 so that you can better enjoy your music. MP3 TRACK SEARCH This unit is capable of displaying ID3 tag which is used in MP3 operation. When the CD media is playing the unit will show the information of folder, file name, song name, artist name and album name for you to better enjoy the music.

  • Page 17: Mp3 Overview

    MP3 Overview Notes on MP3 · MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. · This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. · The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.

  • Page 18: Anti-Theft System

    · Up to 16 characters are displayed for the name of an Album or a Track. ID3TAG version 1.x is required. · Note that the unit may not play Tracks in the order that you wrote them to the disc. Anti-Theft System This unit is equipped with a slide-down detachable panel.

  • Page 19: Handling Compact Discs

    Handling compact discs · Dirty, scratched or warped discs may cause skip ping or noise. · Handle the disc only by the edges. To keep clean do not touch its surface. · Discs should be stored in their cases after use to avoid scratches. ·...

  • Page 20: Components

    Components 1. Nut 5 mm 1 pc 2. Spring washer 2 pcs 3. Screw M5x25 mm 1 pc 4. Screw 1 pc 5. Plain washer 2 pcs 6. Strap 1 pc 7. Operating instructions 1 pc. 8. Key 2 pcs. 9.

  • Page 21: Troubleshooting Guide

    Troubleshooting guide General Car's engine switch is not on. Turn your car's key to ACC or ON. No power or no sound Cable is not correctly connected. Check connection. Fuse is burnt. Replace fuse. Check volume or mute on / off. If above solutions cannot help, press the RESET button.

  • Page 22: Specification

    Specification General. Power supply: 12V DC (11V-16V), Test voltage 14.4V, negative ground Maximum power output: 50Wx4 channels Rated power output (RMS): 25Wx4 channels (4 10% T.H.D.) Suitable speaker impedance: 4-8 ohm Pre-Amp output voltage: 2.0V(CD play mode: 1KHz, 0 dB, 10 K load) Fuse: 10A/5A Dimensions (WxHxD) / Weight...
  • Page 23 ....................................................23 ..............................................24 ..............................................25 ...............................................29 ..................................................31 MP3.................................................38 3....................................................39 ..............................................40 ............................................41 ....................................................42 ..................................................42 ......................................43 ............................................44...
  • Page 24 · · 12 . · · · · · · · · · · ·...
  • Page 25 ·...
  • Page 26 (5 x 25 · ·...
  • Page 27 (5 8 (4 8...
  • Page 29 V-SEL/ MENU/ ENTER(SEL) VOLUME -UP/DOWN, MENU-UP/DOWN(+/-). EJECT OPEN, OPEN. AF (...
  • Page 30 3 +10 3 10 : FM1, FM2, FM3, MW1, MW2. F/PS: PTY (...
  • Page 31 POWER BAND MODE Radio CD/MP3. POWER VOL, BAS. TRE. BAL. FAD.
  • Page 32 CLK, TA SEEK. DSP OFF. ROCK CLASSIC FLAT DSP OFF LOUD TA SEEK. LOUD OFF. LOUD ON OFF. BEEP ON/OFF TA SEEK. BEEP ON. BEEP ON OFF.
  • Page 33 TA SEEK. VOL LAST. VOL ADJ. A-VOL. BAND 3 FM (FM1, FM2, FM3) (MW1, MW2) "F/PS" "F/PS"...
  • Page 34 . 3 FM , F1, F2 . 2 MW , MW1 TA SEEK. TA SEEK TA ALARM. TA Seek TA Alarm «no TA/TP» PTY-...
  • Page 35 - MASK DPI- MASK ALL TA SEEK. MASK DPI. MASK DPI MASK ALL. (AF), PI " ".
  • Page 36 MASK DPI. RDS, PI ( MASK ALL. SEEK TA SEEK. SEEK. SEEK 1 SEEK 1: SEEK 2: LOCAL/ DISTANCE RECEPTION TA SEEK. LOCAL. LOCAL Distance (DX).
  • Page 37 "RPT ON." "RDM ON" . CD (12 "DSP OFF". "ESP 12" , "ESP 45".
  • Page 38 "F/PS" , "TRK SCH". SEL, "TRK" "F/PS" "FILE SCH". SEL, "F/PS" "CHAR SCH". SEL,...
  • Page 39 · MPEG 3 · CD-ROM, CD-R CD-RW. · ISO 9660. · .mp3 . · .mp3 , · · 256. · · · . VBR: CD-R CD-RW, MP3. · 44,1 · · ISO 9660, · CD-R · MP3 CD-R CD-RW ·...
  • Page 40 · CD-R CD-RW CD-R CD-RW · 1. ID3TAG. · POWER OPEN,...
  • Page 41 · · · · · · · · · ·...
  • Page 42 (5 25...
  • Page 43 30 , NO FILE: ERR-7: ERR-10: ERR-11: ERR-3: ERR-4: RESET...
  • Page 44 12 , 16 ) 14,4 , (RMS): 10 % .D.) /10 /5 CD: 1 , 10 178 50 162 / 1.7 ESP: CD (40 ), MP3 (120 ) 87.5 108.0 = 50 / 12 ) / 50 / 65 522-1620 = 20 - 20 / >...
