Hyundai H-CDM8046 Instruction Manual

Cd/mp3 receiver
Hide thumbs Also See for H-CDM8046:
Table of Contents

Advertisement

Quick Links

Download this manual

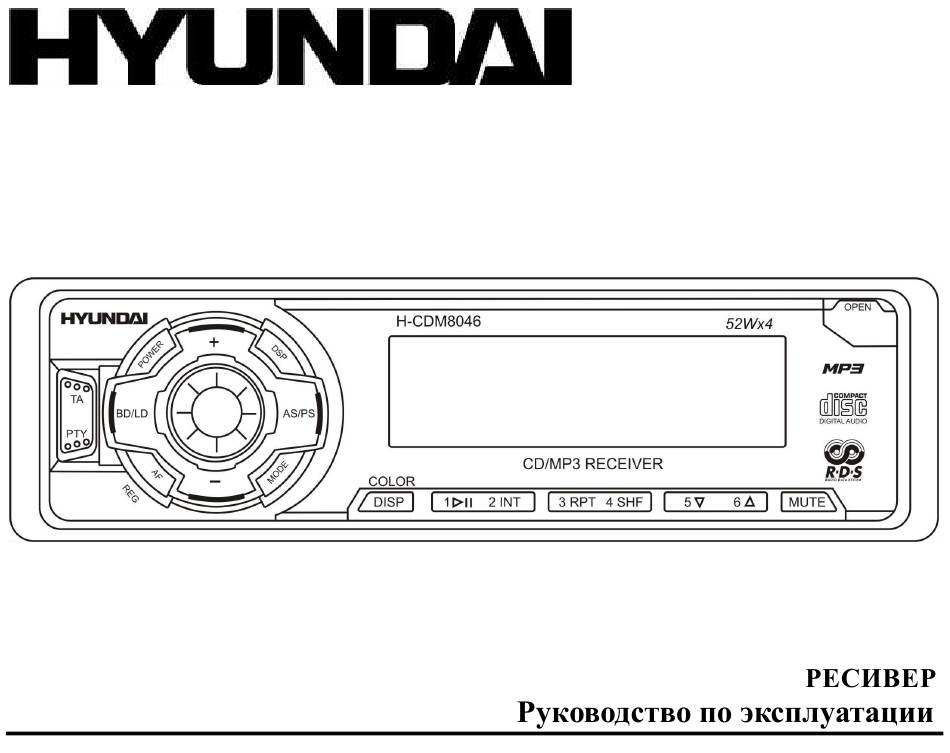

H- CDM8046
CD/MP3 RECEIVER
CD/MP3
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for Hyundai H-CDM8046

Summary of Contents for Hyundai H-CDM8046

  • Page 1 H- CDM8046 CD/MP3 RECEIVER CD/MP3 Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ...............................2 Important safeguards ............................3 Installation/ connection............................4 Panel controls ..............................9...

  • Page 3: Important Safeguards

    Important safeguards Using the device at temperature below -10º may cause the breakage of the device. BEFORE USING PLEASE HEAT UP THE PASSENGER COMPARTMENT TO THE RECOMMENDED TEMPERATURE! Read carefully through this manual to familiarize yourself with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.

  • Page 4: Installation/ Connection

    Installation/ connection Attention: REMOVE THE TRANSPORT CD STOPPER (2 SCREWS) BEFORE USE. Din front-mount (method 1) After inserting the holder into the dashboard, select the appropriate tab and bend them inwards to secure the holder in place. Insert fingers into the groove in the front of frame and remove it. Insert the levers supplied with the unit to the grooves at both sides.
  • Page 5 Din rear-mount (method 2) Installation using the screw holes at both sides of the unit. 1. Select a position where the screw holes of the main unit are fitted for aligned, and tighten the screws at 2 positions at each sides. Use either truss screws (5 x 8mm) or flush surface screws (4 x 8mm), depending on the shape of the screw holes in the bracket.
  • Page 6 Install the front panel Detaching the front panel Press the OPEN button. The panel on the holder will go down (pic. 1). 2. Pull the panel towards you (pic. 2). 3. Close the holder by pushing it until the click sound is heard. Pic.
  • Page 7 Electrical connection...
  • Page 8 Do not interchange the connection of the wiring!!! For some car models you may need to modify wiring of the supplied power cord. Contact your authorized car dealer before installing this unit. Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.

  • Page 9: Panel Controls

    Panel controls Front panel 1. TA button Shortly press it to activate the TA function. 2. POWER button Press POWER button to turn the power on, press again to turn the power off. 3. VOLUME knob/ SELECT button Rotate VOL button clockwise to increase the volume level; rotate anticlockwise to decrease the volume level.
  • Page 10 4. NEXT (+)/ PREVIOUS (-) buttons Use these buttons to search for the beginnings of the next/ previous tracks or manual seek tuning/ fast forward, backward scanning. 5. DSP button Press it to select the DSP sound mode: FLAT, CLASSIC, POP M, ROCK M, DSP OFF. 6.
  • Page 11 Press and hold it for more than 1 second to start the auto storing. MODE button Press to select radio mode or playback mode. 18. AF/ REG button Press it shortly to enter the AF mode (Alternative Frequency). Press and hold it for 2 seconds to select the REGIONAL MODE ON or OFF. 19.
  • Page 12 Back of the front panel Press the OPEN button to open the panel and press EJECT button to eject the disc. EJECT button Disc slot: insert a disc for playback here Holder Railing Reset hole Panel status indicator Railing Note: Pressing the RESET hole will erase the clock setting and stored stations. Panel status indicator lights up when you slide the panel down;...

  • Page 13: General Operation

    General operation Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press OPEN button on the panel to open the panel and press the RESET hole with a point object to restore the unit to the original factory settings.
  • Page 14 Note: If turning off the power all the settings of each mode will be saved. If turning off the ACC power all the settings will become as they were set on the plant as current. If you don t use VOLUME knob within 5 seconds after selecting the desired mode, the unit will automatically return to the current mode being displayed.
  • Page 15 Retune mode To determine the initial time of automatic TA (Traffic Announcement) search. There are 2 modes: RETUNE L and RETUNE L. - RETUNE L: 90 seconds. RETUNE S: 30 seconds. Note: Retune mode is active for TA SEEK mode only. d.
  • Page 16 Mode setting Press the MODE button repeatedly to select RADIO, CDP (single disc playback) modes. If you select RADIO mode, press the BD/LD button once or more to select FM1, FM2, FM3 (OIRT), MW. Loud function Press and hold the BD/LD button for 2 seconds enter the LOUD mode. The display will show LOUD ON . When you turn the function off, the display will show LOUD OFF .

  • Page 17: Digital Tuner

    Digital tuner Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. Band selection Press POWER to power on, then press the MODE button once or more to select RADIO. Press BD/LD once or more to select: FM1, FM2, FM3 (OIRT), MW.
  • Page 18 During radio mode press the +/ - buttons to select upward or downward stored stations. AS/ PS function (Auto Store/ Preset Store) Preset scan: press AS/ PS button to scan all preset stations in the memories of the current band and stay on each memory stations for about 5 seconds.
  • Page 19 PTY (Program Type) function Press PTY the first time, then press the number buttons, you can select the music program style. Press PTY the second time, then press the number buttons, you can select the language program style. To choose the desired program style use the following table: Press the PTY button for the 3 time to switch the function off.
  • Page 20 TA interruption function: the current traffic announcement is cancelled by pressing the TA key. But the TA mode will not be off. Note: When TA is on, SEEK, (SCAN), AUTO MEMORY function can be received or saved only when traffic program identification code has been received.

  • Page 21: Cd/ Mp3 Operations

    CD/ MP3 operations Loading a disc 1. Press OPEN button on the panel to slide down the panel. Insert the disc with the printed side facing upward into the slot. 2. Press EJECT button on the panel to eject the disc. Playing a disc When the disc has been already loaded press MODE button to select CDP mode to start playback.
  • Page 22 Repeat playing Press the RPT button shortly to repeat the disc playing. Press and hold for 2 seconds, until beep comes out, to repeat current track. The default setting is DISC REPEAT. Inserting the number of track 1. Press the number buttons to input the desired tracks. 2.
  • Page 23 Track search 1. Press AS/PS button once to enter the initial searching mode. 2. For example: find the track No. 132 on the disc. Insert the number: 1 => 3 =>2. Note: Use the DISP button to insert the Start entering the digit from the first number. If the number of the file is 1- or 2-digit use 0. If you enter the 1- or 2-digit number the playback will start in 2 seconds (if track with such number is recorded).

  • Page 24: Anti-Theft System

    Anti-theft system Remove the panel 1. Press POWER button to switch off the power of the unit. 2. Press OPEN button to flip down the panel. H old the right part of the front panel and pull it towards you gently. 4.

  • Page 25: Handling Discs

    Handling discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 26: Troubleshooting Guide

    Troubleshooting guide Cause Solution Symptom General The car ignition is not on. If the power supply is properly connected to the car No power The fuse is blown. accessory switch the ignition key to ACC . Replace the fuse. Disc Presence of disc inside the player.

  • Page 27: Specification

    Specification General Power supply: 12 V DC Current consumption/Fuse: max. 15 A/ 15 A Maximum power output: 52 W x 4 channels Dimensions (L x W x H): 188 x 58 x 175 mm Working temperature range: -10º - +60º FM Stereo Radio Frequency range: 65.0 74.0 / 87.5 - 108.0 MHz...
  • Page 28 ..............................28 ..........................29 ..........................30 ............................35 ............................39 ............................44 CD/ MP3 .......................48 ..........................52 ............................53 ..............................54 ....................55 ........................56...
  • Page 29 -10º...
  • Page 30 (5 x 25...
  • Page 31 (5 8 (4 8...
  • Page 32 OPEN . 1). . 2). . 3). EJECT ( . 3). Open EJECT...
  • Page 34 ISO, (+)--- (-)--- (+)--- 12 (+)/ (-)--- (+)--- ((-)--- ACC+/ (+)--- (-)---...
  • Page 35 TA ( POWER POWER, SELECT.
  • Page 36 (+)/ : FLAT, CLASSIC, POP M, ROCK M DSP OFF ( OPEN EJECT MUTE ( )/ INT ( Intro. PLAY/ PAUSE...
  • Page 37 [1-6] DISP/ COLOR AS/ PS MODE AF/ REG AF ( . (REGIONAL MODE ON) . (OFF). BD/ LD LOUD ON LOUD OFF.
  • Page 38 OPEN EJECT EJECT RESET RESET...
  • Page 39 RESET ( OPEN. RESET, POWER, SELECT ( : VOL ), BAS ( ), TR ( ), BAL ( ), FAD VOL: 00, 02, ... 98, 100 (50 BAS/ TRB: -10, -8, ... 0, +2, +4, ... +10.
  • Page 40 BAL: 10L, 8L, ... L+R, 2R, ... 10R. (L ., R FAD: 10F, 8F, ... F=R, 2R, ... 10R. (F ., R SELECT, PI, RETUNE, MASK, BEEP. TP ( SEEK ALARM. - TA SEEK: TP (Traffic Program - RETUNE SHORT (30 RETUNE LONG (90 PI ( ALARM:...
  • Page 41 (AF), : PI SOUND PI MUTE. RETUNE Retune-S Retune-L TA Seek. - Retune S: TA SEEK 30 - Retune L: TA SEEK 90 Retune TA SEEK. MASK : MASK DPI MASK ALL. MASK DPI: MASK ALL: RDS. BEEP BEEP 2 BEEP ALL: BEEP OFF:...
  • Page 42 MUTE, MODE, (RADIO) (CDP). RADIO, BD/LD, FM 1, FM 2, FM 3 (OIRT), MW. LOUD BD/LD LOUD. LOUD ON . LOUD OFF . DISP/ COLOR, => => => => => (ID3) => PS => => NO CLOCK NO PTY .
  • Page 43 : NO CLOCK => => NO PTY . => => (ID3) => PS => => NO PTY . DISP/ COLOR...
  • Page 44 RDS ( POWER, MODE, RADIO. BAND, FM 1, FM 2, FM 3 (OIRT), MW. +/-, +/-, +/-. 1~6,...
  • Page 45 1~6. +/-, AS/PS, AS/PS. AS/PS 1~6. AS/PS. AF ( RDS. , AF REGION ON REGION OFF. - REGION ON ( REG ON. - REGION OFF (...
  • Page 46 PTY ( RDS, PTY. TA ( TA SEEK. CD/ SD/ MMC/ USB...
  • Page 47 EON-TA LOCAL/ EON-TA DISTANCE: : LOCAL DISTANCE. - EON-TA LOCAL: : EON TA LO. - EON-TA DISTANCE: : EON TA LO. : DISTANCE. LOCAL...
  • Page 48 CD/ MP3 OPEN EJECT MODE, CDP. PLAY/ PAUSE PLAY/ PAUSE 5 ( ), 6 ( ),...
  • Page 49 +/-, SHF,...
  • Page 50 Intro INT, CD/ MP3 AS/PS, : TRACK SEARCH ( ), DIRECTORY OR FILE NAME ( ), SEARCHING IN ROOT DIRECTORY ( (Track search) AS/PS 132 ( : 1 => 3 =>2. DISP. (Directory or file name) AS/PS.
  • Page 51 SELECT ( SELECT ( (Searching in root directory) AS/PS. SELECT ( DISP, => => => => => ID3 tag...
  • Page 52 POWER OPEN...
  • Page 55 RESET.
  • Page 56 12 , 15 / 15 188 58 175 -10º - +60º 65.0 74.0/87.5 - 108.0 / 10.7 522-1620 RMS (+/-3 (A-vtd)/ / 50 Classic, Pop, Rock, Flat . 2000...
