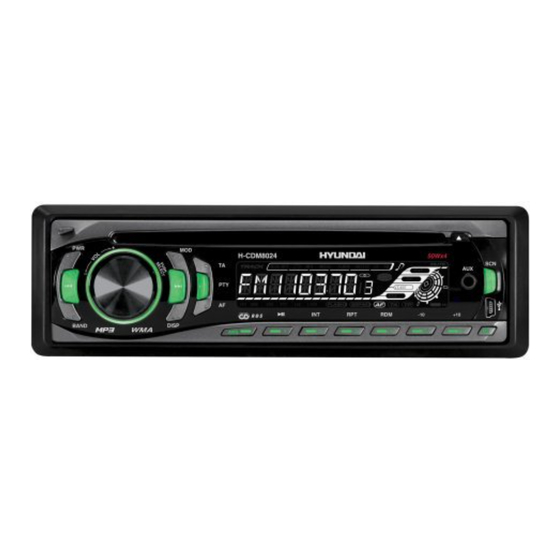

H-CDM8024
CD/MP3/USB RECEIVER
CD/MP3/USB-
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for Hyundai H-CDM8024

Summary of Contents for Hyundai H-CDM8024

  • Page 1 H-CDM8024 CD/MP3/USB RECEIVER CD/MP3/USB- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents................................. 2 Important safeguards................................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

  • Page 4: Accessories

    Accessories Mounting parts Receiver 1 pc Front panel 1 pc Front panel case 1 pc Customer information 1 pc Warranty card 1 pc Instruction manual 1 pc USB adapter cable 1 pc...

  • Page 5: Installation/Connection

    Installation/connection Attention: Remove the transport CD stopper (2 screws) before use. Din front-mount (method 1) After inserting the holder into the dashboard, select the appropriate tab and bend them inwards to secure the holder in place. 1. Dashboard 2. Nut (5mm) 3.
  • Page 6 Din rear-mount (method 2) Installation using the screw holes at both sides of the unit. 1. Select a position where the screw holes of the main unit are fitted for aligned, and tighten the screws at 2 positions at each sides. Use either truss screws (5 x 8 mm) or flush surface screws (4 x 8 mm), depending on the shape of the screw holes in the bracket.
  • Page 7 Electrical connections...

  • Page 8: Panel Controls

    Panel controls Front panel 1. POWER button 2. OPEN button 3. VOL/SEL button 4. MUTE button 5. MODE button 6. DISP button 7. LCD Display 8. Flashing LED 9. RESET button 10. BAND button 11. NEXT button 12. PREVIOUS button 13.
  • Page 9 24. CD slot Inner panel 25. Mini USB jack 26. SD/MMC Slot 27. AUX IN jack 28. SCN button...

  • Page 10: General Operations

    General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press OPEN button on the panel to open the panel and press the RESET button with thin hard object to restore the unit to the original factory settings. Power ON/OFF Press any button to turn the unit on.
  • Page 11 Volume control/select Rotating this knob, you can adjust VOL/BASS/TREB/BAL/FAD. To select the functions, press the VOL knob shortly until the desired functions are shown on the display. Increase or decrease the volume by turn the VOL knob right or left. These buttons can be used to adjust the BASS, TREBLE, BALANCE and FADER.
  • Page 12 ESP (Electronic Shock Protection) MODE (Option) Choose the value for CD disc. BEEP MODE BEEP ON: BEEP sound can be heard from speaker when the buttons are pressed. SEEK MODE SEEK 1: When SEEK 1 mode is activated, AUTO SEEK SCAN is stopped when station is detected even user still push SEEK button.

  • Page 13: Digital Tuner Operations

    Digital tuner operations Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. MODE Press MODE button to turn on tuner mode. BAND Press BAND button.
  • Page 14 TA (TRAFFIC ALARM) FUNCTION Briefly press the TA button to turn on or turn off the TA function. When TA is enabled (on), the tuner starts searching the traffic announcement. AF (ALTERNATIVE FREQUENCIES) FUNCTION Briefly press the AF button to turn on or turn off the AF function. The RDS program will be automatically searched and received.

  • Page 15: Cd/Sd/Mmc/Usb Operations

    CD/SD/MMC/USB operations Discs for playback This unit can play disc types: CD/CD-R/-RW. Compatible with formats: CDDA/MP3/WMA. Loading and ejecting a disc 1. Turn the power on. 2. Insert the disc with the printed side facing upward into the slot. 3. Press EJECT button to eject the disc. Multi-media card MMC/SD card slot Support MP3/WMA ID3 format music only.
  • Page 16 4. Tag (id3tag ver2.0) - Title/ Artist/ Album: 32 byte support. 5. Multi card reader not support. 6. USB 2.0 support. Note: USB format supports 2.0. Capacity: up to 4 GB. SD cards brands: Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, etc. Capacity: up to 4 GB.
  • Page 17 INTRO (Preview all Tracks) When INT/2 button is pressed, “INT ON” indication is displayed and the first several seconds of each track of the disc is played. Press again to stop intro and listen to track. REPEAT When RPT/3 button is pressed, “RPT ON” indication is displayed and playback of the selected track will be continually repeated until the track repeat mode is cancelled by pressing RPT button again.
  • Page 18 Press VOL knob, then the first directory is displayed. Turn VOL knob to right or left, you can select the directory you want. Press VOL knob again, then the directory is fixed and the first file name is displayed. Turn VOL knob to right or left, you can select the file you want. Press VOL knob, then the song you selected will start.

  • Page 19: Mp3/Wma Overview

    MP3/WMA overview MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
  • Page 20 Notes on creating your own CD-R or CD-RW containing MP3 files: To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate o f 128 kbps. DO NOT store more than 256 MP3 files per disc. For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).

  • Page 21: Anti-Theft System

    Anti-theft system Remove the panel 1. Press POWER button to switch off the power of the unit. 2. Press OPEN button to detach the panel. 3. Put it to the special box and take it with you. Remove the unit 1.

  • Page 22: Cleaning

    Cleaning Cleaning the cabinet Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean. Cleaning discs Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles.

  • Page 23: Troubleshooting Guide

    Troubleshooting guide Symptom Cause Solution The car ignition is not on. If the power supply is properly connected to No power the car accessory switch the ignition key to “ACC”. The fuse is blown. Replace the fuse. Disc cannot be loaded. Presence of disc inside the player.

  • Page 24: Specification

    Specification General Disc/Flash CD/CD-R/CD-RW/USB/SD/MMC Compatible with CDDA/MP3/WMA Power supply 12 V DC Current consumption max. 10A Maximum power output 50 W x 4 channels Dimensions (L x W x H) 178 x 163x 50 mm Working temperature range -10º - +60º 40 sec.
  • Page 25 ..................................25 ..............................26 ................................. 27 ..............................28 ..............................31 ................................ 33 ................................37 /SD/MMC/USB ..................... 39 WMA................................. 43 ..............................45 ..............................45 .................................. 46 ........................ 47 ............................48...
  • Page 27 Mini USB - USB...
  • Page 28 (5 x 25...
  • Page 29 (5 8...
  • Page 31 POWER OPEN VOL/ MUTE MODE DISP RESET BAND NEXT PREVIOUS PLAY/PAUSE/1 INT/2 RPT/3 RDM/4 –10/5 +10/6 EJECT...
  • Page 32 24. CD SD/MMC...
  • Page 33 RESET ( OPEN. RESET. DISP DISP DISP DISP MODE : AUX/TUNER/S-CDP (CD-MP3)/USB MMC/SD.
  • Page 34 MUTE, VOL, : VOL ( )/BASS ( )/TREB ( )/BAL ( )/FAD ( SEL, SEL, VOL, TA SEEK/TA ALARM TA SEEK TA ALARM MASK DPI/MASK ALL MASK DPI, MASK ALL RDS. RETUNE S/L - SHORT/LONG «RETUNE» . «S» , «L»...
  • Page 35 AUDIO DSP ( : POP M => ROCK M => CLASS M=> FLAT M =>DSP OFF. LOUDNESS ( LOUD ON ( OFF ( ESP (Electronic Shock Protection – BEEP ( BEEP ON ( SEEK ( SEEK 1: SEEK. SEEK 2: SEEK SEEK, STEREO/MONO (...
  • Page 36 VOL LAST, VOL ADJUST:...
  • Page 37 RDS ( MODE, - TUNER. BAND, : FM1--FM2--FM3--MW1 (AM1)--MW2 (AM2). NEXT, PREVIOUS, SCN. (AMS) AMS, TA (...
  • Page 38 AF ( PTY, : PTY — PTY — 1. POPM, ROCK M NEWS, AFFAIRS, INFO 2. EASY M, LIGHT M SPORT, EDUCATE, DRAMA 3. CLASSICS, OTHER M CULTURE, SCIENCE, VARIED 4. JAZZ, COUNTRY WEATHER, FINANCE, CHILDREN 5. NATION M, OLDIES SOCIAL, RELIGION, PHONE IN 6.
  • Page 39 /SD/MMC/USB : CD/CD-R/-RW. : CDDA/MP3/WMA. EJECT, SD/MMC SD/MMC Mini USB - USB USB/SD/MMC SD/MMC. FAT 12/ FAT 16/ FAT 32 - FAT 12/16 ( , 500 - FAT 32 ( , 500 : 32 : 32 (id3tag ver 2.0)
  • Page 40 USB 2.0. USB: USB 2.0. : Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, MMC: : Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems, 2.0. MP3/WMA ID3, . ID3 NEXT PREVIOUS, MP3/WMA –10/5 +10/6, PLAY/PAUSE/1,...
  • Page 41 INT/2, “INT ON”). RPT/3, “RPT ON” RDM/4, “RDM ON” MP3/WMA AMS, SEL, VOL, SEL, VOL, SEL, SEL, VOL,...
  • Page 42 VOL, SEL, AMS 3 SEL, “A”. VOL, VOL, SEL,...
  • Page 43 MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. “.mp3”. “.mp3”, “ MP3” “ ”, ” “ ” 256. VBR, . VBR: WMA (Windows Media Audio) – Microsoft Corporation. , 64...
  • Page 44 CD-R CD-RW 44,1 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW 1. ID3TAG.
  • Page 45 POWER OPEN,...
  • Page 47 “ ”. RESET.
  • Page 48 CD/CD-R/CD-RW/USB/SD/MMC CDDA/MP3/WMA 178 163 50 -10º - +60º 40 CD, 120 c MP3, 300 WMA 87.5 - 108.0 MW (AM) - 1620 RMS (+/-3 – 20 (A-vtd) Classic, Rock, Pop, Flat RCA- (2 )
