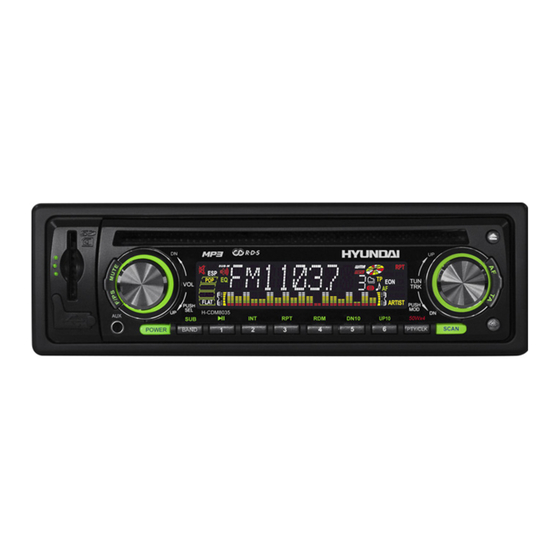

H-CDM8035
CD/MP3-RECEIVER
CD/MP3-
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-CDM8035 and is the answer not in the manual?

Questions and answers

Related Manuals for Hyundai H-CDM8035

Summary of Contents for Hyundai H-CDM8035

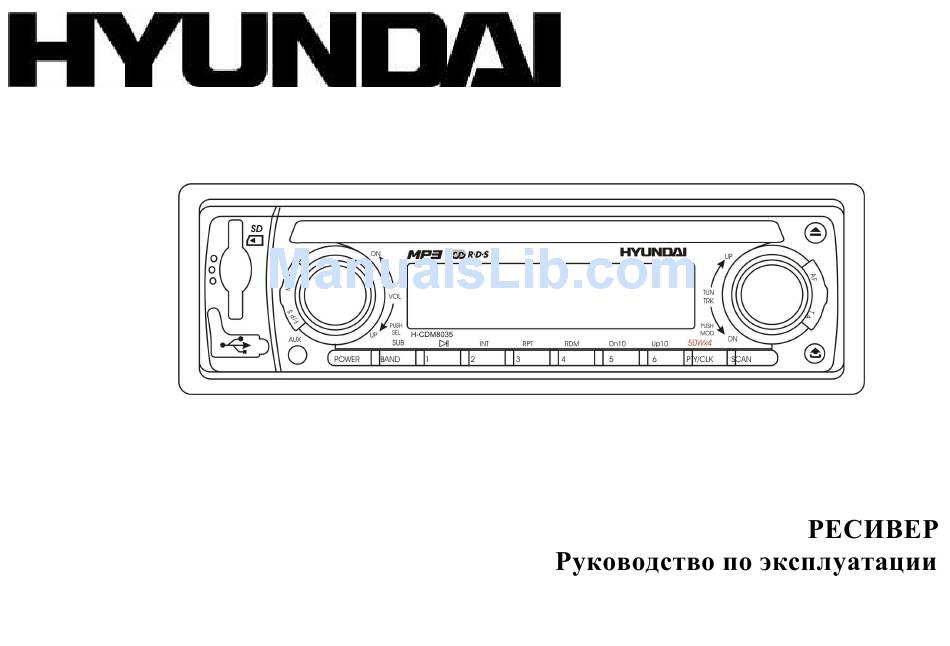

  • Page 1 H-CDM8035 CD/MP3-RECEIVER CD/MP3- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents TABLE OF CONTENTS ... 2 IMPORTANT SAFEGUARDS ...

  • Page 3: Important Safeguards

    Important safeguards · Read carefully through this manual to familiarize yourself with this high-quality sound system. · Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. · When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

  • Page 4: Installation/ Connections

    Installation/ Connections First complete the electrical connections, and then check them for correctness. Installation way It is an anti-theft installation way. The chassis wear a metal sliding housing. Please have the wiring connection of the power supply, speakers and antenna as for the requirement of the manual, and then install the metal sliding housing into the car according to the diagram.
  • Page 5 Din rear-mount (method 2) Installation using the screw holes at both sides of the unit. 1. Select a position where the screw holes of the main unit are fitted for aligned, and tighten the screws at 2 positions at each side. Use either truss screws (5 x 8mm) or flush surface screws (4 x 8mm), depending on the shape of the screw holes in the bracket.

  • Page 6: Connection Scheme

    Connection scheme Notes: · In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. · Prohibit to make the conductors of auto antenna and ground touch with each other.

  • Page 7: Panel Controls

    Panel controls Front panel 1. OPEN BUTTON Press it to remove the front panel. 2. TA BUTTON Press it to active the TA function. 3. SCAN BUTTON 4. PTY / CLK BUTTON Press it to active the PTY function. Press and hold it to set the time.

  • Page 8: Inner Panel

    15. F / PS BUTTON 16. USB socket 17. SD socket 18. MUTE BUTTON Press it to switch the sound off. 19. VOL KNOB / SEL BUTTON Rotate it clockwise to increase the volume level; rotate anticlockwise to decrease the volume level. 20.

  • Page 9: Functions Of Controls

    Functions of controls General operations Power button Press any button to switch the unit on. The display will show a message WELCOME . Press and hold the POWER button to switch the unit off. The display will show a message GOOD-BYE . Note: After the unit is off, volume level and radio current settings will be memorized, and when you turn the unit on it will resume the stored status you set.

  • Page 10: Radio Operations

    Beep Sound Off function Press the VOLUME knob / SEL until Beep On is displayed. Turn the Volume knob to switch between Beep ON and OFF. Equalizer setting Press the Volume button, until EQ indication is displayed then rotate the Volume knob to choose between the EQ sound effects: CLASS =>...

  • Page 11: Rds Function

    · Select a band (if needed). · Select a station by 3/4 buttons. · Press and hold a numbered button (1-6) which you want store the station for at least 2 seconds. · To recall a station: · Select a band (if needed). ·...
  • Page 12 PTY function Press the PTY / CLK button once to show the music type. Then press 1-6 button to choose the different music types available. Press the PTY / SLK button twice to show the speech type program. Then press 1-6 button to choose the different speech type program.
  • Page 13 CD/ / MP3/ WMA/ USB/ SD card operations Discs for playback This unit can play disc types: CD/CD-R/-RW. Compatible with formats: MP3/WMA. USB/ SD/ MMC notes USB functions (flash memory type) MP3 music play. SD/ MMC card support, 2in1 (SD/ MMC) support. USB flash memory.
  • Page 14 Inserting the USB/ SD device Remove the cover from the USB port, then insert the USB device into the USB slot on the front panel. Then the playing mode will be changed into USB mode automatically. Or press the MODE button to select USB. The first USB device track playback will start. Pausing playback To ensure good system performance, wait until the unit finishes reading the disc information before proceeding.
  • Page 15 Search function (for MP3/ WMA modes) The search modes only works with MP3/ WMA CDs and USB flash memory with MP3/ WMA files. Cancel Random, Repeat and Intro features before searching. Track search: · Press the F/ PS button, then use the volume button to select the track number. ·...
  • Page 16 RCA line out This output is for connecting amplifier, equalizer or other audio component that requires a pre-amp out connection (Red = Right, White = Left). Subwoofer output Press and hold the BND / SUB button to turn on/ off the subwoofer function.

  • Page 17: Mp3 Overview

    MP3 overview Notes on MP3 · MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. · This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. · The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.

  • Page 18: Anti-Theft System

    Anti-theft system This unit is equipped with a slide-down detachable and mask panel. Panel can be detached and taken with you, helping to deter theft. Detaching the front panel Press the PWR button to turn the power off. Press the OPEN button on the front panel. Push the panel to the right and then pull it towards you.

  • Page 19: Handling Compact Discs

    Handling compact discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 20: Troubleshooting Guide

    Troubleshooting guide Symptom General No power Disc Disc cannot be loaded. Disc cannot be read. No sound The operation keys do not work. Sound skips. The radio does not work, the radio station automatic selection does not work. Cause The car ignition is not on. The fuse is blown.

  • Page 21: Specification

    Specification General Power supply Current consumption Maximum power output Fuse Dimensions (L x W x H) FM stereo radio Frequency range Usable sensitivity I.F. Frequency MW Section Frequency range Usable sensitivity I.F. Frequency: Disc player System: Usable disc: Frequency characteristics: Signal to noise CD: Number of channels: Line out...
  • Page 22 ... 22 ... 23 ... 24 ... 27 ... 29 3 ... 39 ... 41 ... 42 ... 43 ... 45 ... 43 ... 44...
  • Page 23 · · · · · · · · · · · ·...
  • Page 26 · ·...
  • Page 27 OPEN EJECT SCAN ( PTY / CLK PLAY/PAUSE ( INT ( RPT ( RDM ( PTY. (1-6)
  • Page 28 DN 10 ( UP 10 ( BAND / SUB BAND ( POWER 14. AUX F / PS MUTE MUTE, SEL, EJECT : VOL => BAS => TRE => BAL => FAD. / TRK...
  • Page 29 OPEN, 1. LED RESET...
  • Page 30 POWER, SEL ( => BAL R-L ( · BASS/TREBLE: -7, -6, -5,..., 0, +1, +2,...+5, +6, +7 · BALANCE: 7L, 11L,..., L=R, 1R,...,7R , L - · FADER: 7R, 11R,..., R=F, 1F,..., 7F BASS TREBLE : AUX => RADIO => DISK => USB => CARD ( USB, CARD, DISK ) =>...
  • Page 31 Volume/ SEL «LOUD OFF». OFF. MUTE, VOL+/ -, BAND/ SUB, Volume Beep On . Volume : CLASS => POP => ROCK => FLAT. PTY / CLK PTY / CLK CLK,...
  • Page 32 B ND / SUB, ( FM VOLUME / SEL · F/ PS · · · · · · · Preset (1-6), TUNE, « F / PS (18 FM, 12 AM) 3/4. (1-6) : FM1, FM2, FM3, AM1, «ST ON» «ST OFF» ( »,...
  • Page 33 AF ( TA ( SEEK. TA SEEK TA ALARM PTY / CLK, TA SEEK TA ALARM, «TA/TP» SEL, «AF» , RDS 1-6, 1-6,...
  • Page 34 Mask DPI- Mask all · · SEL, · · MASK DPI, MASK ALL, Retune S/L · · SEL, · VOL+/- · «RETUNE_S». «Mask DPI». Short/ Long «RETUNE_S» «RETUNE_L». MASK DPI MASK ALL. (AF), RDS. «RETUNE_S». «TA SEEK».
  • Page 35 : MP3/WMA. USB/ SD/ MMC SD/ MMC, 2 1 (SD/MMC). FAT 12/ FAT 16/ FAT 32 · FAT 12/ 16 ( · FAT 32 ( · : 32 · (id3tag ver 2.0) USB 2.0. USB: USB 2.0. : 8 M ~ 1 MMC: / SD , 500...
  • Page 36 · · EJECT, Multi-session CD USB/ SD No 1 / PLAY / PAUSE, MP3/ WMA ID3, USB. TUNING / TRK, TUNING / TRK «LOAD» MODE, USB.
  • Page 37 UP 10/ DN 10 ( MP3, WMA No 6 / UP 10, No 5 / DN 10, «RPT». RPT-1, RPT-DIR ( «RDM»/ «RDM ON» ( Intro «INT». ID3 Tag ( MP3/ WMA Search ( MP3/ WMA Search · F / PS, ·...
  • Page 38 · F / PS · · SEL, · F/ PS · · SEL, USB: MP3/ WMA AUX IN · AUX IN · MODE, · · BND / SUB, «F». «D». AUX. AUX IN...
  • Page 39 · · · · · · · 256. · · · MPEG 3 VBR, CD-ROM, CD-R CD-RW. ISO 9660. .mp3 . .mp3 , . VBR:...
  • Page 40 · · · CD-R MP3 CD-R CD-RW · · CD-R CD-RW CD-RW · · CD-R CD-RW, ISO 9660, 1. ID3TAG. 44,1 CD-R...
  • Page 41 PWR, OPEN . 1).
  • Page 42 · · · · · · · · · ·...
  • Page 44 « ». RESET.
  • Page 45 12 , . 10 178 50 150 87.5 - 108.0 10.7 522-1620 MP3/ CD-R/ CD-RW 20-100 10-20 . 2000...
