Summary of Contents for Hyundai H-CDM8063

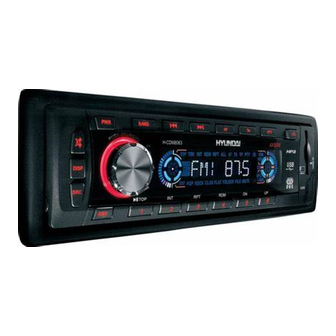

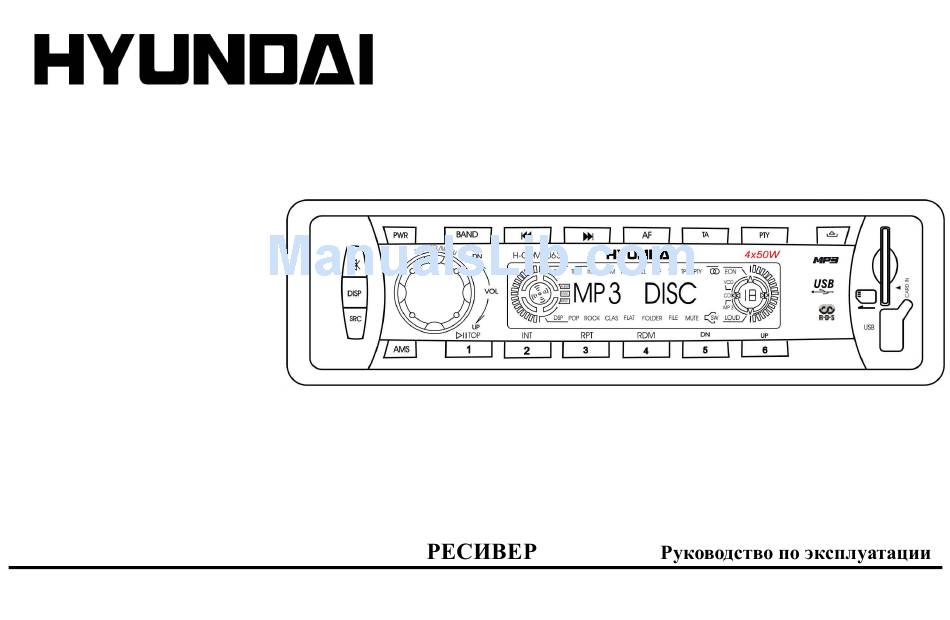

- Page 1 H- CDM8063 MP3/CD/CD-R/CD-RW/USB/SD/MMC - RECEIVER Instruction manual MP3/CD/CD-R/CD-RW/USB/SD/MMC -...
-
Page 2: Table Of Contents
Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and / or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents .................................. -
Page 3: Important Safeguards
Important safeguards · Read carefully through this manual to familiarize yourself with this high-quality sound system. · Use only in a 12-volt DC negative-ground electrical system. · Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. · When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit. -
Page 4: Installation/Connections
Installation/Connections First complete the electrical connections, and then check them for correctness. Installation opening This unit can be install in any dashboard having an opening as shown below. The dashboard should be 4.75 5.56 mm thick in order to be able to support the unit. 1. - Page 5 Electrical connections Do not interchange the connection of the wiring!!! For some car models you may need to modify wiring of the supplied power cord as illustrated (modified wiring), or else the memory of the unit may be lost after you power off. Contact your authorized car dealer before installing this unit.
- Page 6 Using the ISO Connector 1.If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2.For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker and power cable connections.
-
Page 7: Panel Controls
Panel controls... - Page 8 1. Power on: press any button on the panel except to turn on the unit. Press more than 2 seconds to power off. 2. Multi-Control. Press to select VOL/BAS/TRE/BAL/FAD, rotate the Multi-Control to adjust level. Press more than 2 seconds to Menu mode. MP3 track / file search.
- Page 9 24. Disc eject. 25. Slot for disc. 26. RESET Button. Press the Reset button with a pointed object to reset the unit to the original status. Press the RESET button will erase the clock setting and stored stations. 27. Panel status indication: When the panel slide down it will light up.
-
Page 10: Button Tips
Button tips Disc load/eject Load: press to flip down the panel. Insert the disc into the slot. Eject: Press to flip down the panel. Press to eject the disc. Radio To fine tune the radio, press briefly. To search the station automatically, press for more than 0.5 second Disk playback Track skip: press... -
Page 11: Usb/Sd/Mmc Mp3 Playback
USB/SD/MMC MP3 playback 1.Loading SD/MMC Card Insert the SD/MMC card into the slot, with the front side at right. The unit will display the music automatically and the LCD will show MEM-CARD. 2.Take out SD/MMC Card Push SRC button and switch to non MEM-CARD mode, then push SD/MMC card, take out the card when part of the card flip up. 3.Loading USB equipment Open the rubber cap, put the USB into the connector the head unit will display the music, stored in the USB equipment, and the LCD will show USB-DRIV. - Page 12 USB/SD/MMC Notes: USB functions (flash memory type) MP3 music play (1) SD/MMC card support (2) USB flash memory 2in1 (SD/MMC) support (3) Fat 12/fat16/fat32 is possible -fat 12/16 (dir: 200 support, file:500 support), -fat 32 (dir: 200 support, file:500 support) (4) Filename: 32 byte /dir name: 32byte (5) Tag (id3tag ver2.0) - title/artist/album: 32byte support...
-
Page 13: Menu Function
Menu Function Press the button more than 2 seconds to enter menu mode, then each press changes the mode as follows: TA mode MASK mode RETUNE mode DSP mode LOUD ON / OFF mode ESP mode MULT ON / OFF BEEP ON / OFF SEEK1/2 mode (only in tuner mode) - Page 14 RETUNE mode Rotate the control to choose RETUNE-S or RETUNE-L RETUNE-S or RETUNE-L is time length selection of TA SEEK retune interval. RETUNE-S: short, TA SEEK retune interval is 45 seconds. RETUNE-L: long, TA SEEK retune interval is 180 seconds. Remark: RETUNE mode functions for TA during TA SEEK mode only.
- Page 15 SEEK 1/2 mode Rotate the Multi-Control to choose radio seek mode 1 or 2. SEEK 1: searching station will stop when next station is received. SEEK 2: searching station will stop when button is released and next station is received. LOCAL/DX mode Rotate the Multi-Control to choose tuner sensitivity local or distant.
-
Page 16: Mp3 Play Back
MP3 Play back While playing MP3 disc/USB/SD/MMC-MP3 music, the folder/file name and ID3 TAG (song title, album and artist) can entirely scroll displayed on the LCD display. You can press the BAND button to see ID3 information. Elapsed playing time and Track number Folder name and number File name and number Song title... -
Page 17: Mp3 Overview
MP3 Overview Notes on MP3 · MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. · This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. · The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write. - Page 18 Notes on creating your own CD-Rs or CD-RWs containing MP3 files · To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate of 128 kbps. · DO NOT store more than 477 MP3 files per disc. ·...
-
Page 19: Mp3 Character Search
MP3 Character Search Press AMS button three times to select "CHAR SCH" mode. Press the Multi-Control and displayed. Now if press the Multi-Control more than 0.5 seconds. which first character of its name is will be played. Rotate the Multi-Control to select the 1st character of the desired track name and press the Multi-Control to confirm. Then flash at the next place, select 2nd and other character of the desired track name as steps above. -
Page 20: Rds (Radio Data System)
RDS (Radio Data System) RDS service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. The following functions are available when receiving RDS stations. RDS Basics AF( Alternative Frequency list ) When reception is poor, an RDS station broadcasting the same program is tuned in automatically. - Page 21 Traffic Announcements Some RDS FM stations periodically provide traffic information. TP ( Traffic Program Identification ) - Broadcasting of traffic information TA ( Traffic Announcements Identification ) - Radio announcements on traffic conditions TA Mode Press TA button to turn on / off TA. When TA mode is on and TA indicator on LCD is displayed.
- Page 22 PTY Reception (Program Type) RDS FM stations provide a program type identification signal. Example: news, rock, info, sport, etc. PTY Mode Press PTY button to turn PTY on, previous PTY type is displayed and searched if no button is pressed for 2 seconds. If there is no correspond program type, NO PTY is displayed.
-
Page 23: Anti-Theft System
Anti-Theft System This unit is equipped with a slide-down detachable panel. Removing this panel makes the radio totally inoperable. Removing the panel 1. Press PWR button to switch off the power of the unit. 2. Press button to slide down the panel. 3. -
Page 24: Handling Compact Discs
Handling compact discs · Dirty, scratched or warped discs may cause skip ping or noise. · Handle the disc only by the edges. To keep clean do not touch its surface. · Discs should be stored in their cases after use to avoid scratches. ·... -
Page 25: Components
Components 1. Mounting collar 1 pc. 2. Tapping screws M5x6 mm 4 pcs. M4x6 mm 4 pcs. 3. Mounting bolt (50 mm) 1 pc. 4. Wire connector 1 pc. 5. Removable face plate case 1 pc. 6. Trim plate 1 pc. 7. -
Page 26: Troubleshooting Guide
Troubleshooting guide General Car's engine switch is not on. Turn your car's key to ACC or ON. No power or no sound Cable is not correctly connected. Check connection. Fuse is burnt. Replace fuse. Check volume or mute on / off. Disc Disc is upside down. -
Page 27: Specification
Specification General. Power supply: 12V DC (11V-16V), Test voltage 14.4V, negative ground Maximum power output: 50Wx4 channels Rated power output (RMS): 25Wx4 channels (4 10% T.H.D.) Suitable speaker impedance: 4-8 ohm Pre-Amp output voltage: 2.0V(CD play mode: 1KHz, 0 dB, 10 K load) Fuse: Dimensions (WxHxD)/ Weight: 178 50 166 mm/ 1.64 kg... - Page 28 ....................................28 ................................29 ................................30 ................................33 ..................................36 USB/SD/MMC MP3 ............................37 ....................................39 3 .................................. 43 3..................................... 44 ................................46 RDS ( )............................... 47 ................................50 ..............................51 ....................................52 ....................................52 ..........................53 ............................... 54...
- Page 29 · · 12 . · · · · · · · · · · ·...
- Page 30 4,75 5,56...
- Page 32 ISO, (+)--- (-)--- (+)--- ACC+/ (-)--- (+)--- ((-)--- 12 (+)/ (+)--- (-)---...
- Page 34 VOL/BAS/TRE/BAL/FAD, : FM1 – FM2 – FM3 – FM(OIRT) – AM1 – AM2. AF ( TA ( PTY ( SD/MMC. 12. USB iPod. 3 +10 3 10 20. AMS:...
- Page 35 AUX ( USB ( SD/MMC Reset RESET...
- Page 36 AMS: 1 6. DISP ( DISP,...
- Page 37 USB/SD/MMC MP3 SD/MMC SD/MMC MEM-CARD. SD/MMC USB-DRIV.
- Page 38 USB/SD/MMC SD/MMC 2 1 (SD/MMC) Fat 12/Fat16/Fat32 -Fat 12/16 ( , 500 -Fat 32 ( , 500 : 32 : 32 (id3tagver2.0) USB 1.1 USB 2.0 ( USB 2.0 . USB- USB 2.0 USB 1.1) USB 1.1 : Cannon, Fujifilm, Palm, Motolora, Microsoft, IBM, HP, Compaq, Sharp, Samsung, : 8M ~ 512M : Ericsson, Nokia, Motolora, HP, Palm, Sanyo, Microsystems, : 16M ~ 128M...
- Page 39 MASK RETUNE LOUD ON / OFF MULT ON/OFF BEEP ON / OFF SEEK1/2 ( ST / MO LOCAL / DX ( TA ALARM TA SEEK. TA SEEK TA ALARM TA SEEK. TP (Traffic Program PI (Program Identification ALARM. "NO TP, TA".
- Page 40 MASK MASK DPI MASK ALL. (AF), PI " ". MASK DPI. RDS, PI ( MASK ALL.
- Page 41 RETUNE RETUNE-S RETUNE-L. RETUNE-S RETUNE-L TA SEEK. RETUNE-S: TA SEEK 45 RETUNE-L: TA SEEK 180 RETUNE TA SEEK. DSP. ROCK CLASSIC FLAT DSP OFF LOUD ESP 40/120 MULT ON/OFF BEEP ON/OFF...
- Page 42 SEEK ½ SEEK 1. SEEK 2. << >>. LOCAL/DX (LOCAL) (DX) ST/MO...
- Page 43 3 CD , USB/SD/MMC ID3 TAG ( BAND TRACK SCH . 001 . 100, 100, · FILE SCH .
- Page 44 · MPEG 3 · CD-ROM, CD-R CD-RW. · ISO 9660. · .mp3 . · .mp3 , · · 128, 477. · · ) MPEG MPEG1 audio layer 3, ) MPEG, MPEG2 audio layer3. · 32/44.1/48 MPEG1 audio layer 3, 32/44.1/48 16/22.05/24 MPEG2 audio layer3 44.1...
- Page 45 CD-R CD-RW, MP3. · 44,1 · · ISO 9660, · CD-R · MP3 CD-R CD-RW · · CD-R CD-RW CD-R CD-RW · 1. ID3TAG. ·...
- Page 46 «CHAR SCH» ( « ». « ». « » «ECHO»...
- Page 47 RDS ( AF ( RDS- PS Display ( AF ( REG. RDS- NO CT.
- Page 48 RDS, SEEK ( ), SCAN ( EON ( EON, RDS- EON. EON RDS- . EON PTY ( RDS,...
- Page 49 PTY, PTY. PTY. 1 6 , POP M ( NEWS ( AFFAIRS ( ROCK M ( INFO ( EASY ( SPORT ( EDUCATE ( LIGHT M ( DRAMA ( CLASSIC M ( CULTURE ( OTHER M ( SCIENCE ( VARIED ( JAZZ M ( WEATHER ( COUNTRY M (...
- Page 50 POWER...
- Page 51 · · · · · · · · · ·...
- Page 53 30 , NO FILE: ERR-7: ERR-10: ERR-11: ERR-3: ERR-4: RESET...
- Page 54 12 , 16 ) 14,4 , (RMS): 10 % .D.) CD: 1 , 10 / ESP: 15 / CD (40 ), MP3 (120 ) 178 50 166 / 1.64 65.0-74.0 / 87.5-108.0 / 30 / 55 522-1620 = 20 - 20 >...
