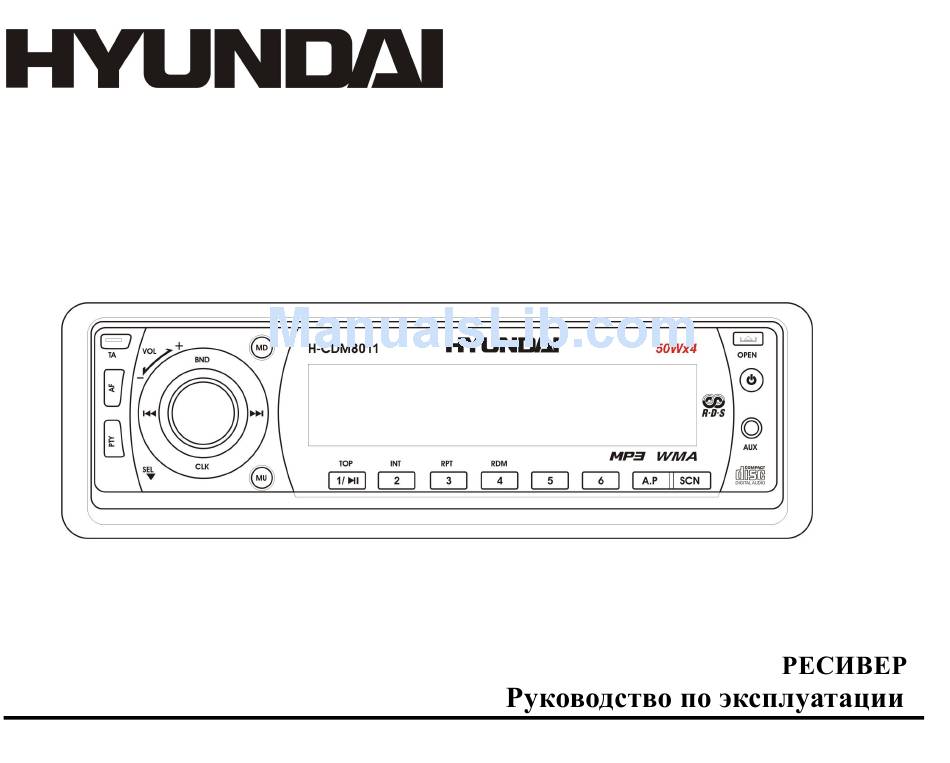

  • Page 1 H-CDM8011 CD/MP3 RECEIVER CD/MP3- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ............................2 Important safeguards ............................3 Installation/Connections ..........................4 Panel controls..............................7...

  • Page 3: Important Safeguards

    Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

  • Page 4: Installation/Connections

    Installation/Connections First complete the electrical connections, and then check them for correctness. Installation way It is an anti-theft installation way. The chassis wear a metal sliding housing. Please have the wiring connection of the power supply, speakers and antenna as for the requirement of the manual, and then install the metal sliding housing into the car according to the diagram.
  • Page 6 Speaker connection 0.5&15 A Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. Prohibit to make the conductors of auto antenna and ground touch with each other.

  • Page 7: Panel Controls

    Panel controls 1. SEL button and VOLUME Knob Rotate it to adjust the volume level. Press it to enter the characteristics list. 2. SCN button In Radio mode, press the SCN button to scan the radio frequency. If a valid signal has detected, the current frequency will be hold for 5 seconds, then press SCN button again to stop scan and remain the current frequency.
  • Page 8 5. BND button Press it repeatedly to select your desired radio band during RADIO mode. 6. OPEN button Press it to flip down the front panel and you can insert the disc into the CD compartment or press the EJ button to eject the disc from the disc compartment.

  • Page 9: General Operations

    General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press OPEN button and remove the front panel, then press the RESET button on the inner panel to restore the unit to the original factory settings.
  • Page 10 Setting the clock To show the time: In Radio mode when RDS data is received press the CLK button to select the mode: PS NAME => FREQUENCY => PTY => CLOCK. In Radio mode when RDS data is not received press the CLK button to select the item: FREQUENCY => PTY NONE =>...
  • Page 11 Setting other characteristics Press and hold for 2 seconds the SEL button to enter the setting mode. Press the SEL button or button to select the setting: EQ => CLK 12H/24H => CT => STEREO => LO/DX => AREA => VOL PGM => BEEP => CLK ON => SEEK RDS => TA SEEK => TA VOL => MASK => REG. Rotate the VOL knob to set the setting.
  • Page 12 When TP information gets lost at the current station for retune time which is set by retune time (40 seconds), the radio start to retune to next same PI station. When same PI station does not catch in 1 cyclic search, the radio retunes to next station with TP information.

  • Page 13: Digital Tuner Operations

    Digital tuner operations Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in your area, the following service is not available, either. Band selection Press the BND button to select a band: FM1, FM2, FM3, AM1, AM2. Display will show the wave band, frequency. Automatic/ Manual tuning Automatic tuning: Press the button to start auto searching the station.

  • Page 14: Rds Function

    for about 5 seconds. To stop preset scan, press this button again. Auto memory store function Press the A.P button on the panel and hold for 2 seconds to enter auto store mode. The radio will automatically store the 6 strongest available stations to the 6 preset memories of the current band. To stop auto store, press this button again.
  • Page 15 WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ M, COUNTRY M, NATION M, OLDIES M, FOLK M, DOCUMENT, TEST, ALARM. Note: While selecting PTY engagement, its selection is implement by preset button as described in notes. When PTY is selected press the SEL button, the radio starts to search corresponding PTY information and stops of the corresponding PTY information is detected.

  • Page 16: Disc Operations

    Disc operations Discs for playback This unit can play disc types: CD/CD-R/-RW. Compatible with formats: MP3/WMA/CDDA. Loading a disc 1. Turn the power on. 2. Press the OPEN button on the panel to flip it down. 3. Insert the disc with the printed side facing upward into the slot. 4.

  • Page 17: Intro Playback

    Fast-forward/ fast-backward playing Press and hold the buttons to start fast playing in backward or forward direction. Repeat playback During CD playback press the RPT button to start repeat playback. Press again to cancel. During MP3/WMA playback press it and hold for 2 seconds to start repeat playback of tracks in current folder. Press again to cancel.
  • Page 18 MP3/WMA directory search Press BND button twice, the LCD will display NAVIGA. Rotate the VOL knob or press the SEL button to enter the navigate search mode. Rotate the VOL knob to select the desired track or directory on the disc. To enter the selected directory, press SEL button.

  • Page 19: Mp3 Overview

    MP3 overview MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
  • Page 20 Notes on creating your own CD-R or CD-RW containing MP3 files: To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate o f 128 kbps. DO NOT store more than 448 MP3 files per disc. For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).

  • Page 21: Anti-Theft System

    Anti-Theft System This unit is equipped with a slide-down detachable and mask panel. Panel can be detached and taken with you, helping to deter theft. Removing the panel 1. Press POWER button to switch off the power of the unit. 2.

  • Page 22: Handling Discs

    Handling discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 23: Troubleshooting Guide

    Troubleshooting guide Cause Solution Symptom The car ignition is not on. If the power supply is properly connected to the General No power The fuse is blown. car accessory switch the ignition key to “ACC”. Replace the fuse. Disc Presence of disc inside the player. Remove the disc in the player then put a new Disc cannot be loaded.

  • Page 24: Specification

    Specification General. Power supply: 12 V DC Current consumption max. 15A Maximum power output: 50Wx4 channels Fuse: Dimensions (W x H x D) 178 x 50 x 165 mm FM Stereo Radio. Frequency range: 87.5 -108.0 MHz Usable sensitivity: 3 uV I.F.
  • Page 25 ................................25 ...........................26 ...........................27 ............................30 ............................33 ..............................38 ............................42 3................................45 ..........................47 ............................48 ..............................48 ....................49 ..........................50...
  • Page 26 CD-R CD-R/W CD-R CD-R/W CD-R CD-R/W.
  • Page 29 0.5 &15A...
  • Page 30 VOL/ SEL,...
  • Page 31 RADIO, CD AUX. RADIO. OPEN EJECT (1-6); PLAY/PAUSE/TOP, INT, RPT, RDM. POWER OPEN, POWER...
  • Page 32 PTY ( PTY. AF ( 16. AUX...
  • Page 33 OPEN, RESET, OPEN, POWER, MOD , RADIO => CD => AUX...
  • Page 34 (Loud) LOUD CLK, => => => CLK, => PTY NONE => CLK, CLK, CLK, SEL, : VOL ( ) => BASS ( ) => TRE LE ( ) => BALANCE ( ) => FADER (...
  • Page 35 SEL, SEL, : EQ ( ) => CLK 12H/24H ( ) => CT ( ) => STEREO ( ) => LO/DX Local/Distant) => AREA ( ) => VOL PGM ( ) => BEEP ( ) => CLK ON ( ) => SEEK RDS RDS/ALL) =>...
  • Page 36 VOL PGM: VOL PGM. BEEP: CLK ON: CLK ON. SEEK ( TP ( TA SEEK ALARM. TA seek: (Traffic Program – PI ( alarm: : LOST TP TA, TA VOL: – 18. REG: (ON), , PI- (OFF), PI-...
  • Page 37 MASK: MASK DPI MASK ALL. (AF), ". MASK DPI. RDS, MASK ALL.
  • Page 38 RDS ( BND, : FM1, FM2, FM3, AM1, AM2. (18 AM, 12 AM). AM). 1-6, 1-6,...
  • Page 39 A. , A. , A. . : PI, PS, TP, PTY, TA, AF, DATA. – – – – TA (...
  • Page 40 PTY, PTY. VOL, : NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M, ROCK M, EAST M, LIGHT M, CLASSIC, OTHER M, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ M, COUNTRY M, NATION M, OLDIES M, FOLK M, DOCUMENT, TEST, ALARM. AF ( “AF”.
  • Page 42 : CD/CD-R/-RW. : MP3/WMA/CDDA. OPEN OPEN, EJECT, PLAY/PAUSE/TOP,...
  • Page 43 PLAY/PAUSE, RPT, MP3/WMA RPT, RDM, MP3/WMA RDM, Intro INT.
  • Page 44 MP3/WMA BND 1 TRACK. SEL, VOL, SEL, MP3/WMA BND 2 NAVIGA. SEL, VOL, SEL, SEL, ID3- ID3-...
  • Page 45 MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. “.mp3”. “.mp3”, “ MP3” “ ”, PC “ ” “ ” 256. VBR, . VBR: WMA (Windows Media Audio) – Microsoft Corporation. , 64...
  • Page 46 CD-R CD-RW, MP3: 44,1 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW 1. ID3TAG.
  • Page 47 POWER OPEN,...
  • Page 49 “ ”. POWER...
  • Page 50 12 , 178 50 165 87.5 - 108.0 10.7 522-1620 CD/ CD-R/ CD-RW/ MP3/WMA 44,1 20-100 10-20 . 2000...
