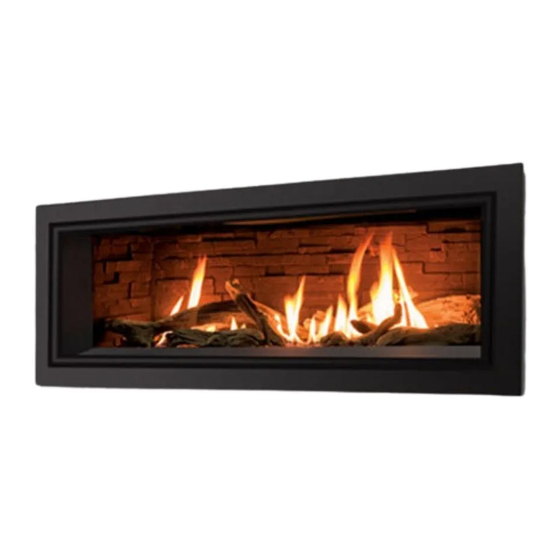

Direct vent fireplace
Hide thumbs Also See for C44:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
C44
D I R E C T V E N T F I R E P L A C E - N o V A
OWNER'S MANUAL
WARNING:
If the information in this manual is not followed exactly, a
fire or explosion may result causing property damage, personal injury
or loss of life. Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
4001609
50-3281
Version Française: www.enviro.com/fr.html
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C44 and is the answer not in the manual?

Questions and answers

Related Manuals for Enviro C44

Summary of Contents for Enviro C44

  • Page 1 If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Installation and service must be performed by a qualified installer, service agency or the gas supplier. 4001609 50-3281 Version Française: www.enviro.com/fr.html...

  • Page 2: Safety Precautions

    Safety Precautions WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death, or property damage. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. - WHAT TO DO IF YOU SMELL GAS •...
  • Page 3 NEVER ALLOW CHILDREN shut. TO TOUCH GLASS. • If the C44 unit is pulled out of its installation, and the vent- A barrier designed to reduce the risk of burns from the air intake system is disconnected for any reason, ensure that...

  • Page 4: Table Of Contents

    Table of Contents Safety Precautions ....................2 Table of Contents ......................4 Codes And Approvals ....................5 Specifications ......................6 Dimensions: ..........................6 Rating Label & Lighting Instructions Location: .................6 Operating Instructions ....................7 Pilot Light: ............................8 Air Shutter (Venturi): ........................8 Remote controls: ...........................8 Burner Lighting: ..........................9 Blower speed: ..........................9 Normal Sounds During Operation: ....................9 Maintenance And Service ..................10...

  • Page 5: Codes And Approvals

    This appliance has been tested by INTERTEK and found to comply with the established VENTED GAS FIREPLACE HEATER standards in CANADA and the USA as follows: VENTED GAS FIREPLACE HEATER (C44 ; NATURAL GAS, PROPANE GAS) TESTED TO: ANSI Z21.88-2014/CSA 2.33-2014 VENTED GAS FIREPLACE HEATERS CAN/CGA 2.17-M91 (R2009) GAS FIRED APPLIANCES FOR HIGH ALTITUDES...

  • Page 6: Specifications

    232mm 103mm 7" 178mm 68mm Gas Inlet Bottom (Optional) Figure 1. C44 Dimensions & L ating abeL ighting nstRuctions ocation Remove the screen completely to access the rating label and lighting instructions. The plates are attached to a length of chain and are never to be tampered with or removed. All important information for your fireplace is on this label as well of the model specific serial number which you will need for warranty information.

  • Page 7: Operating Instructions

    Operating Instructions For Your Safety, Read Safety Precautions And Lighting Instructions Before Operating WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY A FIRE OR EXPLOSION MAY RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OF LOSS OF LIFE. ighting anD nstRuctions FOR YOUR SAFETY READ BEFORE LIGHTING WARNING :If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life...

  • Page 8: Pilot Light

    Operating Instructions iLot ight 1. Turn off the gas to the fireplace. If not recently done, remove the glass and let the unit air out for at least five (5) minutes to clear out any gas. Turn on gas to the heater. 2.

  • Page 9: Burner Lighting

    After the unit has gone through the first burn, turn the unit OFF, including the pilot, and let the unit get completely cold. Then remove the glass and clean it with a good gas fireplace glass cleaner, available at your local Enviro dealer. See “M aIntenance...

  • Page 10: Maintenance And Service

    The glass must be purchased from an ENVIRO dealer. No substitute materials are allowed. To remove the door (see page 12). The replacement glass will come with a new gasket installed. Remove any silicone remnants from the door.

  • Page 11: Cleaning Decorative Surfaces

    Maintenance And Service Leaning ecoRatiVe uRFaces Painted and porcelain faces should be wiped with a damp cloth periodically. If a plated face has been purchased, it should be unpacked/unwrapped carefully to avoid getting anything on the surface of the finish, including cleaners, polish and finger prints. It is important to note that fingerprints and other marks can leave a permanent stain on plated finishes.

  • Page 12: Glass Door Removal

    C44 Master Assembly 6. Remove the six T-20 screws securing the burner pan as shown in Figure 9; do NOT remove the other THIS DRAWING IS THE PROPERTY OF SHERWOOD INDUSTRIES LTD. AND MAY NOT BE COPIED, REPRODUCED, OR OTHERWISE DISCLOSED WITHOUT THE PRIOR APPROVAL OF SHE T-20 screws.

  • Page 13: Access Panels

    Kit Parts List for C44 Model: 1 - Orifice (NG - #32 DMS or LP - #49 DMS) as marked 1 - Installation instruction sheet 2 - Conversion labels Carefully inspect all parts supplied with this conversion kit.
  • Page 14 Maintenance And Service Conversion Kit Installation: 1. Turn control knob on the gas valve to the “OFF” position and shut the gas supply off at the shut-off valve upstream of the valve. CAUTION: The gas supply must be shut off prior to disconnecting the electrical power and before proceeding with the conversion.
  • Page 15 Maintenance And Service WARNING! Do not over tighten the screw. It is recommended that you grip the wrench by the short side. f) Verify that if the conversion is from NG to LPG, the screw must be re-assembled with the red o-ring visible (refer to Figure 16).

  • Page 16: Initial Installation

    Initial Installation QUALIFIED INSTALLERS ONLY ntRoDuction This section of the owner’s manual is for the use of qualified technicians only. Fireplace placement, hearths, facing, mantels, and venting terminations will be covered, as well as the gas and electric systems. There are several installation safety guidelines that must be adhered to. Please carefully read the safety precautions at the front of this manual.

  • Page 17: Placement And Framing

    Initial Installation QUALIFIED INSTALLERS ONLY Lacement anD Raming 1” (25mm) Clearance from framing studs to venting S T E E L S T U D 65” 38” (1651mm) (965mm) 55” (1397mm) 20” (508mm) Figure 18: Framing Dimensions Table 2: Framing Dimensions Minimum Framing Dimensions Depth 20”...

  • Page 18: Vent Termination Framing

    Initial Installation QUALIFIED INSTALLERS ONLY LteRnate nLet ocation The gas inlet location can be moved to the Remove bottom of the cabinet if needed. This may be needed for certain installations. First remove the two screws on the left side of the unit, see Figure 19.

  • Page 19: Floor Protection

    LooR Rotection The C44 may be installed on a combustible floor. If the appliance is to be installed directly on carpeting, tile, or other combustible material other than wood flooring, the appliance must be installed on a metal or wood panel extending the full width and depth of the appliance.
  • Page 20 Initial Installation QUALIFIED INSTALLERS ONLY If adding a mantel to the C44 please note the critical dimension shown in figure 20. These are minimum dimension as per certification and must be followed. Also note the dimension from the horizonatal vent pipe to the internal ceiling this must be maintained.

  • Page 21: Installation With Recess

    Initial Installation QUALIFIED INSTALLERS ONLY nstaLLation with ecess Refer to dimensions in Figure 22 if building a recess above the fireplace. Note the dimensions from the finishing edge to the stud below the recess finishing material. The vertical finishing material at the back of the recess must be spaced 7/8”...

  • Page 22: Corner Installation

    Initial Installation QUALIFIED INSTALLERS ONLY oRneR nstaLLation The dimensions for installing a fireplace in the corner of a room are given in Figure 23. Refer to “I nstallatIon ” for allowable pipe lengths. llowaBle axIal onfIGuratIons Do not interfere with the structural integrity of the walls. Shown below are minimum clearances; increasing these dimensions is allowable as long as vent length remains in the allowable range.

  • Page 23: Horizontal Vent Install

    Initial Installation QUALIFIED INSTALLERS ONLY oRizontaL ent instaLL Figure 25 shows a horizontal vent installation with minimum clearances. The horizontal vent shield must be used when the minimum vent configuration is used. If more than 12” of vertical rise is used the shield should not be installed.

  • Page 24: Clearances & Non-Combustible

    Djacent iDewaLL edge. There must be a minimum distance of 7” (178mm) from the finishing edge of the C44 to an adjacent wall composed of combustible material. : It is not necessary to install a mantle, but if one is desired the guidelines as shown in Figure antLe 21(a).

  • Page 25: Tv Installation Considerations

    Initial Installation QUALIFIED INSTALLERS ONLY tV i nstaLLation onsiDeRations If you are planning to mount a TV above your fireplace some considerations must be made to ensure it is protected from the heat. A recess, mantel, or a combination of both can help deter the heat away from the TV.

  • Page 26: Direct Vent

    Only Approved Direct Vent may be used for installation of the C44. The minimum vent installation for the C44 must unclude a 12” vertical section and 90° elbow before being horizontally vented. Maximum Vertical venting is 40’ (12.2 m). This model is vented with co-axial 5”...

  • Page 27: Venting Clearances

    Initial Installation QUALIFIED INSTALLERS ONLY 12 in (30 cm) 9 in (23 cm) Clearance to non-mechanical air supply inlet to building, or the combustion air inlet to any other appliance. 6 ft (1.83 m) 3 ft (91 cm) above if within 10 Clearance to mechanical air supply inlet.

  • Page 28: Approved Venting Parts

    Direct Vent Pro 5” - 8” The C44 fireplace has been tested and certified for use with M&G DuraVent DirectVent Pro and ICC EXCELDirect venting systems. Refer to the table below for part numbers of commonly used parts for both venting systems.

  • Page 29: Allowable Co-Axial Vent Configurations

    Initial Installation QUALIFIED INSTALLERS ONLY LLowabLe xiaL onFiguRations Figure 32 shows the range of venting options using either vertical or horizontal terminations; any layout that remains within the shaded area is acceptable. Having the fewest number of elbows is ideal as they tend to restrict air movement.
  • Page 30 Initial Installation QUALIFIED INSTALLERS ONLY If your C44 has been converted to LP 40’ (12.2m) using 50-3268 conversion kit use this venting diagram. LP Vent Flame Appearence: Pin point on the map where your vent configuration will lay. Remember to consider elbows in the 35’...

  • Page 31: Exhaust Restrictor Setting

    When installing the C44 it may be necessary to add a restrictor in the firebox to control the combustion and flame appearance. The exhaust restrictor ring kit is included in the manual bag, to install the exhaust restrictor the safety screen assembly and glass door must be removed, see the Maintenance and Service section.

  • Page 32: Horizontal Termination

    Initial Installation QUALIFIED INSTALLERS ONLY oRizontaL eRmination . A MINIMUM OF 12” [305mm] VERTICAL RISE PLUS AN ELBOW IS REQUIRED WHEN HORIZONTALLY TERMINATING WITH AN APPROVED VENT CAP. 2. Horizontal pipes must not be level. For every 12” (305 mm) of horizontal travel (away from the stove), there should be at least ¼”...

  • Page 33: Vertical Termination

    Initial Installation QUALIFIED INSTALLERS ONLY Step 4. With the hole now framed, the wall thimble installed, and the pipe extending into the wall, proceed to the outside. The vent pipe must extend into the vent cap at least 1¼ inches (3.2 cm).
  • Page 34 Initial Installation QUALIFIED INSTALLERS ONLY Step 5. Cut hole in the roof centered on the small hole placed in the roof from Step 2. The hole should be of sufficient size to meet minimum requirements for Clearance to Combustibles, as specified. Continue to assemble lengths of pipe and elbows necessary to reach from the ceiling support box up through the roof line.
  • Page 35 Initial Installation QUALIFIED INSTALLERS ONLY NOTES: (1) If an offset is necessary in the attic to avoid obstructions, it is important to support the vent pipe every 3’ (914 mm), to avoid excessive stress on the elbows, and possible separation. Wall straps are available for this purpose (see Figure 39).

  • Page 36: Gas Line Connection And Testing

    Initial Installation QUALIFIED INSTALLERS ONLY onnection anD esting WARNING: Only persons licensed to work with gas piping may make the necessary gas connections to this appliance. GAS LINE CONNECTION • This stove is equipped with a 1/4 NPT male pipe located on the right side of the unit for the gas line connection.
  • Page 37 22 gauge 18 ft (5.49 m) Connect Thermostat Wires Here. Figure 42: C44 Wiring Diagram *This stove must be wired to a wall switch or thermostat for safe and convenient operation* The C44 comes from the manufacture with an on/off...

  • Page 38: Electrical Requirements

    C44 Nova Dual Convection Fan Kit (50-3212) The C44 has an optional convection fan kit that can be installed at anytime as long as power has been connected to the appliance during the installation. The fan will not operate if the appliance is cold. Once the unit has been running a thermostat switch will turn on the fans, set the rheostat to the desired level.
  • Page 39 Initial Installation QUALIFIED INSTALLERS ONLY Receptacle Inside Cabinet Incoming Power White White Green Black Black Black Temp White Sensor Control Figure 45: Fan Kit Wiring Diagram Receptacle Gray White Te on Inside Cabinet Switched Plug 3A Fuse Incoming Power Green Ground Black Te on...

  • Page 40: Secondary Installation

    C44 Light Kit (50-3211) The C44 has an optional light fan kit that requires one side of the inside receptacle to be wired as a switch plug. The switched plug will be controlled by an external wall switch, this should be next to your burner switch or thermostat.

  • Page 41: Panel And Media Installation

    Wear clean vinyl gloves when handling 50-3208 (Enameled) to prevent smudging; use denatured alcohol to clean. Unwrap your new Enviro liner set from their protective packaging. Be careful not to scratch or bump then liners as they are fairly fragile. If the liners arrive damaged please contact your nearest Enviro dealer.
  • Page 42 Secondary Installation 6. Ensure there is nothing on top of the media tray such as glass pebble media or glass bezel. Angle the rear liner into the firebox with finesse. The panel will fit in, dont worry, place one corner in towards the back and rotate inward.

  • Page 43: Log Set Installation

    Secondary Installation nstaLLation The placement of the logs is not arbitrary. If they are positioned incorrectly, the flames can be “pinched” and will not burn correctly. Using the pictures provided, carefully set the logs in place. NOTE: The logs are fragile and should be handled gently.
  • Page 44 Secondary Installation Logs should be touching as shown. 5. Position the front right log as shown. the end will butt up to the right liner as well as the log in the rear. Align the front right log with the firebox edge as shown below. 6.

  • Page 45: Troubleshooting

    Troubleshooting Table 10: Troubleshooting Problem Possible Cause Solution The main burner does not The gas valve may not be on. • Check that the gas control knob is in the “ON” position. ignite when called for. Thermostat is not calling for •...

  • Page 46: Parts List

    C44 Ledgestone Liners 50-3207 C44 Porcelain Liners 50-3208 C44 Halogen Light Kit 50-3211 C44 Tray w/ Glass Bezel (Glass beads and Vermiculite) 50-3214 C44 High Definition Rock Set 50-3286 C44 Black Glass Beads 50-3215 C44I LP to NG Fuel Conversion Kit...

  • Page 47: Parts Diagram

    Parts Diagram...
  • Page 48 Notes...
  • Page 49 Notes...
  • Page 50 Exclusions conditions herein set forth, this product against defects in material and workmanship An expanded list of exclusions is available at www.enviro.com/help/warranty.html during the specified warranty period starting from the date of original purchase at retail. This warranty does not cover: In the event of a defect of material or workmanship during the specified warranty period, ƒ...

  • Page 51: Installation Data Sheet

    � NATURAL GAS (NAT) PROPANE(LPG) _________________________________________ INLET GAS PRESSURE:_________in wc PHONE:___________________________________ MAIN BURNER ORIFICE:__________# DMS PILOT ORIFICE #_________OR________in diam. INSTALLER’S SIGNATURE: _________________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com Summer , 2016 C-14836...
