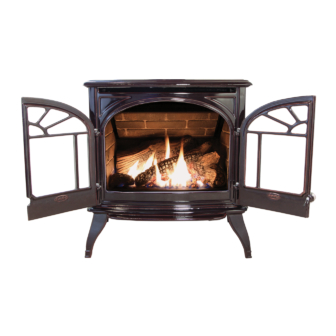

Enviro Westport C-10381 Owner's Manual

Enviro Westport C-10381 Owner's Manual

Enviro - sherwood industries ltd. indoor fireplace owner's manual

Advertisement

SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
OWNER'S MANUAL
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
WHAT TO DO IF YOU SMELL GAS
• Open windows/extinguish any
open flame.
• Do not try to light any appliance.
• Do not touch any electrical switch
or use any phone in your building.
• Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
• If you cannot reach your gas
supplier, call the fire department.
FOR YOUR SAFETY: Do not store or use gasoline or
other flammable vapours and liquids in the vicinity of
this or any other appliance.
WARNING:
If the information in this manual is
not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of
life. Installation and service must be performed by a
qualified installer, service agency or the gas supplier.
Massachusetts installations (Warning): This product must be installed by a licensed plumber or
gas fitter when installed within the Commonwealth of Massachusetts. Other Massachusetts code
requirements: Flexible connector must not be longer than 36in., a shut off valve must be installed;
only direct vent sealed combustion products are approved for bedrooms/bathrooms. A carbon
monoxide detector is required in all rooms containing gas fired direct vent appliances. The fireplace
damper must be removed or welded in the open position prior to installation of a fireplace insert.
Westport
B Y : S H E R W O O D I N D U S T R I E S L T D
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with
the type of gas indicated on the
rating plate. This appliance is not
convertible for use with other gases,
unless a certified kit is used.
50-1033

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Westport C-10381 and is the answer not in the manual?

Questions and answers

Summary of Contents for Enviro Westport C-10381

  • Page 1 SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED PAPER. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE OWNER’S MANUAL INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference. WHAT TO DO IF YOU SMELL GAS •...
  • Page 2: Safety Precautions

    Safety Precautions FOR SAFE INSTALLATION AND OPERATION OF YOUR “ENVIRO” HEATER, PLEASE CAREFULLY READ THE FOLLOWING INFORMATION: • All ENVIRO gas-fired appliances must be installed in accordance with their instructions. Carefully read all the instructions in this manual first. Consult the building authority having jurisdiction to determine the need for a permit prior to commencing the installation.
  • Page 3: Table Of Contents

    Table of Contents Safety Precautions...2 Table of Contents...3 Codes And Approvals...4 Specifications...5 Dimensions...5 Rating Label Location...5 Operating Instructions...6 Pilot Lighting Instructions...6 Pilot Light...7 Air Shutter...7 Remote controls (Optional)...8 Blower Speed (Optional)...8 Normal Sounds During Operation...8 Maintenance And Service...9 Routine Maintenance...9 Cleaning The Glass...9 Cleaning The Firebox...9 Change Battery in Ignition Module...9...
  • Page 4: Codes And Approvals

    After the unit has gone through the first burn, turn the unit off including the pilot, let the unit get cold then remove the glass door and clean it with a good gas fireplace glass cleaner, available at your local ENVIRO dealer.
  • Page 5: Specifications

    WARNING: Operation of this heater when not connected to a properly installed and maintained venting system can result in carbon monoxide (CO) poisoning and possible death. imensions 27" (68.6cm) ating abeL ocation The Rating Label is located on a plate hang on the back left of the unit. Specifications 25 ¾"...
  • Page 6: Operating Instructions

    Operating Instructions For Your Safety, Read Safety Precautions And Lighting Instructions Before Operating WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY A FIRE OR EXPLOSION MAY RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OF LOSS OF LIFE. iLot ighting nstRuctions Figure 2.
  • Page 7: Pilot Light

    Operating Instructions iLot ight 1. Turn off the gas to the fireplace. If not recently done, remove the glass and let the unit air out for at least five (5) minutes to clear out any gas. Turn on gas to the heater. Leak test all joints with soapy water.
  • Page 8: Remote Controls (Optional)

    Operating Instructions For Your Safety, Read Safety Precautions And Lighting Instructions Before Operating emote contRoLs PtionaL This fireplace can use an optional remote control or an optional cordless wall thermostat. If either of these are to be used to control the fireplace for the majority of the time, leave the ON/OFF switch (on the control panel) in the remote/thermostat position.
  • Page 9: Maintenance And Service

    Replace the logs and embers as in the l et and Mber nStallation your nearest ENVIRO dealer. hange atteRy in gnition If the unit does not spark when lighting, the battery in the electronic ignition could need replacing.
  • Page 10: Replacing The Glass

    Do not operate with the glass front removed, cracked or broken. Removal and replacement of the glass from the door must be done by a licensed or qualified service person. The glass must be purchased from an ENVIRO dealer. No substitute materials are allowed.
  • Page 11: Fuel Conversion

    Maintenance And Service onveRsion TO BE INSTALLED BY A QUALIFIED SERVICE AGENCY ONLY Please read and understand these instructions before installing. Warning: This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction.
  • Page 12 Maintenance And Service 6. Convert the pilot injector: a) Pull the pilot hood straight up to access the pilot injector. b) Using a ” or 4 mm Allen key, remove the pilot injector. c) Install the new pilot injector supplied with this conversion kit.
  • Page 13: Initial Installation

    Initial Installation WARNING: Operation of this heater when not connected to a properly installed and maintained venting system can result in carbon monoxide (CO) poisoning and possible death. RePaRation nstaLLation • Remove the packaging from the appliance, and check to make sure there is no damage. If damage is found, please report it to both the carrier and your dealer as soon as possible.
  • Page 14 Initial Installation Round Support Box/Wall Thimble Pipelength 90° Elbow Pipelength Figure 15: Common Horizontal Installation. 36" (915 mm) Snorkel Round Support Box/Wall Thimble Onto Stove 2 ft (610 mm) Adaptor Pipelength Figure 17: Common Snorkel Installation. QUALIFIED INSTALLERS ONLY Your total vent pipe length must be within the shaded area of Figure 23.
  • Page 15: Vent Termination Restrictions

    Initial Installation QUALIFIED INSTALLERS ONLY eRmination estRictions Fixed Closed Openable Termination Cap Figure 18. Vent Termination Restrictions, refer to Table 3. Table 3: Vent termination clearances, refer to Figure 18. Letter Canadian Installation 12 in (30 cm) 12 in (30 cm) 12 in (30 cm)* 24 in (60 cm)* 18 in (45 cm)*...
  • Page 16: Fireplace Horizontal Vent Kit 50-1235

    Initial Installation iRePLace oRizontaL Please read and understand these instructions before installing. Failure to follow these instructions carefully could cause property damage or personal injury. KIT COMPONENTS: Qnty Description Horizontal direct vent termination cap Flue collar adapter Wall thimble 5’ (190 cm) length of Ø4” (10 cm) double walled flex pipe 5’...
  • Page 17: Other Approved Vent Parts

    Initial Installation QUALIFIED INSTALLERS ONLY 10. Apply a bead of Mill-Pac Black sealant to the top section of the Ø4” (10 cm) by 5” (12.5 cm) flue collar adaptor previously installed into the fireplace flue outlet. Slide the Ø4” (10 cm) flex vent over the flue collar and secure with three (3) sheet metal screws evenly spaced.
  • Page 18 Initial Installation EXCEPTION TO WARNING: This product has been evaluated by Intertek for using a Direct Vent GS starting collar in conjunction with Secure Vent, Direct-Temp, and Ameri Vent Direct venting systems. Use of these systems with the Direct Vent GS starting collar is deemed acceptable and does not affect the Intertek WH listing of the appliance.
  • Page 19: Vent Configurations And Restrictor Settings

    Using 45˚ elbows is preferable to using 90˚ elbows. Also, a shorter vent system will perform better than a longer one. The ENVIRO WESTPORT has been designed with a built in restrictor plate. The restrictor is designed to enhance flame appearance when installing this unit with vertical chimneys as well as installations with longer horizontal vent applications.
  • Page 20: Horizontal Installation

    Initial Installation oRizontaL nstaLLation 1. Set the appliance in the desired location. Check to determine if wall studs or roof rafters are in the way when the venting system is attached. If this is the case, you may want to adjust the location of the appliance.
  • Page 21 Initial Installation QUALIFIED INSTALLERS ONLY wall, run a bead of non-hardening mastic around the edges, so as to make a seal between the termination and the wall. The arrow on the vent termination should be pointing up, insure that the proper clearances to combustible materials are maintained.
  • Page 22: Vertical Installation

    Initial Installation eRticaL nstaLLation 1. Check the instructions for required clearances (air spaces) to combustibles when passing through ceilings, walls, roofs, enclosures, attic rafters, or other nearby combustible surfaces. Do not pack air spaces with insulation. 2. Set the gas appliance in the desired location. Drop a plumb bob down from the ceiling to the position of the appliance flue exit, and mark the location where the vent will penetrate the ceiling.
  • Page 23 Initial Installation QUALIFIED INSTALLERS ONLY the support straps that extend out beyond the edge of the flashing. 7. Slip the flashing over the pipe section protruding through the roof. Secure the base of the flashing to the roof with roofing nails. Use a non-hardening sealant between the uphill edge of the flashing and the roof.
  • Page 24: Cathedral Ceiling Installation

    Initial Installation plumber’s tape connected to wall strap Wall strap 45° elbows (x2) Figure 33: Use of Wall Straps. atheDRaL eiLing nstaLLation 1. Follow installation steps 1 & 2 under i nStallation ertical nStallation 2. Using the plumb bob, mark the centerline of the venting system on the ceiling and drill a small hole through the ceiling and roof at this point.
  • Page 25: Corner Installations

    Initial Installation QUALIFIED INSTALLERS ONLY 5. Using tin snips, cut the “Support Box” from the top corners down to the roof line, and fold the resulting flaps over the roof sheathing (Figure 36). Before nailing it in to the roof, run a bead of non-hardening mastic around the top edges of the “Support Box”, to make a seal between the box and the roof.
  • Page 26: Venting Into A Class 'A' Chimney

    Initial Installation ‘a’ c enting into a Lass This model is also certified and tested to vent into CLASS ‘A’ wood stove chimneys. Place the freestanding direct vent appliance in the desired location. Use a conversion kit from Simpson Duravent (931, 932, or 933), or Security Chimney (SV4CCK1, SV4CCK2, or SV4CCK1).
  • Page 27: Installation Of Rear Vented Appliance

    Initial Installation QUALIFIED INSTALLERS ONLY 2. Remove the four (4) ¼” screws that hold the flue collar elbow to the unit body (see Figure 40). 3. Carefully remove the elbow being sure not to damage the gasket that is glued to the flue collar elbow, it seals the flue to the firebox.
  • Page 28: Installation Of Top Vented; Horizontal Termination

    Initial Installation nstaLLation oF enteD This is the most common type of installation style. Set the unit in place. Install a minimum 24” (61 cm) vertical chimney. Install a 90° elbow, and mark the exterior wall where the vent would pass through.
  • Page 29: Freestanding Drafthood Adaptor - 50-841

    Initial Installation QUALIFIED INSTALLERS ONLY ReestanDing RaFthooD DaPtoR This Drafthood Adaptor is a complete assembly and is ready to fit onto your Westport in a vertical vent application only. With the Drafthood Adaptor correctly installed and wired to the gas control valve. Your Direct Vent Fireplace can be vented like a B-Vent Fireplace.
  • Page 30 Initial Installation The minimum clearance to combustibles is 6” (150 mm) when using single wall venting and 1” (25 mm) when using “B-vent” venting. We strongly recommend installing an approved chimney liner in an existing brick chimney. This will maximize the potential draft of the chimney and lessen the effects of slow chimney start-up. VENTING OF A FIREPLACE FITTED WITH THE DRAFTHOOD ADAPTOR: Note: Please refer to the chimney manufacturer’s installation instructions prior to commencing the installation.
  • Page 31 Initial Installation AUTOMATIC SAFETY SHUT DOWN: If the spill switch is activated and shuts off the main burner the following procedure should be followed. • Is the pilot flame still on? If not, the reason for the fireplace shut down is not the spill switch. •...
  • Page 32: Gas Line Connection And Testing

    Initial Installation onnection anD WARNING: Only persons licensed to work with gas piping may make the necessary gas connections to this appliance. GAS LINE CONNECTION • This stove is equipped with a certified flexible pipe located on the right side of the unit terminating in a ⅜” male NPT fitting.
  • Page 33: Electrical Requirements For Gas Valve And Optional Blower

    LectRicaL equiRements The ENVIRO WESTPORT will operate without electrical power. This model has a millivolt gas control, which uses the pilot flame to generate enough electricity to operate the main burners. The appliance when equipped with an optional blower must be electrically connected and grounded in accordance with local codes or in the absence of local codes, with the current CSA C22.1 CANADIAN ELECTRICAL CODE...
  • Page 34: Secondary Installation

    If over time, through cleaning and servicing, these embers require replacement, contact the nearest ENVIRO dealer for replacement embers. LoweR is noticed call your dealer, distributor or courier company and have components replaced. 2. Ensure the temperature sensor will touch the unit when mounted.
  • Page 35 Secondary Installation 1. Carefully remove logs from box. Check to ensure there is no damage. It is very important to install all logs in their proper position to insure safe, optimum operating conditions. 2. Place the log set into the firebox.
  • Page 36 Figure 59: Log Placement with Rock Wool. cold then remove the glass door and clean it with a good gas fireplace glass cleaner, available at your local ENVIRO dealer. See M on how to remove aintenance ervice door to clean glass.
  • Page 37: Installation Of Panel Set

    Secondary Installation nstaLLation oF aneL Do not install when the unit is hot. The brick panel set is fragile. Handle panels with care and avoid knocking them on the placement pins or any other object. Figure 62: Brick panel bracket, slots shown. Figure 63: Top brick panel in place, screws shown.
  • Page 38: Trouble Shooting

    Trouble Shooting Problem Possible Cause The main burner does not The gas valve may not be on. ignite when called for. Thermostat is not calling for heat. Problem with gas valve. Spark will not light the pilot Defective piezo ignitor. after repeatedly pressing the spark ignitor.
  • Page 39: Parts List - Cast

    Parts List - Cast Reference Part Description Number Top Vent Insert Piece - Painted Top Vent Insert Piece - Antique White Top Vent Insert Piece - Diamond Black Top Vent Insert Piece - Inferno Red Top Vent Insert Piece - Pearl Grey Top Vent Insert Piece - Wedgewood Blue Top Vent Insert Piece - Westport Green Top Vent Insert Piece - Antique Chestnut...
  • Page 40 Parts List - Cast Reference Part Description Number Side Panel (Right) - Painted Side Panel (Right) - Antique White Side Panel (Right) - Diamond Black Side Panel (Right) - Inferno Red Side Panel (Right) - Pearl Grey Side Panel (Right) - Wedgewood Blue Side Panel (Right) - Westport Green Side Panel (Right) - Antique Chestnut Cast Leg (Each) - Painted...
  • Page 41 Parts List - Cast Reference Part Description Number Top Complete (Top, Vent Insert, & Grate) - Painted Top Complete (Top, Vent Insert, & Grate) - Antique White Top Complete (Top, Vent Insert, & Grate) - Diamond Black Top Complete (Top, Vent Insert, & Grate) - Inferno Red Top Complete (Top, Vent Insert, &...
  • Page 42: Parts Diagram - Cast

    Parts Diagram - Cast WESTPORT - Castings January 2005...
  • Page 43: Parts List - Components

    Parts List - Components Reference Part Description Number 120° Ceramic Fan Temperature Sensor S.I.T. Nova Valve Convertible Thermocouple Spark Electrode with Ignitor Cable Thermopile Pilot Orifice NG Threaded Pilot Orifice LP Threaded Pilot Gasket S.I.T. Piezo Ignitor Burner Switch Fan Controller 115 V With Knob Fan Controller Knob Domestic Power Cord HEYCO Strain Relief...
  • Page 44 Parts List - Components Reference Number Part Description Inner Door Handles (2 per set) Venturi Adjustment Rod Firebox Pan Burner Only 45° Elbow & Gasket Fan Kit 180 C.F.M. Door Knob - Brushed Nickel Electronic Ignition Module Switch Blank Orifice #73 - All Gas Models Wiring Harness Pressure Relief Door With Gasket, Rod &...
  • Page 45: Parts Diagram - Components

    Parts Diagram - Components WESTPORT - Components January 2005...
  • Page 46: Warranty

    Sherwood Industries Ltd. is the manufacturer of the Enviro line of heating products. At Sherwood Industries, our commitment to the highest level of quality and customer service is the most important thing we do. Each Enviro stove is built on a tradition of using only the finest materials and is backed by our Exclusive Lifetime Limited Warranty to the original purchaser.
  • Page 47: Installation Data Sheet

    21. The Limited Warranty does not cover any loss or damage incurred by the use or removal of any component or apparatus to or from the Enviro fireplace or stove without the express written permission of Sherwood Industries Ltd. and bearing a Sherwood Industries Ltd.
  • Page 48: Installation Data Sheet
