Service and Repair Manual
Secondary Boom Components
Second ar y Boo m Comp onent s

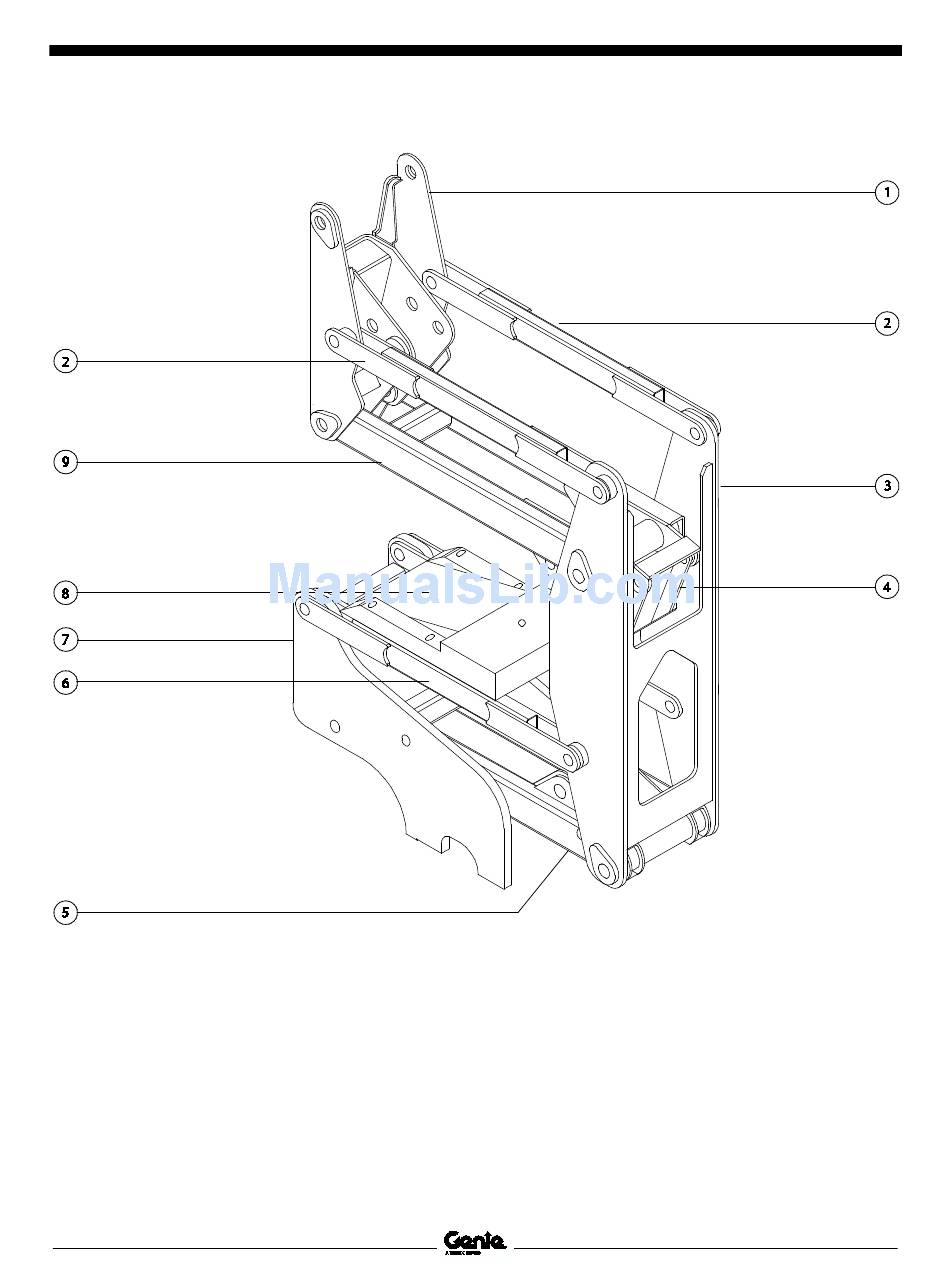

Secondary Boom components
1 upper pivot
2 upper compression arm
3 mid-pivot
4 compression link
5 lower secondary boom
34
Z-30/20N • Z-30/20N RJ • Z-34/22 • Z-34/22N
6 lower compression arm
7 turntable pivot
8 counterweight (Z-30N / Z-30N RJ)
9 upper secondary boom
September 2015
Part No. 1268498
