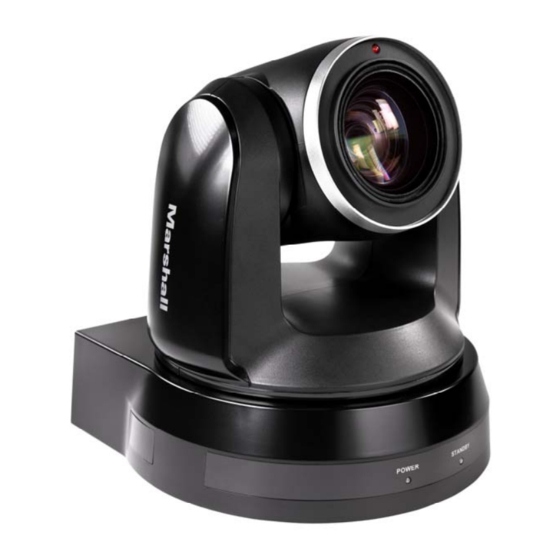

- Page 1 Marshall Electronics CV612HT-4K 4K Broadcast PTZ Camera Installation Guide Ver.2...
-
Page 2: Table Of Contents
Functions of remote control.............. 18 Setting Menu ..................19 Descriptions of Major Functions .................26 Switching to CV612HT-4K..............26 Setting the Digital Output (RGB, YUV)..........26 Enabling the Tally Mode function............26 Hiding the preset image switch (Motionless Preset) ......26 Saving the current lens position data .......... - Page 3 6.14 Rotating the image ................29 6.15 Changing the camera direction ............29 6.16 Displaying the current status ............29 6.17 Resetting to the original setting ............29 DIP Switch Setting ......................30 DIP SWITCH ..................30 RS-422 Connection ................32 Troubleshooting......................34 Marshall Electronics...
- Page 4 1.4 Do not use this product near water or source of heat. 1.5 Use attachments only as recommended. 1.6 Use only the type of power source indicated on the CV612HT-4K. If you are not sure of the type of power available, consult your distributor or local electricity company for advice.
-
Page 5: Precautions
Manual with this unit. FCC Warning This CV612HT-4K has been tested and found to comply with the limits for a Class A digital device, pursuant to Article 15-J of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. -
Page 6: Package Contents
Package Contents CV612HT-4K Instruction for installation Remote Control Power Cord Power Adapter RS-422 Connector Appearance may vary depending on country/region Metal Plate A Metal Plate B M3 Screws Marshall Electronics... -
Page 7: Product Overview
3.2.1.3 Flickering green: Signal from the remote control is received; the indicator flickers every 0.5 second 3.2.2 Standby: 3.2.2.1 Orange: In standby mode 3.2.2.2 No Light: Power on 3.2.2.3 Green light: HDBaseT and HDMI are connected 3.2.2.4 No Light: HDBaseT is connected Marshall Electronics... -
Page 8: Installation
Installation 4.1 Preparation before Installation Special precautions should be taken during installation and connection of the CV612HT-4K. Please pay attention to the following directions to ensure steady and secure mounting, and to avoid damage to the CV612HT-4K, and users. 4.1.1 Ensure the safety of the installation environment. Please do not install the device on unstable ceiling or in a place where the device is in danger of falling. - Page 9 Installing CV612HT-4K on the ceiling 4.2.2 4.2.2.1 Parts and equipment required for mounting the CV612HT-4K on the ceiling 1. Accessories of CV612HT-4K in the box (metal plates A, B and M3 screw x 7) 2.
- Page 10 4.2.2.2 Camera Size Length x Width x Height: 174 x 186.8 x 170.8 mm Weight: 2.0 Kg 4.2.2.3 Max. rotation dimension of camera Marshall Electronics...
- Page 11 4.2.2.4 Size Diagram 1. Metal plate B - ceiling side Metal plate B locking Metal plate B locking bolt screw M3 threaded hole M3 threaded M3 threaded hole hole Metal plate B - ceiling side Marshall Electronics...
- Page 12 2. Metal plate A - machine side Metal plate A locking screw Metal plate A - machine side Marshall Electronics...
- Page 13 3. Bottom of camera Marshall Electronics...
-
Page 14: Precautions For Installation
1. Please adjust resolution on DIP switch at first * Please refer to Chapter 7 DIP Switch Setting for the relevant descriptions on DIP switch. 2. Fix the metal plate A on the camera base with 4 M3 screws Marshall Electronics... - Page 15 4. Combine the metal plate A and the metal plate B (1) Push the metal plate A up to the ceiling and then to the right to latch the metal plate B (2) Secure with 2 M3 silver screws and 1 M3 black screw. Marshall Electronics...
- Page 16 2. Uninstall the camera together with the ceiling, loosen the three screws that fix the metal plates A and B and push to the left to remove the camera 3. Remove the screws on the hanger and the camera Marshall Electronics...
-
Page 17: Connecting The Device
Connecting to an HDTV/computer monitor (HDMI) 4.3.1.1 HDMI Cable Monitor or HDTV Connecting to a HDBaseT Adapter 4.3.1.2 HDBaseT Cable HDBaseT Adapter * PoE Power Supply is available for this device. HDBaseT Adapter may be enabled without connecting to a power cord Marshall Electronics... - Page 18 * With RS-232 in/out, at most 7 cameras can be connected. Connecting to one computer 4.3.2.2 for connection between cameras (RS-422) * Please refer to 7.2 RS-422 connection for the RS-422 connection instructions. * With RS-422, at most 7 cameras can be connected. Marshall Electronics...
-
Page 19: Remote Control And Setting Menu
Switch image effect (OFF / B&W) Power Power Switch Appoint an ID (0 ~ 9) to save the current Preset position data Appoint an ID (0 ~ 9) to delete the Reset current position data Zoom-Fast Adjust image size Fine-tune image size Zoom-Slow Marshall Electronics... -
Page 20: Setting Menu
Position activated 59.94/29. 50/25 Shutter Pri Shutter priority setting 97 mode mode 1/10000 1/10000 1/6000 1/6000 1/4000 1/3500 1/3000 1/2500 1/2000 1/1750 1/1500 1/1250 1/1000 1/1000 1/725 1/600 1/500 1/425 1/350 1/300 1/250 1/215 1/180 1/150 1/125 1/120 Marshall Electronics... - Page 21 11. F9.6 12. F11 13. F14 14. Close 3 dB 6 dB 9 dB 12 dB 15 dB Manual Gain Manually set the gain 18 dB 21 dB 24 dB 10. 27 dB 11. 30 dB 12. 33 dB Marshall Electronics...
- Page 22 1/4000 1/3500 1/3000 1/2500 1/2000 1/1750 1/1500 1/1250 1/1000 1/1000 1/725 1/600 1/500 1/425 1/350 1/300 Manual Speed Manually set the shutter 1/250 1/215 1/180 1/150 1/125 1/120 1/100 1/100 1/90 1/75 1/60 1/50 1/30 1/25 1/15 1/12 Marshall Electronics...
- Page 23 11. F9.6 12. F11 13. F14 14. Close 1~ C~28 Bright 9 dB 12 dB 15 dB 18 dB Max. limit value of electron 21 dB Gain Limit gain 24 dB 27 dB 30 dB 33 dB WDR settings Marshall Electronics...
- Page 24 Adjust the sharpness of the Sharpness 1~A~16 image Noise reduction setting Adjustable when the image Saturation mode is set to Custom 0~ A ~14 mode Adjustable when the image mode is set to Custom 0~ A ~14 mode Marshall Electronics...
- Page 25 AF speed 4. 3 triggering 5. 4 6. 5 Turn on/off the prompt On / Off System Prompt information on the display Turn on/off the infrared On/Off IR Receive reception Encoder / Controller Control Device setting Control Device Marshall Electronics...
- Page 26 Set the image output mode 4. 1920x1080/50p 5. 1920x1080/ 59.94i 6. 1920x1080/50i 7. 1280x720/ 59.94p 8. 1280x720/50p Digital Output YUV/RGB Set the digital output Resume the factory default On / Off Factory Reset setting Display the current setting Status status Marshall Electronics...
-
Page 27: Descriptions Of Major Functions
Descriptions of Major Functions 6.1 Switching to CV612HT-4K 1. Press [Camera 1 ~ 3] on the remote control to select CV612HT-4K. Camera 1 ~ 3 is selected with IR SELECT. 6.2 Setting the Digital Output (RGB, YUV) 1. Press [MENU] to activate the setting menu. -
Page 28: Saving The Current Lens Position Data
3. Press [Pan - Tilt Reset] on the remote control to reset the angle to the center point. 6.9 Zooming in/out images 6.9.1 Adjust image size 1. Press [Fast +] on the remote control to zoom in images. 2. Press [Fast -] on the remote control to zoom out images. 6.9.2 Fine-tune image size Marshall Electronics... -
Page 29: Adjusting The Focal Length
Press [] or [] to select [Low / Normal]. Press [MENU] to exit. 6.11.2 Adjusting the AF speed The focus speed upon triggering AF Sensitivity [Normal] (default): Image flickering may not occur [Fast]: Fast focus speed Marshall Electronics... -
Page 30: Setting The Image Mode
6.17 Resetting to the original setting Press [MENU] to activate the setting menu. Press [] or [] to select [System]. Press [ENTER] to activate. Press [] or [] to select [Factory Reset]. Press [ENTER] to activate. Press [] or [] to select [On]. Marshall Electronics... -
Page 31: Dip Switch Setting
Output Mode Setting Output Mode Setting 3840 × 2160 29.97p 3840 × 2160 25p 1920 × 1080 59.94p 1920 × 1080 50p 1920 × 1080 59.94i 1920 × 1080 50i 1280 × 720 59.94p 1280 × 720 50p Marshall Electronics... -
Page 32: Camera Address Selector
DIP 1 OFF : RS-232C / ON : RS-422 Infrared signal output switch DIP 2 OFF : Off / ON : On Communication baud rate selector DIP 3 OFF : 9600 / ON : 38400 DIP 4 Reserved Marshall Electronics... -
Page 33: Rs-422 Connection
For non-SONY products, it may be necessary to connect IN+ to OUT- 7.2.2 Use RS-422 Connection 1. Hold the two sides of RS-422 connector and pull out in the direction shown by the arrow in the figure below Marshall Electronics... - Page 34 2. Peel off a section of copper wire (AWG Nos. 28 to 18) and insert it into the connector hole; then use flat screw driver to fix it 3. Insert the wired RS-422 connector back to the camera. The connection is now completed. * When RS-422 connection is being used, do not use RS-232C connection. Marshall Electronics...
-
Page 35: Troubleshooting
Troubleshooting This chapter describes problems you may encounter while using the CV612HT-4K. If you have questions, please refer to related chapters for additional information. If problems persist after troubleshooting, contact Marshall Electronics technical support. Toll free: (800) 800.6608 / Outside USA: (310) 333.0606 support@marshall-usa.com... - Page 36 Marshall Electronics 20608 Madrona Avenue Torrance, CA 90503 Phone: (310) 333-0606 / (800) 800-6608 Fax: (310) 333-0688 www.marshall-usa.com...
