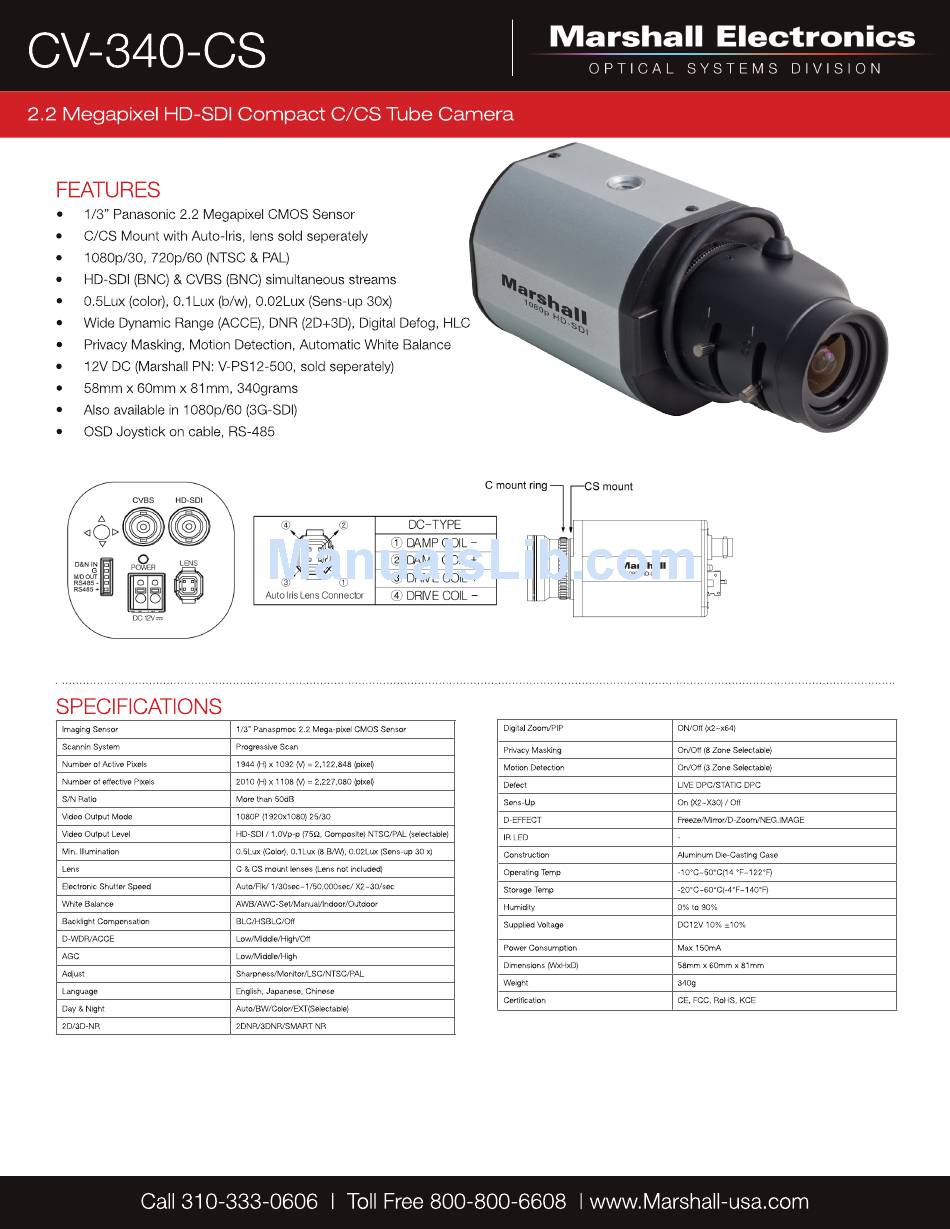

Marshall Electronics CV-340-CS Specifications

SPECIFICATIONS

Imaging Sensor
Scannin System
Number of Active Pixels
Number of effective Pixels
S/N Ratio
Video Output Mode
Video Output Level
Min. Illumination
Lens
Electronic Shutter Speed
White Balance
Backlight Compensation
D-WDR/ACCE
AGC
Adjust
Language
Day & Night
2D/3D-NR
1/3" Panaspmoc 2.2 Mega-pixel CMOS Sensor
Progressive Scan
1944 (H) x 1092 (V) = 2,122,848 (pixel)
2010 (H) x 1108 (V) = 2,227,080 (pixel)
More than 50dB
1080P (1920x1080) 25/30
HD-SDI / 1.0Vp-p (75Ω, Composite) NTSC/PAL (selectable)
0.5Lux (Color), 0.1Lux (8 B/W), 0.02Lux (Sens-up 30 x)
C & CS mount lenses (Lens not included)
Auto/Flk/ 1/30sec~1/50,000sec/ X2~30/sec
AWB/AWC-Set/Manual/Indoor/Outdoor
BLC/HSBLC/Off
Low/Middle/High/Off
Low/Middle/High
Sharpness/Monitor/LSC/NTSC/PAL
English, Japanese, Chinese
Auto/BW/Color/EXT(Selectable)
2DNR/3DNR/SMART NR
Digital Zoom/PIP ON/Off (x2~x64)
Privacy Masking On/Off (8 Zone Selectable)
Motion Detection On/Off (3 Zone Selectable)
Defect LIVE DPC/STATIC DPC
Sens-Up On (X2~X30) / Off
D-EFFECT Freeze/Mirror/D-Zoom/NEG.IMAGE
IR LED -
Construction Aluminum Die-Casting Case
Operating Temp -10°C~50°C(14 °F~122°F)
Storage Temp -20°C~60°C(-4°F~140°F)
Humidity 0% to 90%
Supplied Voltage DC12V 10% ±10%
Power Consumption Max.150mA
Dimensions (WxHxD) 58mm x 60mm x 81mm
Weight 340g
Certification CE, FCC, RoHS, KCE
