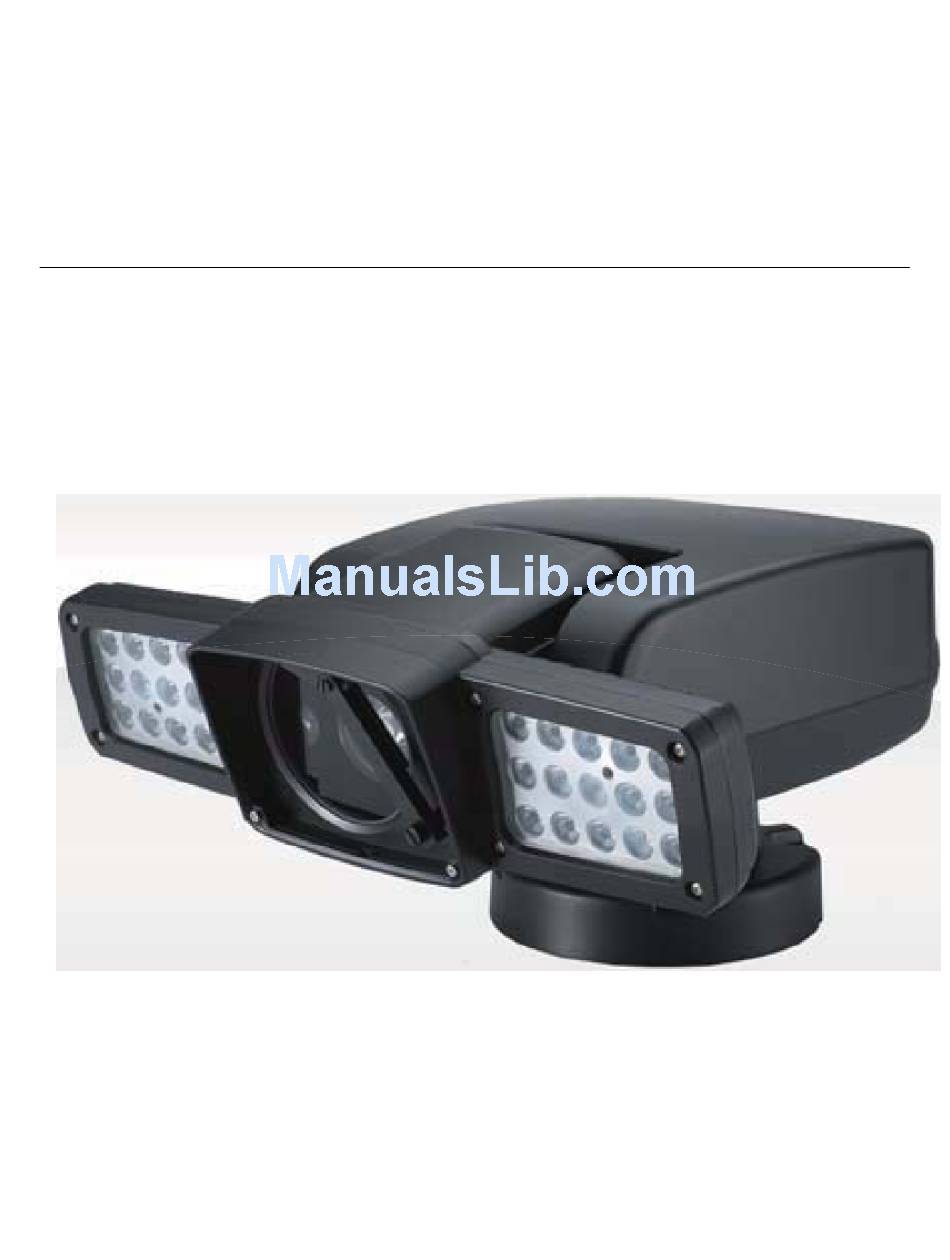

  • Page 1 Marshall Electronics VS-WM202-HDSDI Heavy Duty Exterior PTZ Camera 20x Zoom and IR LED User Manual...

  • Page 2: Safety Precaution

    Product options and specifications can be changed without notice. The information in this manual is furnished for informational use only and should not be construed as a commitment by Marshall Electronics, Inc. Marshall Electronics, Inc. assumes no responsibility or liability for any errors or inaccuracies that may appear in this publication.

  • Page 3: Table Of Contents

    5. 3. 5 Speed by Zoom ON/OFF Set......................26 5. 3. 6 Auto Flip ON/OFF Set .........................27 5. 3. 7 Factory Set ..........................27 5. 4 Camera Settings ............................27 9/28/12 VS-WM202-HDSDI – V 1 .0 Page 3 of 48...
  • Page 4 6. 1. 4 ELECTRICAL ..........................45 6. 1. 5 CERTIFICATES ..........................45 6. 2 Camera Specifications ..........................45 6. 2. 1 Zoom Camera ..........................45 6. 2. 2 LED Specification ........................46 7. DIMENSIONS (mm)..............................47 VS-WM202-HDSDI – V 1.3.0 Page 4 of 48 9/28/12...

  • Page 5: Information For User

    CAUTION - Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment. **This installation should be made by a qualified service person and should conform to all local codes. VS-WM202-HDSDI – V 1.3.0 Page 5 of 48 9/28/12...

  • Page 6: Precautions

    Note: If the camera is exposed to spotlight or object reflecting the strong light, smear or blooming may occur. Please check the power whether it satisfies the normal specification before connecting the camera. VS-WM202-HDSDI – V 1.3.0 Page 6 of 48 9/28/12...

  • Page 7: Features

    Pattern: Up to 4 programmable Patterns memorizing the PTZ movement. Privacy: Up to 8 programmable Privacy masking. Alarm: Move the camera to programmed Preset position with Alarm trigger.(Max.2) Area: Up to 16 programmable Area display sets. VS-WM202-HDSDI – V 1.3.0 Page 7 of 48 9/28/12...

  • Page 8: Settings & Installation

    4. 1 Unpacking Guiding sticker for installation Manual Detaching Hook M8 X10 bolts 4PIN Communication Terminal Accessories Switched-Mode Power Supply L-wrench, alarm cable M8 wrench-bolt, M8 nut MAIN CABLE POWER CABLE VS-WM202-HDSDI – V 1.3.0 Page 8 of 48 9/28/12...

  • Page 9: Dip Switch Settings

    Before starting up the camera, set the protocol, camera address and details with dip-switches referring to the following. Each camera must have a unique address (ID). Identical ID’s on the same line may damage the control circuit caused by an electric short. VS-WM202-HDSDI – V 1.3.0 Page 9 of 48 9/28/12...

  • Page 10: Cable Connection

    - There are 3 lines: Red, Black, Gray. Connect red and black lines to + and - of power. And connect the gray line for Ground. - Connect the power of DC 24V, 10A to this camera. - Use certified Class 2 power supply transformers only. VS-WM202-HDSDI – V 1.3.0 Page 10 of 48 9/28/12...

  • Page 11: Installation

    - Be sure to switch the camera off before installation is completed. - Do not install the camera near the air outlet of an air conditioner. - Before installation, set camera system with Dip-switches on the 7~8 pages. VS-WM202-HDSDI – V 1.3.0 Page 11 of 48 9/28/12...

  • Page 12: Basic Configuration

    ___________________________________________________________________________ 4. 5 Basic Configuration VS-WM202-HDSDI – V 1.3.0 Page 12 of 48 9/28/12...

  • Page 13: Main Setup Menu

    5. MAIN SETUP MENU 5. 1 Initialize When the device is powered on, you can check the address, version, protocol and video setting values. 5. 2 Motion Setting 5. 2. 1 Preset VS-WM202-HDSDI – V 1.3.0 Page 13 of 48 9/28/12...
  • Page 14 ___________________________________________________________________________ VS-WM202-HDSDI – V 1.3.0 Page 14 of 48 9/28/12...
  • Page 15 ___________________________________________________________________________ VS-WM202-HDSDI – V 1.3.0 Page 15 of 48 9/28/12...

  • Page 16: Tour

    ___________________________________________________________________________ 5. 2. 2 Tour VS-WM202-HDSDI – V 1.3.0 Page 16 of 48 9/28/12...

  • Page 17: Scan

    ___________________________________________________________________________ 5. 2. 3 Scan VS-WM202-HDSDI – V 1.3.0 Page 17 of 48 9/28/12...
  • Page 18 ___________________________________________________________________________ VS-WM202-HDSDI – V 1.3.0 Page 18 of 48 9/28/12...

  • Page 19: Pattern

    ___________________________________________________________________________ 5. 2. 4 Pattern VS-WM202-HDSDI – V 1.3.0 Page 19 of 48 9/28/12...
  • Page 20 ___________________________________________________________________________ VS-WM202-HDSDI – V 1.3.0 Page 20 of 48 9/28/12...

  • Page 21: Area

    ___________________________________________________________________________ 5. 2. 5 Area VS-WM202-HDSDI – V 1.3.0 Page 21 of 48 9/28/12...

  • Page 22: Alarm

    ___________________________________________________________________________ 5. 2. 6 Alarm VS-WM202-HDSDI – V 1.3.0 Page 22 of 48 9/28/12...

  • Page 23: Privacy Zone Masking

    ___________________________________________________________________________ 5. 2. 7 Privacy Zone Masking VS-WM202-HDSDI – V 1.3.0 Page 23 of 48 9/28/12...

  • Page 24: Dome Setting

    ___________________________________________________________________________ 5. 3 Dome Setting VS-WM202-HDSDI – V 1.3.0 Page 24 of 48 9/28/12...

  • Page 25: Set The Dome Camera Title

    ___________________________________________________________________________ 5. 3. 1 Set the Dome Camera Title 5. 3. 2 Set the Power Up Action 5. 3. 2 Park Action VS-WM202-HDSDI – V 1.3.0 Page 25 of 48 9/28/12...

  • Page 26: Display On/Off Set

    ___________________________________________________________________________ 5. 3. 4 Display ON/OFF Set 5. 3. 5 Speed by Zoom ON/OFF Set VS-WM202-HDSDI – V 1.3.0 Page 26 of 48 9/28/12...

  • Page 27: Auto Flip On/Off Set

    ___________________________________________________________________________ 5. 3. 6 Auto Flip ON/OFF Set 5. 3. 7 Factory Set 5. 4 Camera Settings 5. 4. 1 CAMERA MENU (EH-6300) VS-WM202-HDSDI – V 1.3.0 Page 27 of 48 9/28/12...
  • Page 28 ___________________________________________________________________________ VS-WM202-HDSDI – V 1.3.0 Page 28 of 48 9/28/12...
  • Page 29 ___________________________________________________________________________ VS-WM202-HDSDI – V 1.3.0 Page 29 of 48 9/28/12...
  • Page 30 ___________________________________________________________________________ VS-WM202-HDSDI – V 1.3.0 Page 30 of 48 9/28/12...
  • Page 31 ___________________________________________________________________________ VS-WM202-HDSDI – V 1.3.0 Page 31 of 48 9/28/12...
  • Page 32 ___________________________________________________________________________ VS-WM202-HDSDI – V 1.3.0 Page 32 of 48 9/28/12...
  • Page 33 ___________________________________________________________________________ VS-WM202-HDSDI – V 1.3.0 Page 33 of 48 9/28/12...
  • Page 34 ___________________________________________________________________________ VS-WM202-HDSDI – V 1.3.0 Page 34 of 48 9/28/12...

  • Page 35: Camera Menu (Eh-6300)

    ___________________________________________________________________________ 5. 4. 1 CAMERA MENU (EH-6300) VS-WM202-HDSDI – V 1.3.0 Page 35 of 48 9/28/12...
  • Page 36 ___________________________________________________________________________ VS-WM202-HDSDI – V 1.3.0 Page 36 of 48 9/28/12...
  • Page 37 ___________________________________________________________________________ VS-WM202-HDSDI – V 1.3.0 Page 37 of 48 9/28/12...
  • Page 38 ___________________________________________________________________________ VS-WM202-HDSDI – V 1.3.0 Page 38 of 48 9/28/12...
  • Page 39 ___________________________________________________________________________ VS-WM202-HDSDI – V 1.3.0 Page 39 of 48 9/28/12...
  • Page 40 ___________________________________________________________________________ VS-WM202-HDSDI – V 1.3.0 Page 40 of 48 9/28/12...

  • Page 41: Clear Settings

    ___________________________________________________________________________ 5. 5 Clear Settings 5. 6 Special Settings VS-WM202-HDSDI – V 1.3.0 Page 41 of 48 9/28/12...
  • Page 42 ___________________________________________________________________________ VS-WM202-HDSDI – V 1.3.0 Page 42 of 48 9/28/12...

  • Page 43: Ptz Reset

    ___________________________________________________________________________ 5. 7 PTZ Reset VS-WM202-HDSDI – V 1.3.0 Page 43 of 48 9/28/12...

  • Page 44: Other Quick Operation Guide

    253 + set preset (3sec)= IR off (dip s/w in IR LED led mode) 255 + set preset (3sec)= ptz info 6. SPECIFICATIONS ED IR PTZ CAMERA 6. 1 Mechanical Specifications 6. 1. 1 MECHANICAL 6. 1. 2 ENVIRONMENTAL 6. 1. 3 FUNCTIONS VS-WM202-HDSDI – V 1.3.0 Page 44 of 48 9/28/12...

  • Page 45: Electrical

    ___________________________________________________________________________ 6. 1. 4 ELECTRICAL 6. 1. 5 CERTIFICATES CE EMC, FCC CLASS A, RoHS, e-Mark 6. 2 Camera Specifications 6. 2. 1 Zoom Camera EH-6300 VS-WM202-HDSDI – V 1.3.0 Page 45 of 48 9/28/12...

  • Page 46: Led Specification

    ___________________________________________________________________________ 6. 2. 2 LED Specification VS-WM202-HDSDI – V 1.3.0 Page 46 of 48 9/28/12...

  • Page 47: Dimensions (Mm)

    ___________________________________________________________________________ 7. DIMENSIONS (mm) VS-WM202-HDSDI – V 1.3.0 Page 47 of 48 9/28/12...
  • Page 48 ___________________________________________________________________________ Marshall Electronics, Inc. 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 Fax (310) 333-0688 www.LCDRacks.com sales@lcdracks.com VS-WM202-HDSDI – V 1.3.0 Page 48 of 48 9/28/12...
